Toyota COROLLA 锁芯组件 — Figure 6712

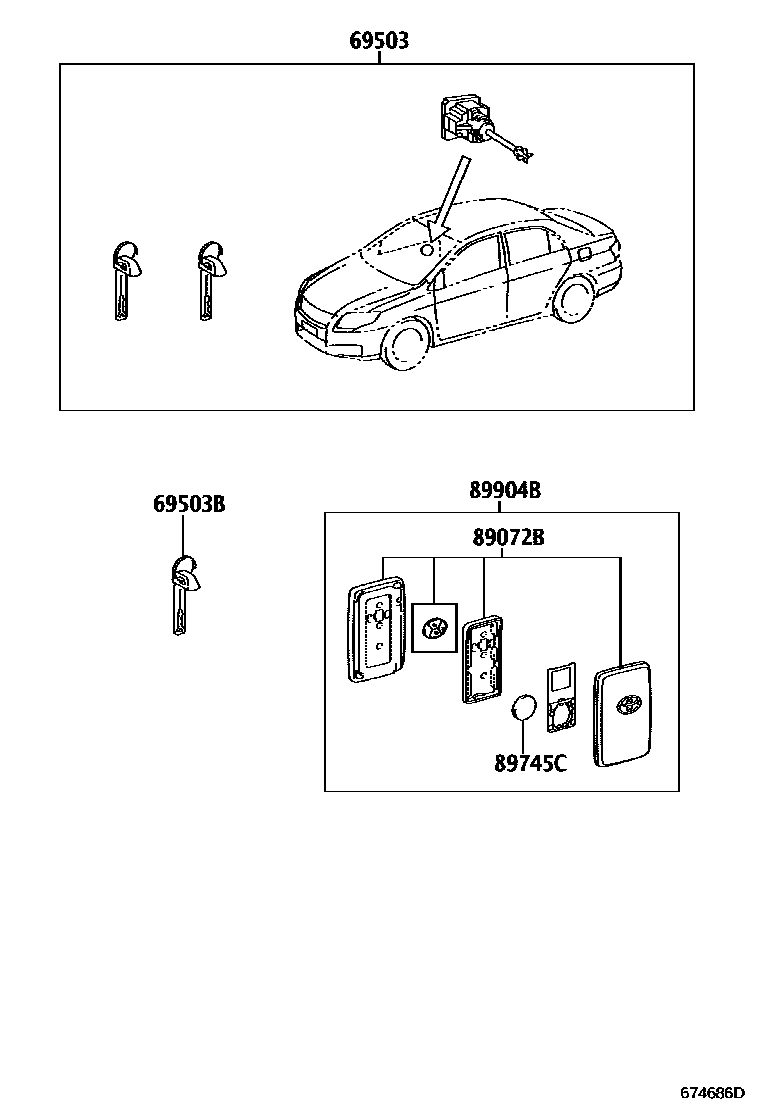

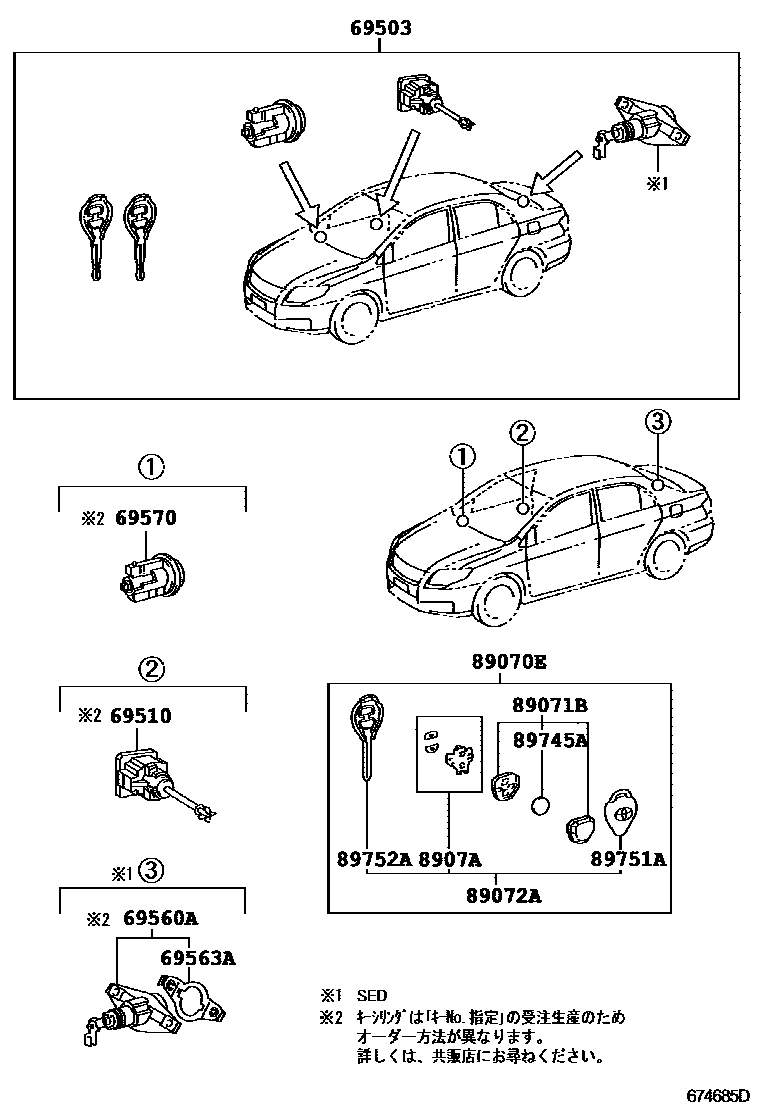

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12C80 · 69005-12C90 · 69005-12D00 |
| 69503B | internal tooth key | 69515-52110 |
| 69510 | Right front door lock cylinder assembly | 69510-20290 |
| 69560A | Trunk door lock core assembly | 69560-52260 |
| 69563A | Trunk door lock cylinder lining | 69563-52060 |
| 69570 | Ignition switch lock cylinder assembly | 69570-22130 |
| 89070E | Remote key assembly | 89070-12350 · 89070-12690 |
| 89071B | Remote key sub-assembly module assembly | 89071-28150 |
| 89072A | Remote key shell assembly | 89072-12100 · 89072-28380 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12450 · 89072-12460 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52020 |
| 89751A | Transmitter housing cover | 89751-28070 · 89751-52140 |
| 89752A | transmitter housing | 89752-12080 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12011 · 89904-12020 · 89904-12071 · 89904-12080 · 89904-12160 · 89904-12410 · 89904-20010 · 89904-20030 |
