Toyota COROLLA 后门板和后门玻璃 — Figure 6705

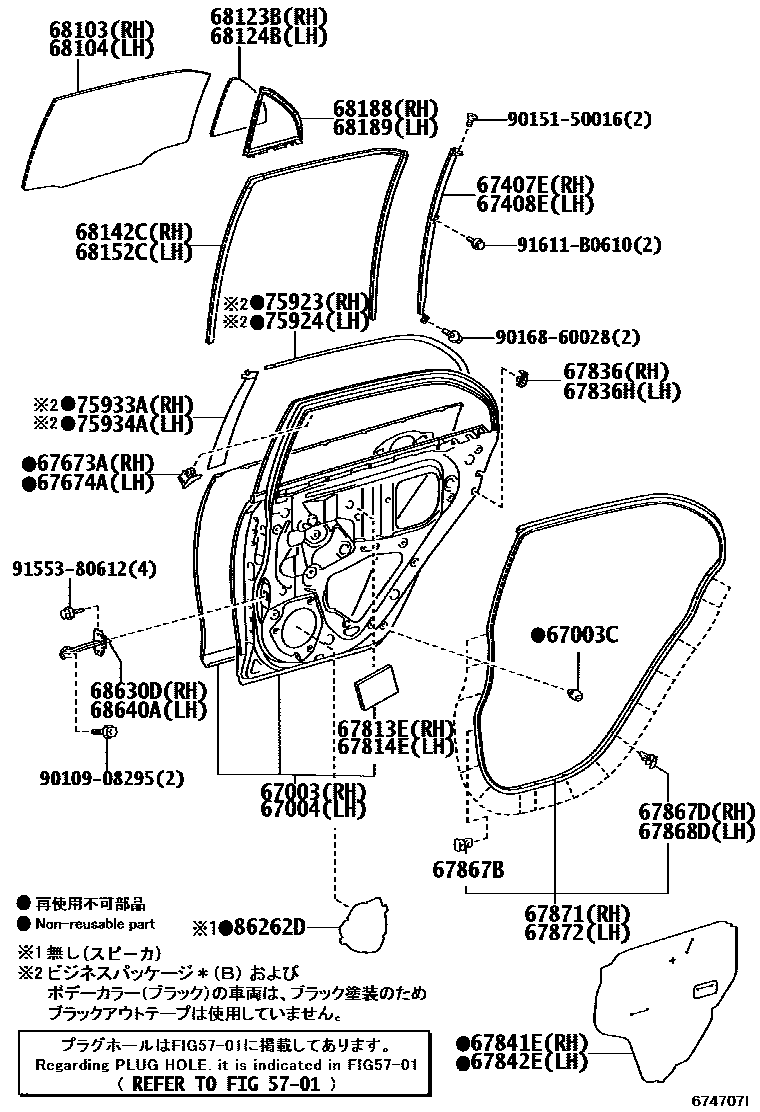

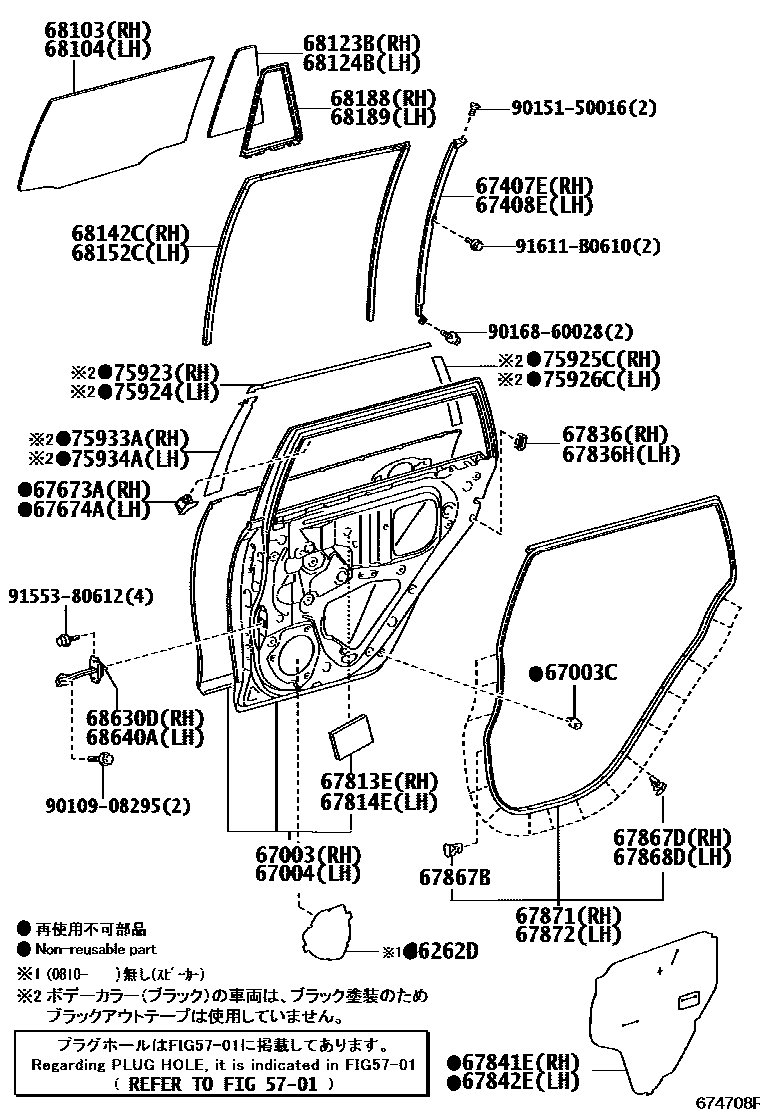

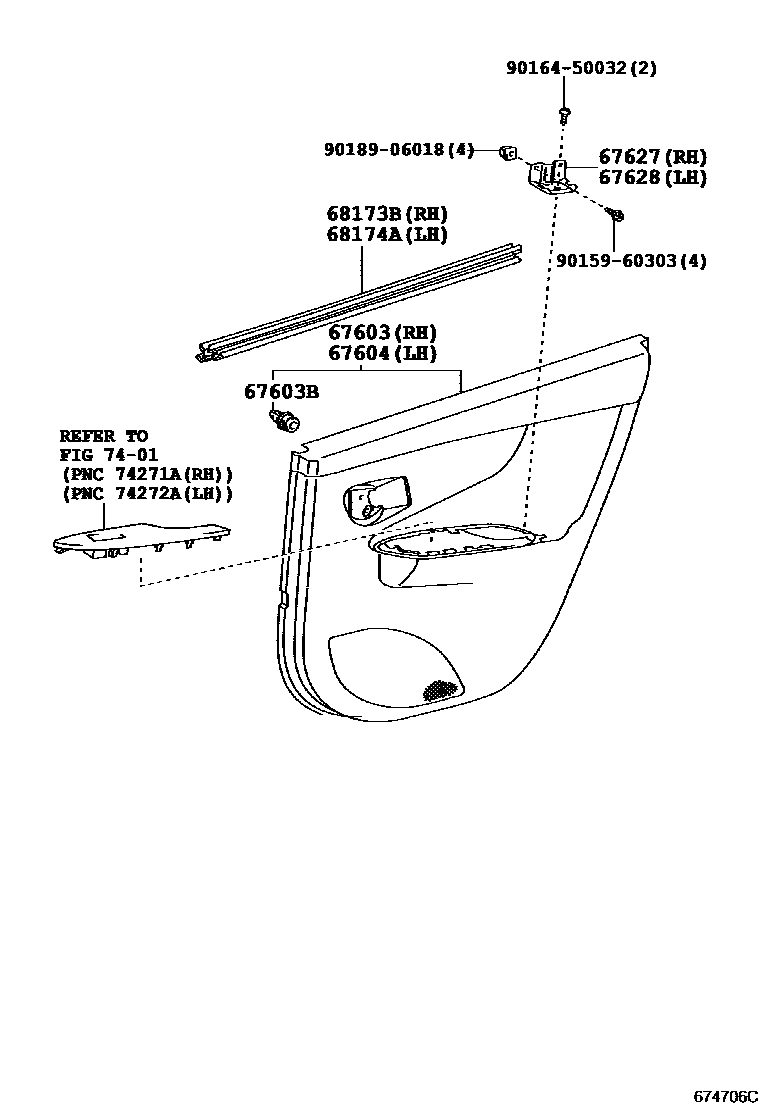

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12A30 · 67003-12A31 · 67003-13320 · 67003-13321 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-12A30 · 67004-12A31 · 67004-13320 · 67004-13321 |
| 67407E | Right rear door window divider sub-assembly | 67407-12300 · 67407-13090 |
| 67408E | Left rear door window divider sub-assembly | 67408-12300 · 67408-13090 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67627 | Right rear door trim panel bracket | 67625-12190 |
| 67628 | Left rear door trim panel bracket | 67625-12190 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67813E | Right side enclosure silencer panel | 67817-47010 |
| 67814E | Left side enclosure silencer panel | 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-12370 |
| 67842E | Left rear door access hole cover | 67842-12180 |
| 67867B | Door seal strip clip (for rear door) | 90467-04034 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12540 · 67871-13170 |
| 67872 | Left rear door sealing strip | 67872-12540 · 67872-13160 |
| 68103 | Right rear door glass sub-assembly | 68113-12780 · 68113-12790 · 68113-13320 · 68113-13330 |
| 68104 | Left rear door glass sub-assembly | 68114-12780 · 68114-12790 · 68114-13320 · 68114-13330 |
| 68123B | Right rear door corner window glass | 68123-12810 · 68123-12820 · 68123-13300 · 68123-13310 |
| 68124B | Left rear door corner window glass | 68124-12810 · 68124-12820 · 68124-13290 · 68124-13300 |
| 68142C | Right rear door glass lift slot | 68142-12300 · 68142-13180 |
| 68152C | Left rear door glass lift slot | 68152-12210 · 68152-13140 |
| 68173B | Right rear door glass inner sealing strip | 68173-12320 |
| 68174A | Left rear door glass inner sealing strip | 68174-12180 |
| 68188 | Right rear door corner window seal | 68188-12340 · 68188-13120 |
| 68189 | Left rear door corner window seal | 68189-12340 · 68189-13120 |
| 68630D | Right rear door opening limiter assembly | 68630-12140 · 68630-12141 |
| 68640A | Left rear door opening limiter assembly | 68630-12140 · 68630-12141 |
| 75923 | No. 2 right side light-shielding film | 75923-12071 · 75923-13051 |
| 75924 | No. 2 left shading film | 75924-12071 · 75924-13051 |
| 75925C | No. 3 right side light-blocking film | 75925-13040 |
| 75926C | No. 3 left shading film | 75926-13040 |
| 75933A | No. 5 right side light-shielding film | 75935-12020 · 75935-13010 |
| 75934A | No. 5 left shading film | 75936-12020 · 75936-13010 |
| 86262D | Rear door speaker cover | 86262-12010 · 86262-32020 |
