Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 36 PNC and OE references.

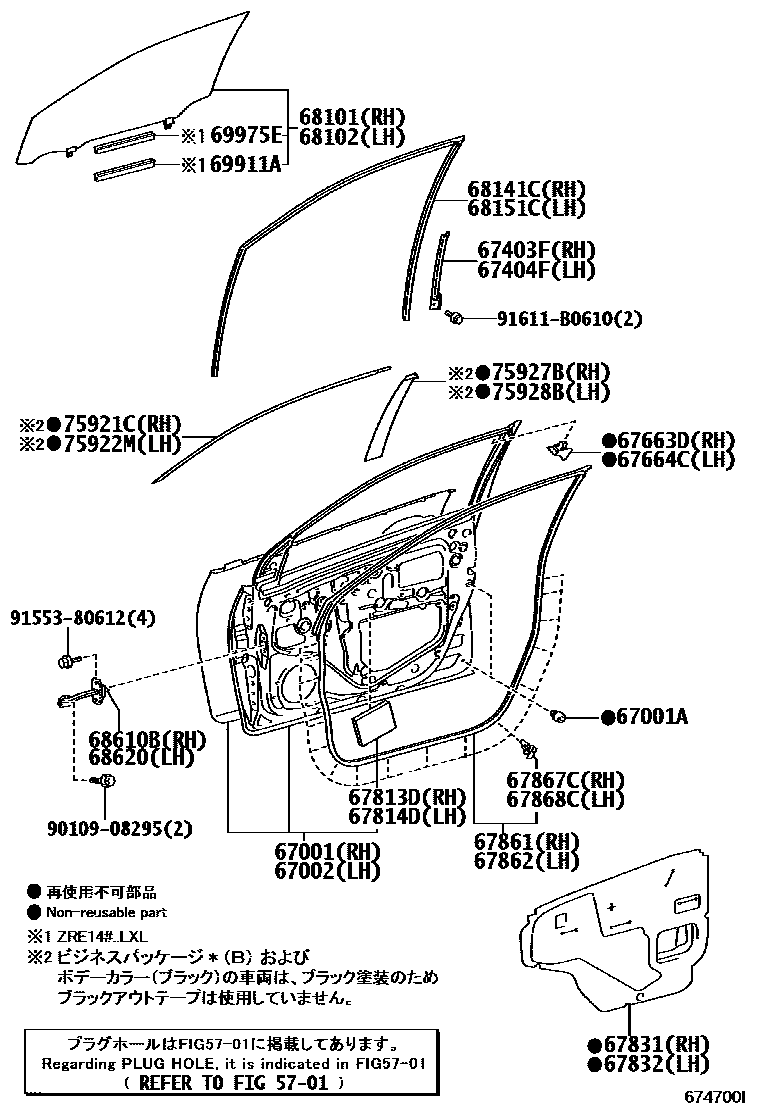

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 674700I
前门板和前门玻璃 — 674700I (200609 – 999999)

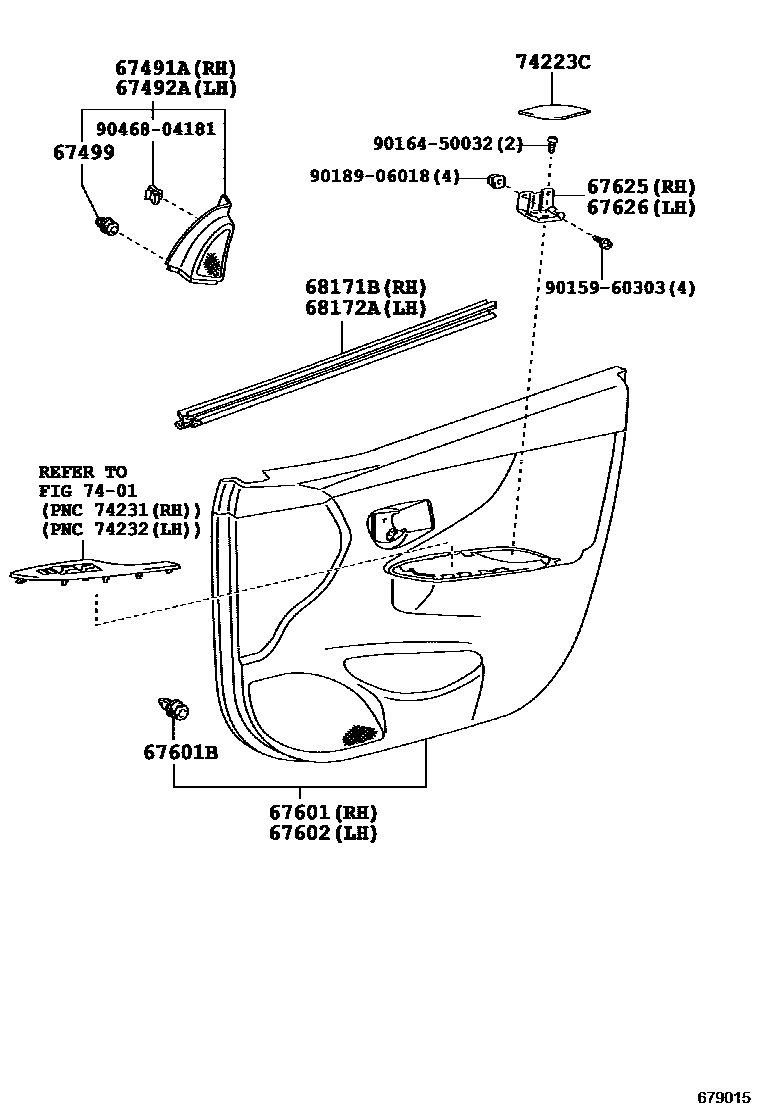

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 679015
前门板和前门玻璃 — 679015 (200609 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-12A40 · 67001-12A80
67001AFront door panel cushion90541-09124 · 90541-09143
67002Left front door panel sub-assembly67002-12A40 · 67002-12A80
67403FRight front door rear lower door frame sub-assembly67403-12270
67404FLeft front door rear lower door frame sub-assembly67404-12260
67491ARight front door lower door frame bracket decorative strip67491-12520 · 67491-12530
67492ALeft front door lower door frame bracket decorative strip67492-12520 · 67492-12530
67499Front door lower door frame bracket trim strip fixing67771-12060
67601BCatch (for front door trim panel)90467-09206
67625Right front door trim panel bracket67625-12190
67626Left front door trim panel bracket67625-12190
67663DRight door frame decorative strip67663-48010
67664CLeft door frame decorative strip67664-48010
67813DRight side enclosure silencer panel67817-47010
67814DLeft side enclosure silencer panel67817-47010
67831Right front door access hole cover67831-12680 · 67831-12690
67832Left front door access hole cover67832-12460 · 67832-12470
67861Right front door seal67861-12A30 · 67861-12A40
67862Left front door seal67862-12A30 · 67862-12A40
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68101-12B00 · 68101-12B10
68102Left front door glass sub-assembly68102-12B00 · 68102-12B10
68141CRight front door glass lift channel68141-12570
68151CLeft front door glass lift channel68151-12270
68171BRight front door glass inner sealing strip68171-12350
68172ALeft front door glass inner sealing strip68172-12270
68610BRight front door opening limiter assembly68610-12220 · 68610-12221
68620Left front door opening limiter assembly68610-12220 · 68610-12221 · 68620-12160 · 68620-12161
69911ANo. 1 front door glass slot69911-13010 · 69955-47010
69975ENo. 1 front door glass groove filler69975-16020 · 69975-47010
74223Cdoor armrest cover74223-12140 · 74224-12080
75921CNo. 1 right side light-shielding film75921-12091 · 75921-13020
75922MNo. 1 left shading film75922-12091 · 75922-13020
75927BNo. 4 right side light-blocking film75927-12020 · 75927-13010
75928BNo. 4 left shading film75928-12020 · 75928-13010
