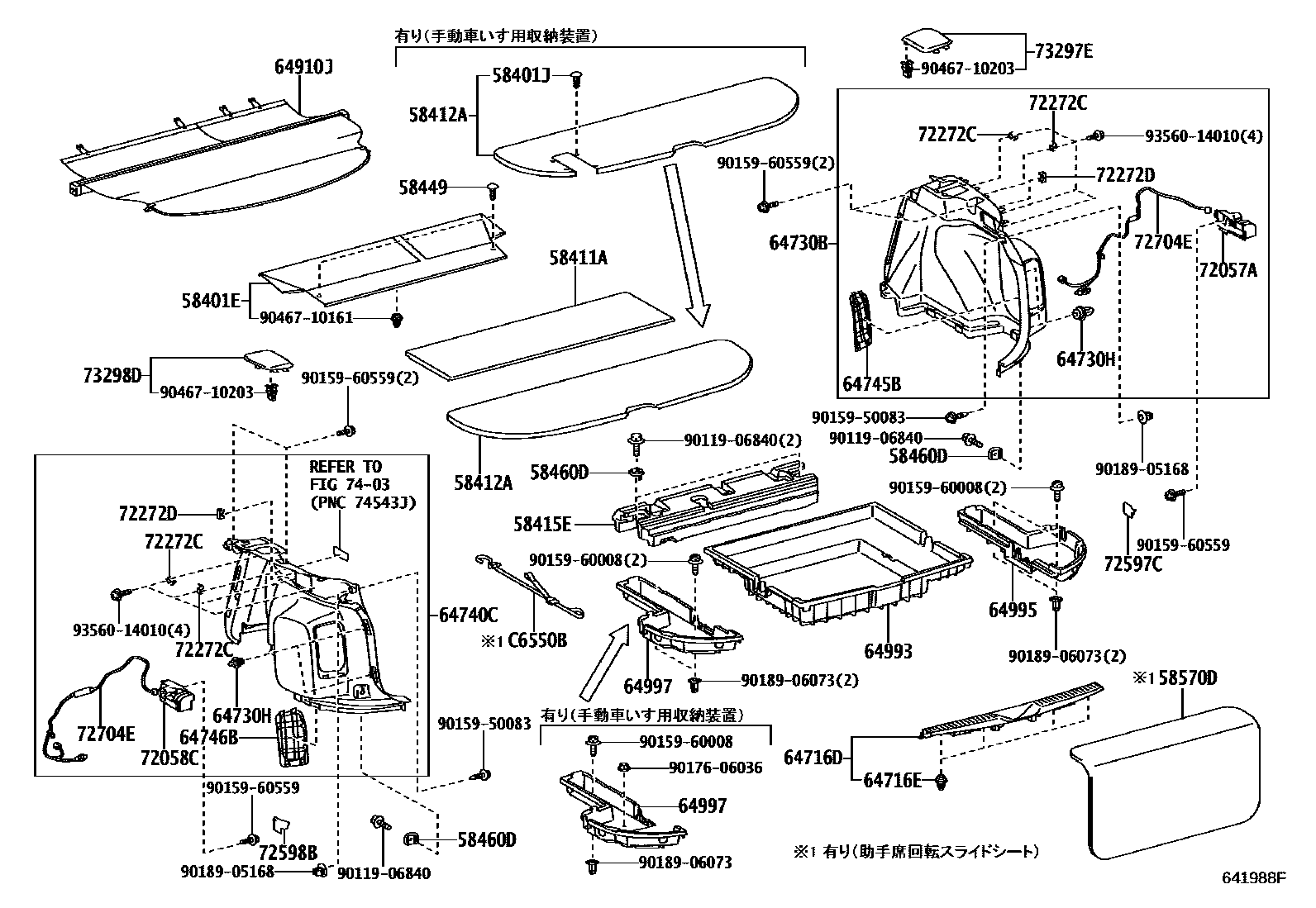

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58415E | Rear floor panel No. 1 | 58415-13100 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58570D | Rear carpet assembly | 58517-13010 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64993 | Bottom floor box | 64993-13040 |
| 64995 | Bottom right floor box | 64995-13040 |
| 64997 | Bottom left floor box | 64997-12040 · 64997-13040 |
| 72272C | Seat rail control cable clip | 72272-13010 |
| 72272D | No. 2 seat slide rail control cable clip | 72272-13020 |
| 72704E | Rear seat backrest tilt control cable | 72704-13050 |
| C6550B | No. 1 wheelchair fixing belt assembly | C6550-12020 |
