Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

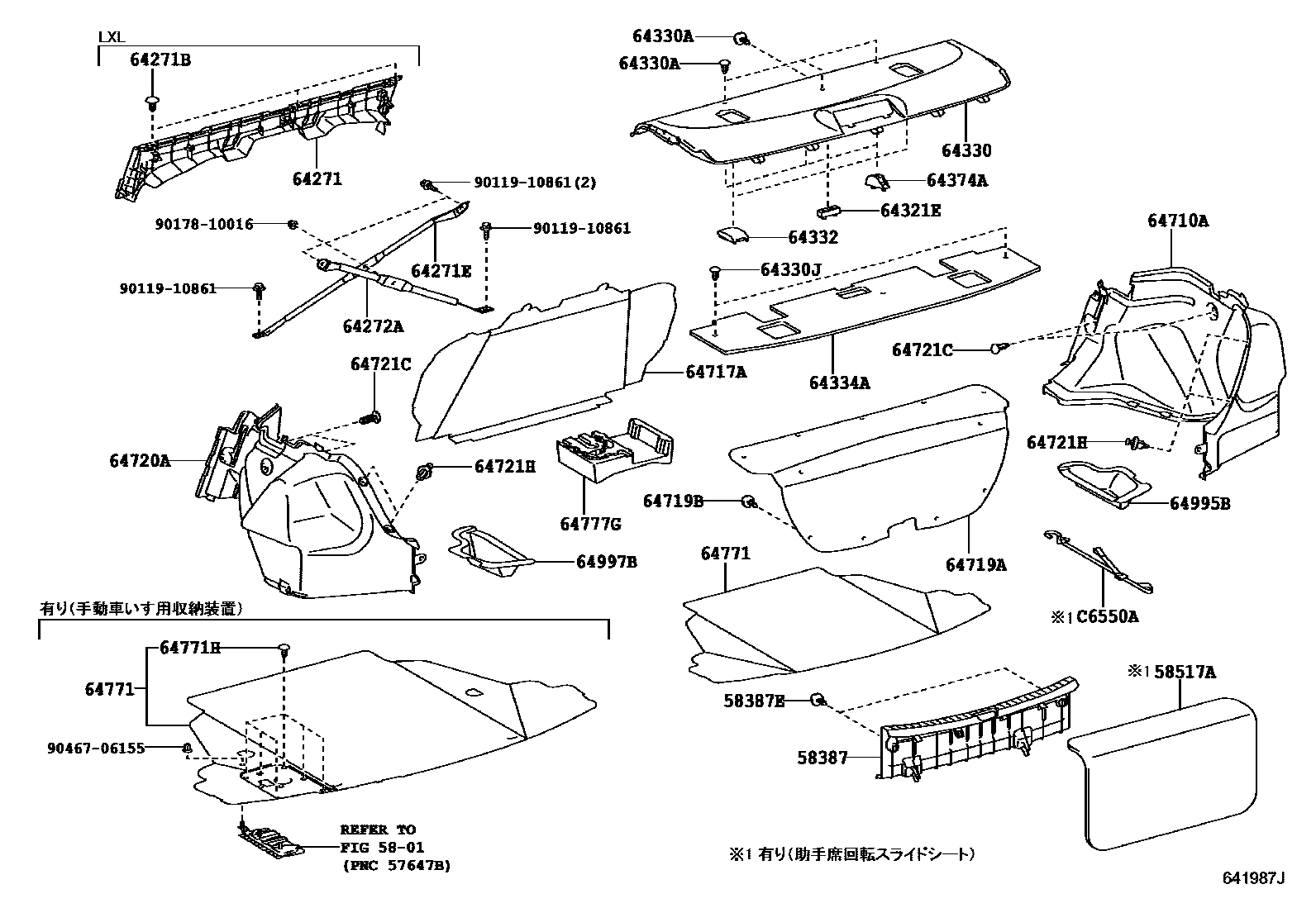

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-12080 |
| 58517A | Rear floor mat No. 2 | 58517-13010 |
| 64271E | compartment partition | 64241-12050 |
| 64272A | Left compartment partition | 64242-12050 |
| 64321E | Glove box decorative panel bracket | 64321-12240 |
| 64334A | Glove box decorative mat | 64334-12400 |
| 64374A | Glove box decorative panel bracket | 64374-12030 |
| 64717A | Luggage front decorative cover | 64717-12120 |
| 64721H | Clip (suitcase) | 90467-07164 |
| 64777G | Spare tire cushion | 64777-12080 |
| 64995B | Bottom right floor box | 64995-12050 |
| 64997B | Bottom left floor box | 64997-12060 |
| C6550A | No. 1 wheelchair fixing belt assembly | C6550-12010 |
