Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

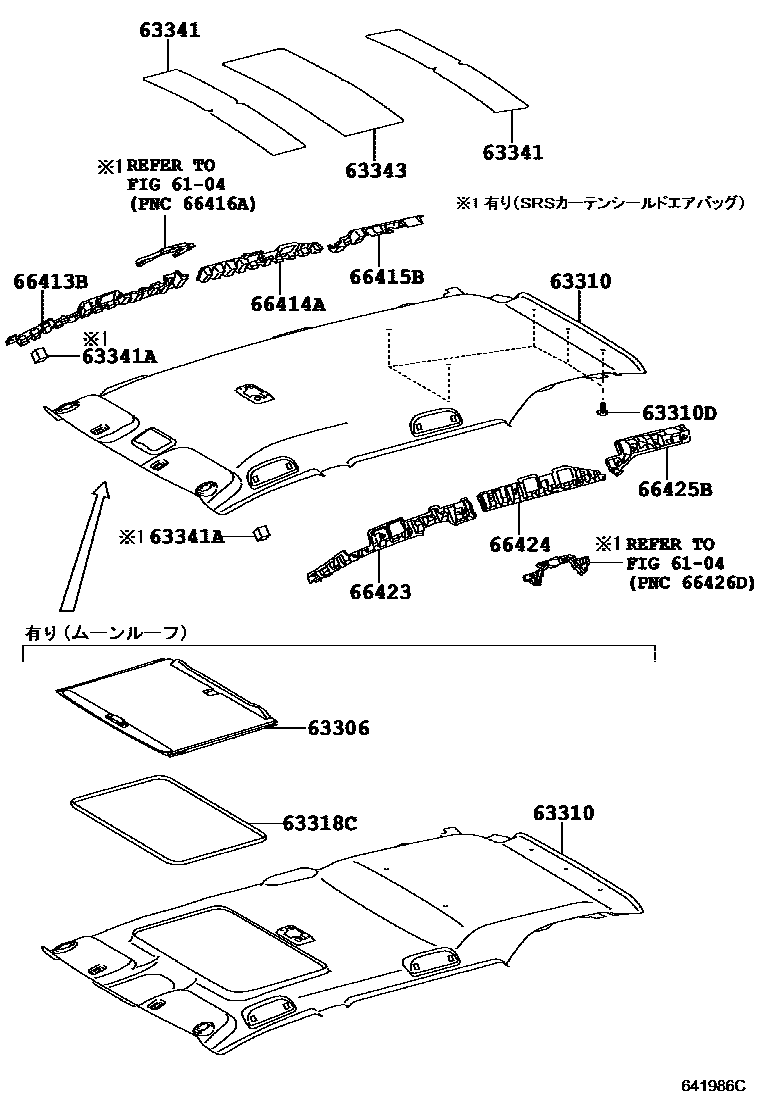

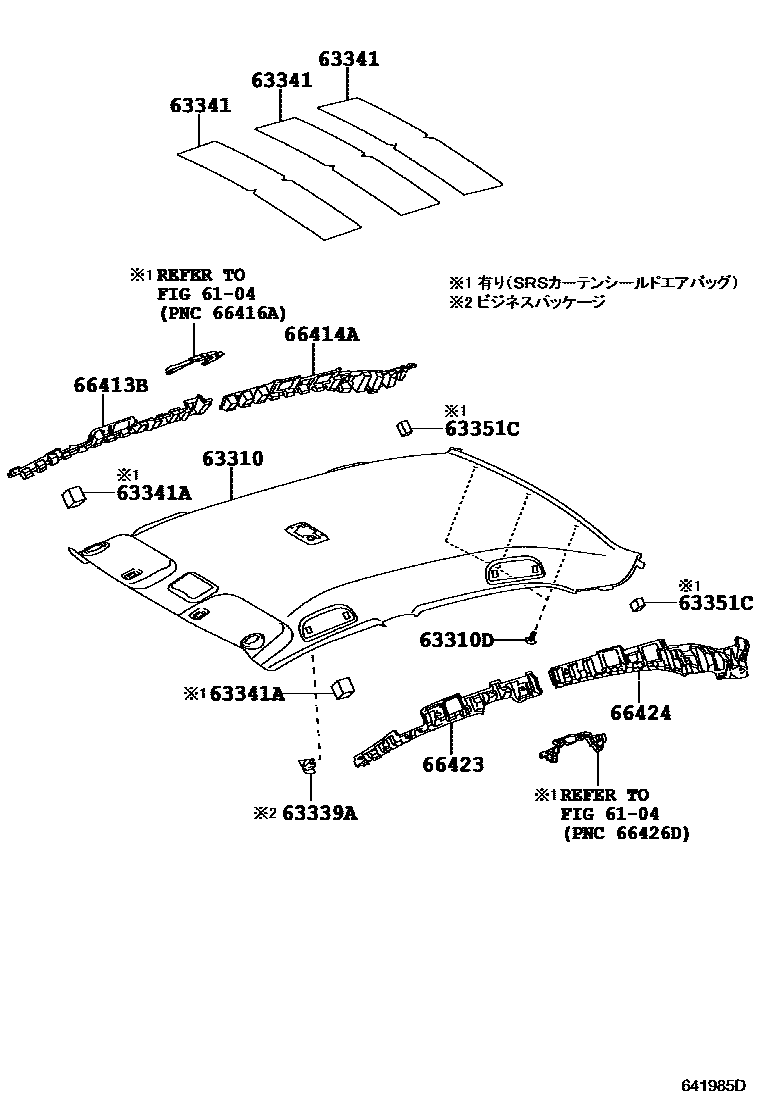

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12320 · 63341-12330 · 63341-16010 |
| 63341A | No. 1 roof silencer | 69759-52010 |
| 63343 | No. 3 roof muffler pad | 63343-12050 |
| 63351C | roof lining pads | 63351-12040 |
| 66413B | Right front longitudinal member spacer | 66413-12050 |
| 66414A | Right rear longitudinal member spacer | 66414-12060 · 66414-13030 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-13030 |
| 66423 | Left front longitudinal member spacer | 66423-12050 |
| 66424 | Left rear longitudinal member spacer | 66424-12060 · 66424-13030 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-13030 |
