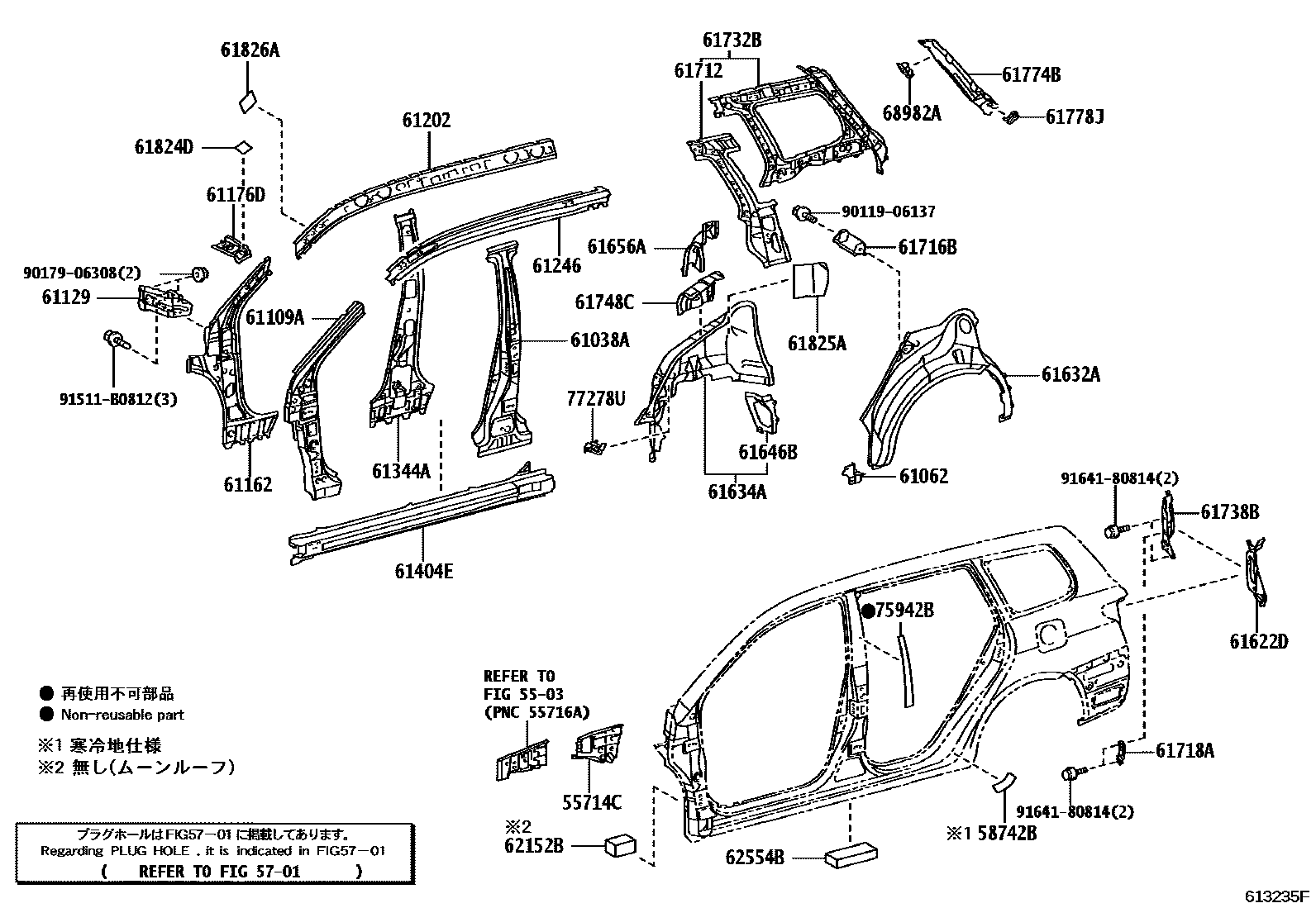

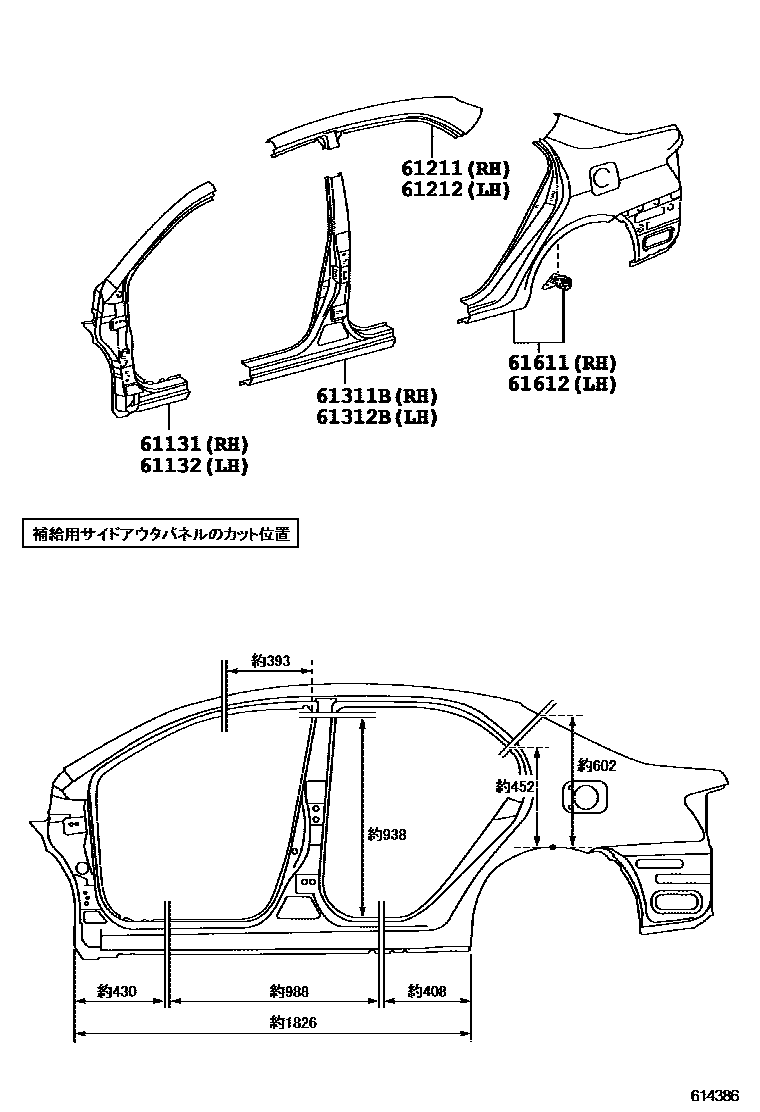

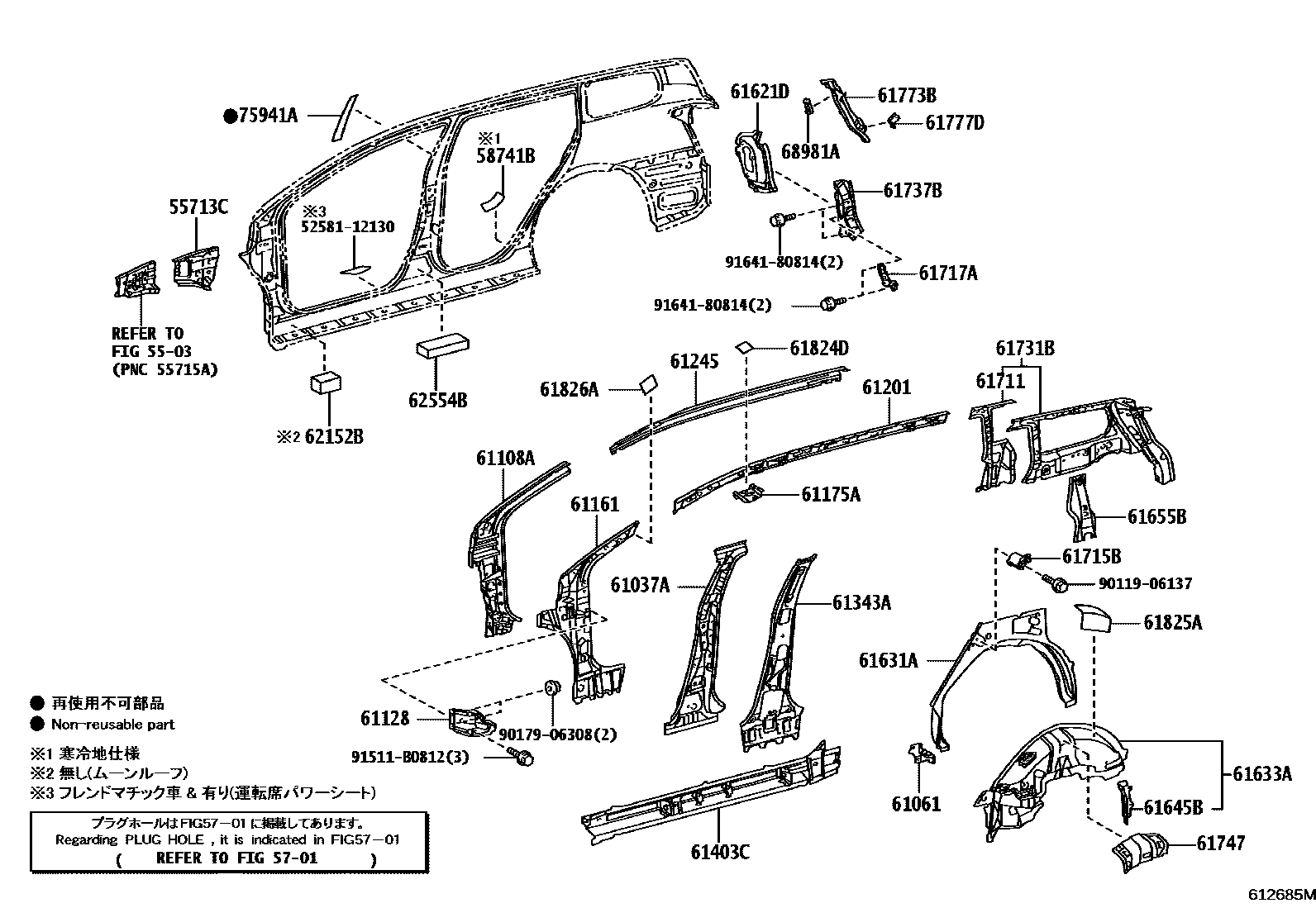

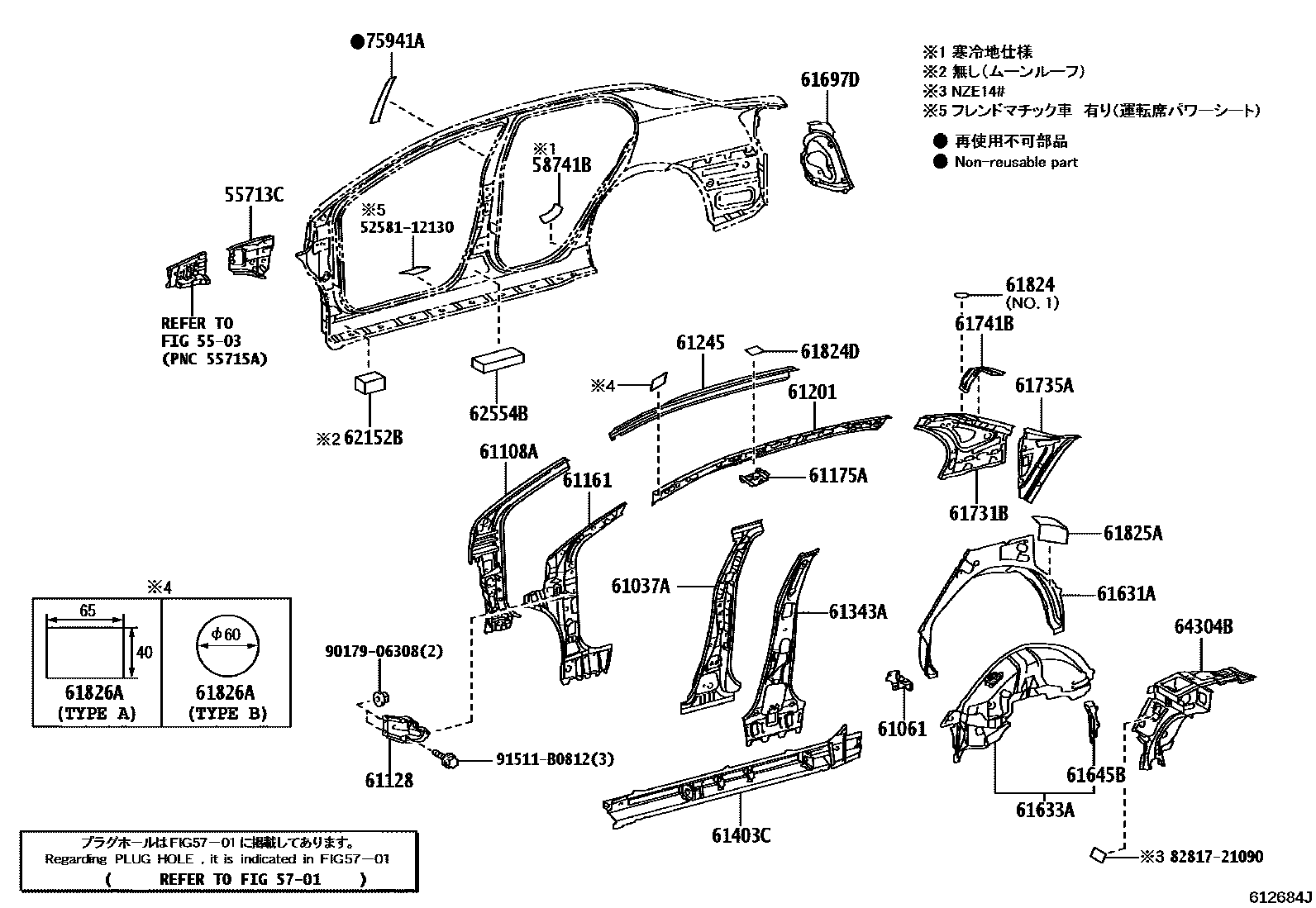

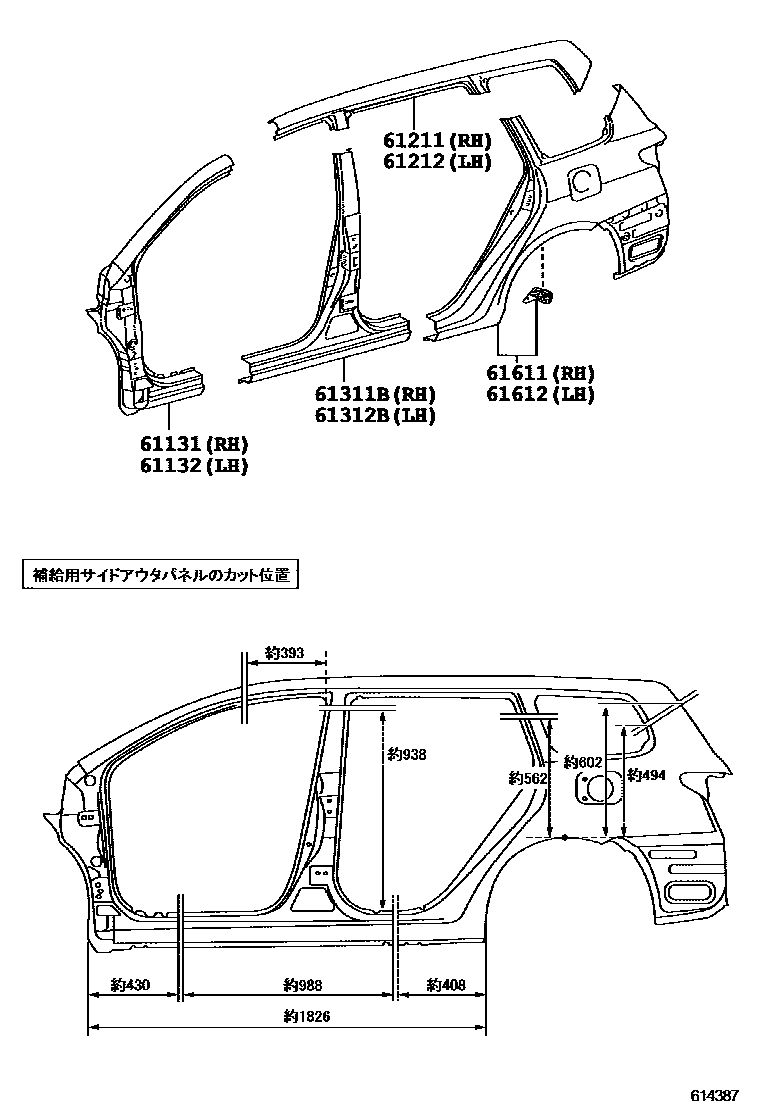

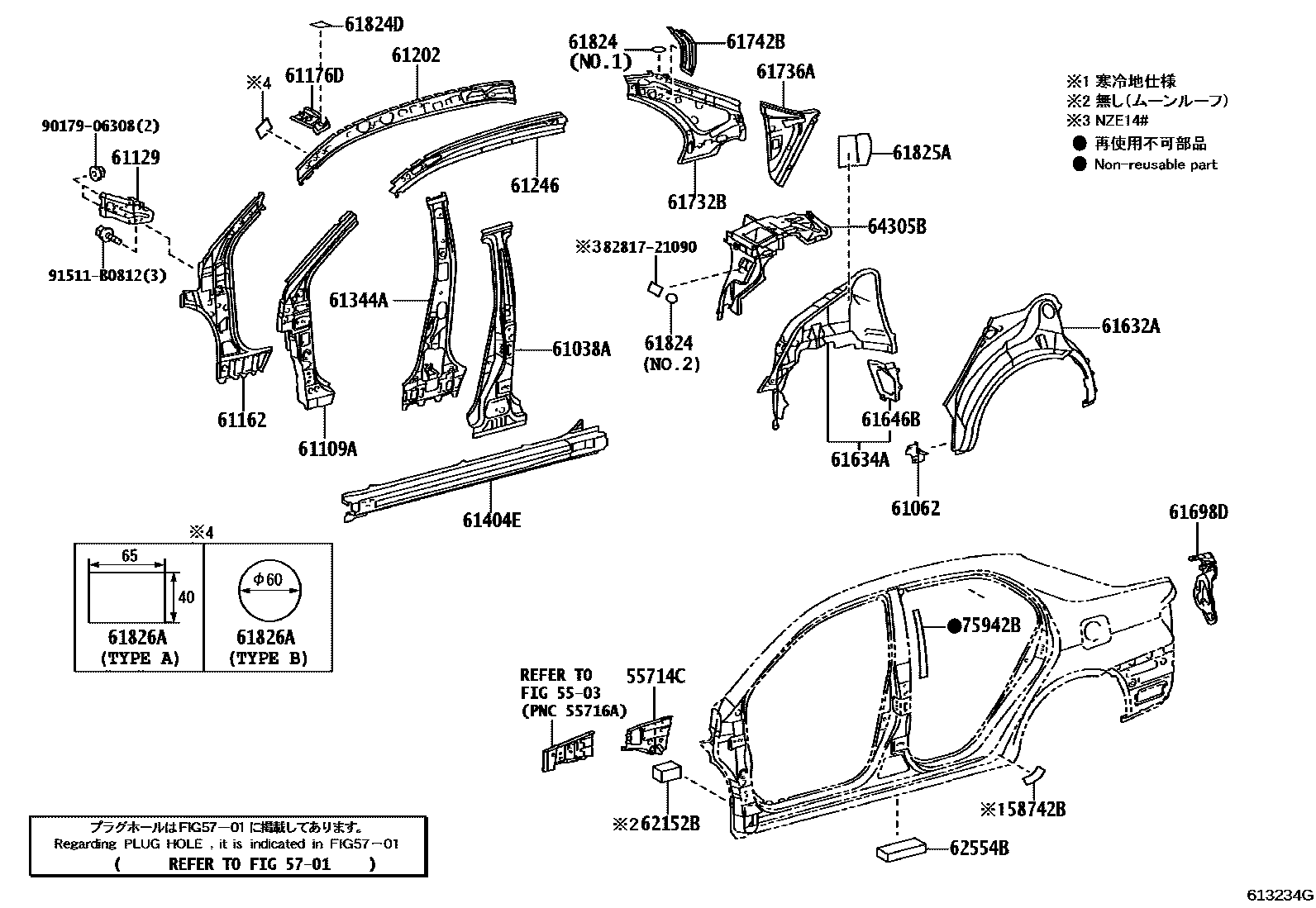

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 6 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55713C | Right front wall upper side panel | 55713-12140 |
| 55714C | Left front wall upper side panel | 55714-12140 |
| 58741B | Right side enclosure protection panel | 58741-12180 |
| 58742B | Left side enclosure protection panel | 58742-12170 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-13901 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-13901 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-12020 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-12040 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12270 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12260 |
| 61128 | Right front wall side panel reinforcement | 61103-12230 |
| 61129 | Left front wall side panel reinforcement | 61104-12260 |
| 61131 | Right body outer front upper pillar | 61131-12750 · 61131-13100 |
| 61132 | Left body outer front upper pillar | 61132-12730 · 61132-13100 |
| 61161 | Right upper body inner front pillar | 61023-12380 |
| 61162 | Left side inner front upper pillar | 61024-12380 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12240 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12240 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12240 · 61201-13010 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12230 · 61202-13010 |
| 61211 | Roof right outer longitudinal beam | 61211-12500 · 61211-13110 |
| 61212 | Roof left outer longitudinal beam | 61212-12500 · 61212-13110 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12090 · 61245-13080 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12090 · 61246-13070 |
| 61311B | Right body outer center pillar | 61311-12430 · 61311-13070 |
| 61312B | Left body outer center pillar | 61312-12470 · 61312-13070 |
| 61343A | Right body inner center pillar | 61032-12010 |
| 61344A | Left body inner center pillar | 61042-12010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12080 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12090 |
| 61611 | Right side hoarding | 61601-12A30 · 61601-13680 · 61601-13690 |
| 61612 | left side panel | 61602-12A30 · 61602-13740 · 61602-13750 |
| 61621D | Back door right opening slot | 61621-13080 |
| 61622D | Rear door left opening slot | 61622-13080 |
| 61631A | Right wheel cover outer panel | 61631-12460 |
| 61632A | Left side wheel cover outer panel | 61632-12480 |
| 61633A | Right wheel housing lining panel | 61607-12B10 · 61607-12B20 · 61607-12B30 · 61607-12B40 · 61607-13916 · 61607-13917 |
| 61634A | Left side wheel housing lining panel | 61608-12B20 · 61608-12B30 · 61608-12B40 · 61608-12B50 · 61608-13918 · 61608-13919 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61655B | Right side wheel cover inner corner panel | 61655-13020 |
| 61656A | Left side wheel housing inner corner panel | 61656-13021 |
| 61697D | Right side enclosure end cover | 61697-12911 |
| 61698D | Left side enclosure end cover | 61698-12912 |
| 61711 | Roof right side outer panel | 61711-13140 |
| 61712 | Roof left outer panel | 61712-13140 |
| 61715B | Right front roof inner extension | 61715-13070 |
| 61716B | Left front roof inner extension | 61715-13070 |
| 61717A | Right side panel extension reinforcement | 61717-13030 |
| 61718A | Left side bulkhead extension reinforcement | 61718-13030 |
| 61731B | Roof right inner panel | 61705-13914 · 61731-12800 |
| 61732B | Roof left inner panel | 61706-13914 · 61732-12750 |
| 61735A | Right rear roof inner panel | 61735-12400 |
| 61736A | Left rear roof inner panel | 61736-12400 |
| 61737B | Right inner lower panel of the roof | 61737-13070 |
| 61738B | Roof left inner lower panel | 61738-13060 |
| 61741B | Rear window opening right reinforcement | 61741-12200 |
| 61742B | Rear window opening left reinforcement | 61742-12150 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13070 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13100 |
| 61773B | Back door upper right opening frame | 61773-13040 |
| 61774B | Back door upper left opening frame | 61774-13040 |
| 61777D | Back door right block fixing piece | 61777-13010 |
| 61778J | Back door left block fixing piece | 61777-13010 |
| 61824 | Noise Control Panel No. 1 | 61824-12050 · 61824-12060 |
| 61824D | Noise Control Panel No. 1 | 61824-12050 · 61824-12070 |
| 61825A | Noise Control Panel No. 2 | 61825-12060 · 61825-12070 |
| 61826A | Noise Control Panel No. 3 | 61824-12060 · 61824-12070 · 61826-52020 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12080 |
| 62554B | No. 4 column pad | 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12090 · 64304-12091 · 64304-12100 · 64304-12101 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12100 · 64305-12101 · 64305-12110 · 64305-12111 |
| 68981A | Back door right side support rod fixing | 68981-13050 |
| 68982A | Back door left support rod fixing | 68982-13040 |
| 75941A | Right center pillar trim | 75941-12050 |
| 75942B | Left center pillar trim | 75942-12050 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-12040 |
