Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 3 images and 10 PNC and OE references.

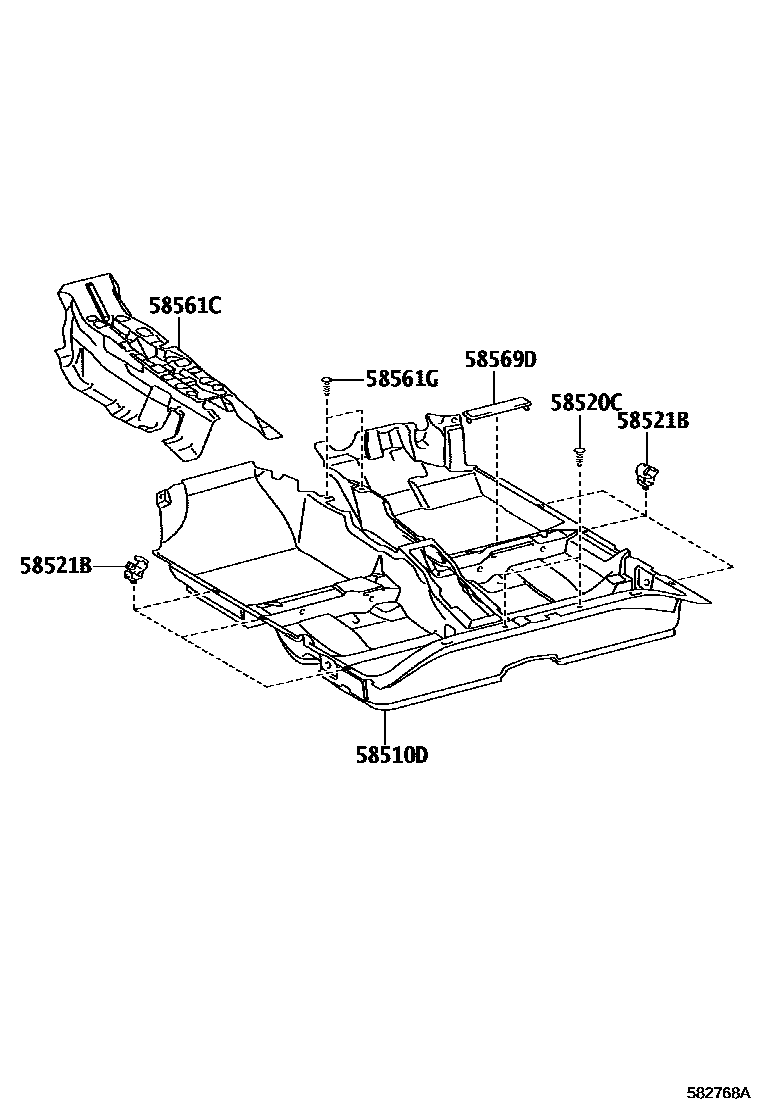

Toyota COROLLA 地板垫和地毯 EPC diagram — 582768A
地板垫和地毯 — 582768A (200609 – 999999)

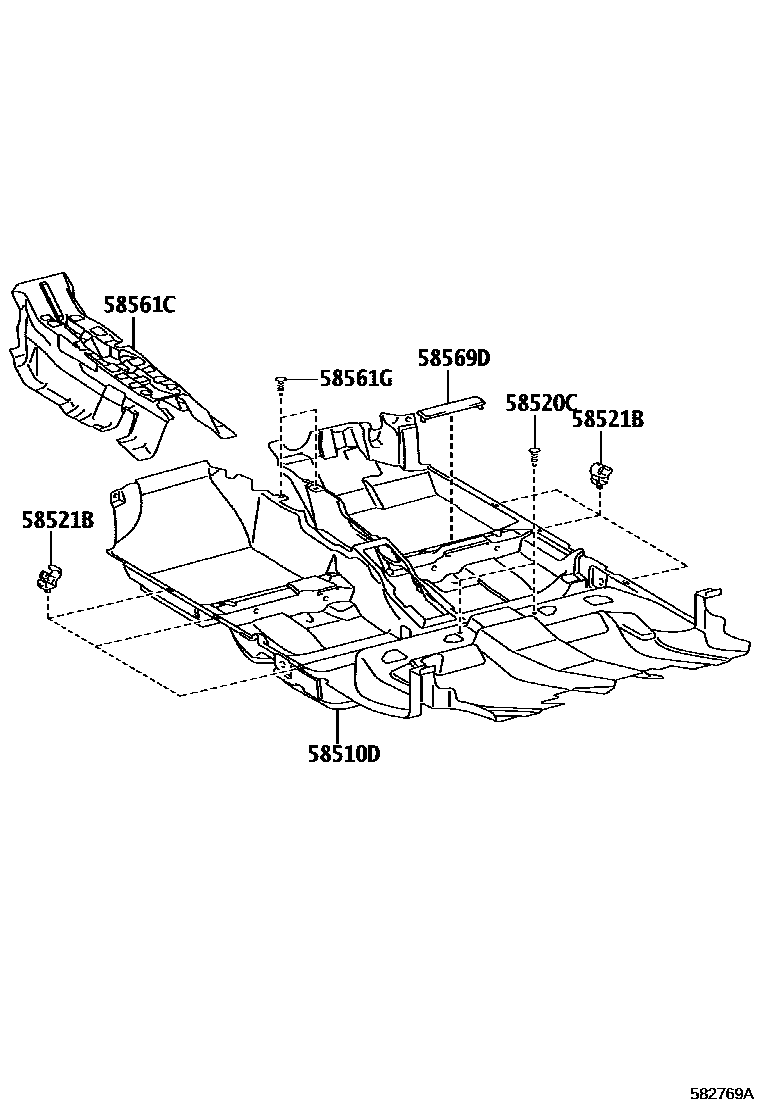

Toyota COROLLA 地板垫和地毯 EPC diagram — 582769A
地板垫和地毯 — 582769A (200609 – 999999)

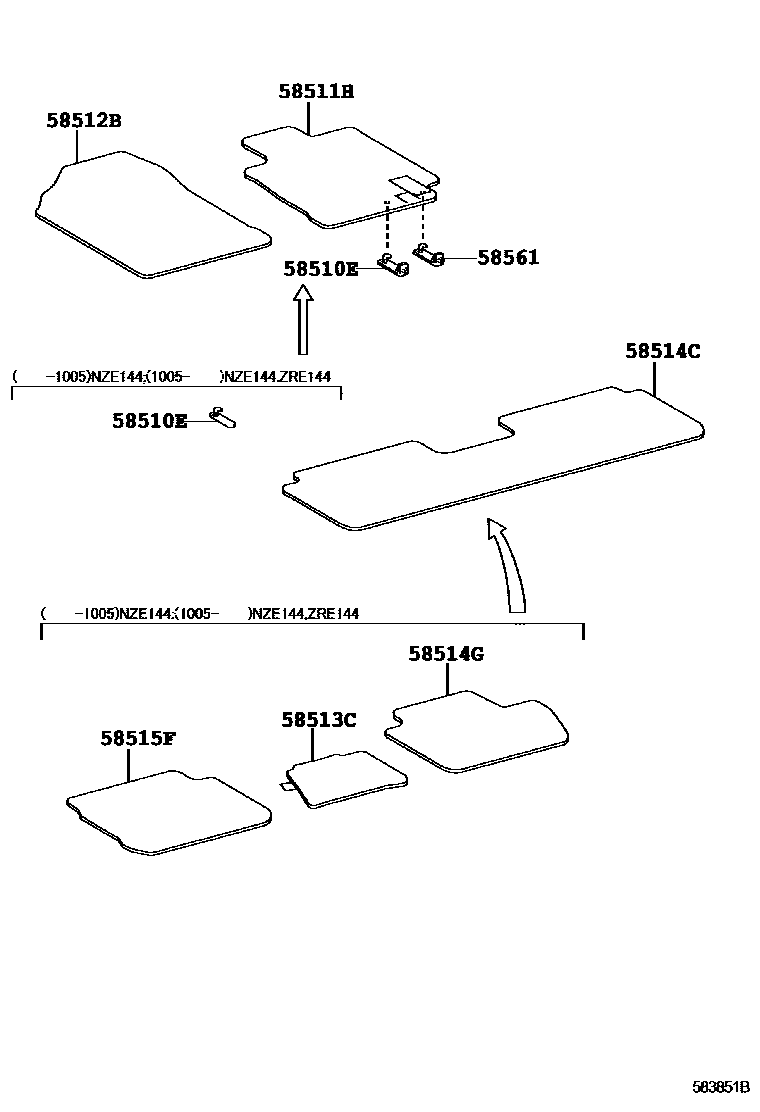

Toyota COROLLA 地板垫和地毯 EPC diagram — 583851B
地板垫和地毯 — 583851B (200910 – 999999)

PNC and OE references

PNCPart nameOE numbers
58510ECarpet fasteners58512-WY070 · 58512-WY090
58511HFront floor right mat58511-WY040 · 58511-WY050
58512BFront floor left mat58512-WY060 · 58512-WY080
58513CFront floor center mat58513-WY040
58514Crear floor mat58514-WY040
58514GRear floor right mat58514-WY050
58515FRear floor left mat58515-WY030
58521Bcarpet hook58521-12140
58561Floor mat fastener No. 158561-WY030
58561CFront floor silencer No. 158561-12060 · 58561-12070 · 58561-12071
