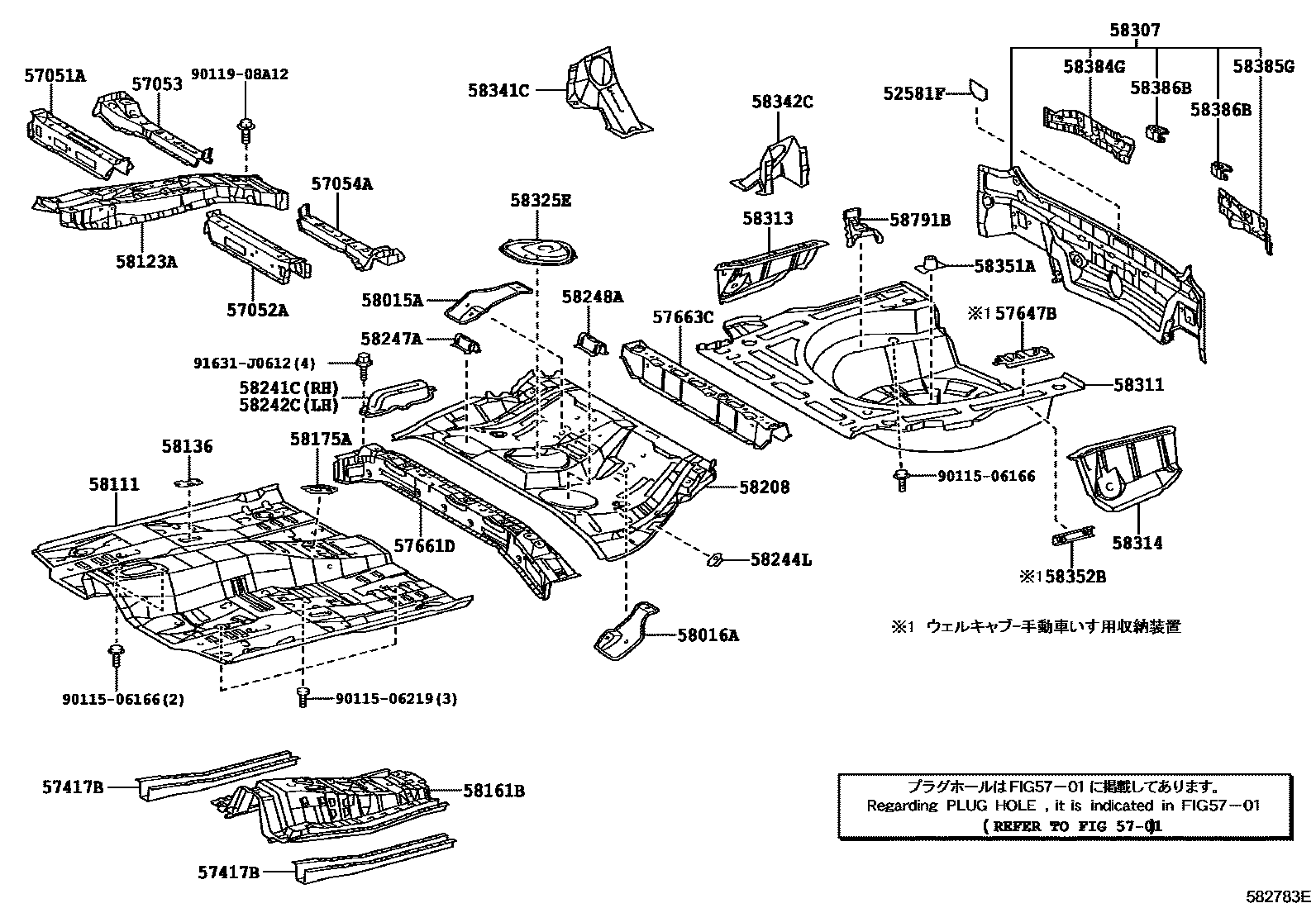

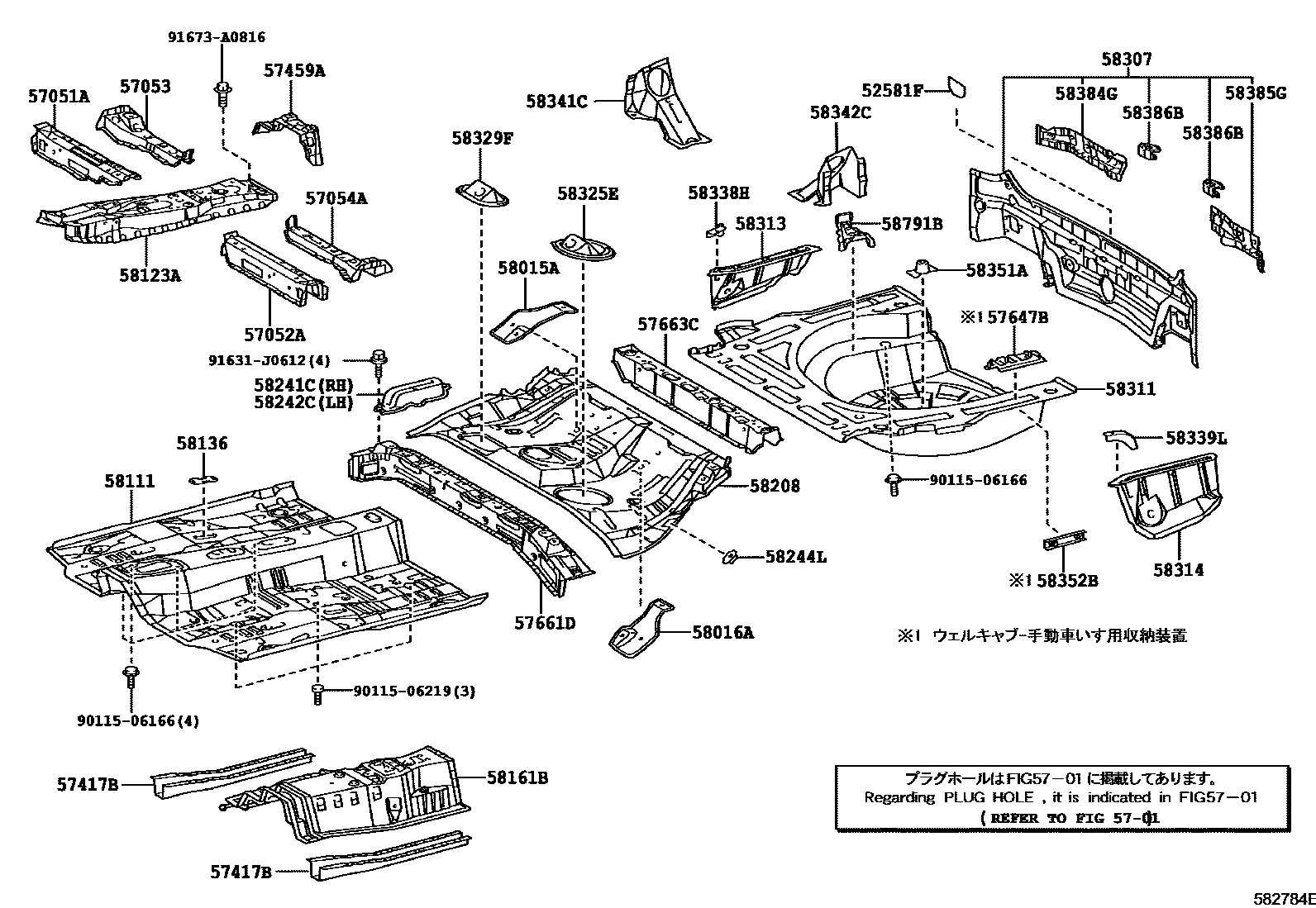

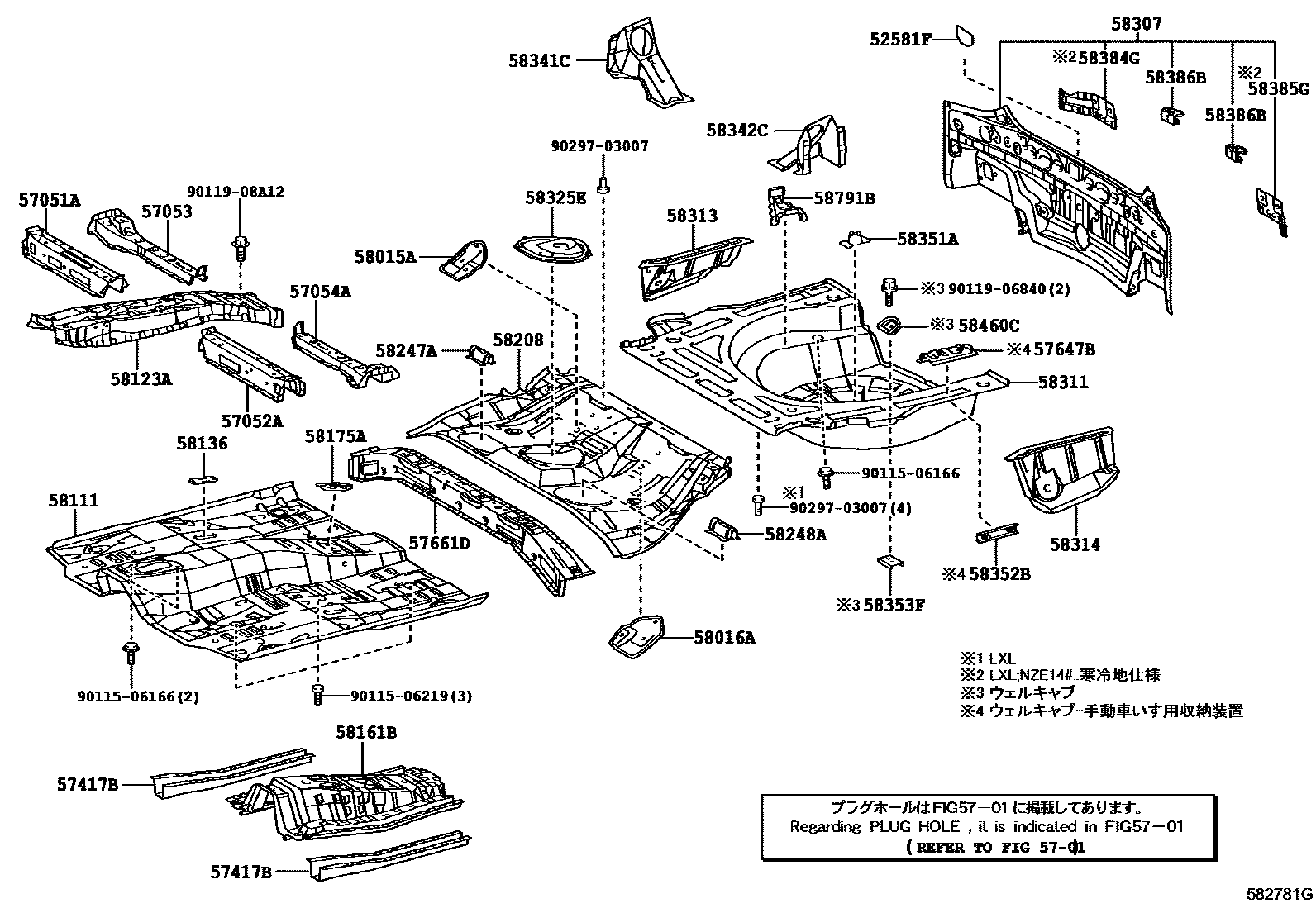

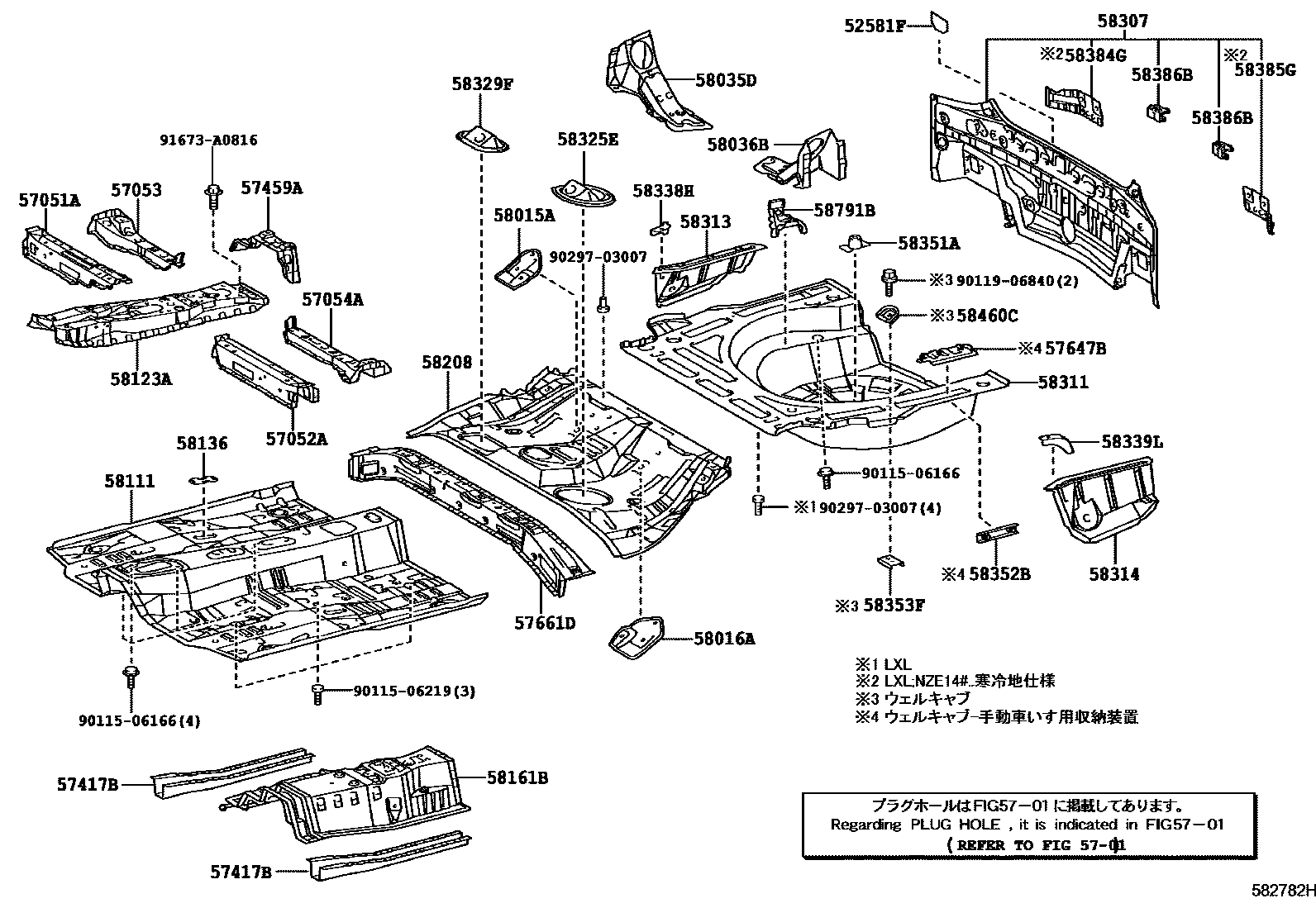

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 4 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-13030 |
| 57051A | Front floor right cross member sub-assembly | 57051-12070 · 57051-12071 · 57051-12080 |
| 57052A | Front floor left cross member sub-assembly | 57052-12020 · 57052-12021 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-12020 · 57053-12030 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-12020 |
| 57417B | Front underfloor reinforcement | 57417-12120 |
| 57459A | Front floor beam No. 2 | 57459-12010 |
| 57647B | Left rear longitudinal member to body reinforcement | 57647-12080 |
| 57661D | rear floor front cross member | 57407-13140 · 57407-13141 · 57661-12050 · 57661-12052 |
| 57663C | Rear floor center cross member | 57663-13080 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12100 · 58015-12110 · 58015-13050 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12070 · 58016-13050 |
| 58035D | Rear floor right side panel extension sub-assembly | 58035-12010 |
| 58036B | Rear floor left side panel extension sub-assembly | 58036-12010 |
| 58111 | front floor pan | 58111-12916 · 58111-12917 · 58111-12918 |
| 58123A | shift lever bracket | 58013-12140 · 58013-12150 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-12160 · 57805-12161 · 57805-12170 |
| 58175A | No. 1 parking brake base reinforcement | 58176-12030 |
| 58208 | central floor base | 58211-12680 · 58211-12690 · 58211-12700 · 58211-12710 · 58211-13320 · 58211-13330 |
| 58241C | Floor right panel | 58241-13020 |
| 58242C | Floor left panel | 58242-13020 |
| 58244L | Rear right seat cushion mounting bracket | 58244-13030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12080 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12080 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-12A50 · 58307-12A60 · 58307-13180 |
| 58311 | rear floor pan | 58311-12270 · 58311-12320 · 58311-12330 · 58311-12340 · 58311-13310 |
| 58313 | Rear floor right panel | 58313-12290 |
| 58314 | rear floor left panel | 58314-12290 |
| 58325E | Rear floor access hole cover | 58325-12150 · 58325-12160 |
| 58329F | Rear floor manhole cover No. 2 | 58329-12060 |
| 58338A | Rear floor floor reinforcement No. 2 | 58338-12020 |
| 58338H | Rear floor bottom plate No. 2 right reinforcement | 58338-12020 |
| 58339L | Rear floor bottom plate No. 2 left reinforcement | 58339-12020 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-12020 · 58341-13040 · 58341-13050 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-12020 · 58342-13040 · 58342-13050 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58352B | Rear floor left reinforcement | 58352-12060 |
| 58353F | Rear floor reinforcement No. 3 | 58353-12010 |
| 58384G | Body lower back panel upper right corner panel | 58384-12180 · 58384-13090 |
| 58385G | Body lower back panel upper left corner panel | 58385-12170 · 58385-13070 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-12020 |
| 58460C | Luggage fixing belt lock assembly | 58460-33020 |
| 58791B | jack bracket | 58791-12200 |
