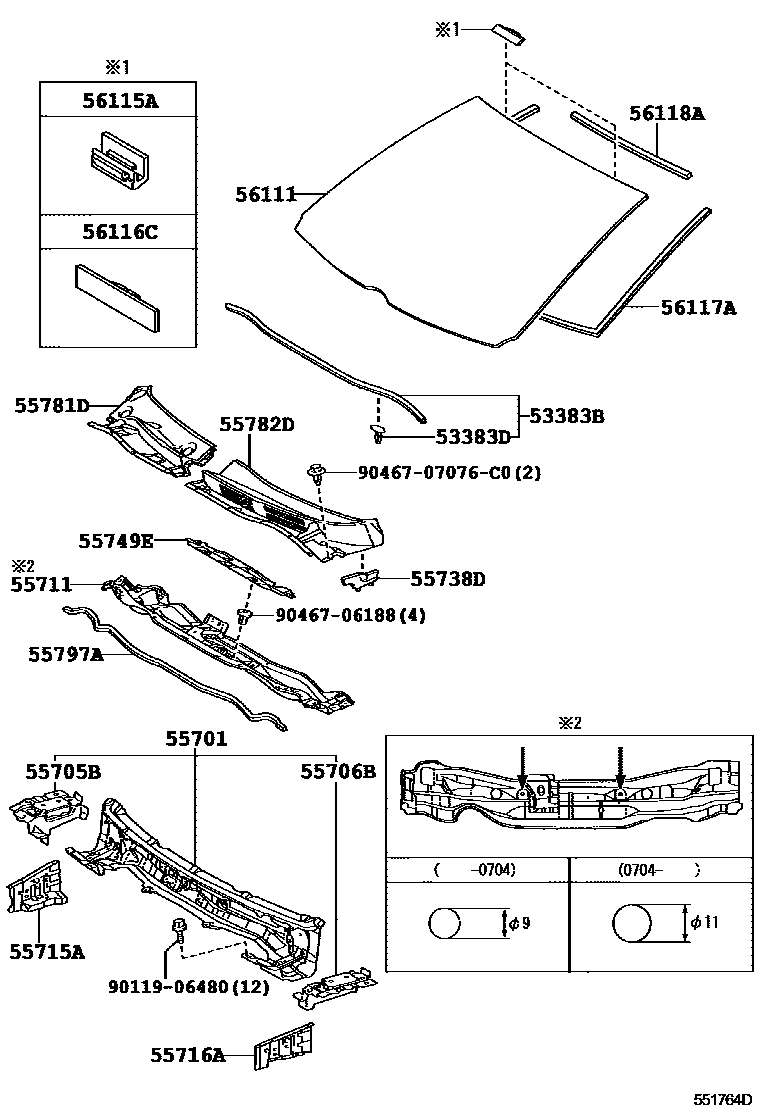

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12170 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55701 | Front apron sub-assembly | 55700-12B10 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12090 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12100 |
| 55711 | Front outer panel | 55701-12A40 · 55701-12A41 |
| 55715A | From cowl upper cover to fender right stay | 55715-12110 |
| 55716A | From cowl upper cover to fender left stay | 55716-12110 |
| 55738D | No. 2 heater duct splash guard seal | 55738-12140 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-12080 |
| 55781D | Ventilation grille on right front apron | 55708-12360 · 55708-12361 |
| 55782D | Ventilation grille on left front apron | 55709-12130 · 55709-12131 · 55709-12132 · 55709-12140 · 55709-12141 · 55709-12142 |
| 55797A | Front wall pumping device seal | 55797-13020 |
| 56111 | windshield | 56101-12240 · 56101-12250 · 56101-12260 · 56101-12270 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-12310 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-12070 |
