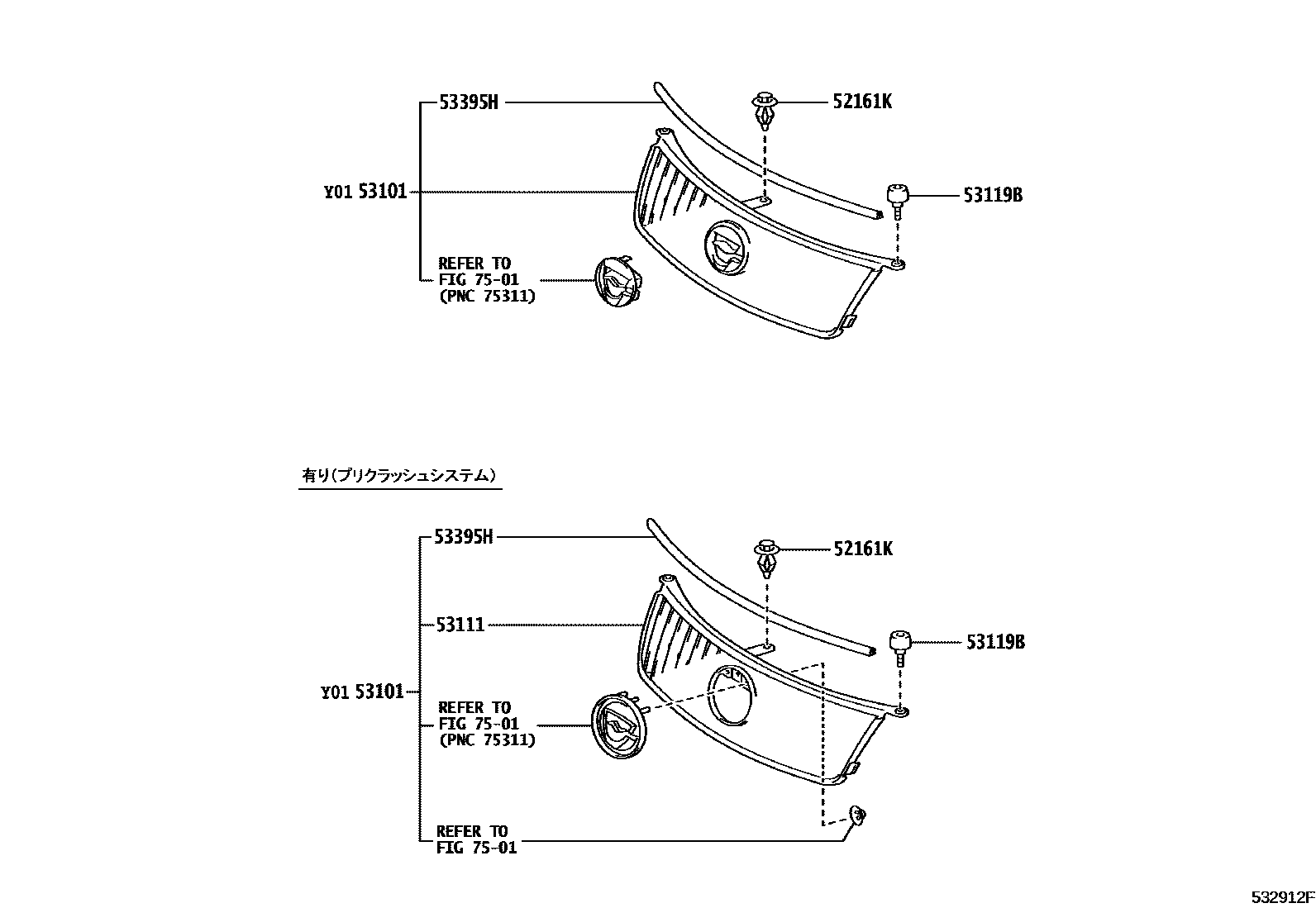

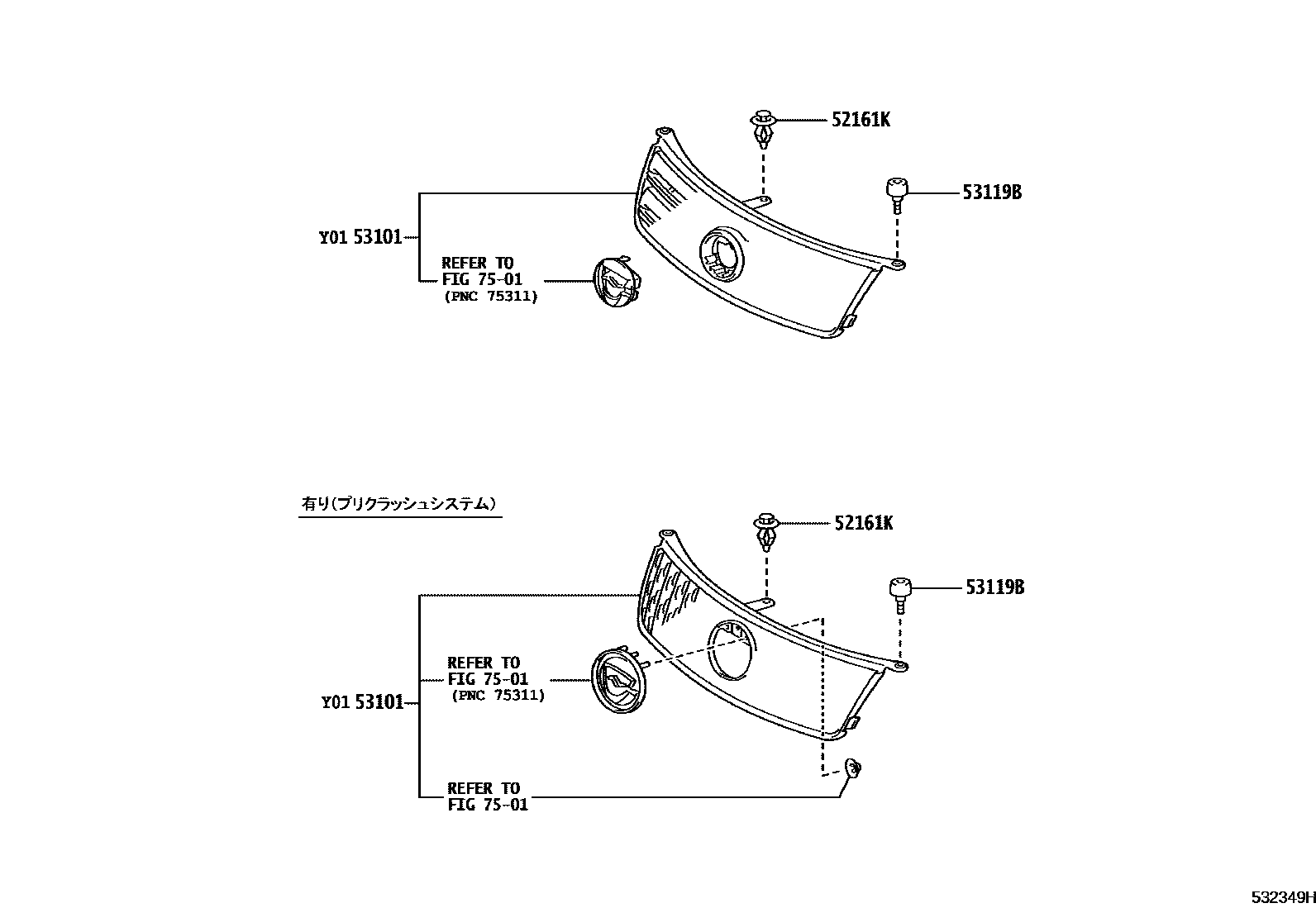

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-12A20 · 53101-12A30 · 53101-12B20 · 53101-12B40 · 53101-12B50 · 53101-12B60 · 53101-12B70 · 53101-13190 · 53101-13210 · 53101-13230 · 53101-13250 |
| 53111 | radiator grille | 53111-12C20 |
| 53119B | Radiator grille protector | 53119-12150 · 53119-42020 |
| 53395H | Engine cover to radiator grille seal | 53395-12090 · 53395-13010 |
