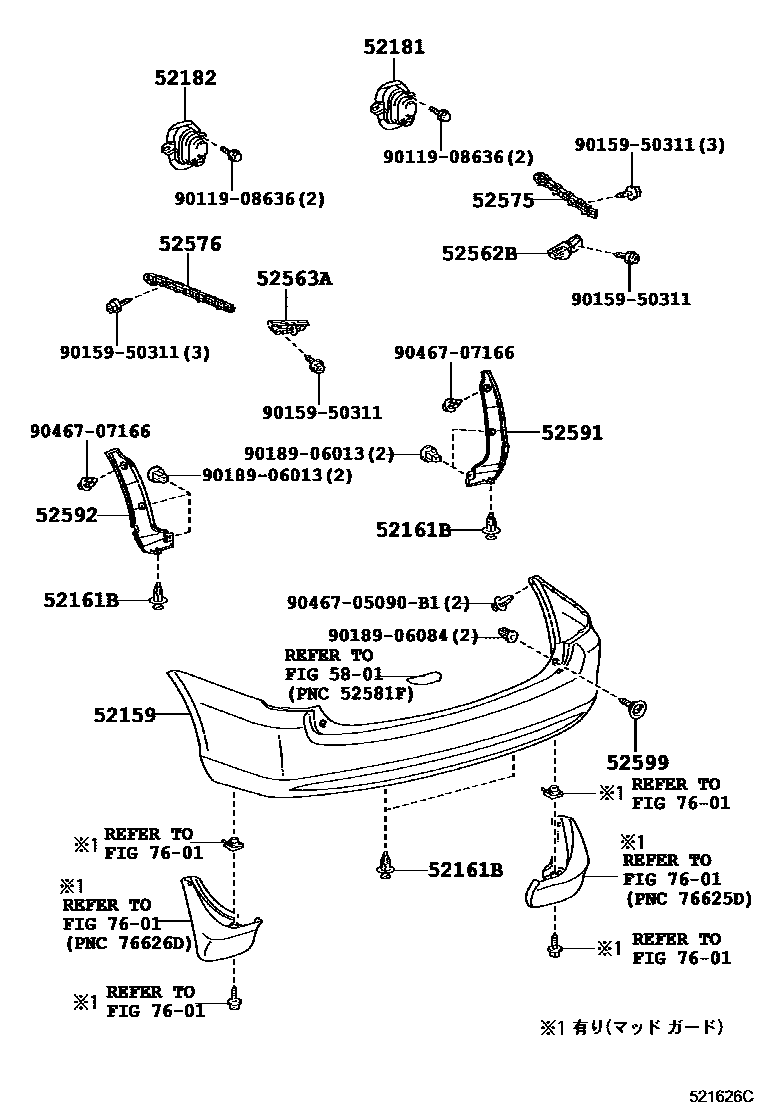

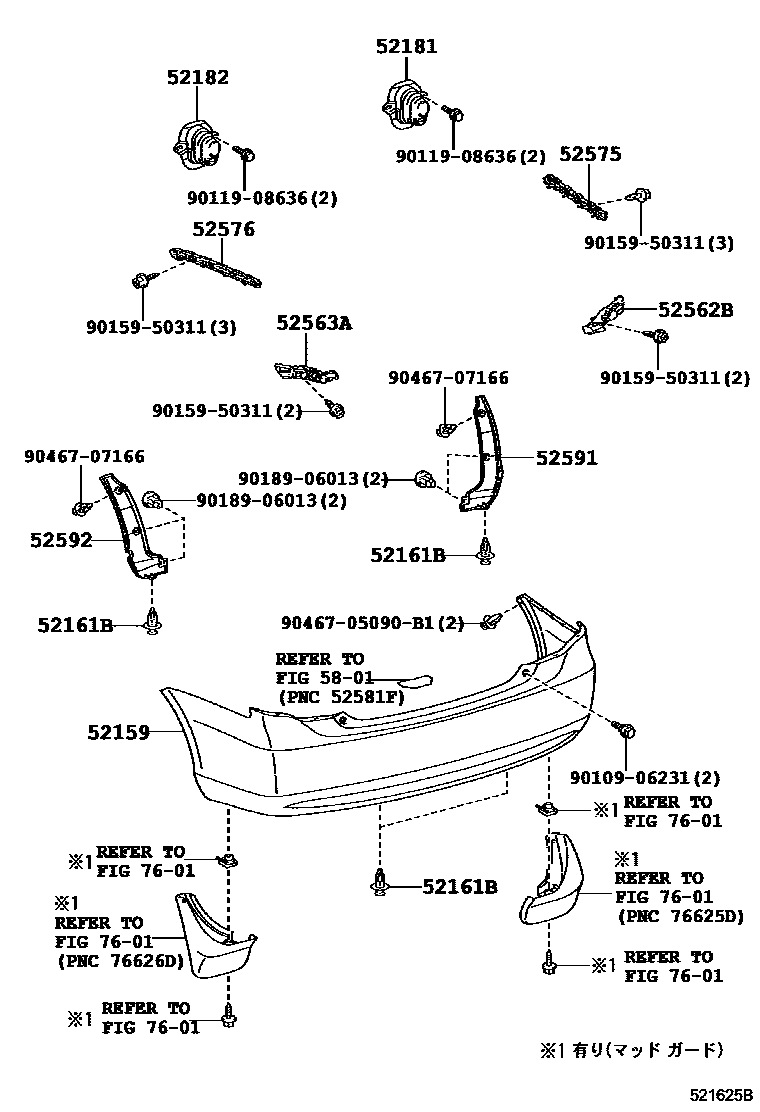

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161B | Rear bumper insert | 52161-16010 |
| 52181 | Rear bumper right arm | 52181-12440 |
| 52182 | Rear bumper left arm | 52181-12440 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12150 · 52562-13060 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12050 · 52563-13030 |
| 52575 | Rear bumper right side fixing bracket | 52575-12160 · 52575-13060 |
| 52576 | Rear bumper left side fixing bracket | 52576-12160 · 52576-13060 |
| 52591 | Rear bumper right seal | 52591-12210 |
| 52592 | Rear bumper left seal | 52592-12130 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
