Toyota COROLLA 前保险杠及附件 — Figure 5201

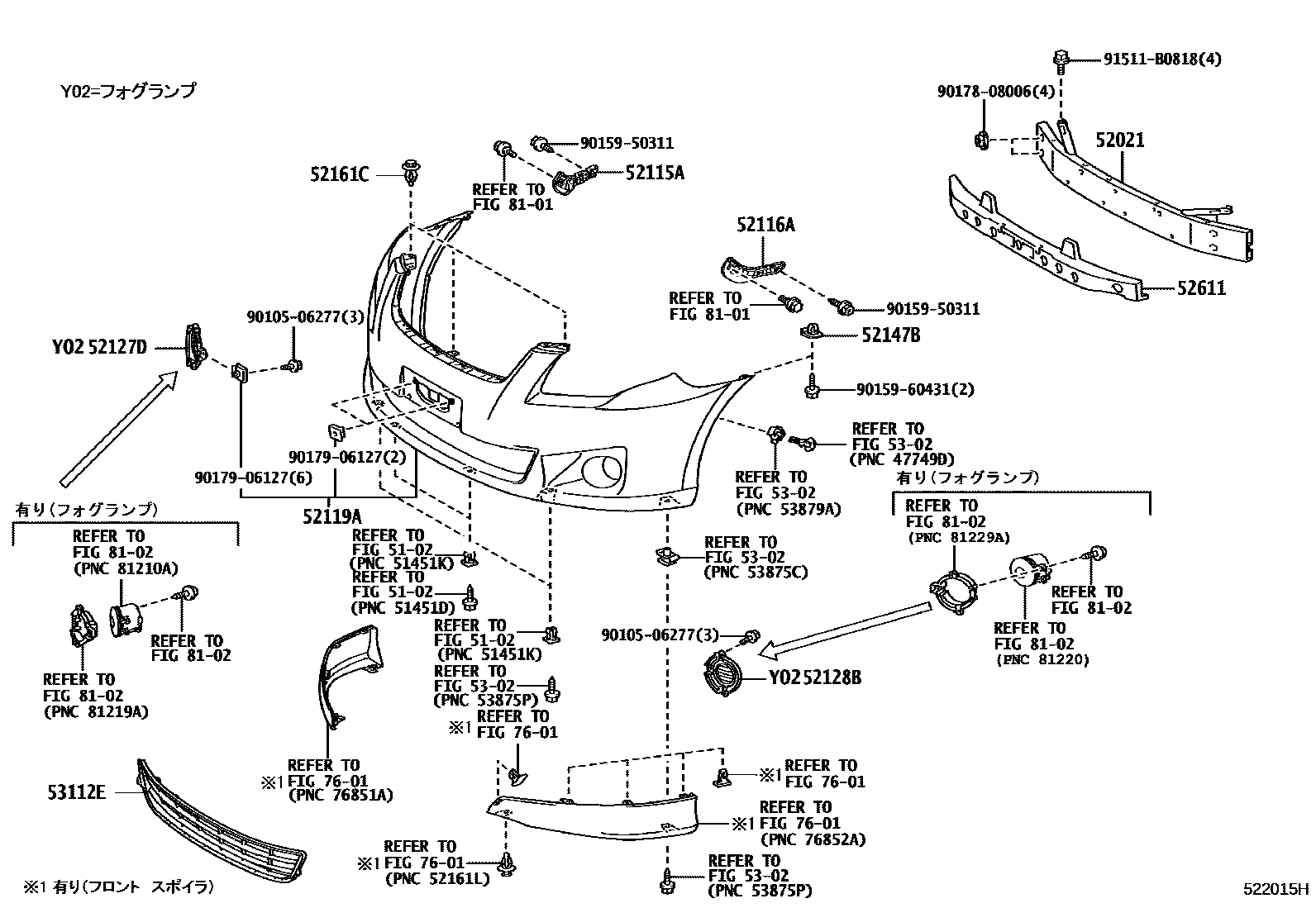

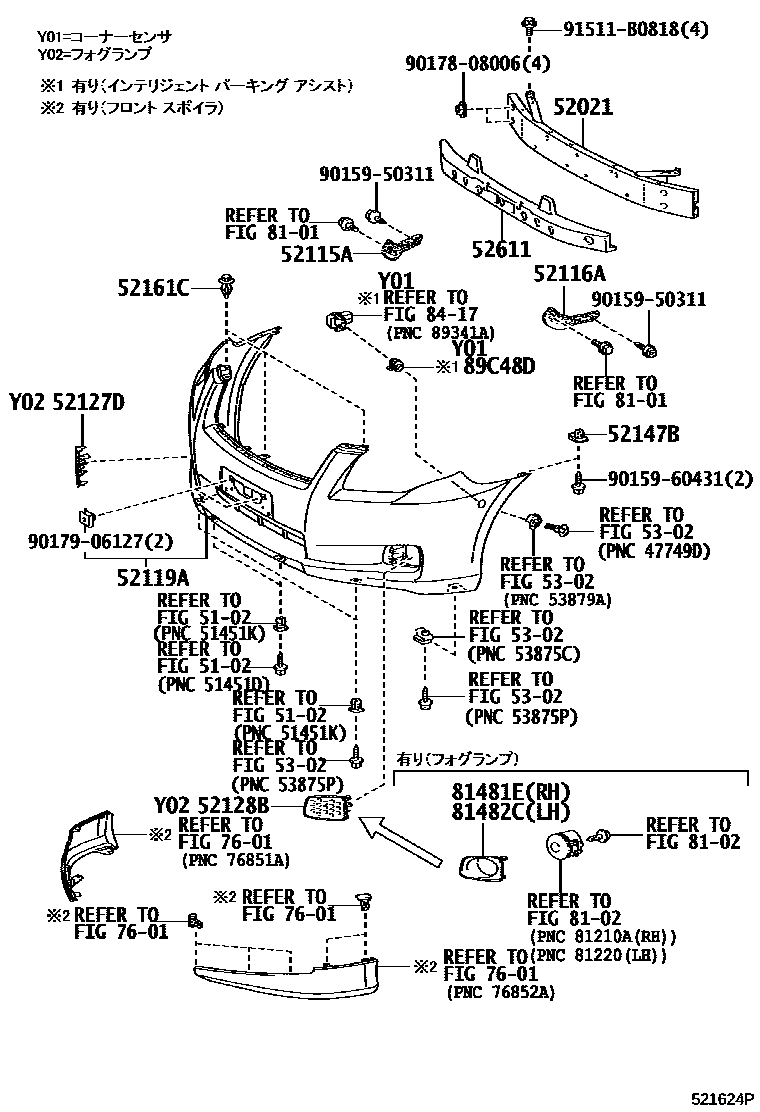

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12260 · 52021-12261 |
| 52115A | Front bumper right side bracket | 52115-12440 |
| 52116A | Front bumper left bracket | 52116-12400 |
| 52127D | Front bumper right hole cover | 52127-12240 · 52127-12241 · 52127-13100 |
| 52128B | Front bumper left hole cover | 52128-12160 · 52128-12161 · 52128-13140 |
| 52147B | Front bumper mounting bracket | 52147-12230 |
| 52161C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-12200 · 52611-13020 |
| 53112E | No. 1 radiator lower grille | 53112-13040 |
| 81481E | Right fog light cover | 52127-12250 · 52127-12251 |
| 81482C | Left fog light cover | 52128-12170 · 52128-12171 |
