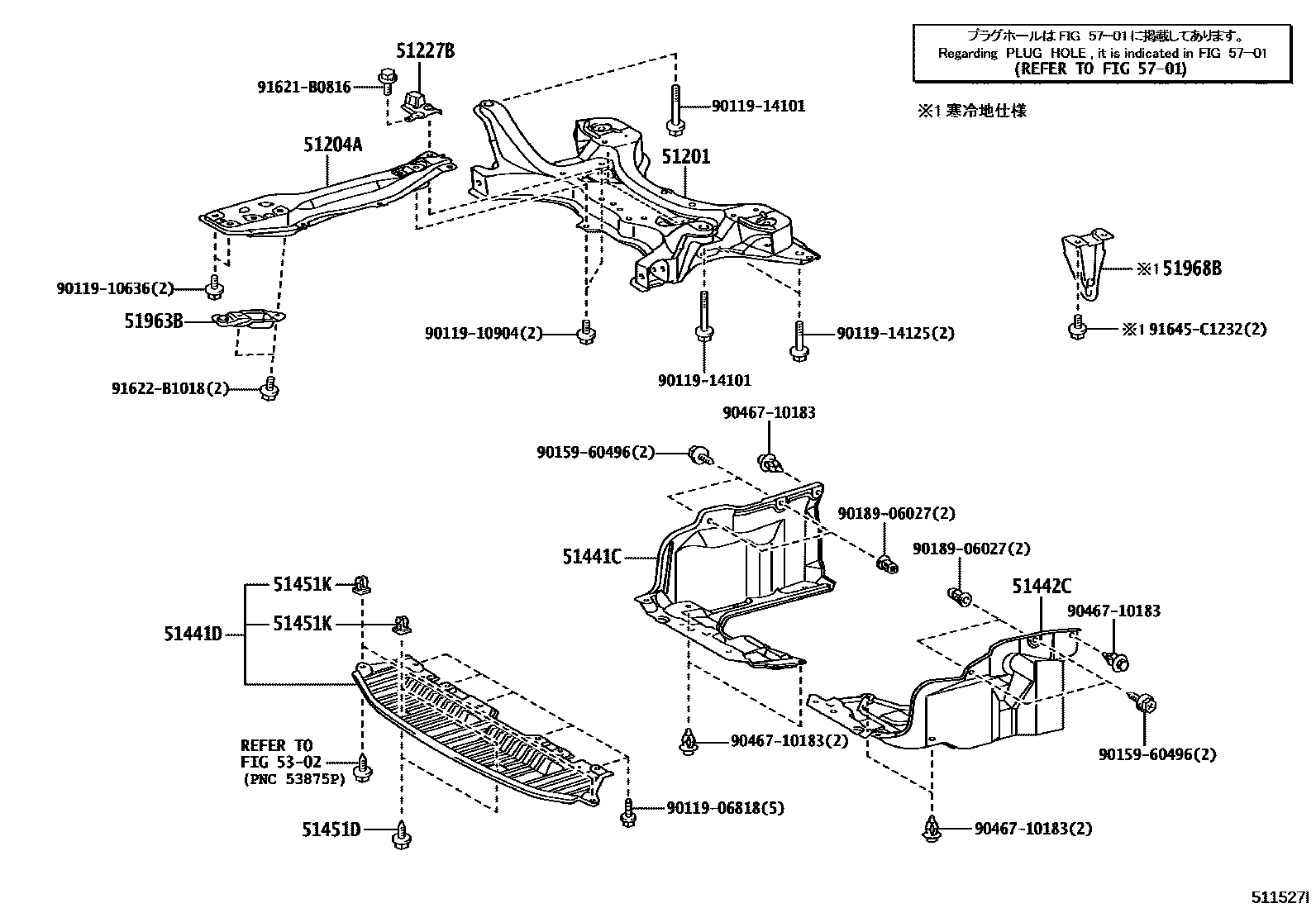

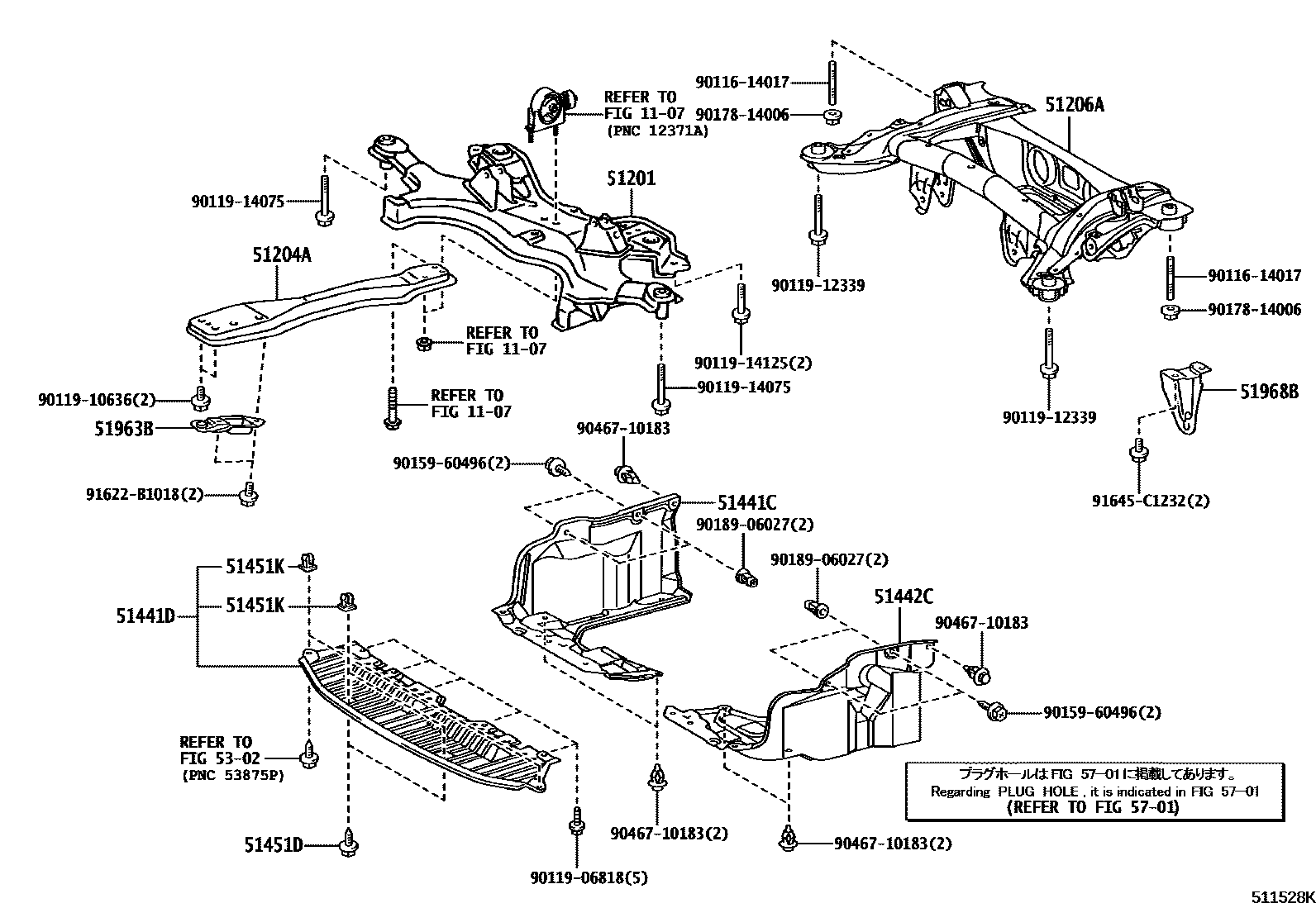

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12421 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-12120 · 51204-12150 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12100 · 51206-12101 · 51206-12102 |
| 51227B | Front suspension beam dynamic damper | 51227-12070 |
| 51441C | Engine right bottom cover | 51441-12240 |
| 51441D | engine cover | 51451-12071 · 51451-12140 |
| 51442C | Engine left bottom cover | 51442-12220 · 51442-12230 |
| 51451D | Toyota part | 90159-60488 |
| 51451K | Toyota part | 90189-06193 |
| 51963B | Right front transport hook | 51963-12240 |
| 51968B | Left rear transport hook | 51968-12170 |
