Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

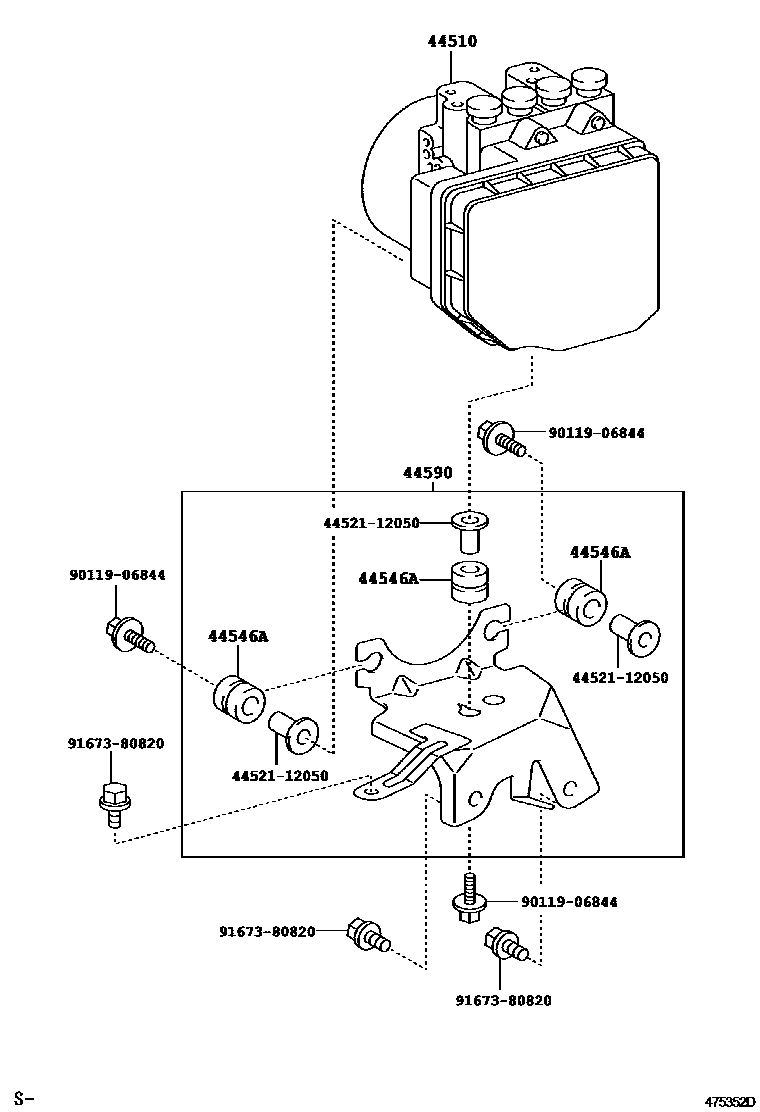

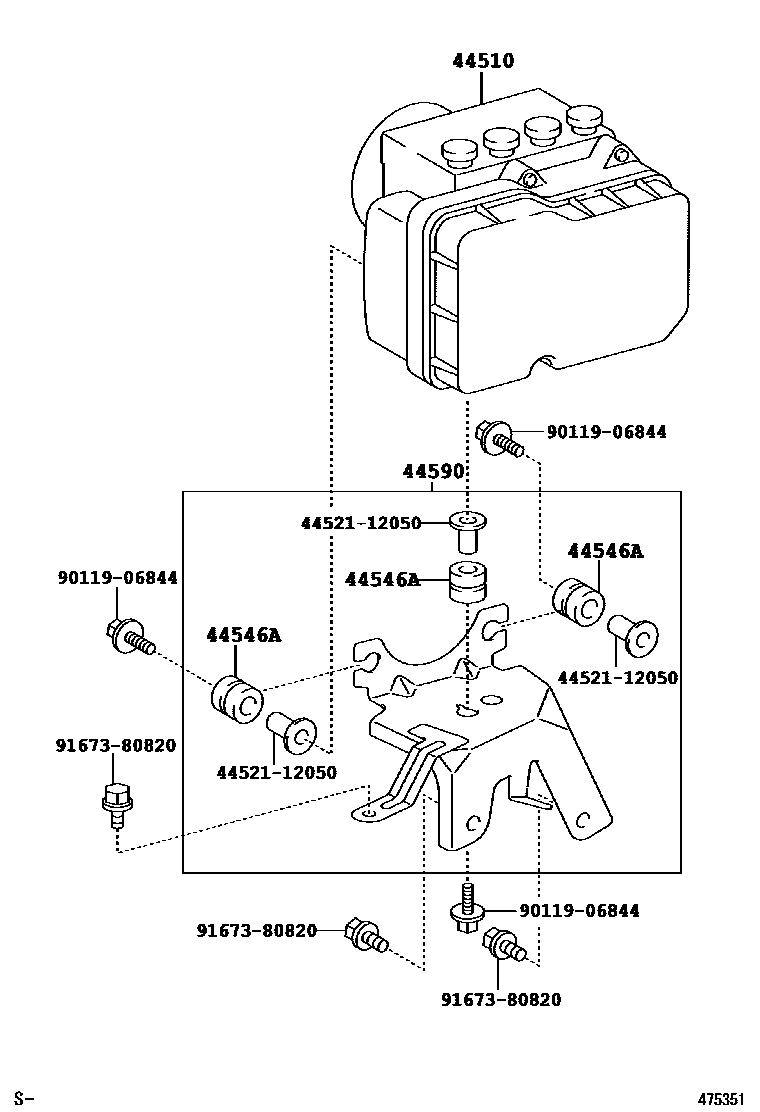

| 44510 | brake actuator assembly | 44050-12330 · 44050-12340 · 44050-12350 · 44050-12360 · 44050-12361 · 44050-12430 · 44050-12431 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-12140 · 44590-12150 |

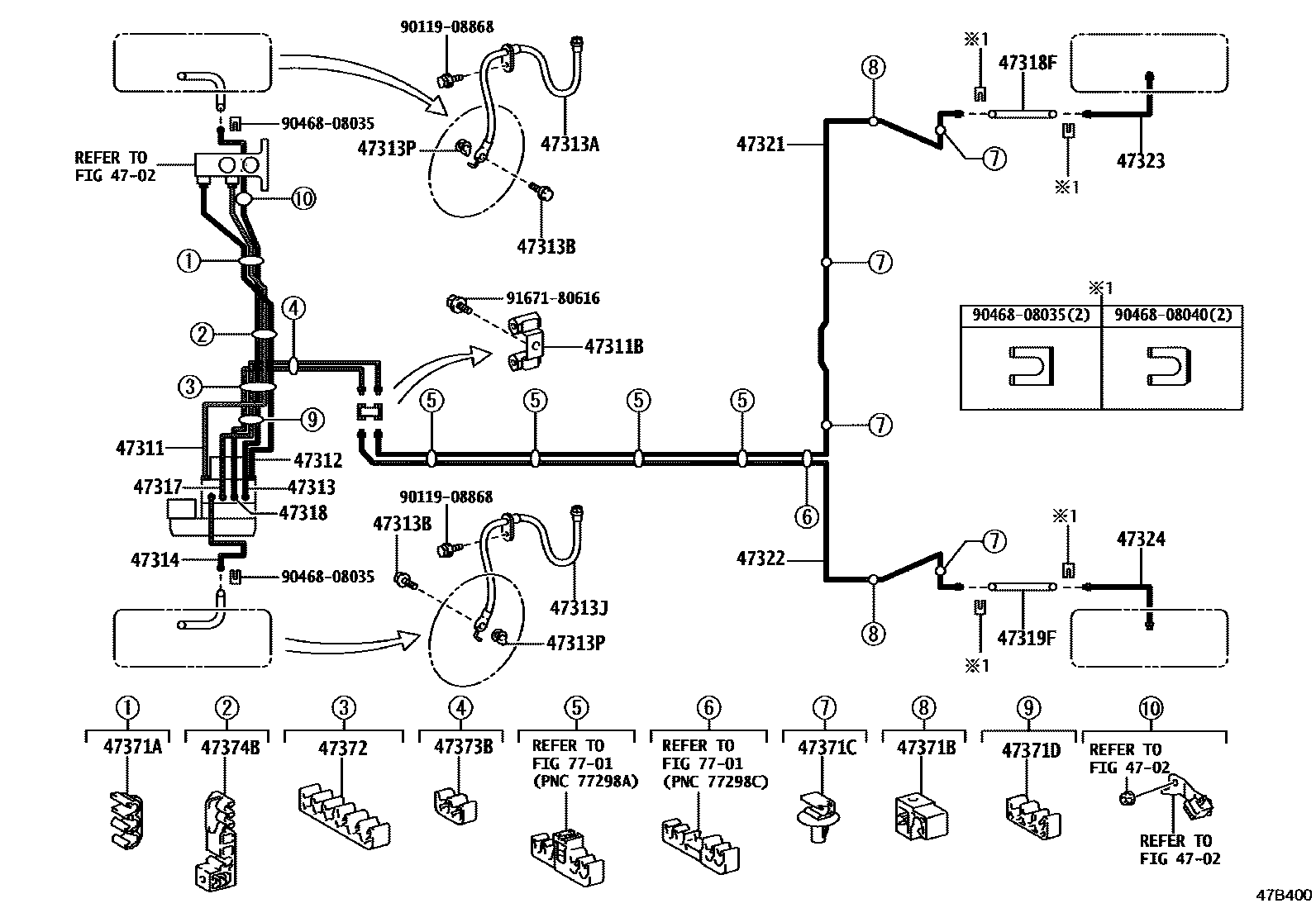

| 47311 | No. 1 front brake pipe | 47311-12A50 · 47311-12A60 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-12580 · 47312-12590 |
| 47313 | No. 3 front brake pipe | 47313-12750 · 47313-12760 |
| 47313A | No. 1 front flexible hose | 90947-02E63 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E64 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12630 · 47314-12640 |
| 47317 | No. 7 front brake pipe | 47317-12390 · 47317-12400 |
| 47318 | No. 8 front brake pipe | 47318-12530 · 47318-12540 |
| 47318F | Right rear flexible hose | 90947-02E89 · 90947-02F35 |
| 47319F | Left rear flexible hose | 90947-02E89 · 90947-02F36 |
| 47321 | No. 1 rear brake pipe | 47321-12330 · 47321-12340 |
| 47322 | No. 2 rear brake pipe | 47322-12480 · 47322-12490 |
| 47323 | No. 3 rear brake pipe | 47323-12280 · 47323-63010 · 47323-63020 |
| 47324 | No. 4 rear brake pipe | 47324-12240 · 47324-63010 · 47324-63020 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371B | No. 6 brake pipe clamp | 90949-01C82 |
| 47371C | No. 7 brake pipe clamp | 90949-01D17 |
| 47371D | No. 8 brake pipe clamp | 90464-00857 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 |
| 47373B | No. 3 brake pipe clamp | 90949-01972 |
| 47374B | No. 4 brake pipe clamp | 90949-01C77 |
