Toyota COROLLA 制动助力器和真空管 — Figure 4703

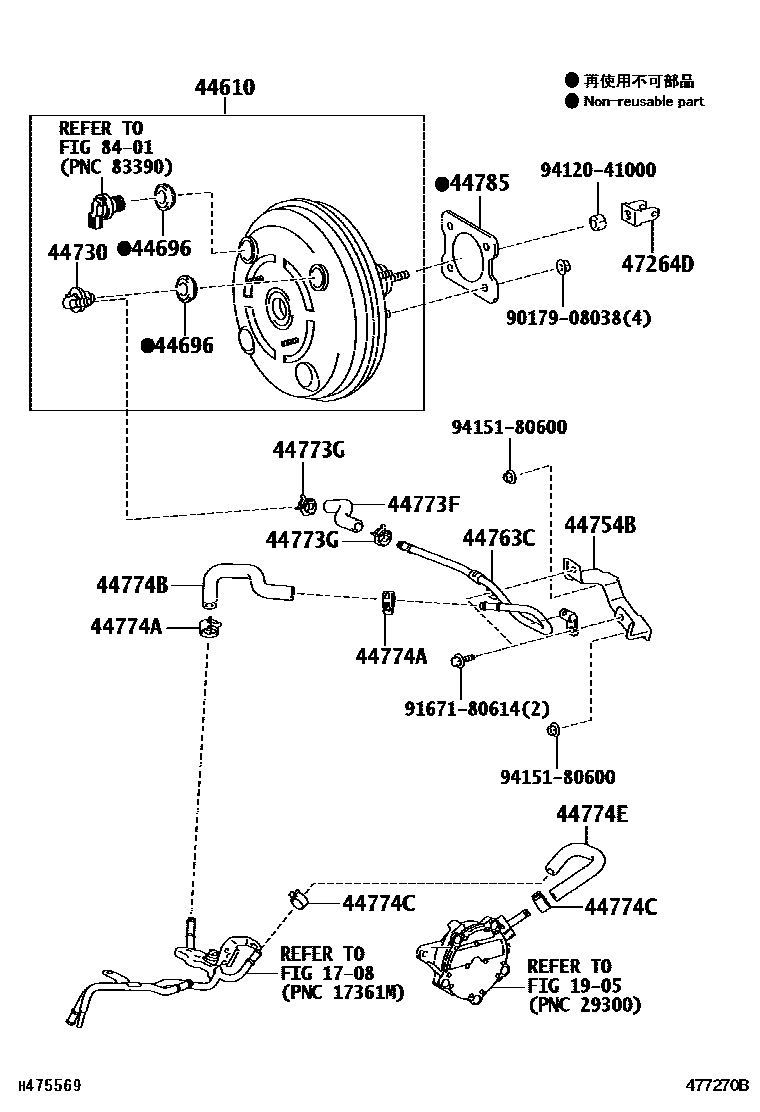

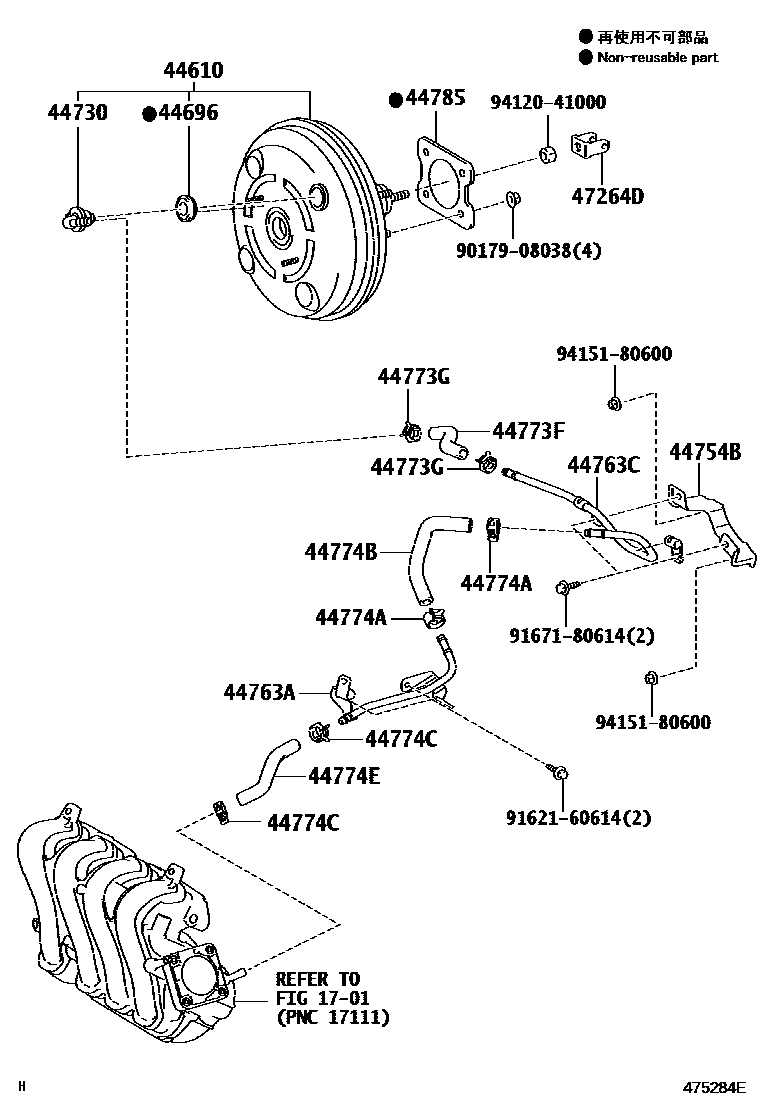

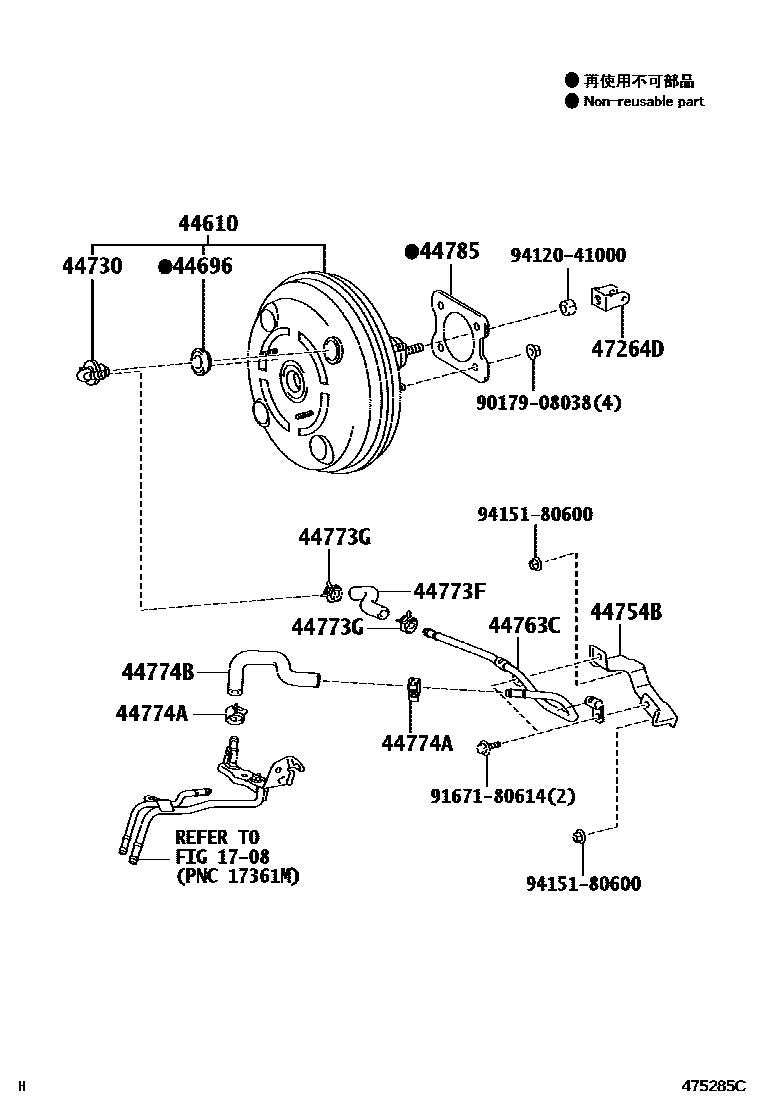

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-12A30 · 44610-12A31 · 44610-12A40 · 44610-12A41 · 44610-12C50 · 44610-12C51 · 44610-12J00 · 44610-12J10 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-20170 |
| 44754B | Vacuum tube holder | 44754-12040 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-52030 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-12460 |
| 44773F | Hoses (connector to check valve) | 44773-12820 |
| 44773G | Clamp (for connector to one-way valve hose) | 96133-41500 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-12640 · 44774-12650 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-28320 · 44774-52070 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 · 47264-68010 |
