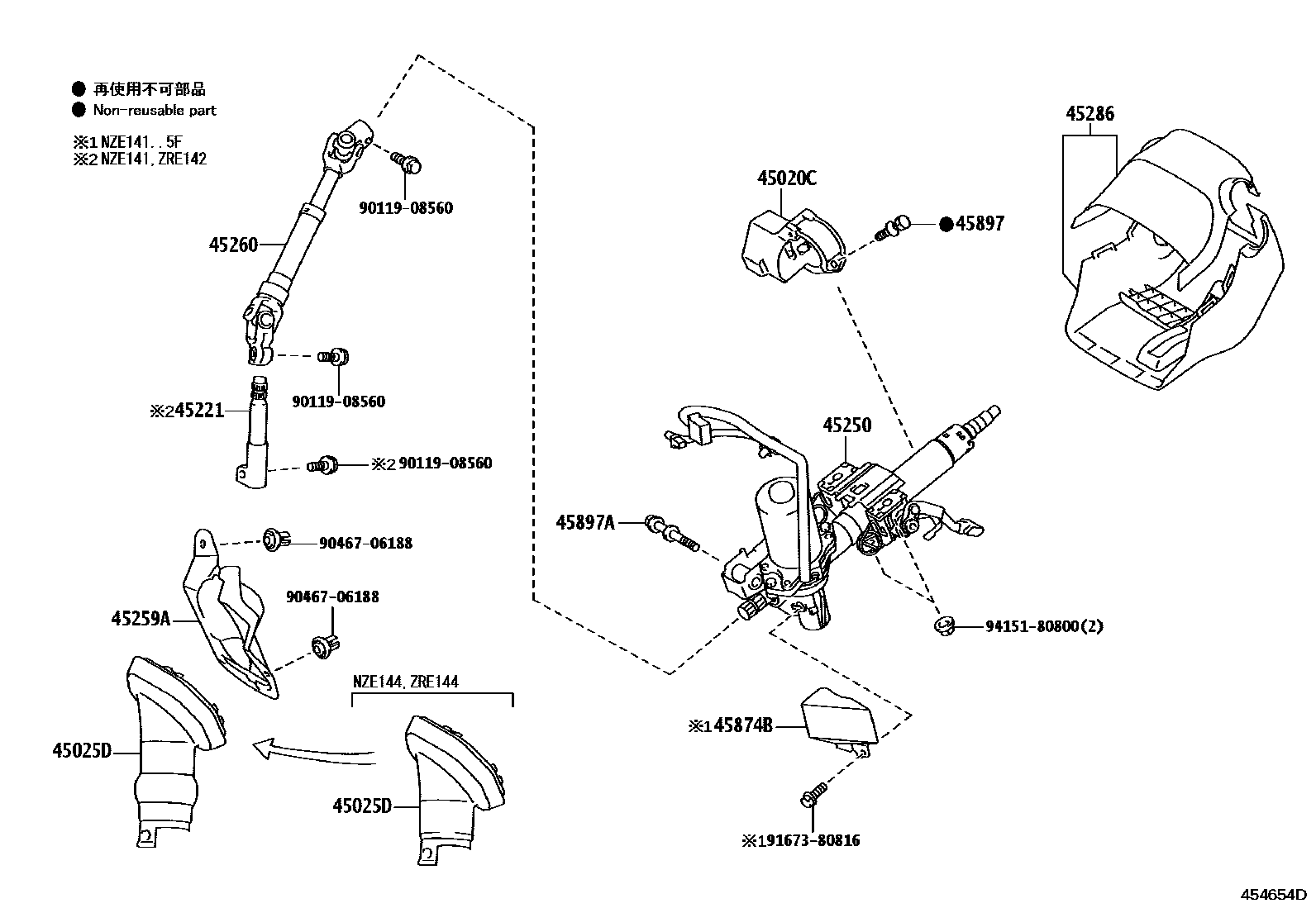

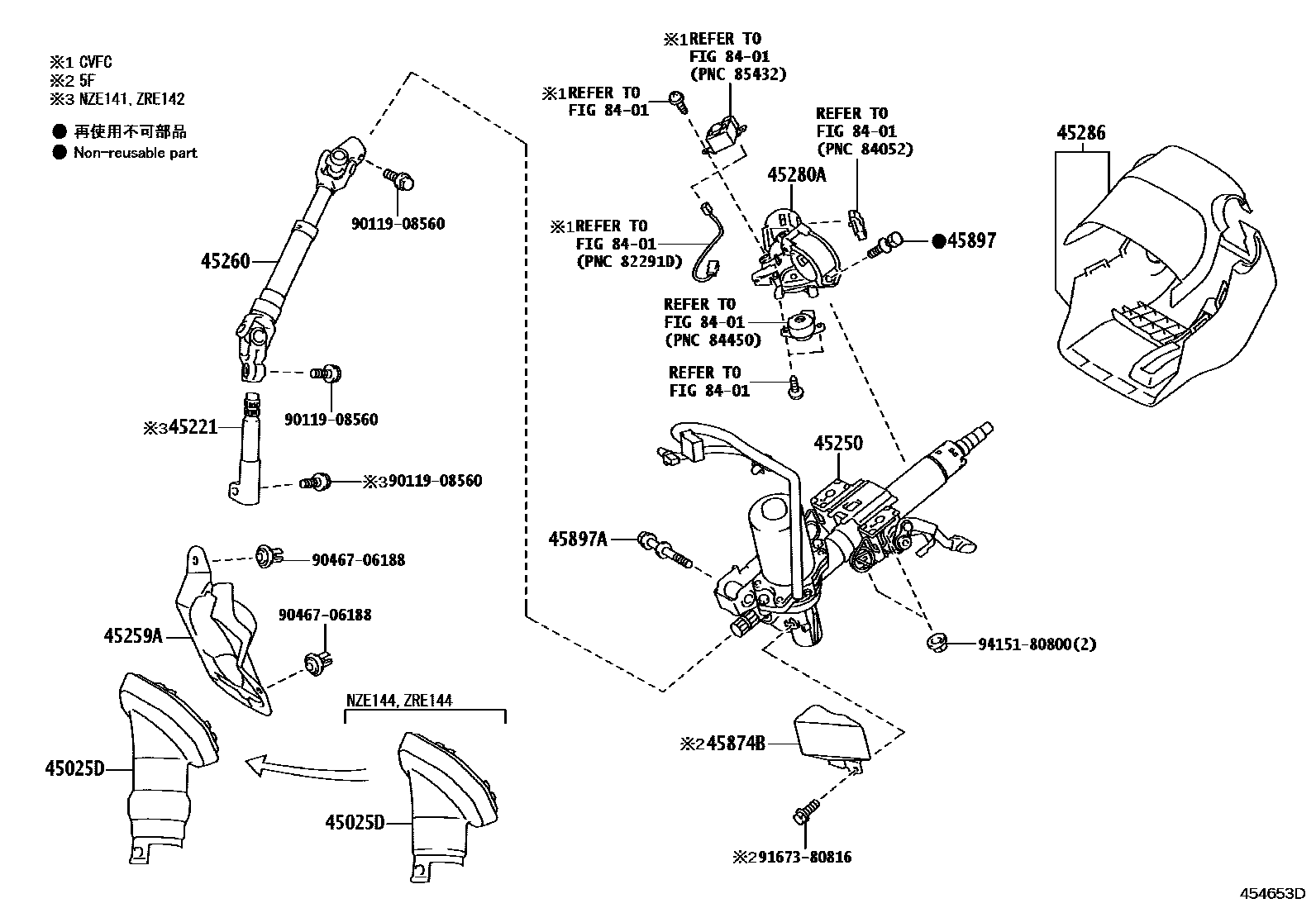

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Toyota part | 45020-42150 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12310 · 45025-12311 · 45025-12320 · 45025-12321 |
| 45221 | steering intermediate shaft | 45221-12350 |
| 45250 | Steering column assembly | 45250-12B30 · 45250-12B31 · 45250-12B32 · 45250-12B42 · 45250-12B52 · 45250-12D10 · 45250-12D11 · 45250-12D12 · 45250-12D20 · 45250-12D21 · 45250-12D22 |
| 45259A | Steering column hole cover silencer plate | 45259-12080 · 45259-12090 · 45259-12110 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12590 · 45260-12600 |
| 45280A | Steering column upper bracket assembly | 45280-42130 · 45280-42140 |
| 45874B | No. 1 steering column guard | 45874-12100 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
