Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

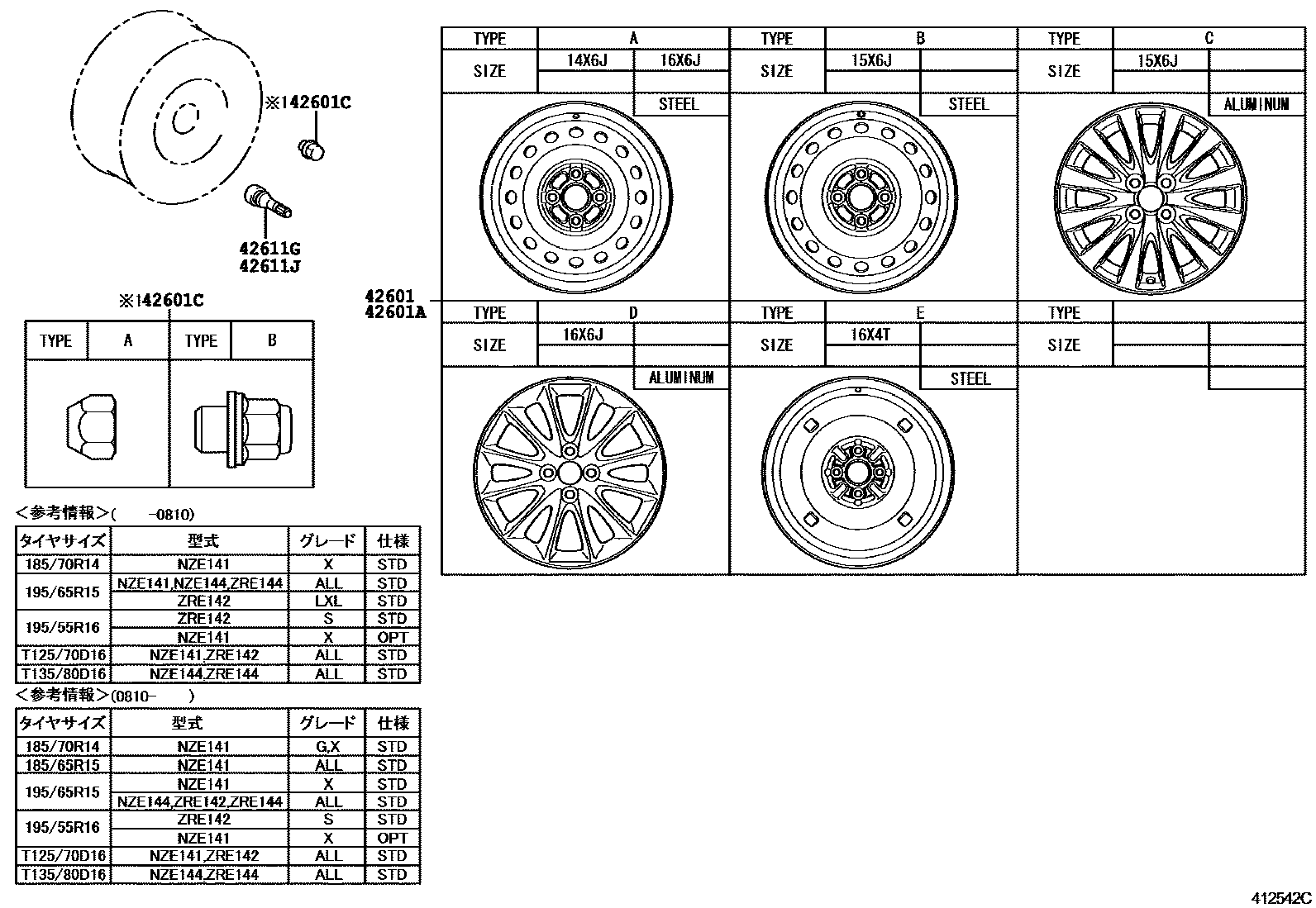

| 42601 | spoke wheel | 42611-12A80 · 42611-12A90 · 42611-12B00 · 42611-12B10 · 42611-12C40 · 42611-12C50 · 42611-12C60 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A240 · 42611-52400 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

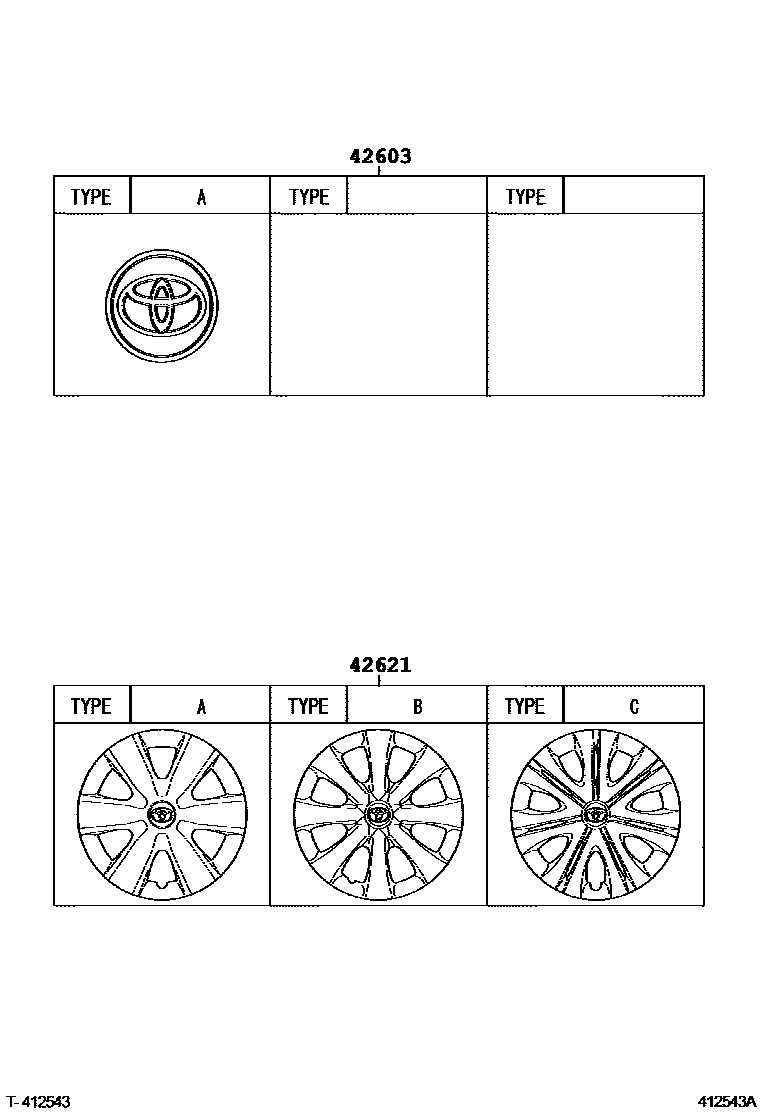

| 42603 | Wheel hub decorative parts sub-assembly | 42603-52110 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12720 · 42602-12730 · 42602-12750 |
