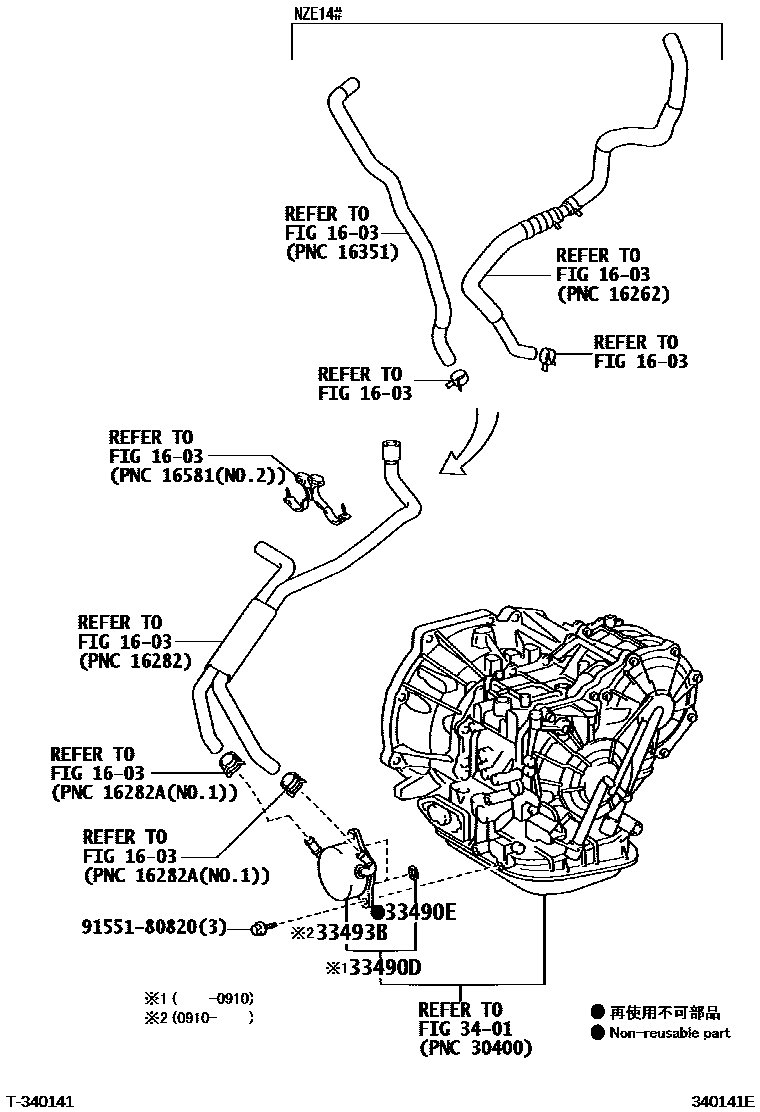

Toyota COROLLA 变速器油冷却器和配管(CVT) — Figure 3414
Toyota COROLLA EPC diagram 3414, 变速器油冷却器和配管(CVT), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33490D | Transmission oil cooler assembly | 33490-12020 · 33490-12050 · 33490-12060 |
| 33490E | O-ring (for transmission oil cooler) | 90301-19020 · 90301-20012 |
| 33493B | oil cooler | 33493-12020 · 33493-12040 · 33493-12050 |
