Toyota COROLLA 传动桥总成(CVT) — Figure 3401

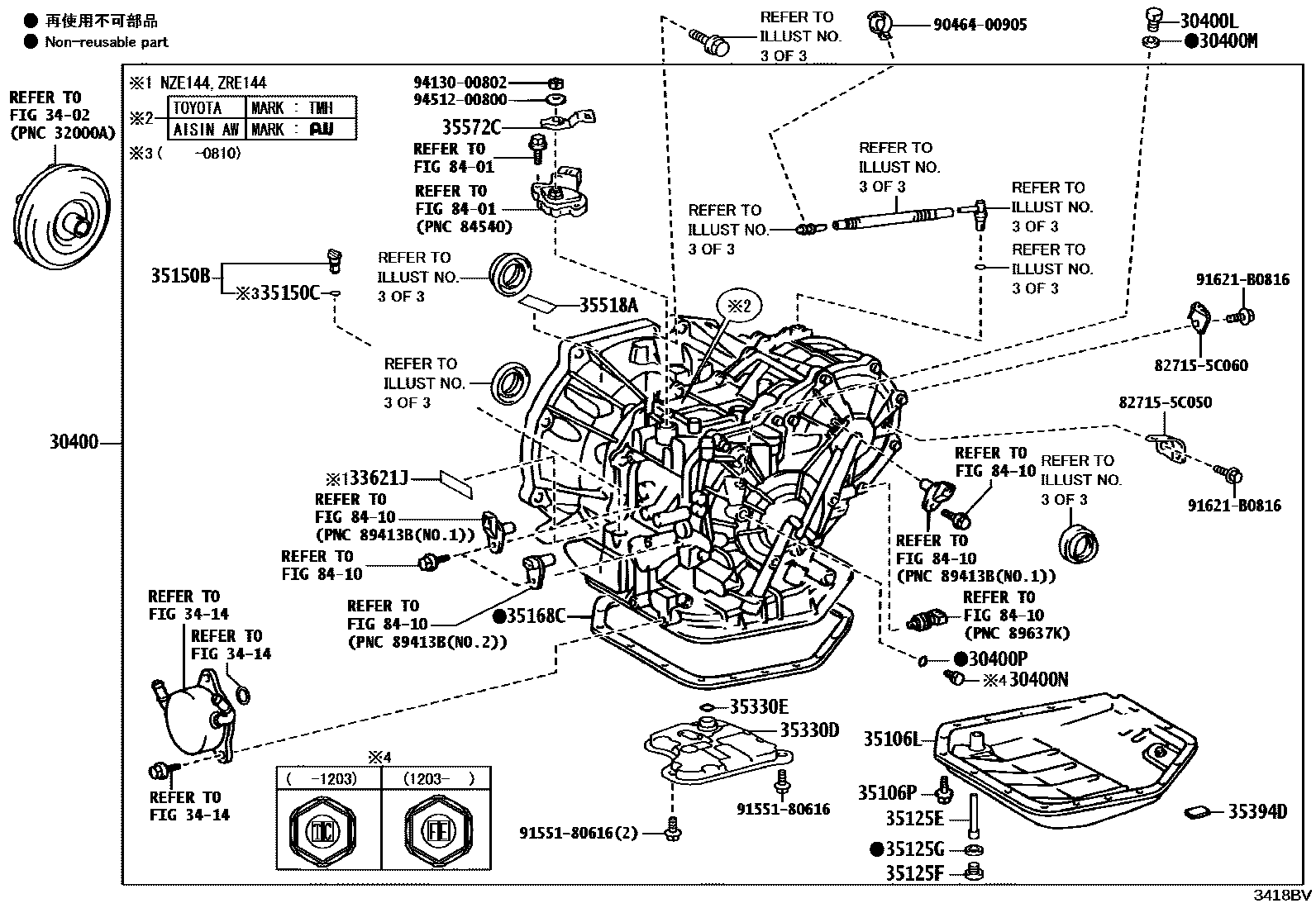

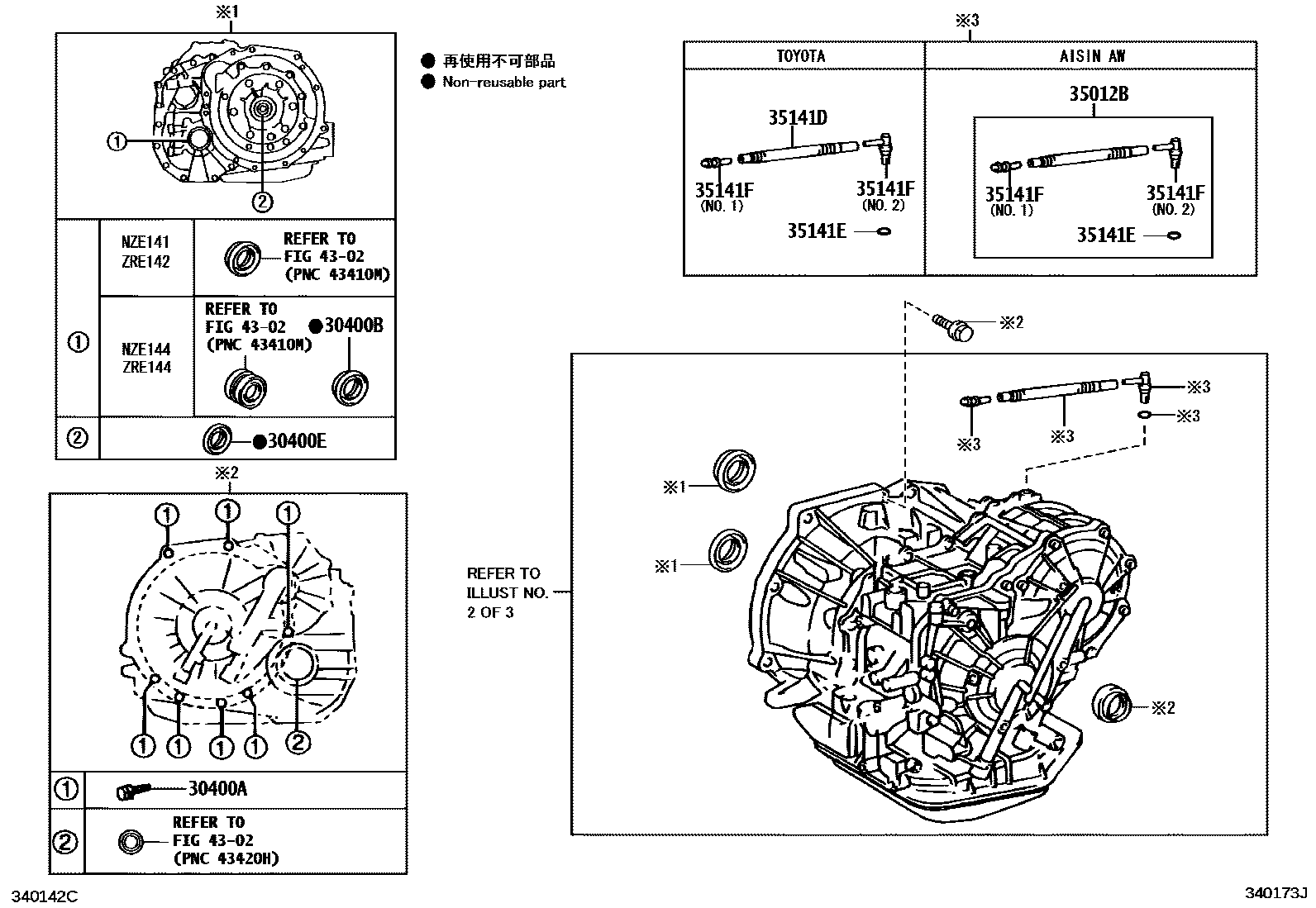

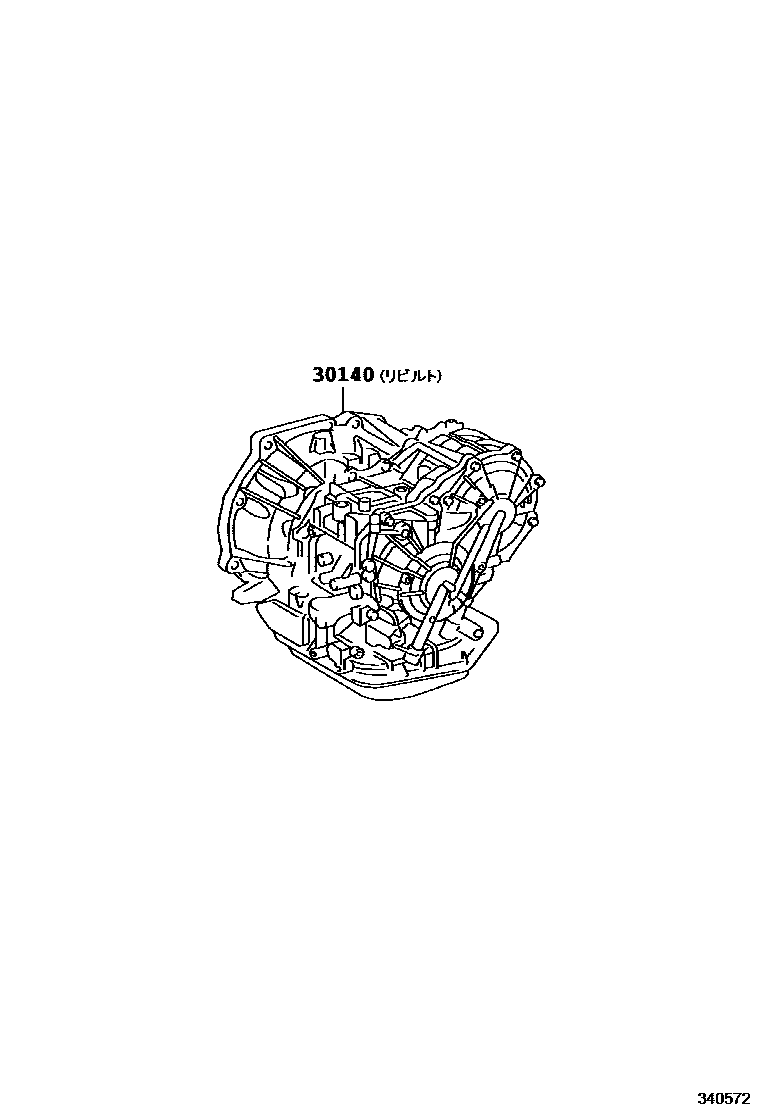

Toyota COROLLA EPC diagram 3401, 传动桥总成(CVT), with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30140 | Refurbished continuously variable transmission axle assembly (without torque converter) | 30140-12020 · 30140-12040 · 30140-12070 · 30140-12090 · 30140-12110 |
| 30400 | Continuously variable transmission axle assembly | 30400-12020 · 30400-12040 · 30400-12070 · 30400-12090 · 30400-12110 |
| 30400A | Bolts (for securing transaxle and engine) | 91612-61045 |
| 30400B | No. 1 T-type oil seal (for CVT) | 90311-49002 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45025 · 90311-45027 |
| 30400L | Toyota part | 90341-12025 |
| 30400M | Toyota part | 90430-12221 |
| 30400N | Toyota part | 90341-18061 · 90341-18077 |
| 30400P | Toyota part | 90430-18008 |
| 33621J | Transaxle oil information label | 33621-12150 |
| 35012B | Transmission breather hose sub-assembly | 35012-12050 · 35012-12090 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-12130 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125E | Toyota part | 35125-12400 |
| 35125F | Toyota part | 90341-12034 |
| 35125G | Toyota part | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-12040 · 35121-12090 |
| 35141E | O-ring (for breather plug) | 90301-06005 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03191 |
| 35150B | gearbox plug assembly | 35150-44010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-12090 |
| 35330D | Toyota part | 35330-0W060 |
| 35330E | Toyota part | 90301-22014 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 |
| 35518A | No. 2 automatic transmission axle information label | 35518-63010 |
| 35572C | transmission control lever | 35572-12160 · 35572-12170 |
