Toyota COROLLA Alternator — Figure 1903

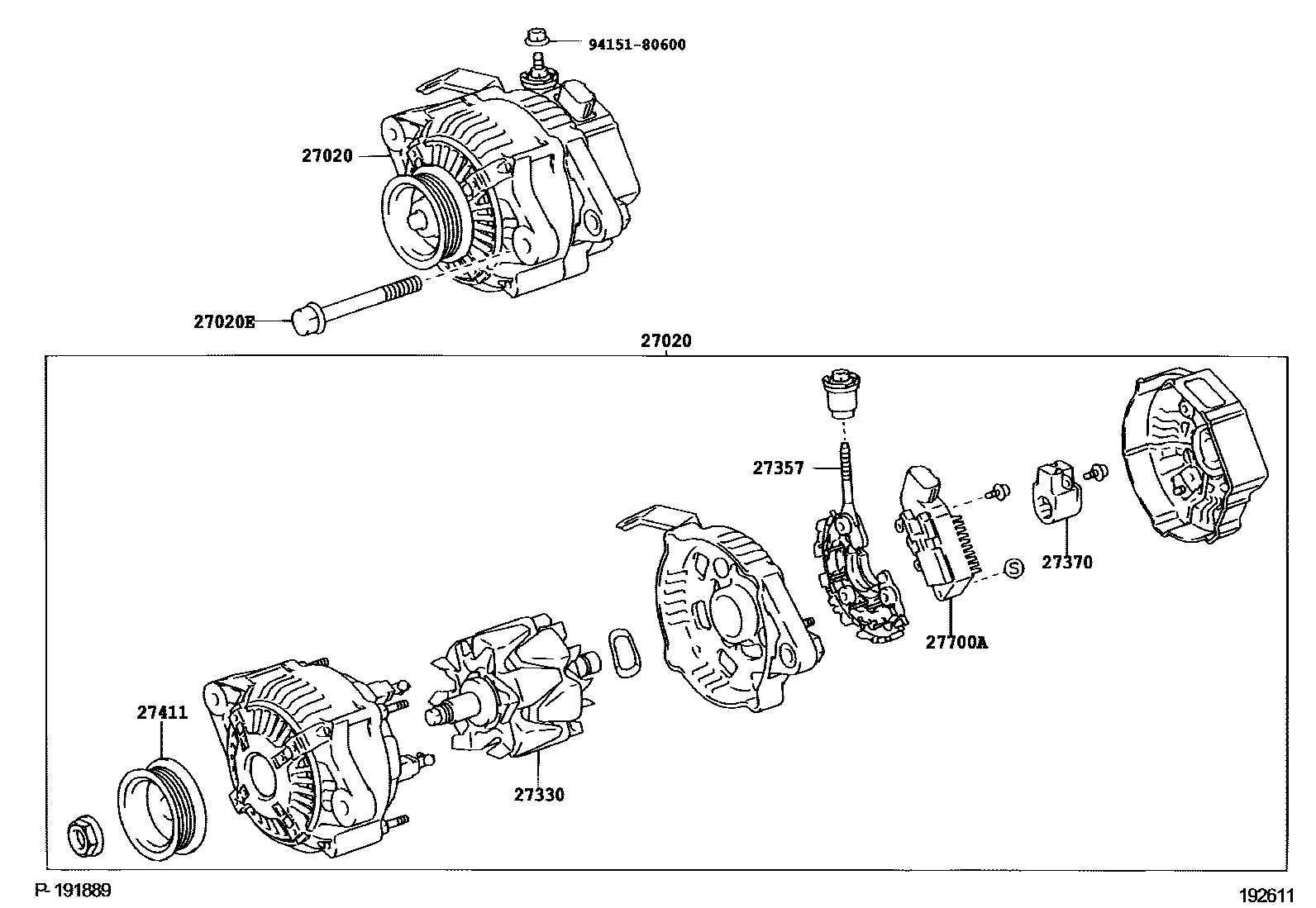

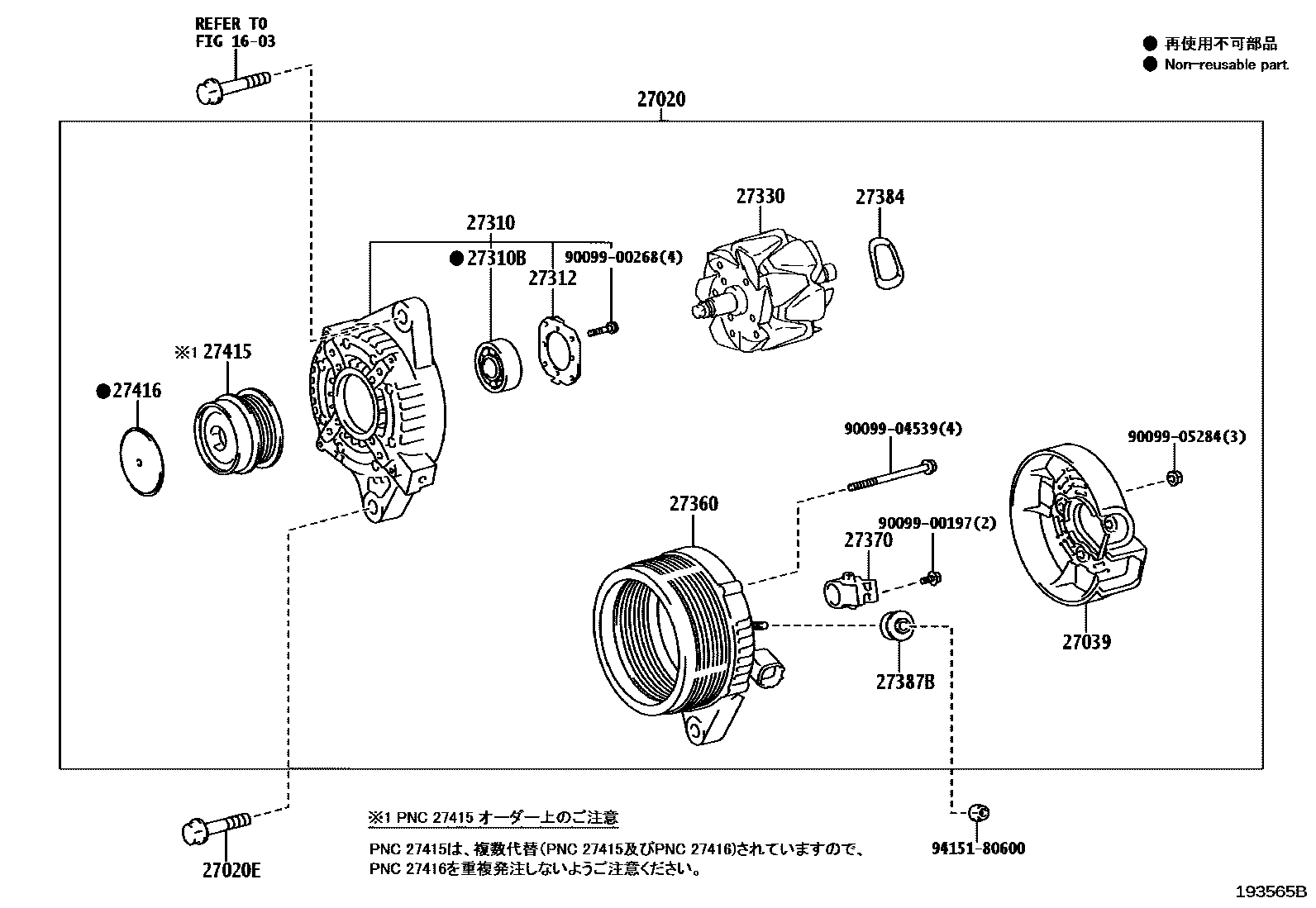

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21130 · 27060-21131 · 27060-37020 · 27060-37021 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10307 |
| 27039 | Alternator Rear End Cover | 27039-26170 · 27039-31390 |
| 27310 | Alternator Drive End Frame Assembly | 27310-37030 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 · 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-30070 · 27330-30130 · 27330-62220 |
| 27357 | Generator rectifier frame | 27357-22200 |
| 27360 | Alternator Stator Coil Assembly | 27360-37030 |
| 27370 | Alternator Brush Holder Assembly | 27370-23120 · 27370-31220 |
| 27384 | Washer | 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27411 | Alternator Pulley | 27411-70140 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T010 · 27415-0T011 |
| 27416 | Generator pulley cover | 27416-0W020 |
| 27700A | Generator voltage regulator assembly | 27700-28080 |
