Toyota COROLLA vacuum tube — Figure 1708

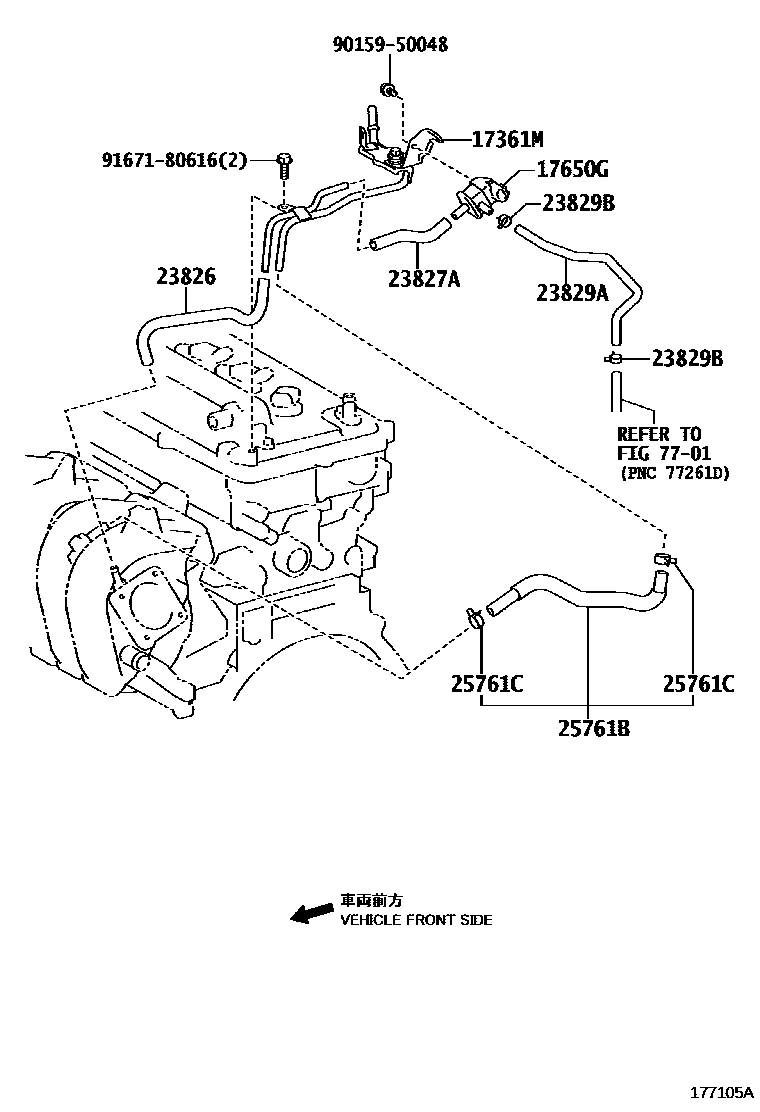

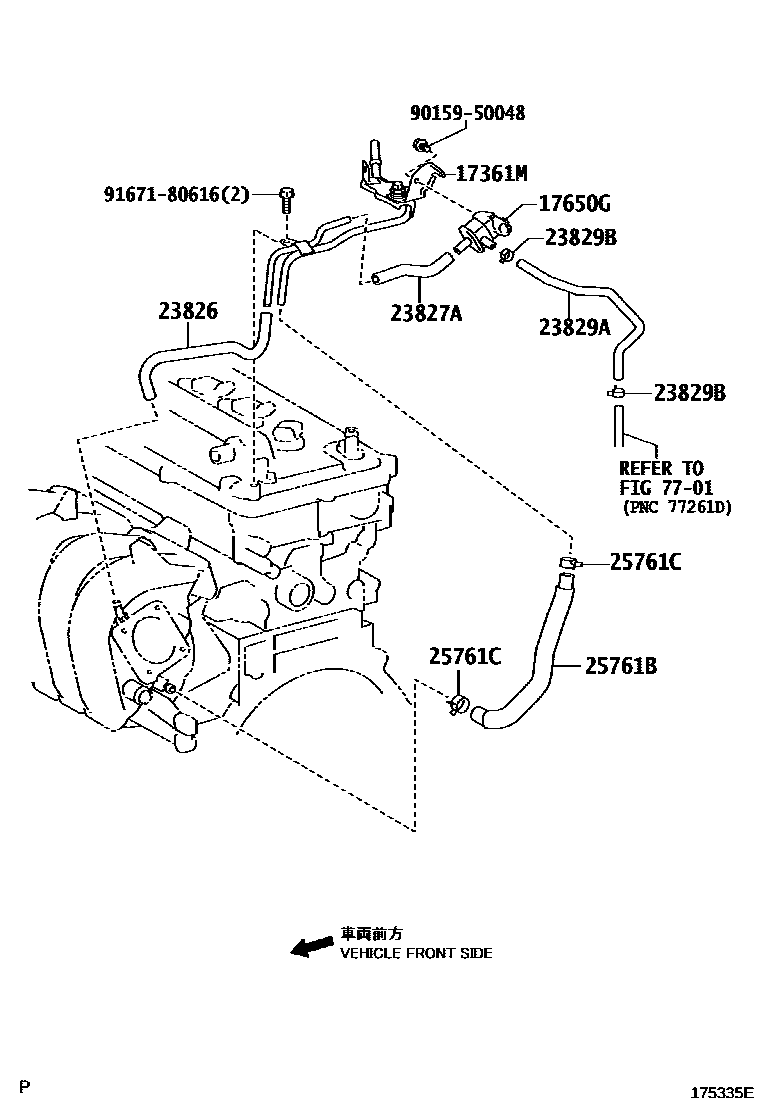

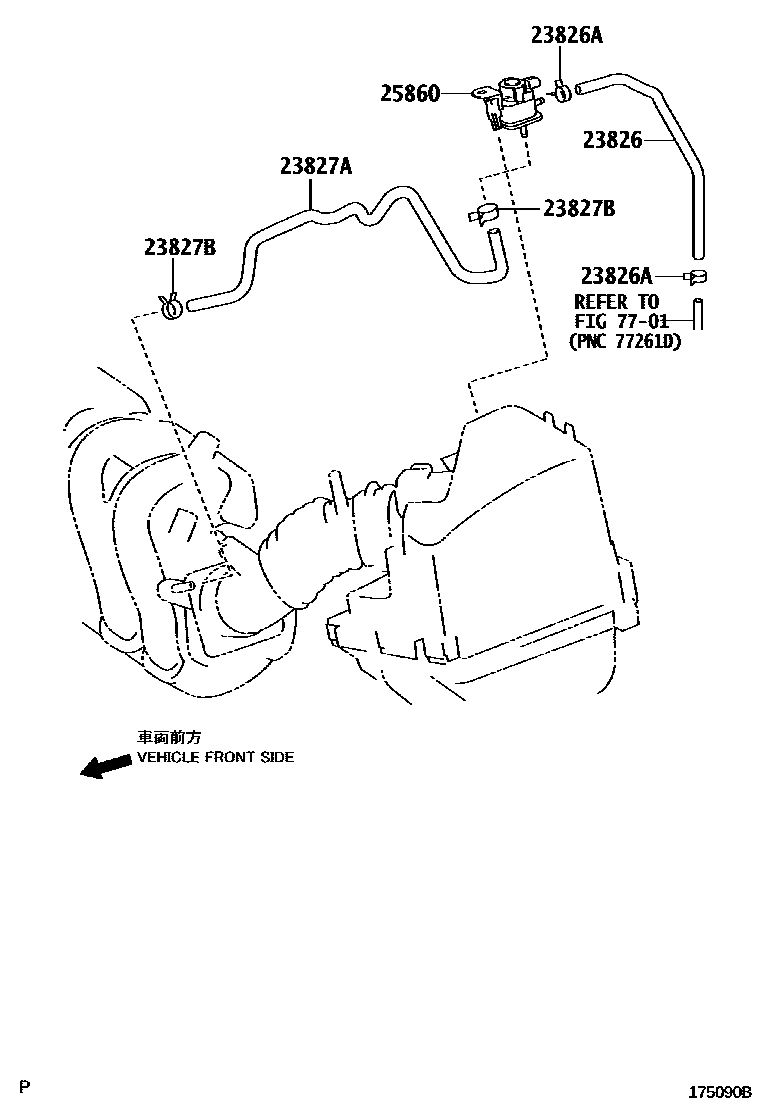

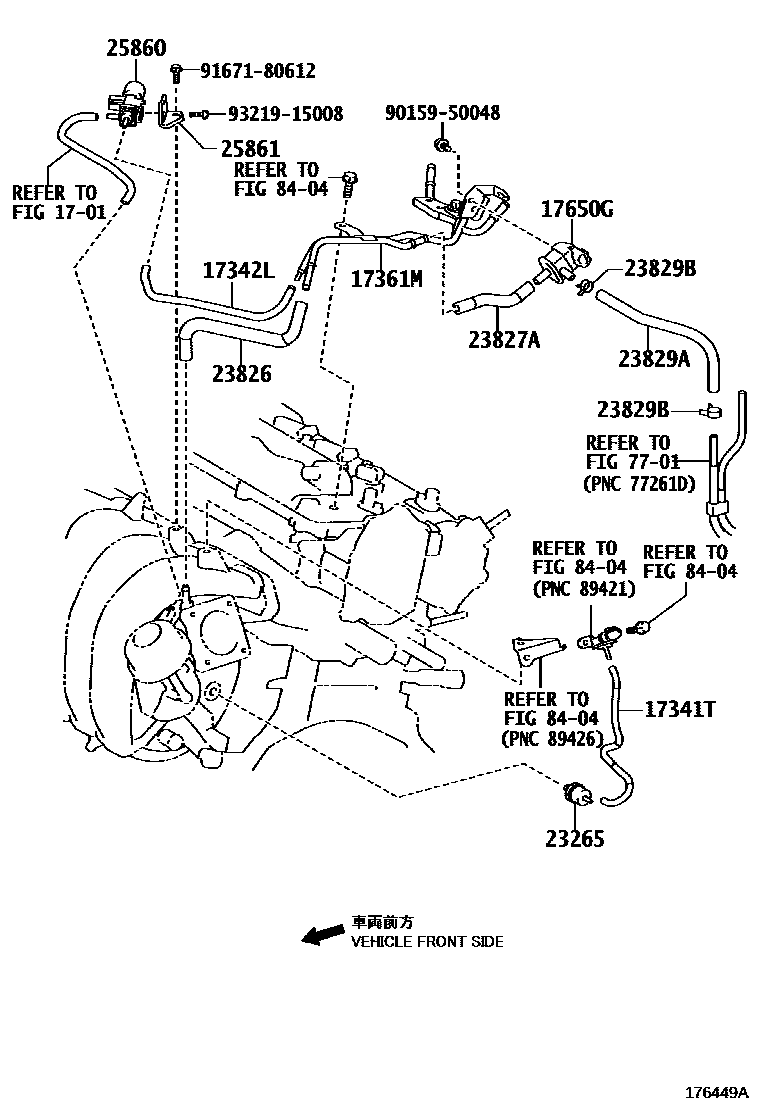

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-37060 |
| 17342L | Air hose No. 2 | 17342-37050 |
| 17361M | air tube | 17361-37010 · 17361-37011 · 17361-37020 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23265 | No. 1 gas filter | 90917-11022 |
| 23826 | No. 1 fuel vapor supply hose | 23826-21160 · 23826-37020 · 23826-37021 · 23826-37050 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21130 · 23827-37020 · 23827-37030 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829A | Fuel vapor supply hose | 23826-37010 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51100 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37010 · 25761-37011 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 · 96136-41801 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-21100 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
