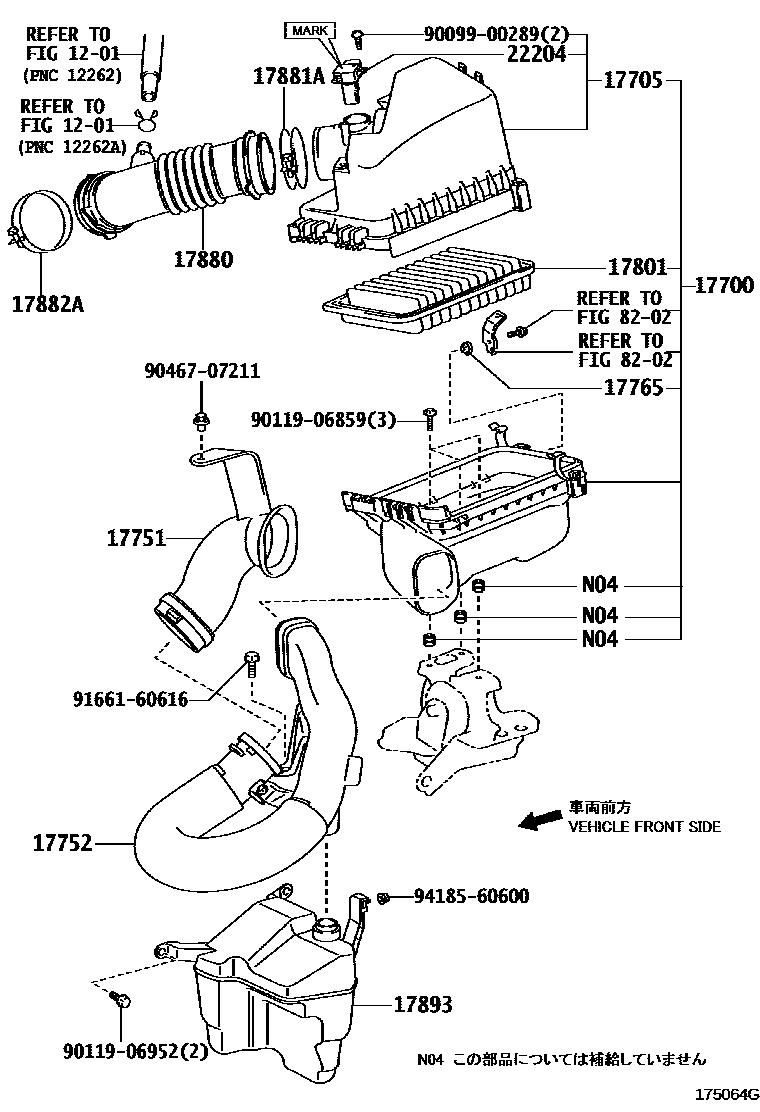

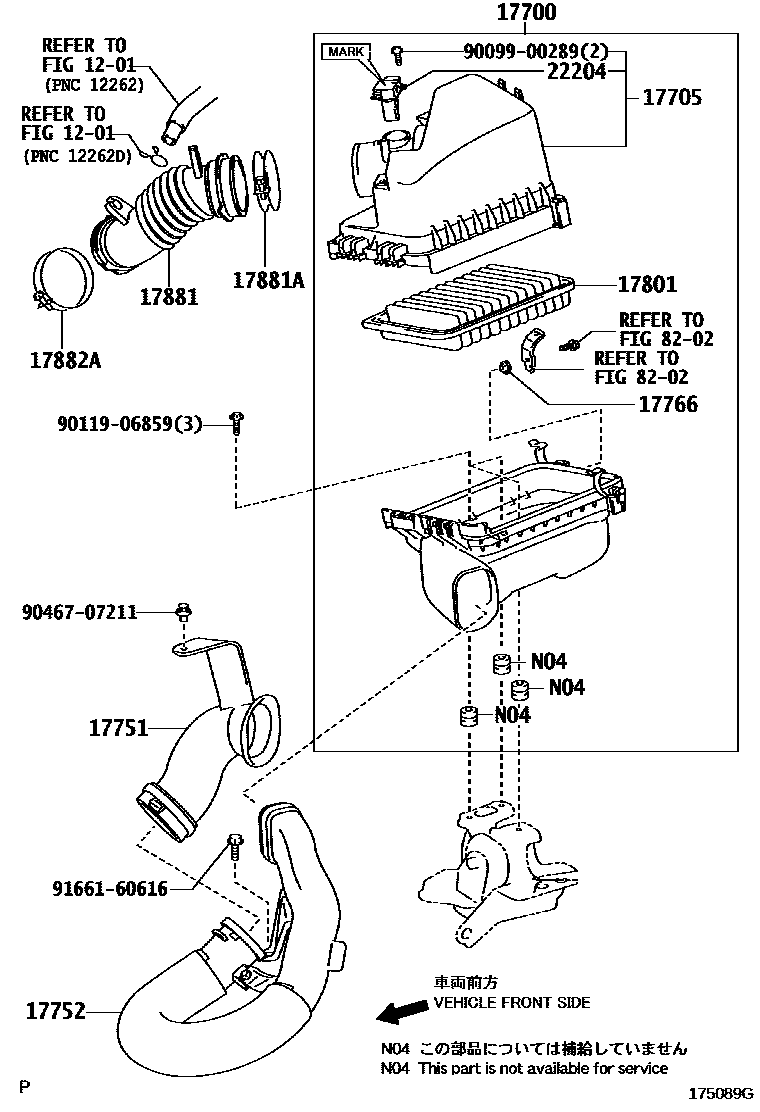

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-21180 · 17700-21181 · 17700-37190 · 17700-37191 · 17700-37211 |
| 17705 | Air filter cover sub-assembly | 17705-21160 · 17705-21161 · 17705-21162 · 17705-37060 · 17705-37061 · 17705-37081 · 17705-37082 |
| 17751 | No. 1 air filter air inlet | 17751-21190 · 17751-37060 |
| 17752 | No. 2 air filter air inlet | 17752-21070 · 17752-37040 |
| 17765 | No. 1 air filter stay | 17706-21010 · 17706-22010 |
| 17766 | No. 2 air filter stay | 17706-21010 · 17706-22010 |
| 17801 | Air filter element sub-assembly | 17801-21050 |
| 17880 | Air cleaner hose assembly | 17880-37040 · 17880-37140 |
| 17881 | No. 1 air cleaner hose | 17880-21110 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10830 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10650 · 96111-10780 |
| 17893 | Intake resonator | 17893-37010 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T010 · 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-31010 · 22204-31020 · 22204-37010 |
