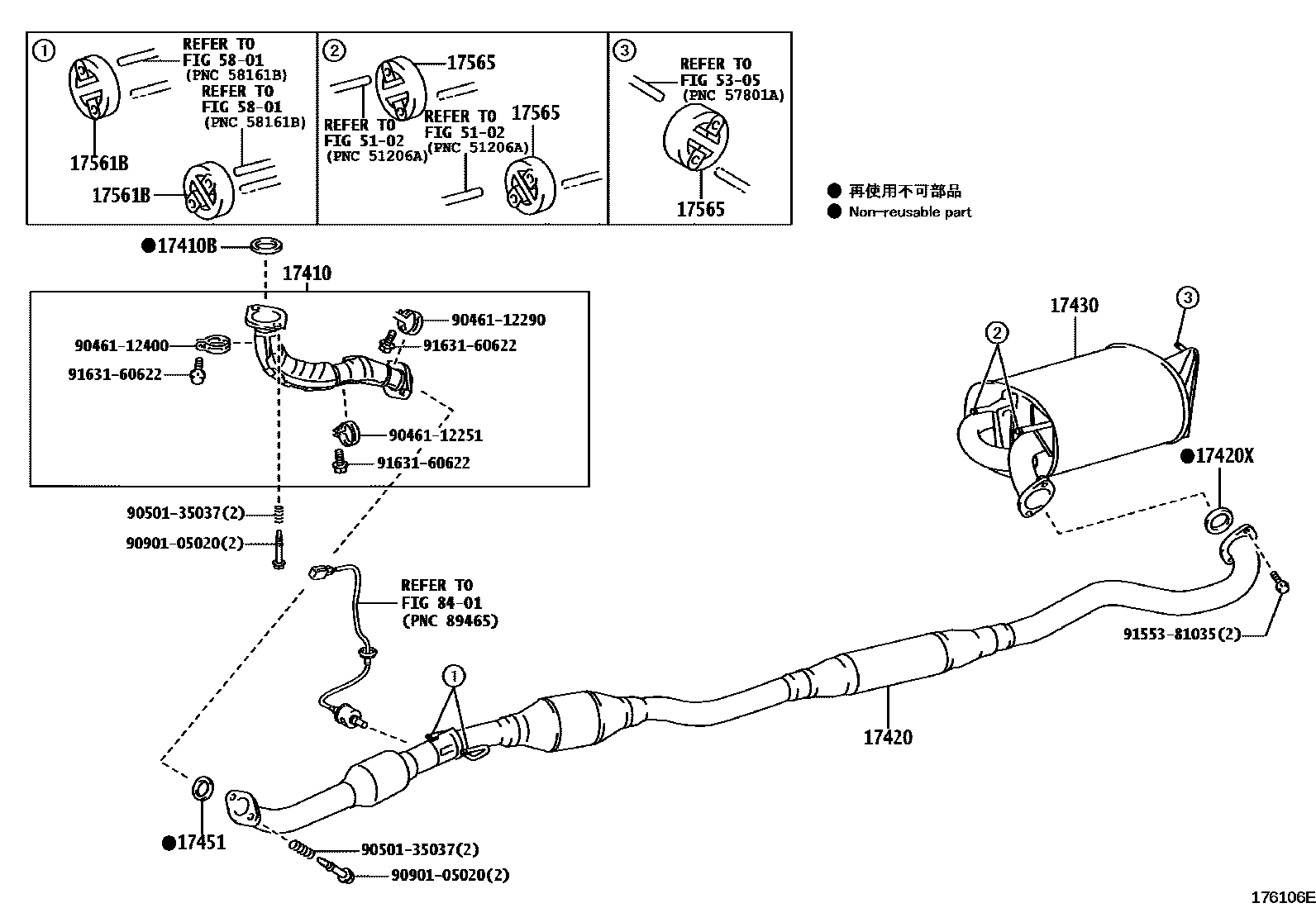

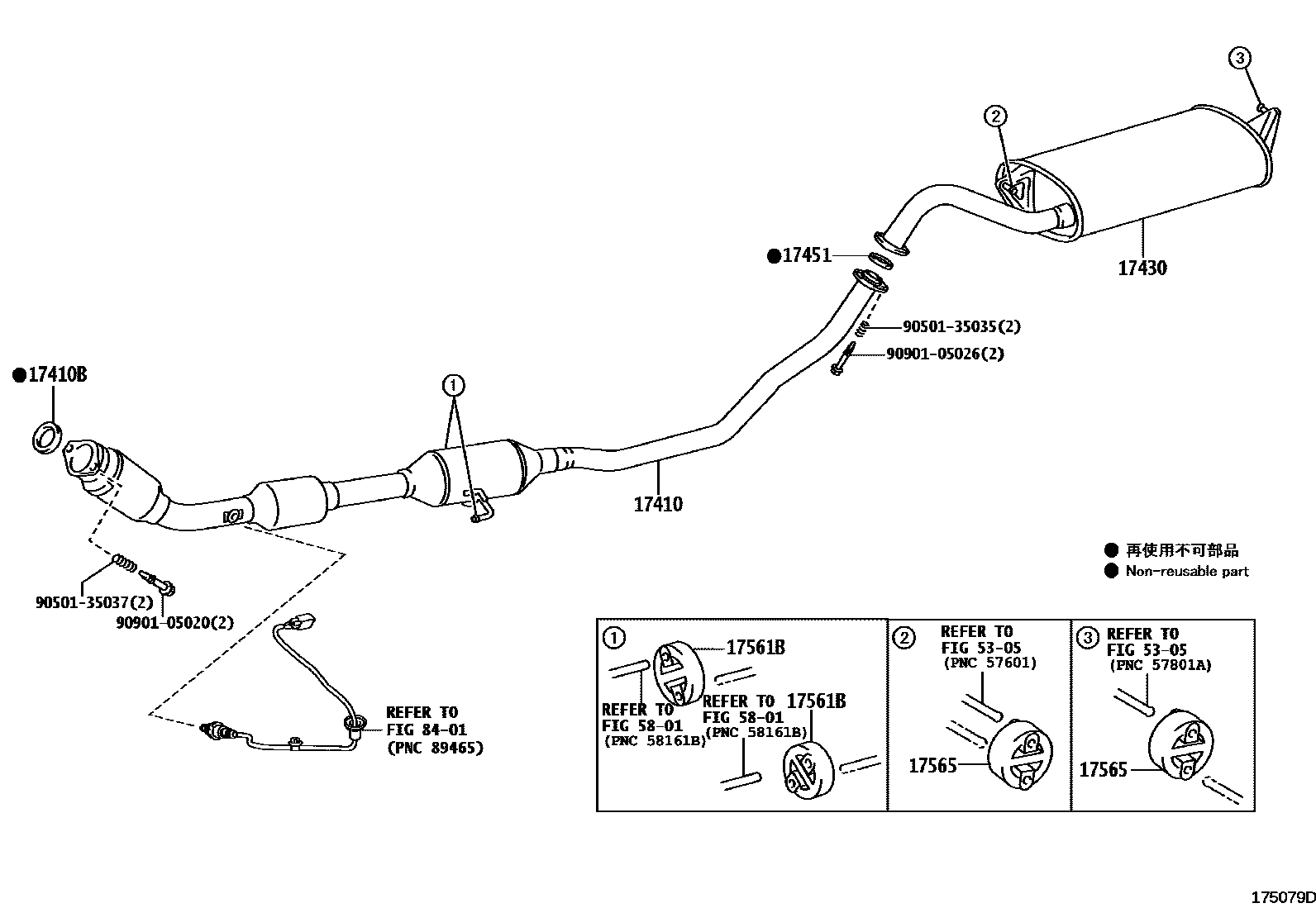

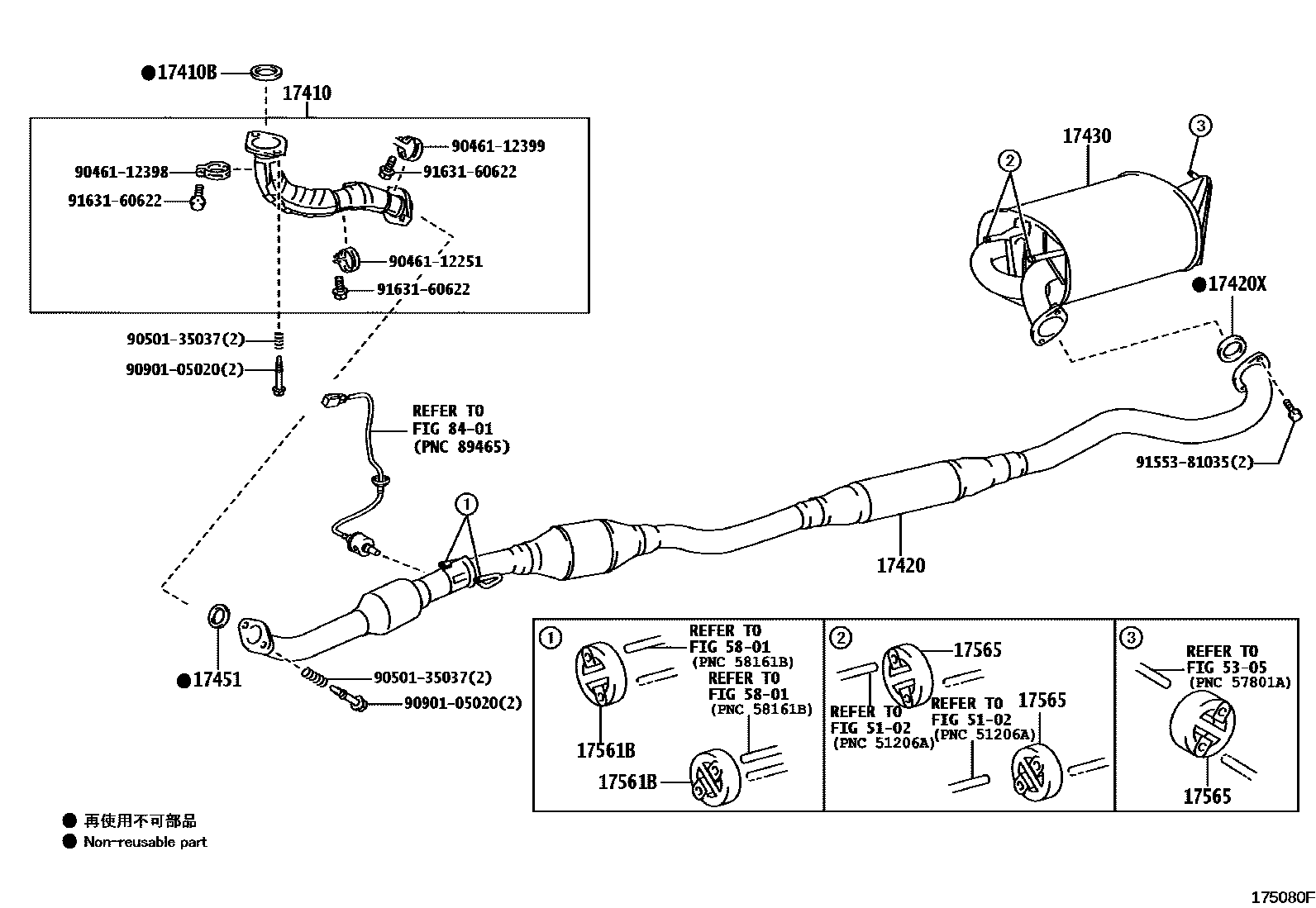

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-21770 · 17410-21790 · 17410-21A20 · 17410-37180 · 17410-37190 · 17410-37191 · 17410-37490 |
| 17410B | Exhaust pipe gasket | 17451-21070 · 17451-28040 |
| 17420 | Central exhaust pipe assembly | 17420-21190 · 17420-21191 · 17420-21200 · 17420-37020 · 17420-37081 |
| 17420X | Center exhaust pipe liner | 90917-06045 |
| 17430 | Exhaust tailpipe assembly | 17430-21700 · 17430-21710 |
| 17451 | Exhaust pipe gasket | 17451-21080 · 17451-23040 · 17451-23041 · 17451-23042 · 17451-28021 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-22030 · 17565-31040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22040 |
