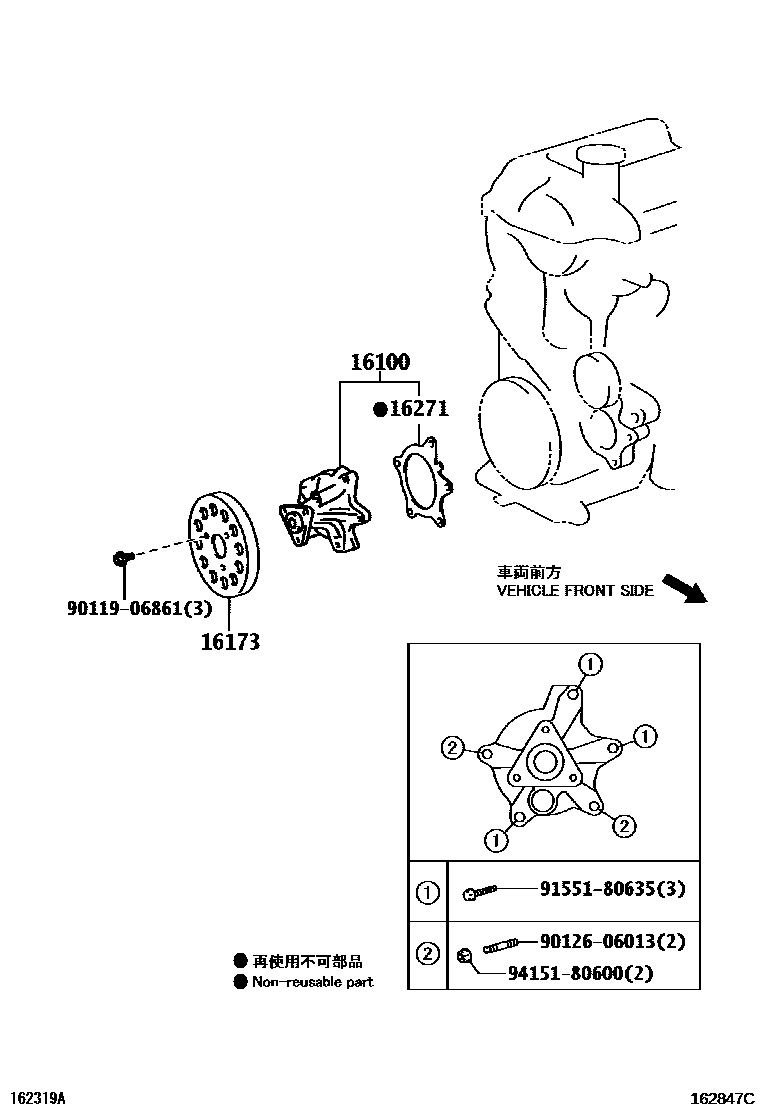

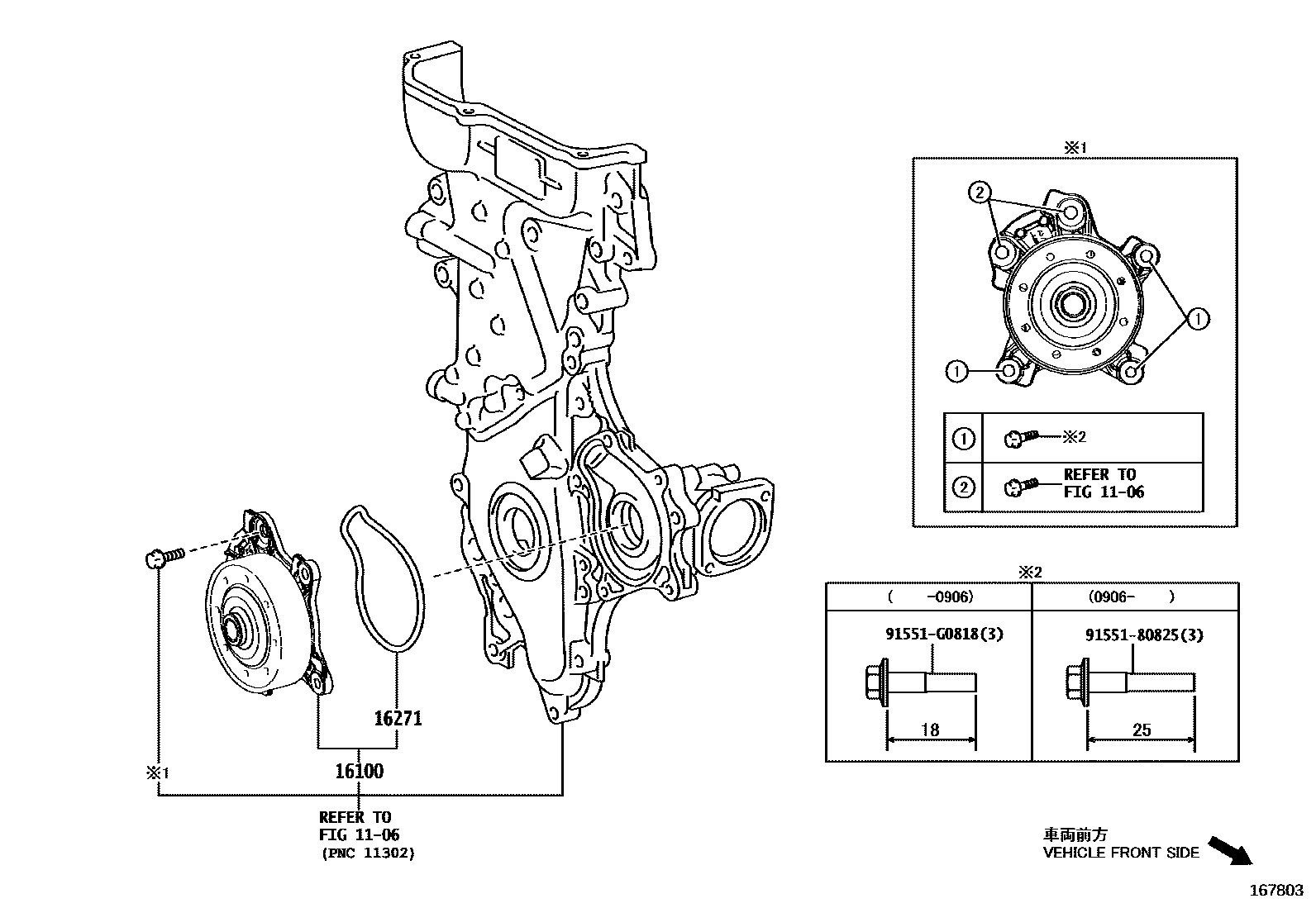

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-29156 · 16100-29157 · 16100-29206 · 16100-39465 · 16100-39466 |
| 16173 | water pump pulley | 16173-21020 |
| 16271 | water pump gasket | 16271-21020 · 16271-21021 · 16271-37010 |
