Toyota COROLLA Engine Mounting — Figure 1107

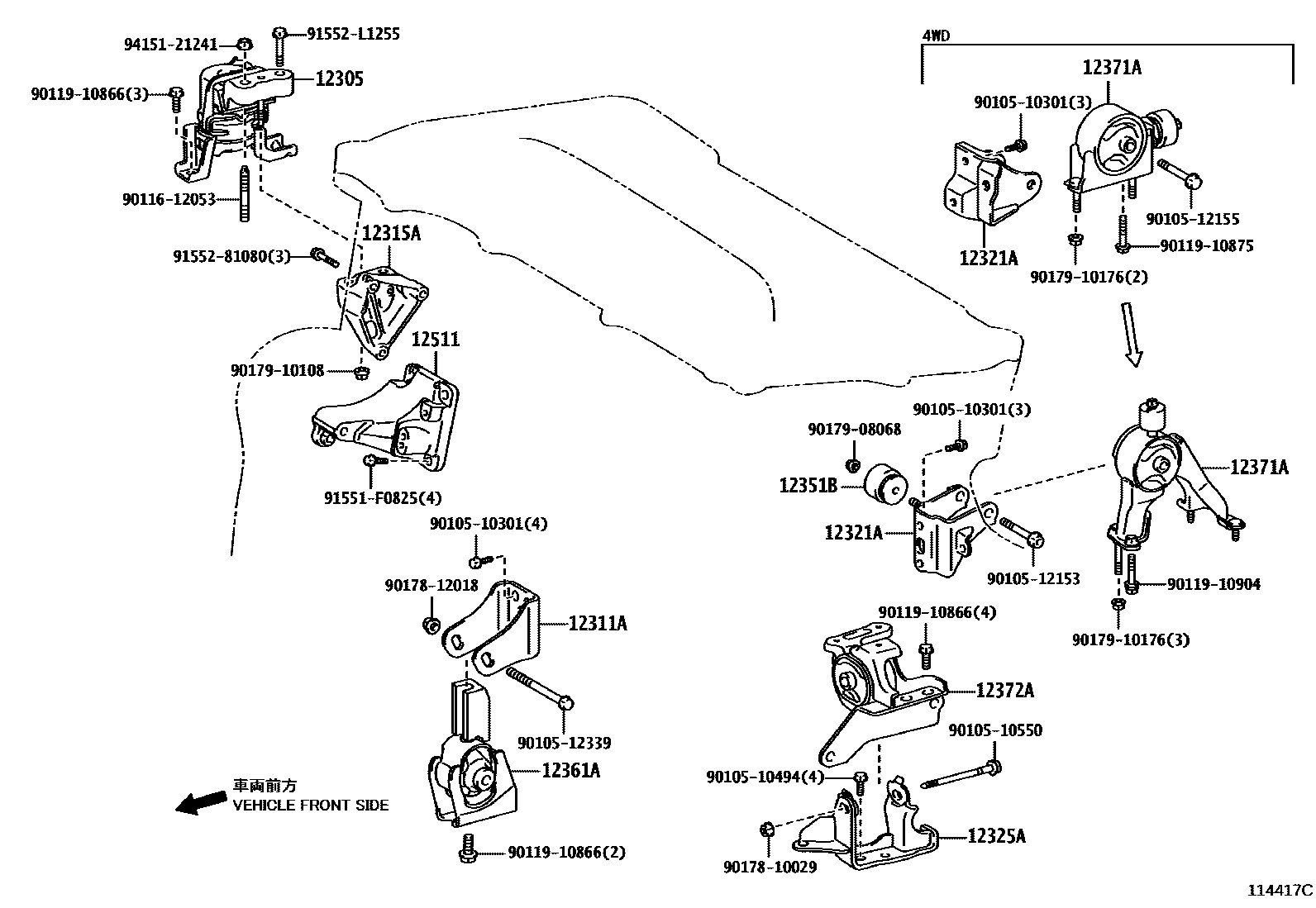

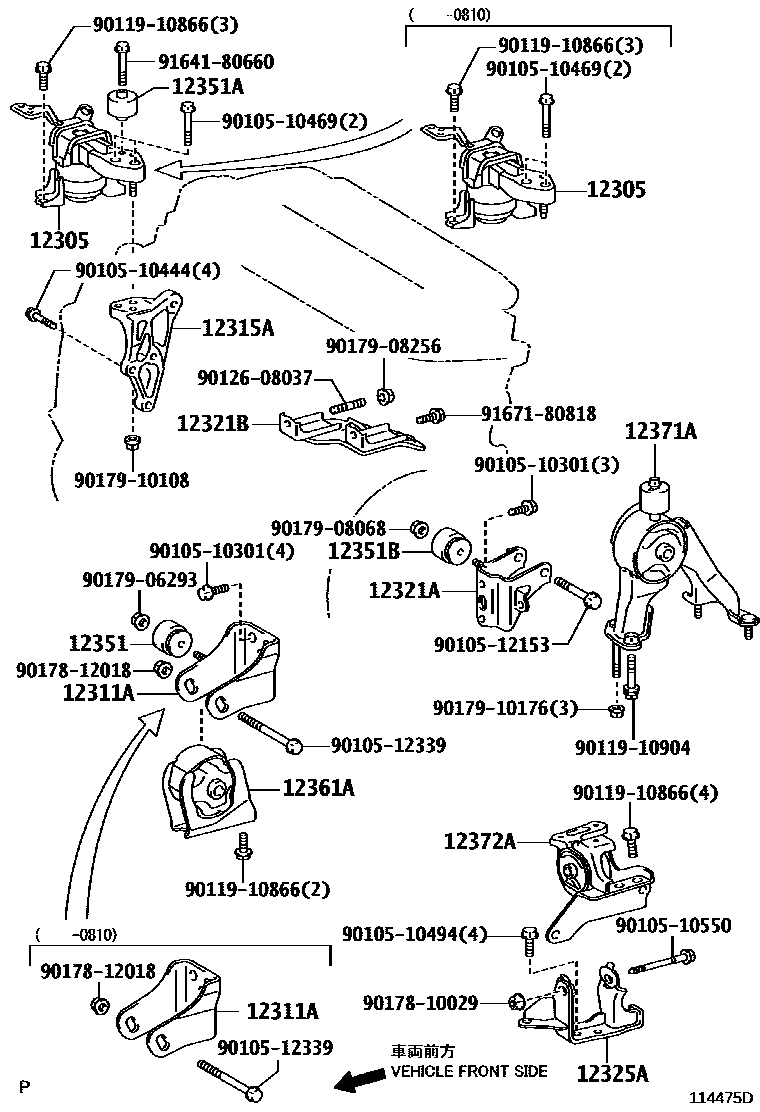

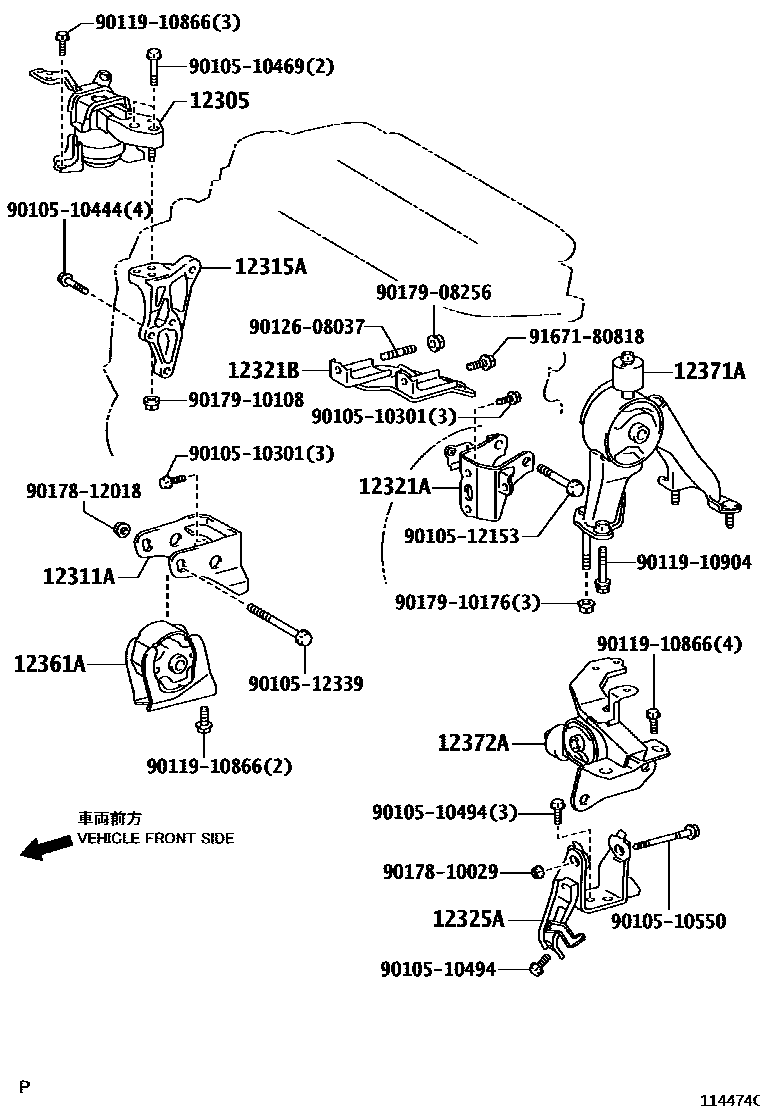

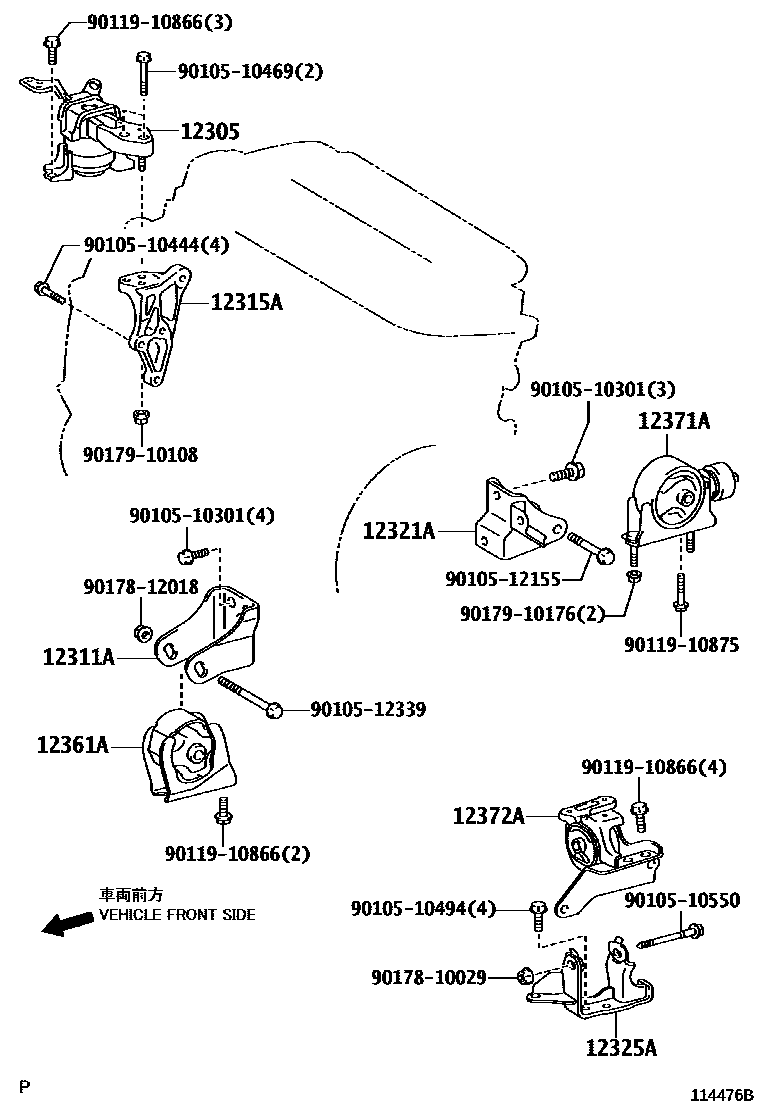

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21300 · 12305-21310 · 12305-21410 · 12305-21420 · 12305-37020 · 12305-37030 · 12305-37180 · 12305-37260 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-21060 · 12311-21070 · 12311-21080 · 12311-21110 · 12311-37020 · 12311-37030 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21041 · 12315-21042 · 12315-21043 · 12315-21044 · 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-21060 · 12321-21170 · 12321-21180 · 12321-21220 · 12321-37010 · 12321-37011 · 12321-37020 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-52020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21200 · 12325-21210 · 12325-21220 · 12325-37010 · 12325-37020 |
| 12351 | engine mount shock absorber | 12351-63010 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-21040 |
| 12351B | engine mount shock absorber | 12351-27050 · 12351-37120 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-21080 · 12361-21090 · 12361-21100 |
| 12371A | Engine rear mount vibration isolation pad | 12371-21240 · 12371-21250 · 12371-21270 · 12371-21300 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21230 · 12372-21240 · 12372-37010 |
| 12511 | No. 1 generator bracket | 12511-37010 |
