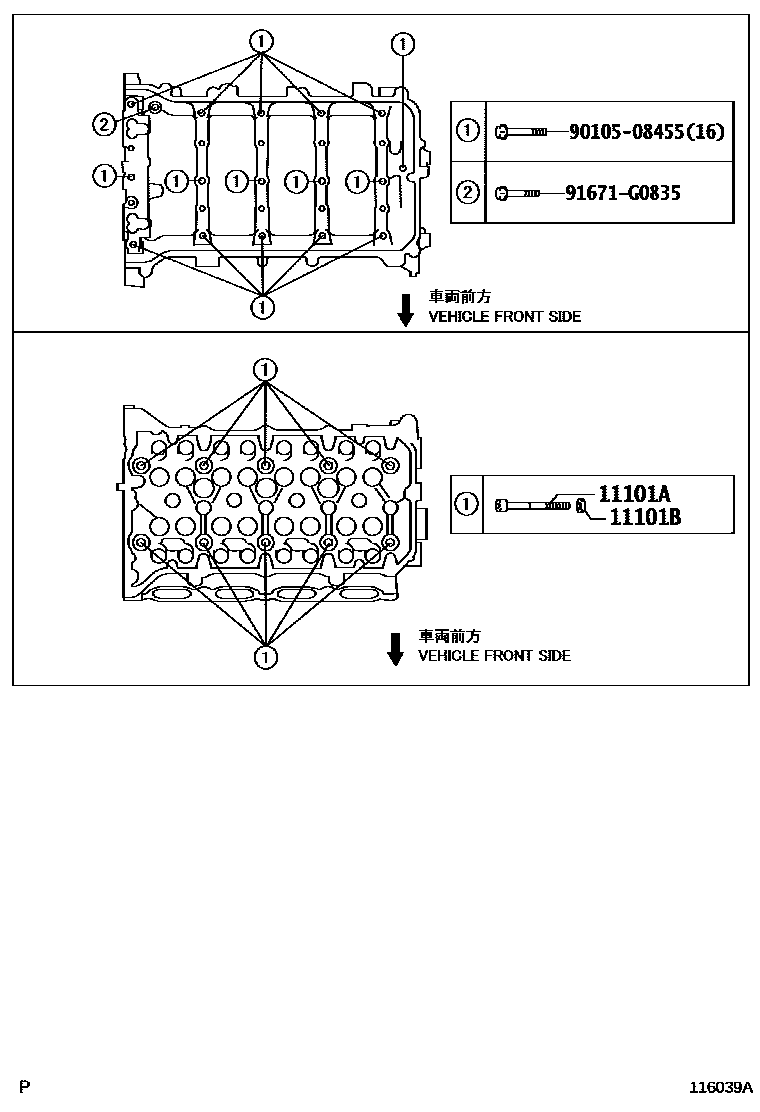

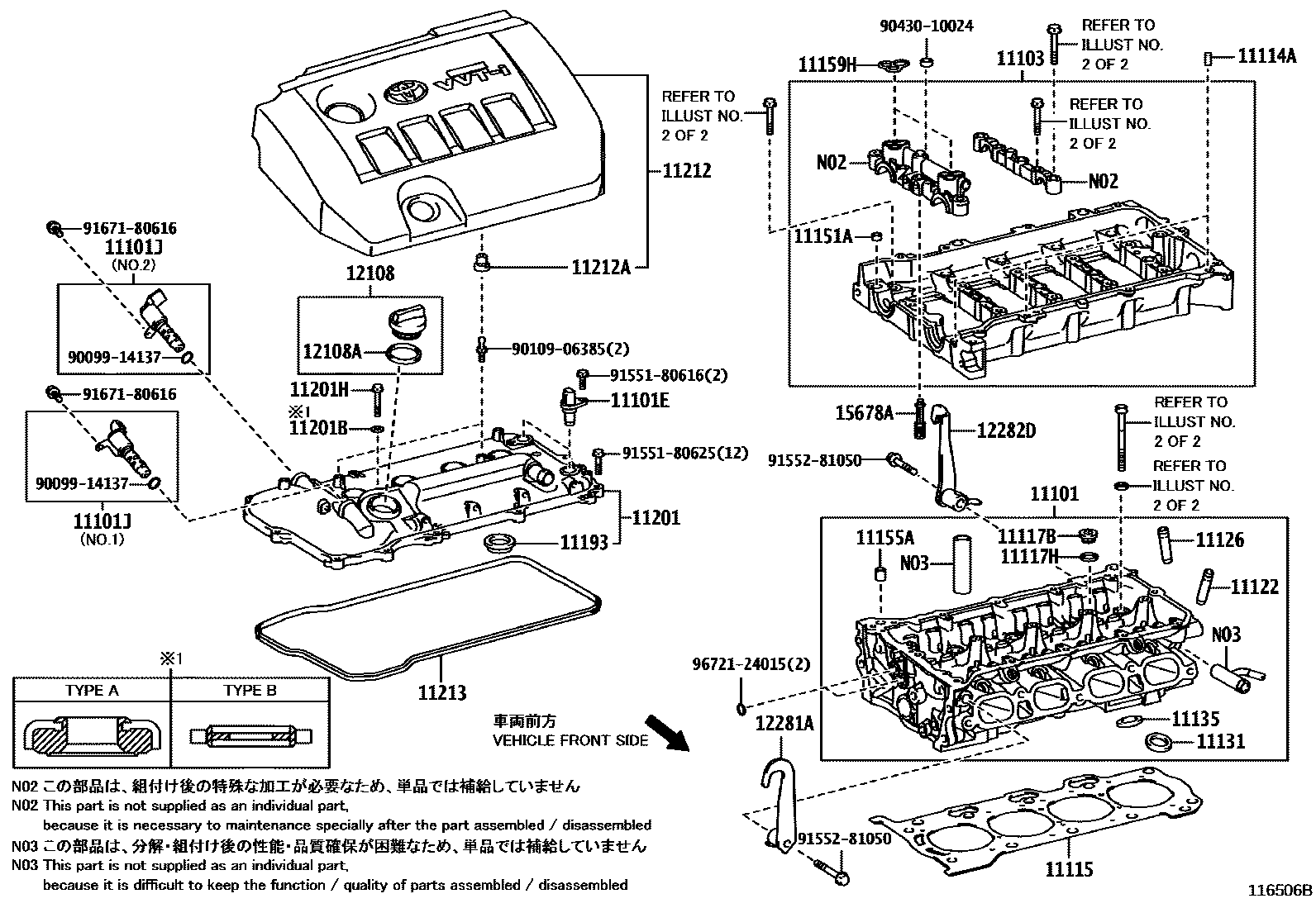

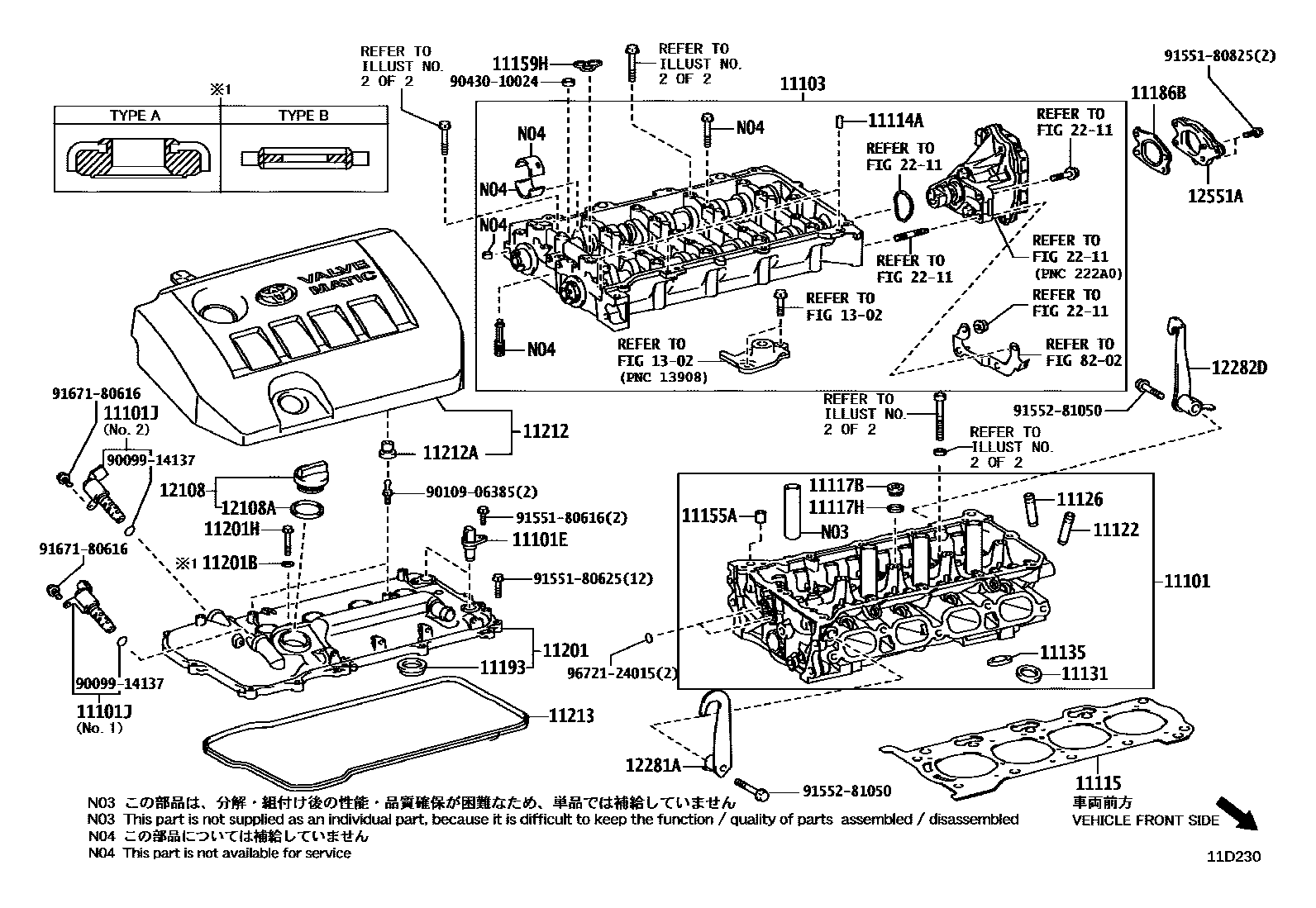

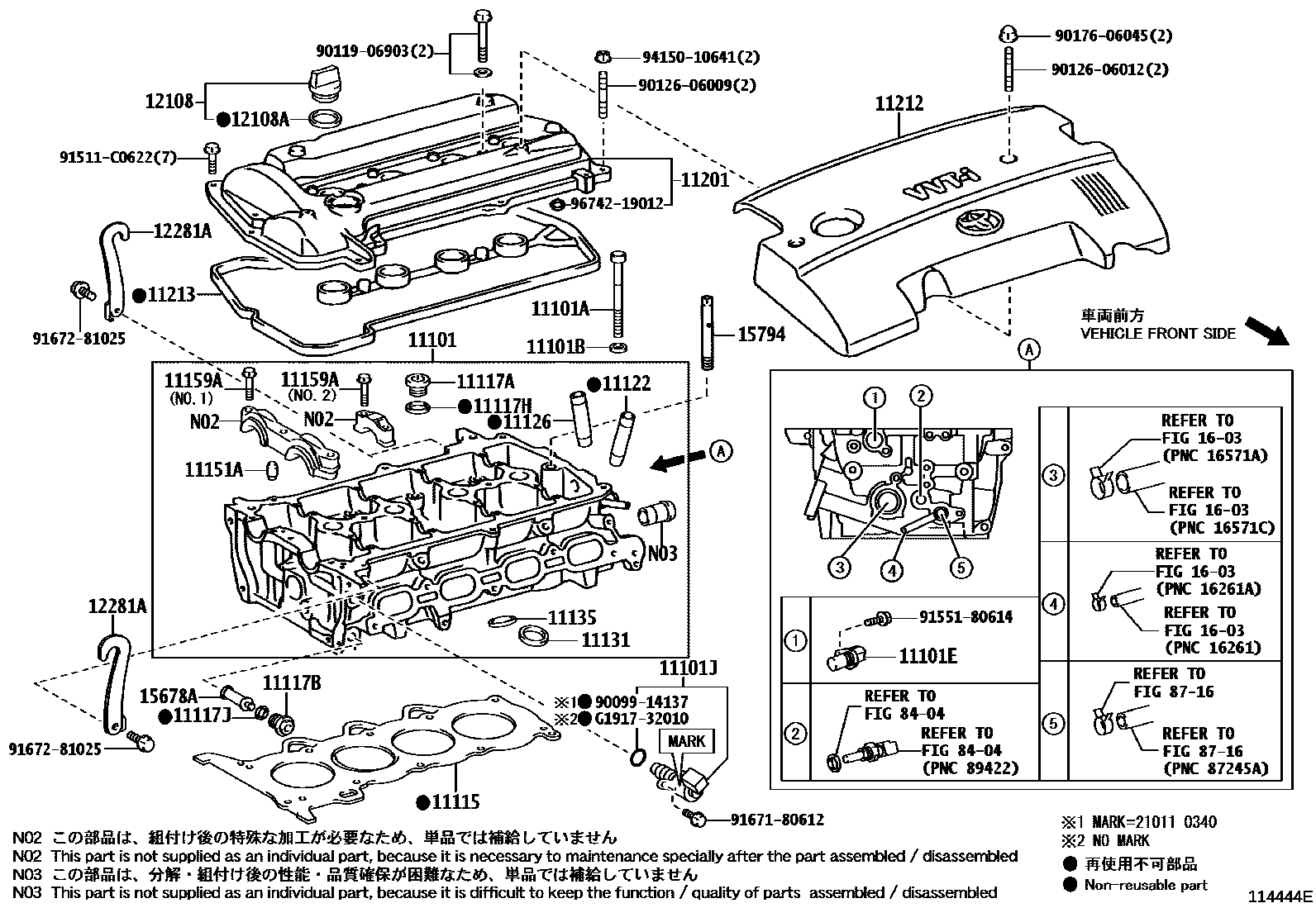

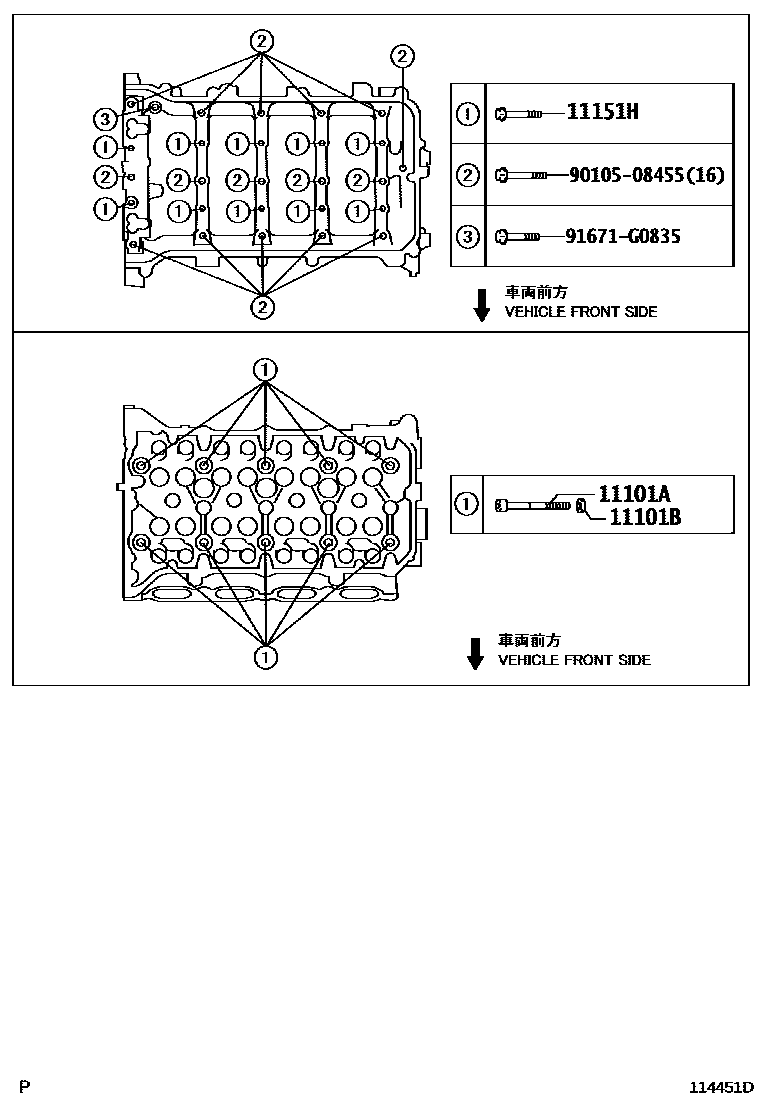

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-21050 · 11101-21051 · 11101-39686 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02126 · 90910-02166 · 90910-02170 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09024 · 90201-10344 |
| 11101E | Cam position sensor | 90919-05024 · 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-21011 · 15330-37010 · 15330-37020 |
| 11103 | Camshaft housing sub-assembly | 11103-37020 · 11107-37012 · 11107-37013 · 11107-37014 |
| 11114A | direct selling | 90250-06001 |
| 11115 | GASKET, CYLINDER HEAD | 11115-21050 · 11115-21080 · 11115-37030 · 11115-37050 · 11115-37051 · 11115-37060 |
| 11117A | No. 1 headed tapered thread plug | 90341-24013 |
| 11117B | No. 2 headed tapered thread plug | 90341-14013 · 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 · 90430-24246 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-14009 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11122-75020 · 11123-31050 · 11123-75020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-75020 · 11123-75020 · 11126-31030 · 11127-31030 |
| 11131 | intake valve seat | 11131-21020 · 11131-37020 · 11132-21020 · 11132-37020 |
| 11135 | Exhaust valve seat | 11135-21020 · 11135-37020 · 11136-21020 · 11136-37020 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90250-06001 · 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155A | PIN, RING W/HEAD | 90253-12002 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 · 90119-08A29 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-37010 |
| 11186B | Camshaft housing rear cover gasket | 11186-37010 |
| 11193 | spark plug bushing gasket | 11193-37020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-21070 · 11201-37010 · 11201-37011 · 11201-37020 · 11201-37021 · 11201-37022 |
| 11201B | Gasket (for cylinder head cover) | 16258-37010 · 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 91551-80670 |
| 11212 | No. 2 cylinder head cover | 11212-21021 · 11212-21040 · 11212-37010 · 11212-37031 |
| 11212A | Cylinder head cover cushion | 90480-16049 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-21020 · 11213-37020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-21010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 · 90430-37140 |
| 12281A | Engine No. 1 hanger | 12281-21010 · 12281-37020 · 12281-37021 · 12281-37050 |
| 12282D | ENGINE HANGER, NO.2 | 12282-37010 · 12282-37011 · 12282-37040 |
| 12551A | No. 1 vacuum pump bracket | 12551-37010 |
| 15678A | Oil control valve filter | 15678-21010 · 15678-37010 |
| 15794 | Cylinder head oil nozzle | 15794-21010 |
