Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

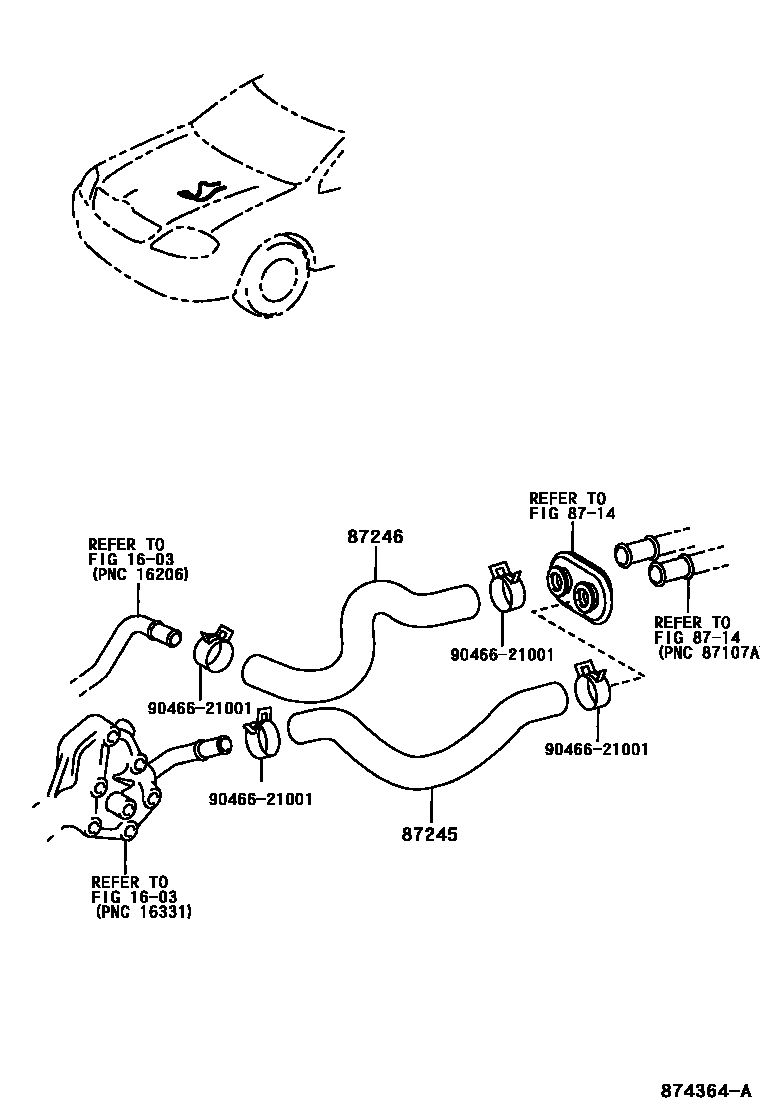

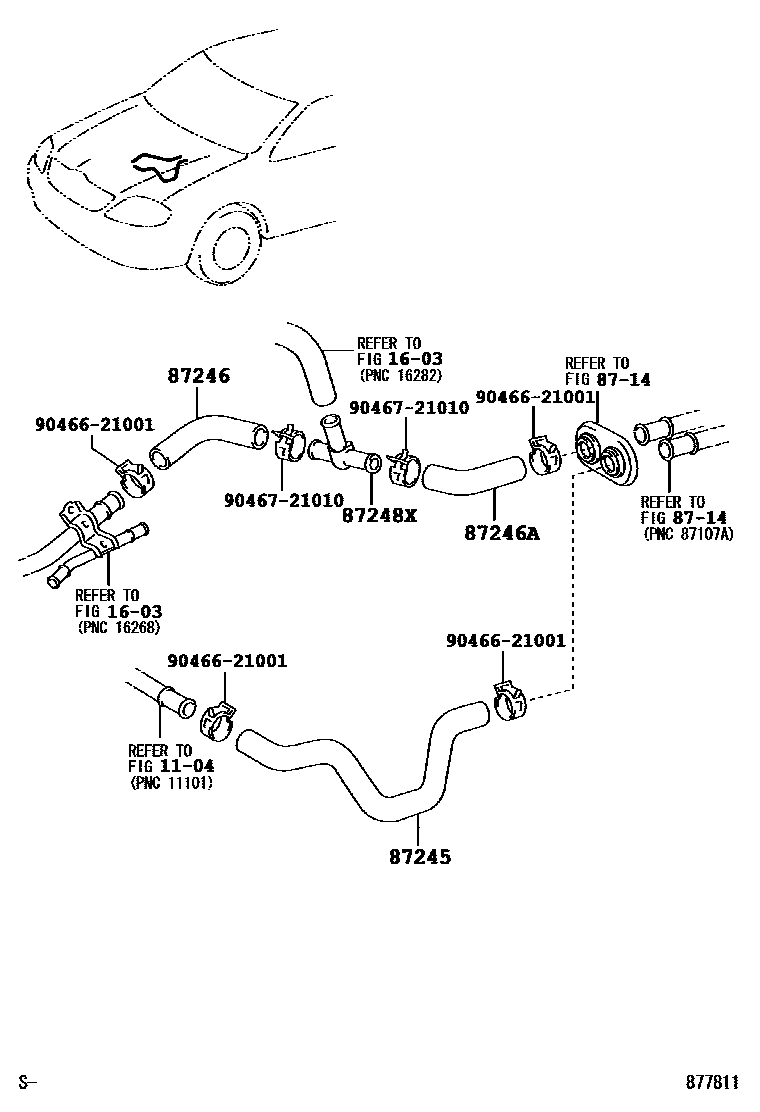

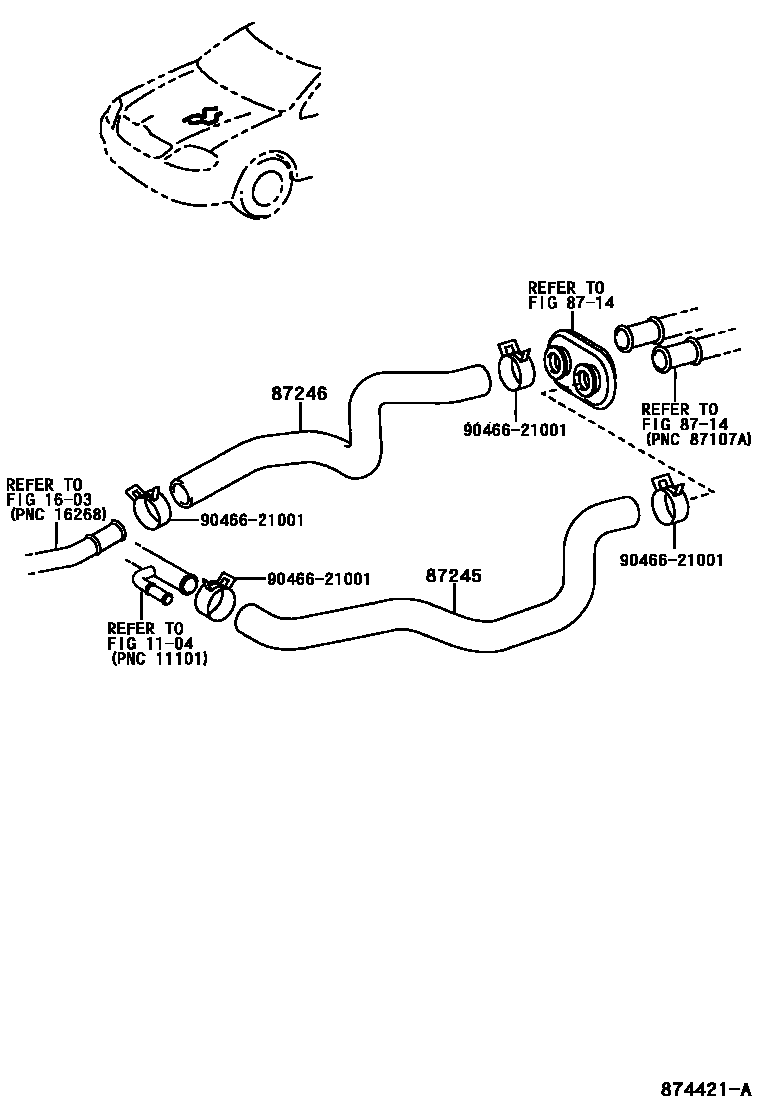

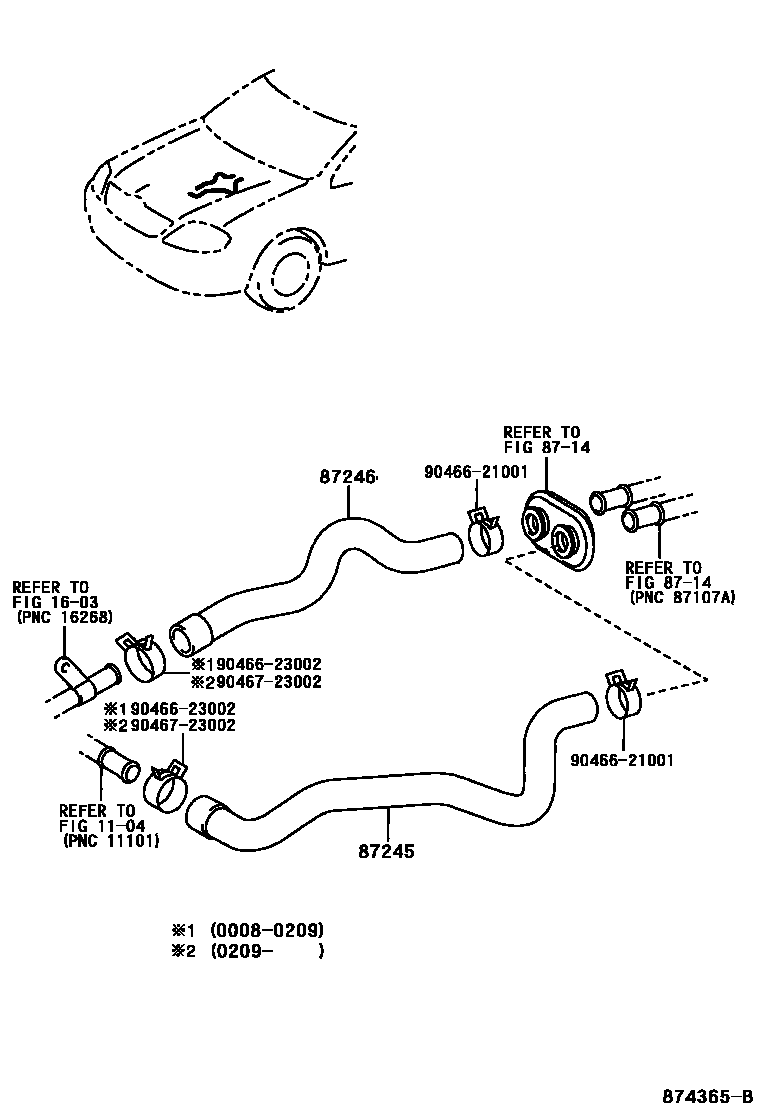

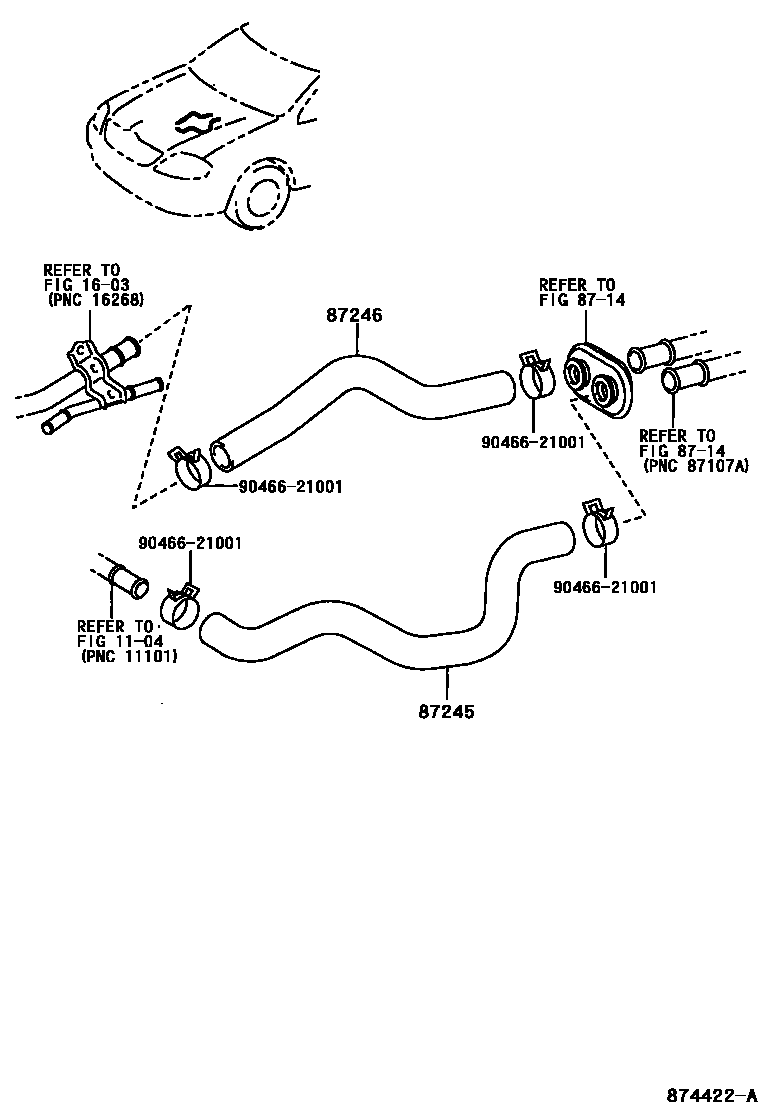

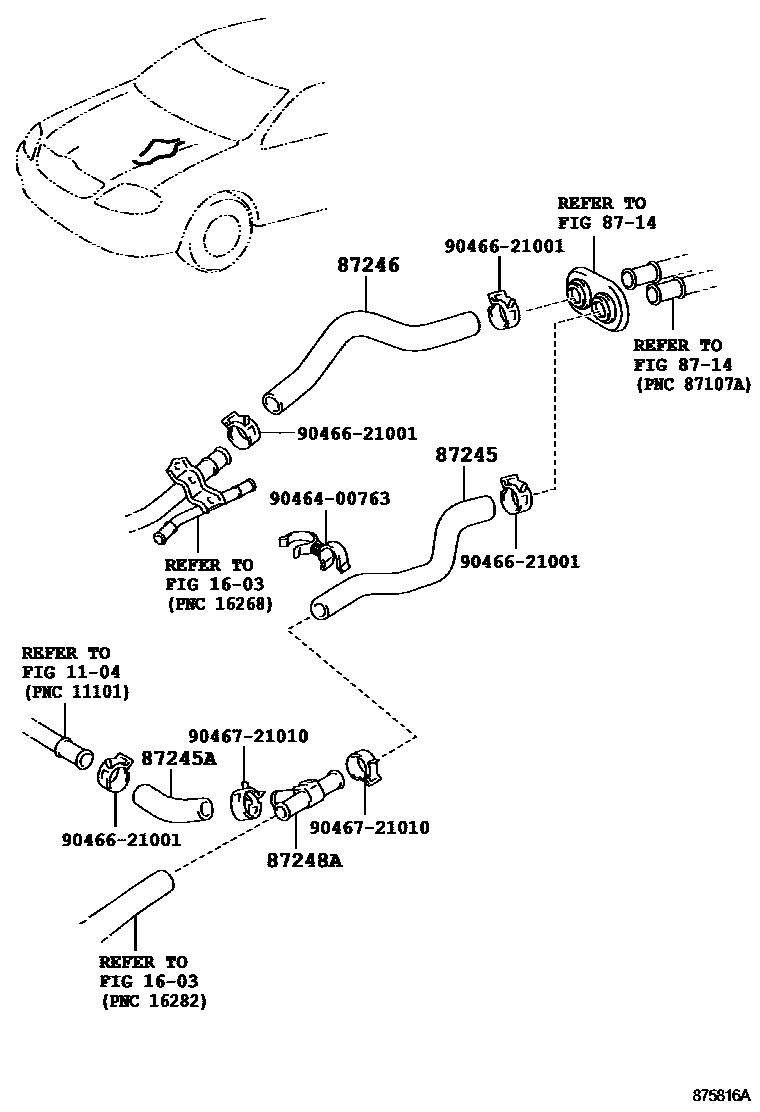

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-1E050 · 87245-1E070 · 87245-1E071 · 87245-1E090 · 87245-1E110 · 87245-1E180 |
| 87245A | Heater water inlet hose A | 87245-1E360 |
| 87246 | Heater outlet hose | 87245-12C60 · 87245-1E060 · 87245-1E080 · 87245-1E100 · 87245-1E120 |
| 87246A | Heater outlet hose A | 87245-12C50 |
| 87248A | Heater water inlet pipe A | 87248-20380 |
| 87248X | heater water pipe | 87248-12270 |
