Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

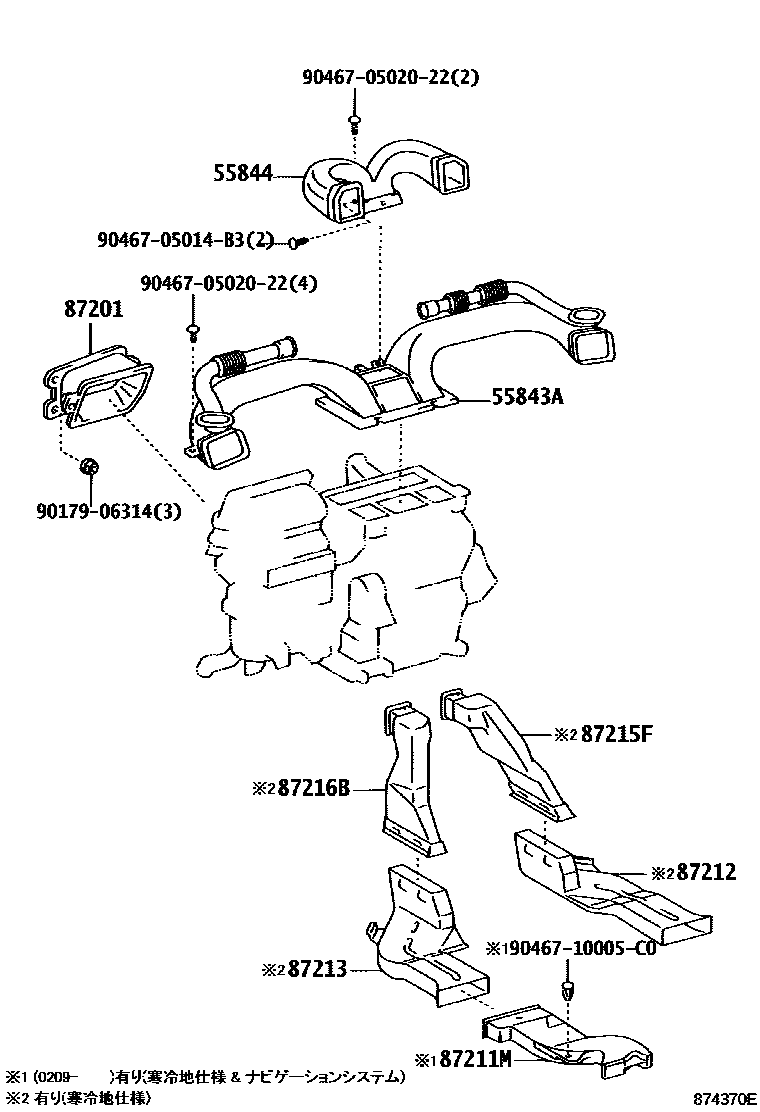

| 55843A | Air duct No. 1 from heater to air register | 55843-12280 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12460 |

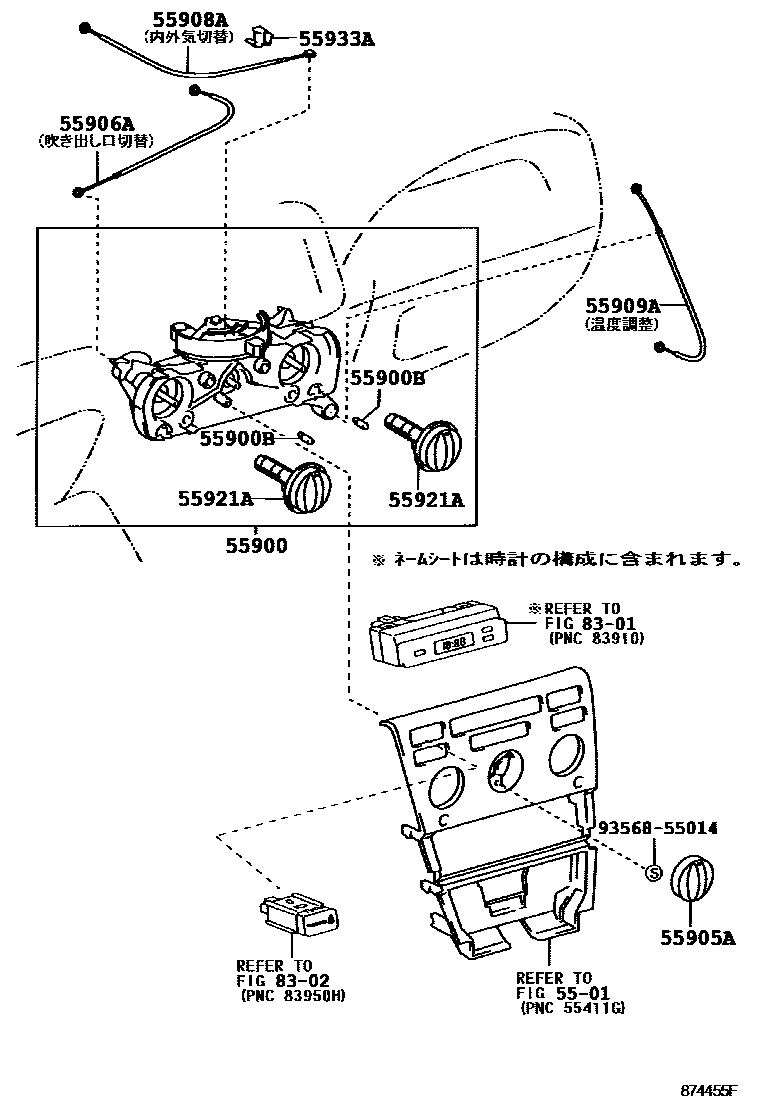

| 55900 | Air conditioning control assembly | 55900-12820 · 55900-12A00 · 55900-1A030 · 55900-1A070 · 55900-1A071 |
| 55900B | air conditioning control light bulb | 90981-11040 |

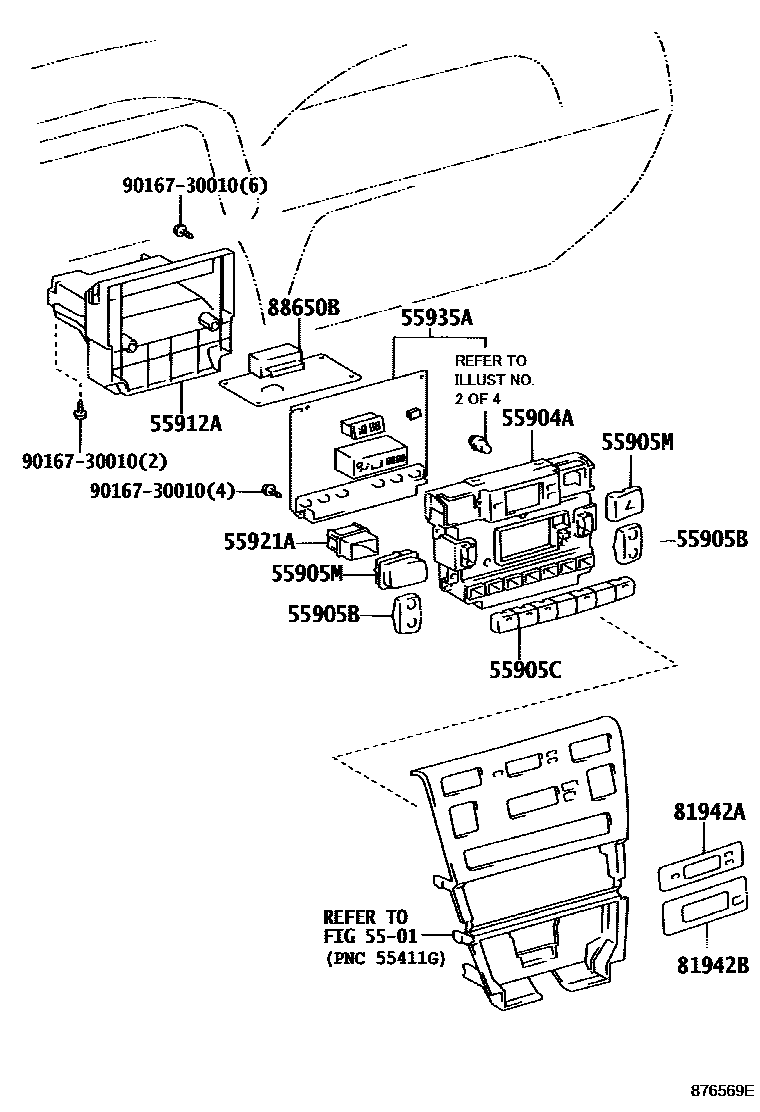

| 55904A | Heater control housing sub-assembly | 55904-12010 |
| 55905A | Heater control button | 55905-12610 · 55905-12710 · 55905-12740 · 55905-12741 · 55905-12760 |
| 55905B | Heater control button 2 | 55905-12670 · 55905-12680 · 55905-12790 · 55905-12800 |
| 55905C | Heater control button No. 3 | 55905-12690 · 55905-12810 |
| 55905M | Control button sub-assembly | 55905-12650 · 55905-12660 · 55905-12770 · 55905-12780 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12410 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12330 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12320 |
| 55912A | heater control housing | 55912-12060 |
| 55921A | Heater Controller Fixing | 55921-12120 · 55921-12140 · 55921-12150 · 55921-12160 · 55921-12161 · 55921-12170 |
| 55933A | Heater control cable clip | 55933-52010 |
| 55935A | Central instrument cluster module circuit | 55935-12040 |

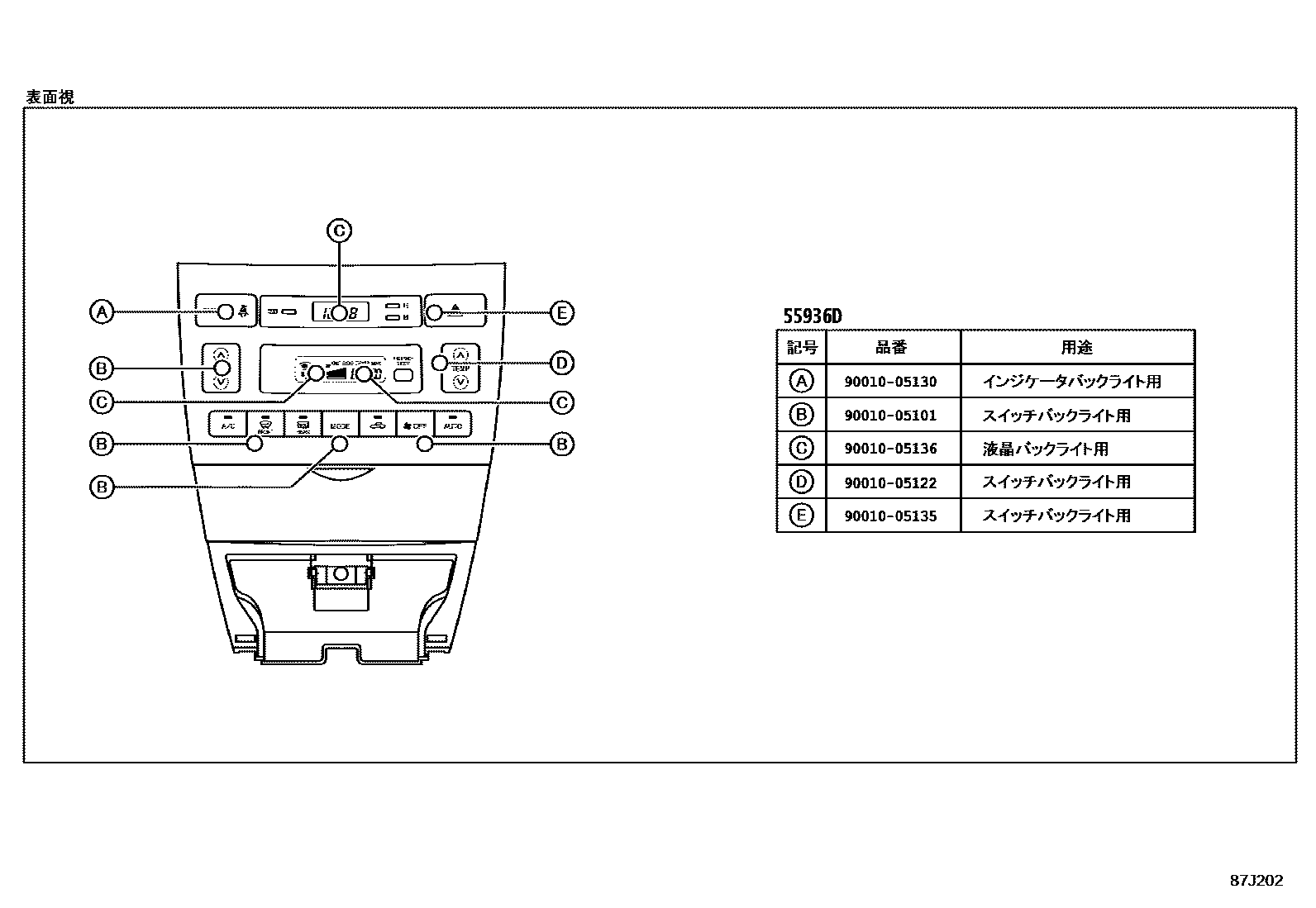

| 55936D | Center instrument cluster module switch bulb | 90010-05101 · 90010-05122 · 90010-05130 · 90010-05135 · 90010-05136 |
| 81942A | Heater No. 1 control nameplate | 81942-12640 · 81942-12670 · 81942-12810 · 81942-12830 |
| 81942B | Heater No. 2 control nameplate | 81942-12650 · 81942-12680 · 81942-12820 · 81942-12840 |
| 87201 | No. 1 air duct sub-assembly | 87201-12590 |
| 87211M | Rear foot air duct | 87211-12300 |
| 87212 | No. 1 rear air duct | 87212-12110 · 87212-12120 |
| 87213 | No. 2 rear air duct | 87213-12080 |
| 87215F | No. 3 rear air duct | 87215-12040 |
| 87216B | No. 4 rear air duct | 87216-12020 |

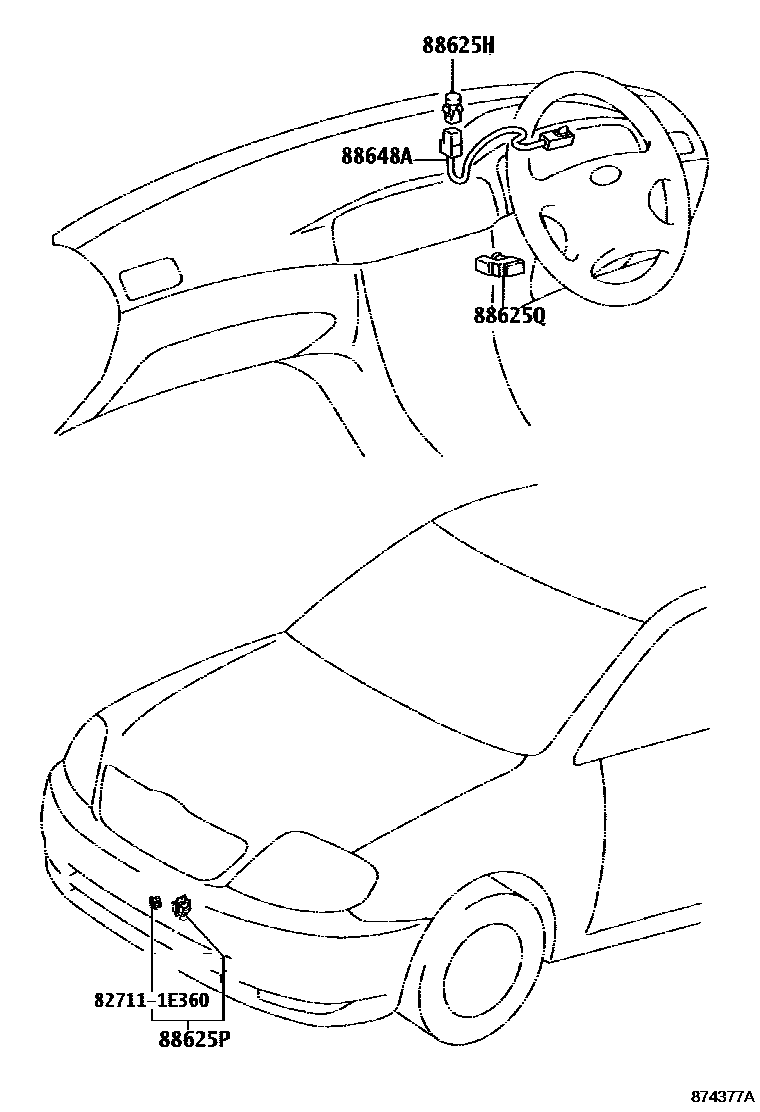

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22130 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-12670 |
| 88650B | Air conditioning amplifier assembly | 88650-12A40 · 88650-1E470 · 88650-1E471 |
