Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.

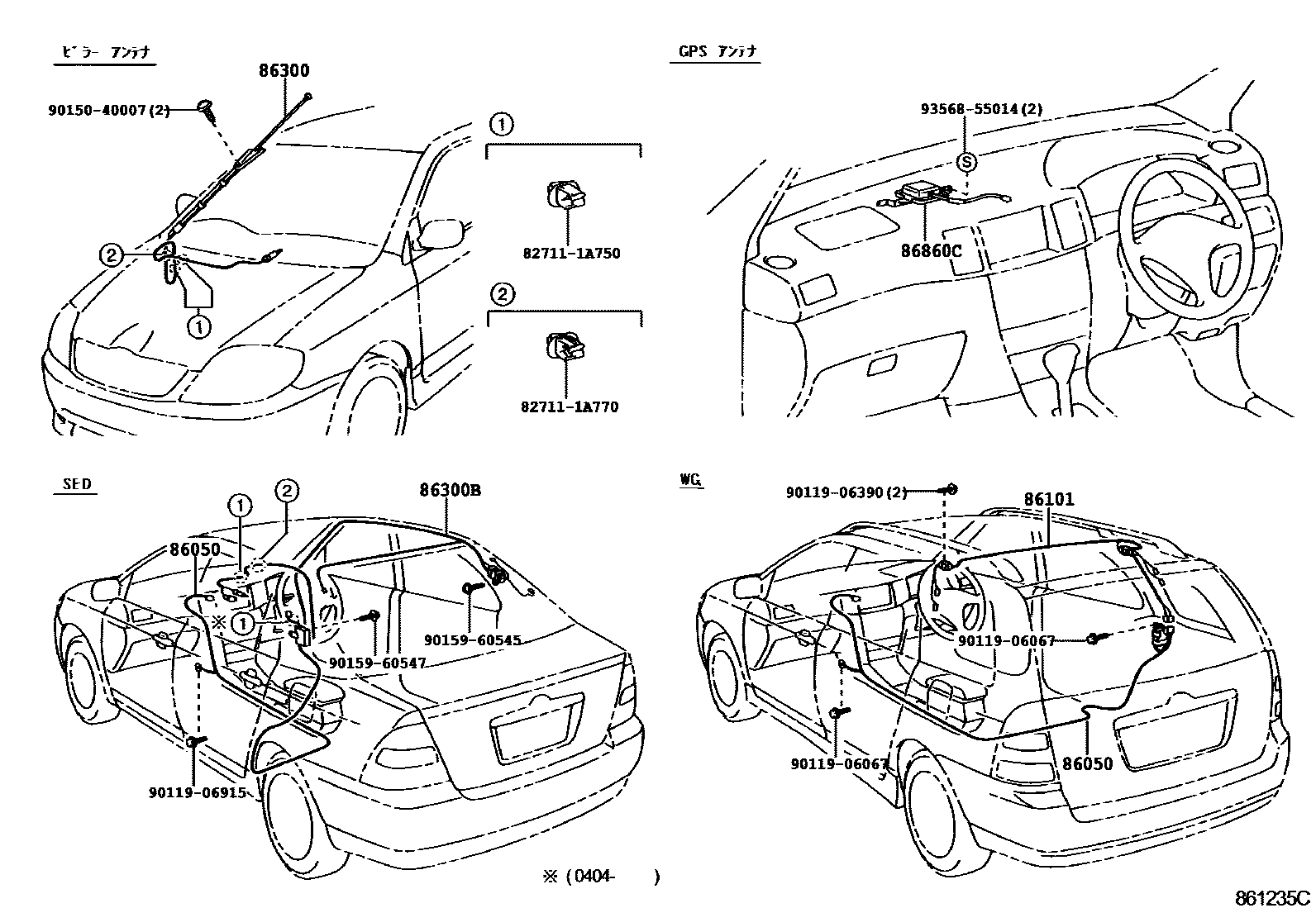

Toyota COROLLA antenna EPC diagram — 861235C
antenna — 861235C (200008 – 200609)

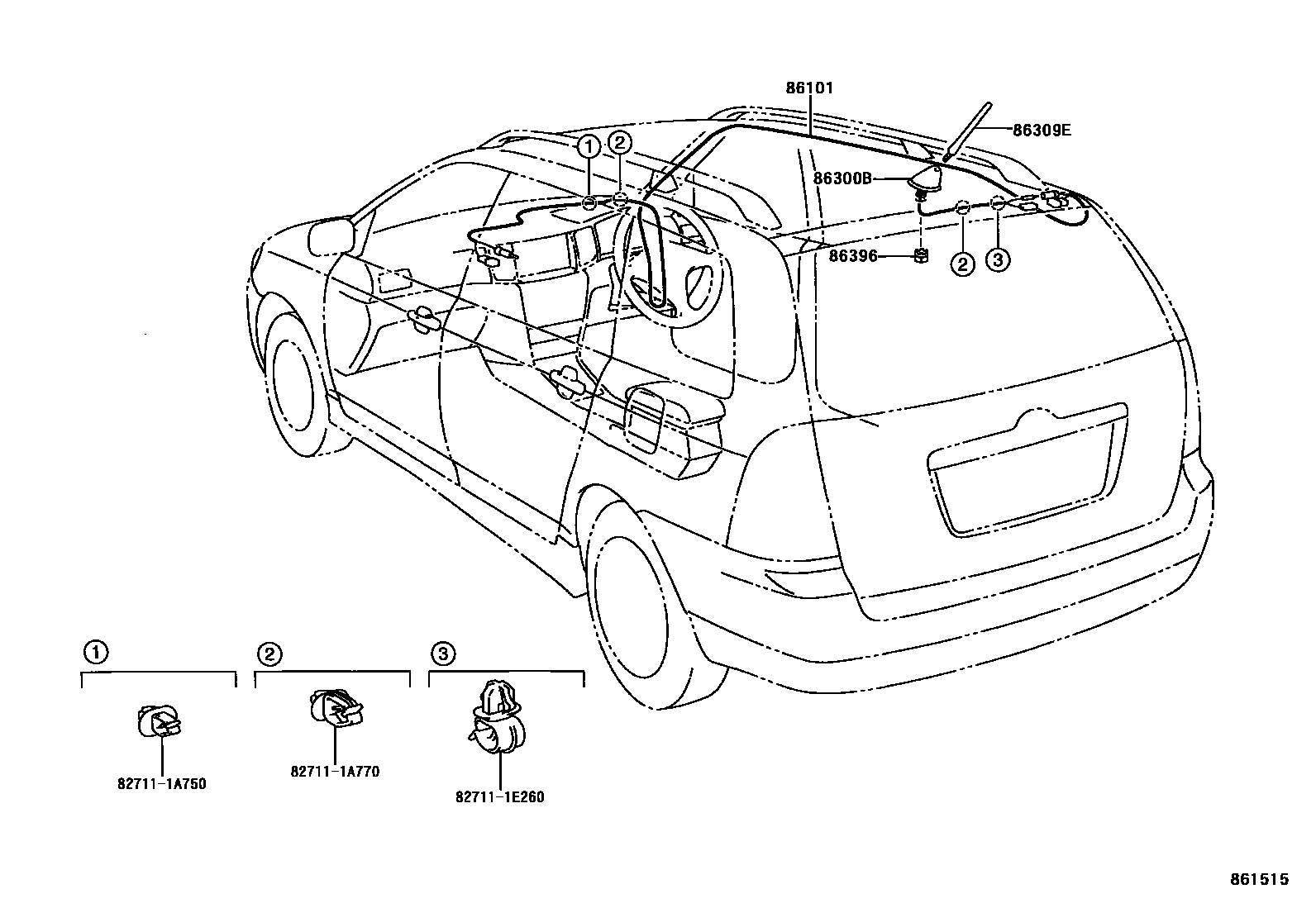

Toyota COROLLA antenna EPC diagram — 861515
antenna — 861515 (200110 – 200609)

PNC and OE references

PNCPart nameOE numbers
86050Monitor antenna assembly86050-12010 · 86050-12020 · 86050-12030 · 86050-13060
86101Antenna wire sub-assembly86101-12330 · 86101-13010 · 86101-13130
86300Antenna assembly with fixing parts86300-12720
86300BAmplifier antenna assembly86300-12730 · 86300-12780 · 86300-12820
86309ERoof antenna sub-assembly86309-20310
86396Antenna nut86396-20040
86860CNavigation antenna assembly86860-12010 · 86860-12030 · 86860-12050 · 86860-13030 · 86860-20060
