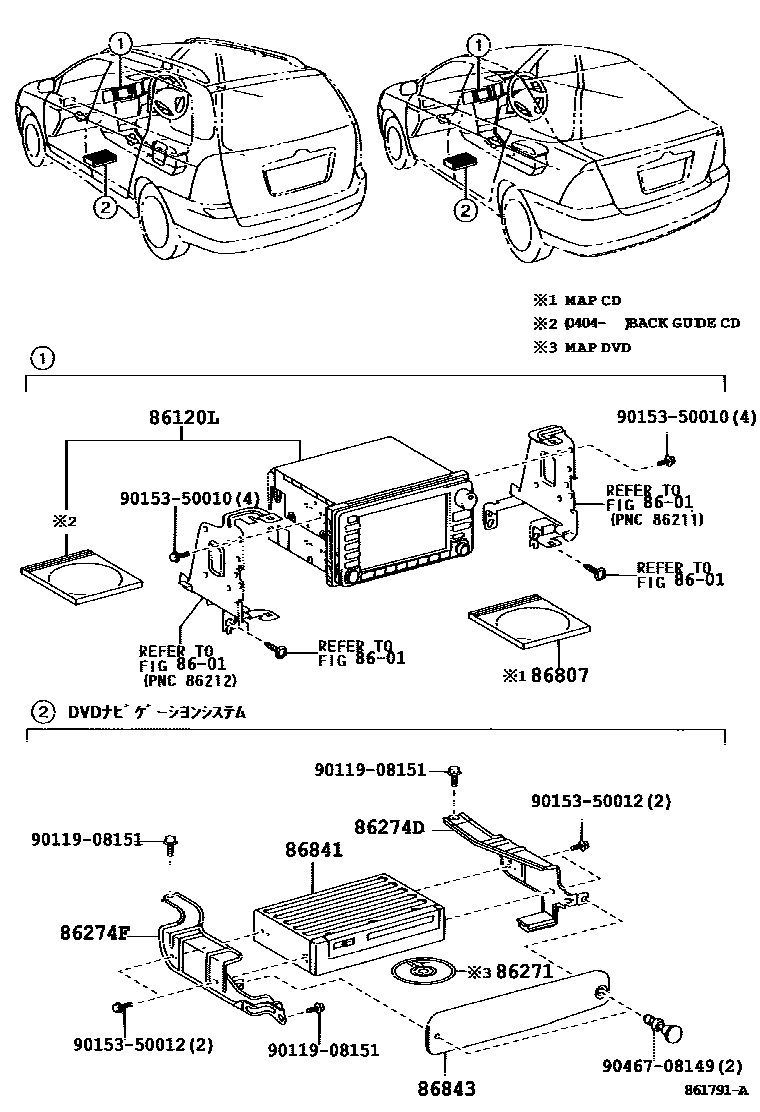

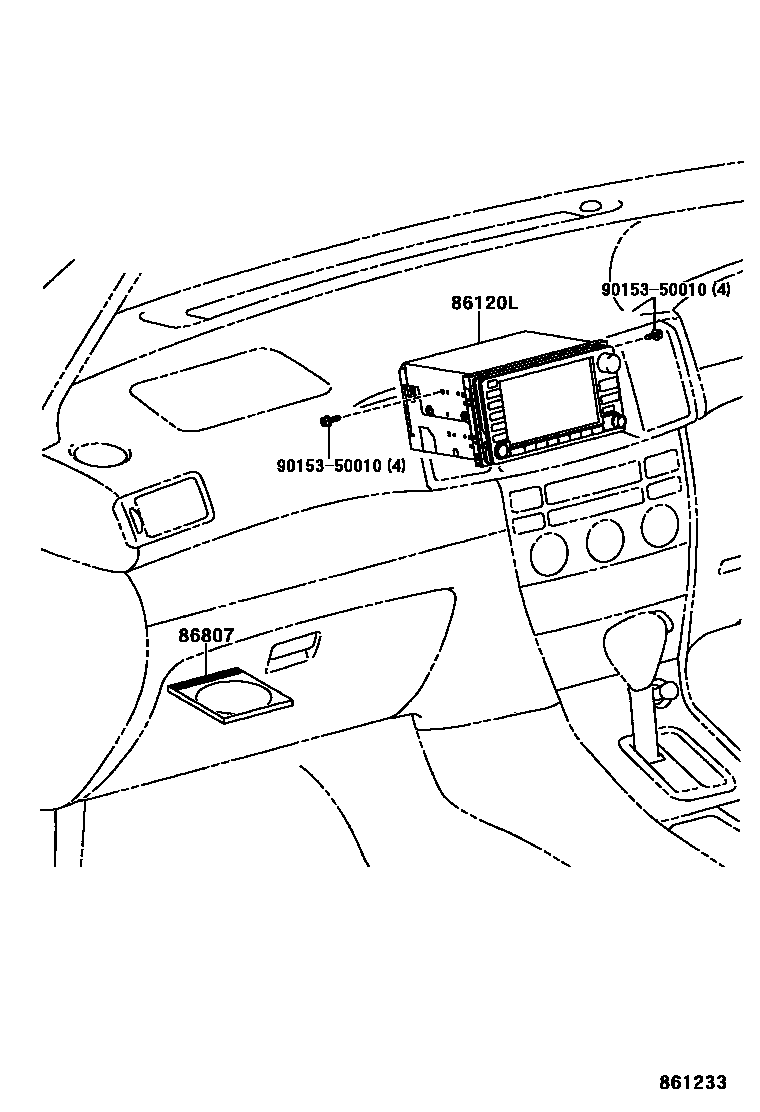

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-12710 · 86100-12711 · 86120-13070 · 86120-13071 · 86120-13111 · 86120-1A210 · 86120-33410 · 86120-33411 · 86120-42010 · 86120-44140 · 86120-52100 · 86120-52101 |
| 86271 | CD | 86271-13030 · 86271-52041 · 86271-52042 · 86271-52043 · 86271-52044 · 86271-52045 · 86271-52046 |
| 86274D | CD player stand | 86274-13050 |
| 86274F | No. 2 CD player stand | 86274-13060 |
| 86807 | CD-ROM disc repair kit | 86807-12030 · 86807-12031 · 86807-12032 · 86807-12033 · 86807-42010 · 86807-52010 |
| 86841 | Navigation ECU | 86841-13010 · 86841-52020 |
| 86843 | Navigation ECU cover | 86843-32010 |
