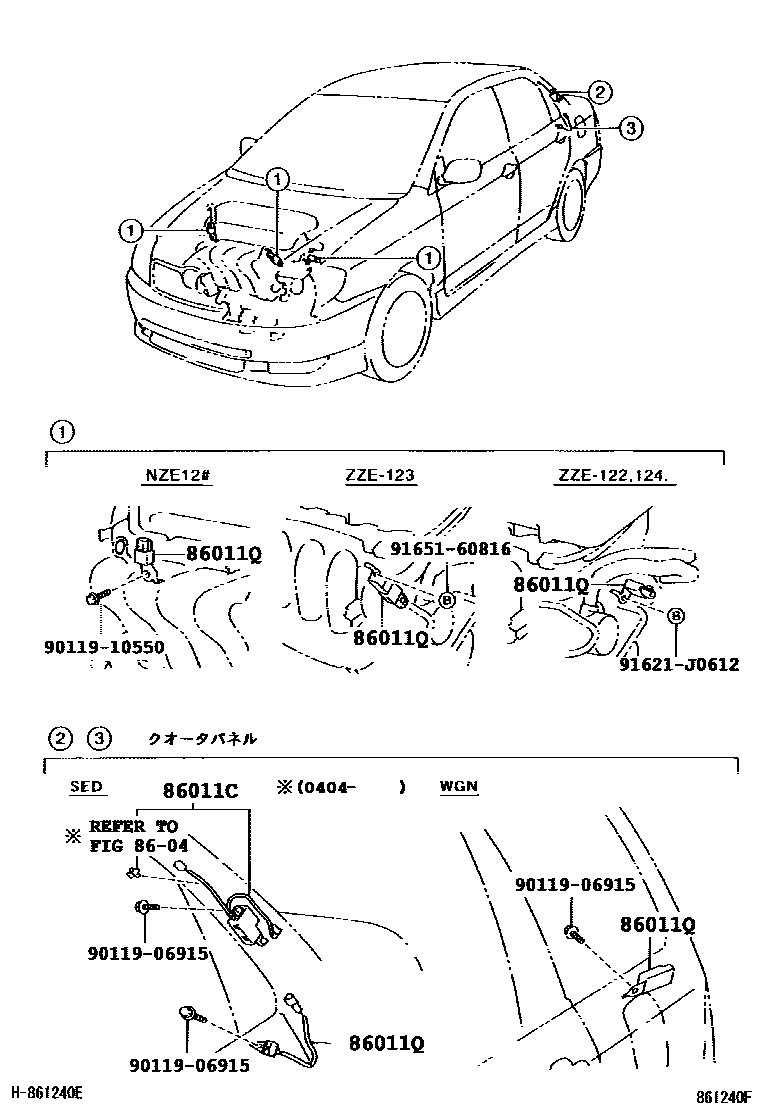

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011C | Noise filter | 90980-05353 · 90980-05369 |
| 86011Q | radio settings phase modulator | 90980-04132 · 90980-04141 · 90980-04148 · 90980-04154 · 90980-04155 |
| 86120 | Radio assembly | 86120-1A140 · 86120-27010 · 86120-32480 |
| 86211 | No. 1 radio bracket | 86211-12370 |
| 86212 | No. 2 radio bracket | 86212-12350 |
| 86221D | radio panel | 86221-52050 · 86221-52060 |
