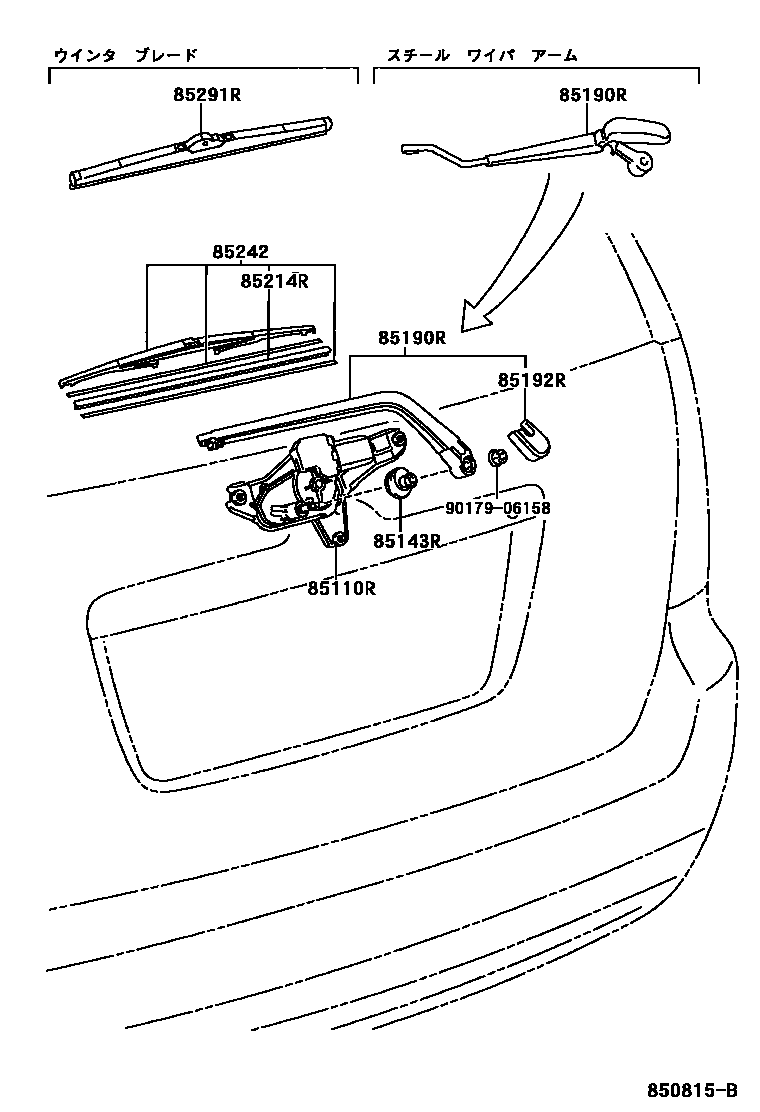

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-13120 · 85130-13150 |
| 85143R | Rear wiper motor seal | 85143-13070 · 85143-52030 |
| 85190R | Rear wiper arm assembly | 85241-28070 · 85241-44020 |
| 85192R | Rear wiper arm cover | 85292-28030 |
| 85214R | Rear wiper rubber strip | 85214-30280 · 85214-31010 |
| 85242 | Rear wiper blade | 85242-31011 · 85242-52030 · 85242-63010 |
| 85291R | Rear wiper blade for winter | 85291-13060 · 85291-13070 · 85291-28120 · 85291-33020 · 85291-42020 · 85291-53040 |
