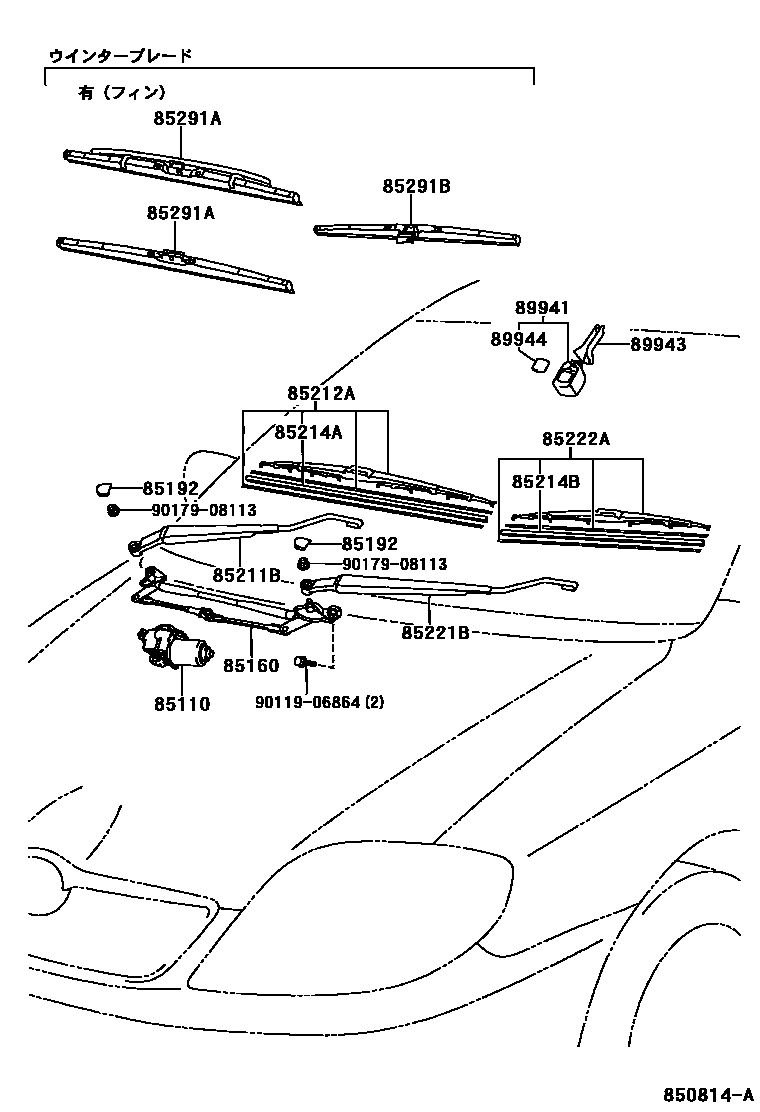

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-1A030 · 85110-1A050 |
| 85160 | Windshield wiper connecting rod assembly | 85150-1A020 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85211B | Right front wiper arm | 85211-12370 · 85211-12460 |
| 85212A | Right front wiper blade | 85212-12350 · 85212-30370 |
| 85214A | Right wiper rubber strip | 85214-50100 · 85214-50120 |
| 85214B | Left wiper rubber strip | 85214-50060 · 85214-50061 · 85214-50130 |
| 85221B | Left front wiper arm | 85221-12340 · 85221-12400 |
| 85222A | Left front wiper blade | 85222-12760 · 85222-12800 · 85222-12801 |
| 85291A | Right front wiper blade for winter use | 85291-24090 · 85291-24100 |
| 85291B | Left front wiper blade for winter use | 85291-60070 |
| 89941 | rain sensor | 89941-33010 |
| 89943 | Rain sensor cover | 89943-12010 |
| 89944 | Rain sensor tape | 89944-33010 |
