Toyota COROLLA 防盗装置 — Figure 8424

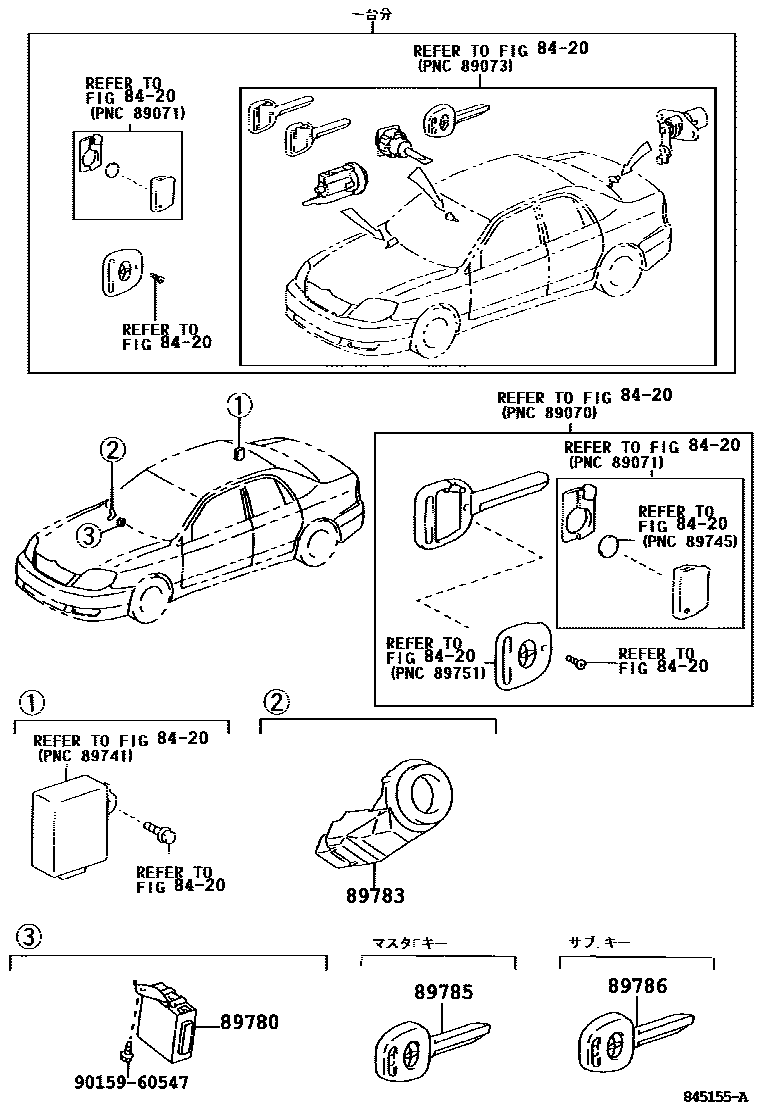

Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-12150 |
| 89783 | transceiver key amplifier | 89783-12050 |
| 89785 | transceiver key master transmitter | 89785-60160 |
| 89786 | transceiver key secondary transmitter | 89786-60170 |
