Toyota COROLLA ABS 和 VSC — Figure 8414

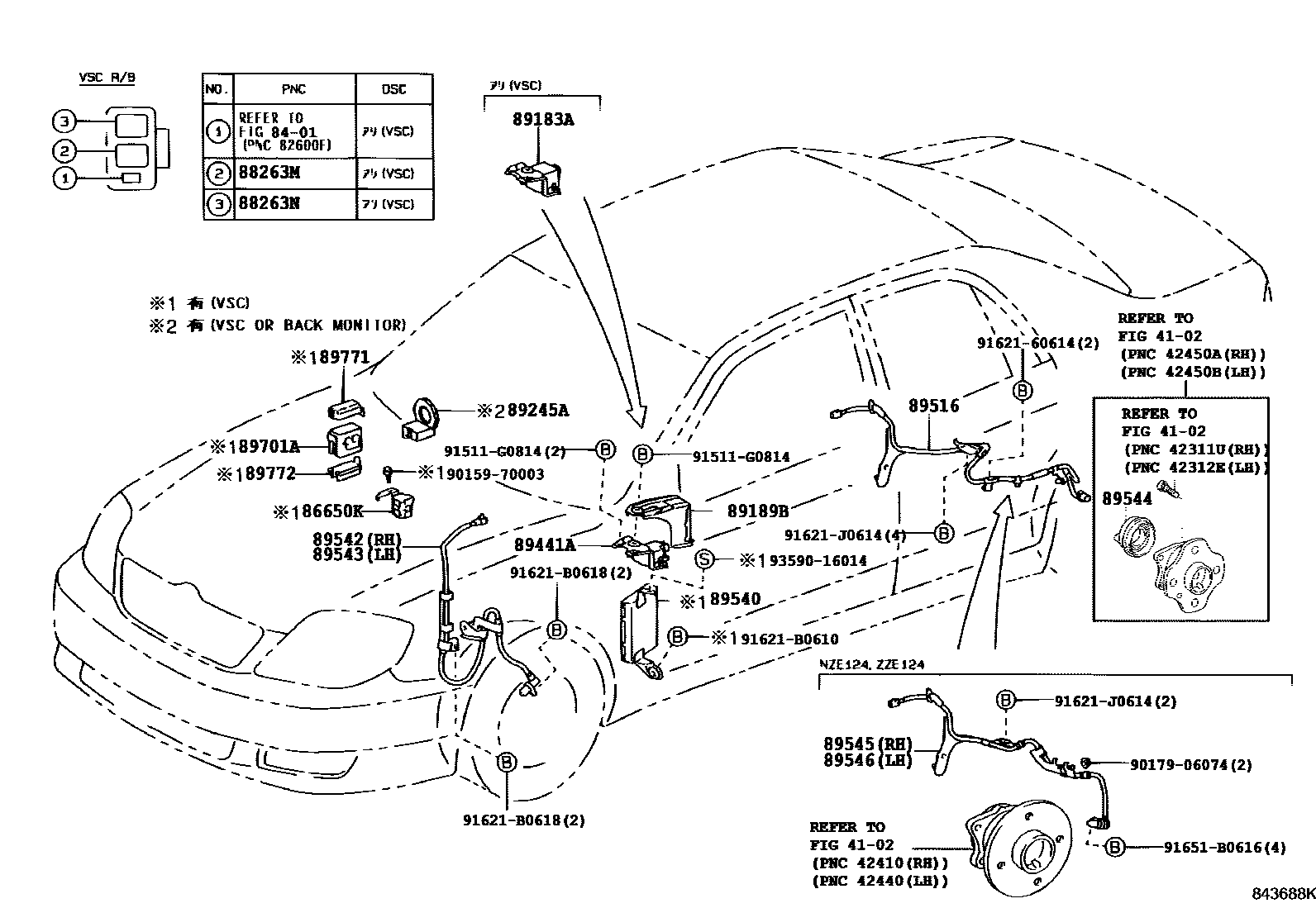

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86650K | Anti-skid control buzzer assembly | 86650-12070 · 86650-13010 |
| 88263M | ABS solenoid valve relay | 88263-32070 |
| 88263N | ABS motor relay | 88263-32070 |
| 89183A | Yaw rate sensor | 89180-12010 |
| 89189B | Yaw rate sensor bracket | 89189-12020 |
| 89245A | steering sensor | 89245-12010 |
| 89441A | deceleration sensor | 89440-12080 |
| 89516 | Anti-skid control sensor wiring harness | 89516-12010 · 89516-12020 |
| 89540 | Anti-skid control ECU assembly | 89540-12550 · 89540-12551 · 89540-12552 · 89540-12570 · 89540-12571 |
| 89542 | Right front wheel speed sensor | 89542-12070 |
| 89543 | Left front wheel speed sensor | 89543-12070 |
| 89544 | Anti-skid control sensor | 89544-12010 · 89544-12020 |
| 89545 | Right rear wheel speed sensor | 89545-12070 |
| 89546 | Left rear wheel speed sensor | 89546-12070 · 89546-12080 |
| 89701A | ABS relay box sub-assembly | 89701-12020 |
| 89771 | ABS relay box upper cover | 89771-12020 |
| 89772 | ABS relay box lower cover | 89772-12020 |
