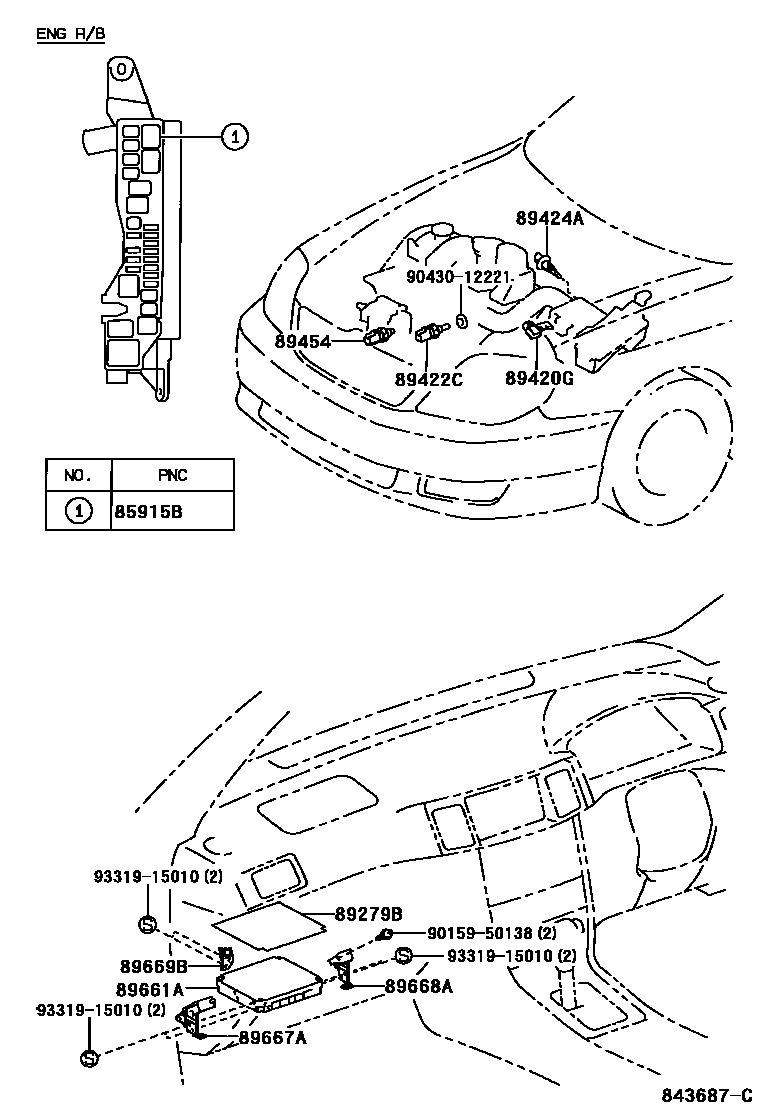

Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405
Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90080-87019 · 90987-02020 |
| 89279B | Diesel engine control ECU cover | 89279-12160 |
| 89420G | Turbocharger pressure sensor assembly | 89420-12200 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-12010 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89666-12280 · 89666-12290 |
| 89667A | No. 1 engine control ECU bracket | 89667-12200 |
| 89668A | No. 2 engine control ECU bracket | 89668-12110 |
| 89669B | No. 3 engine control ECU bracket | 89669-12030 |
