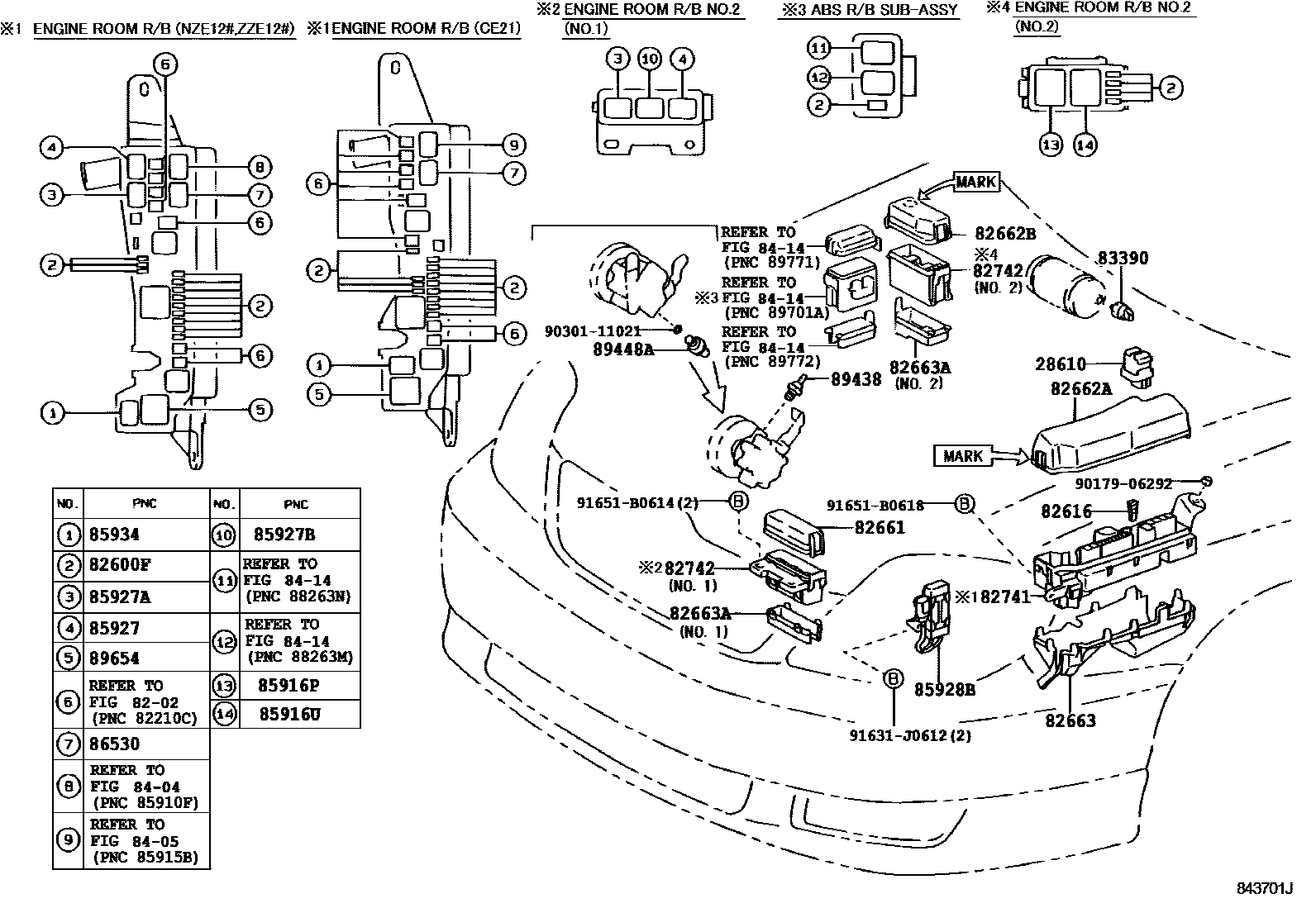

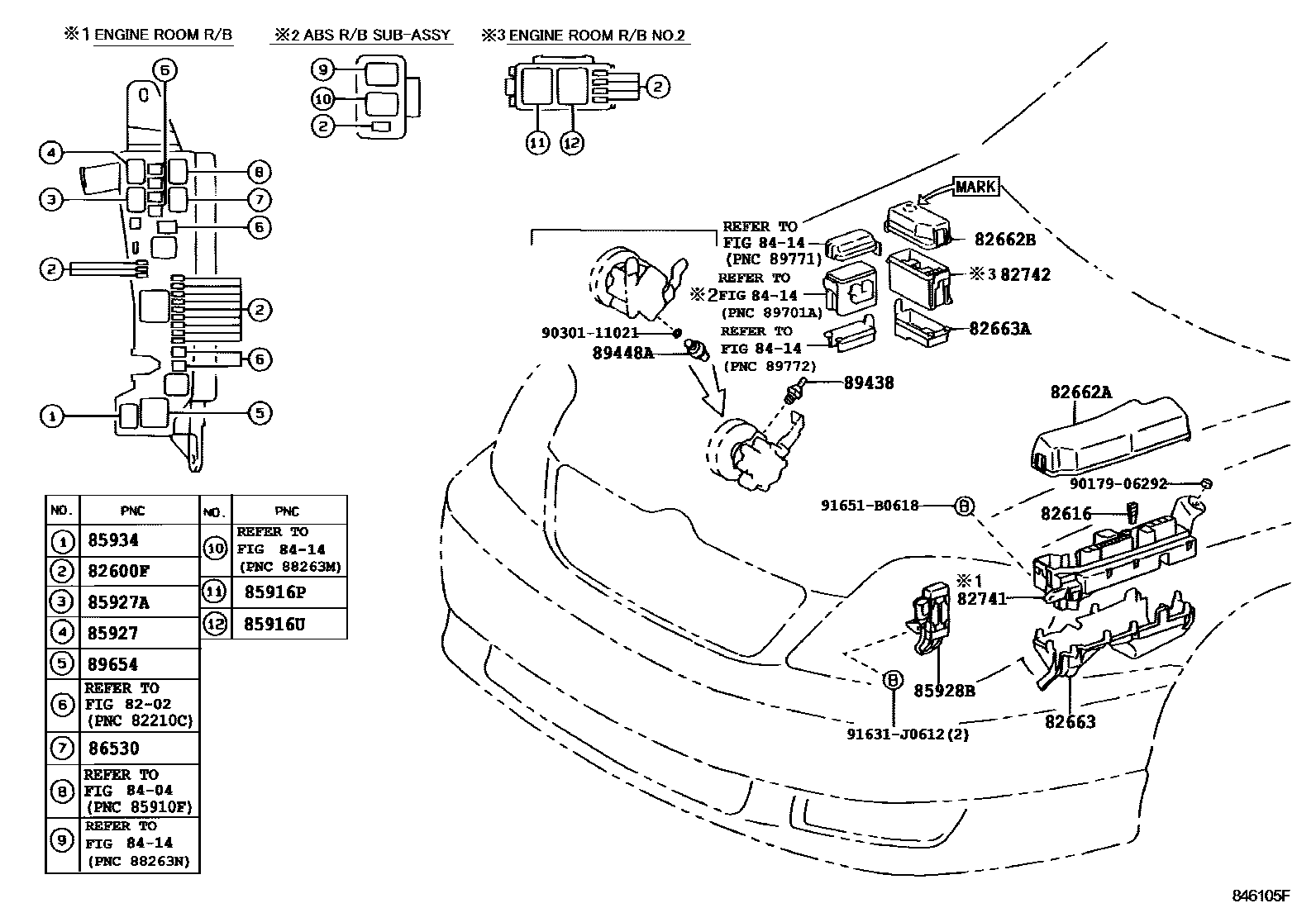

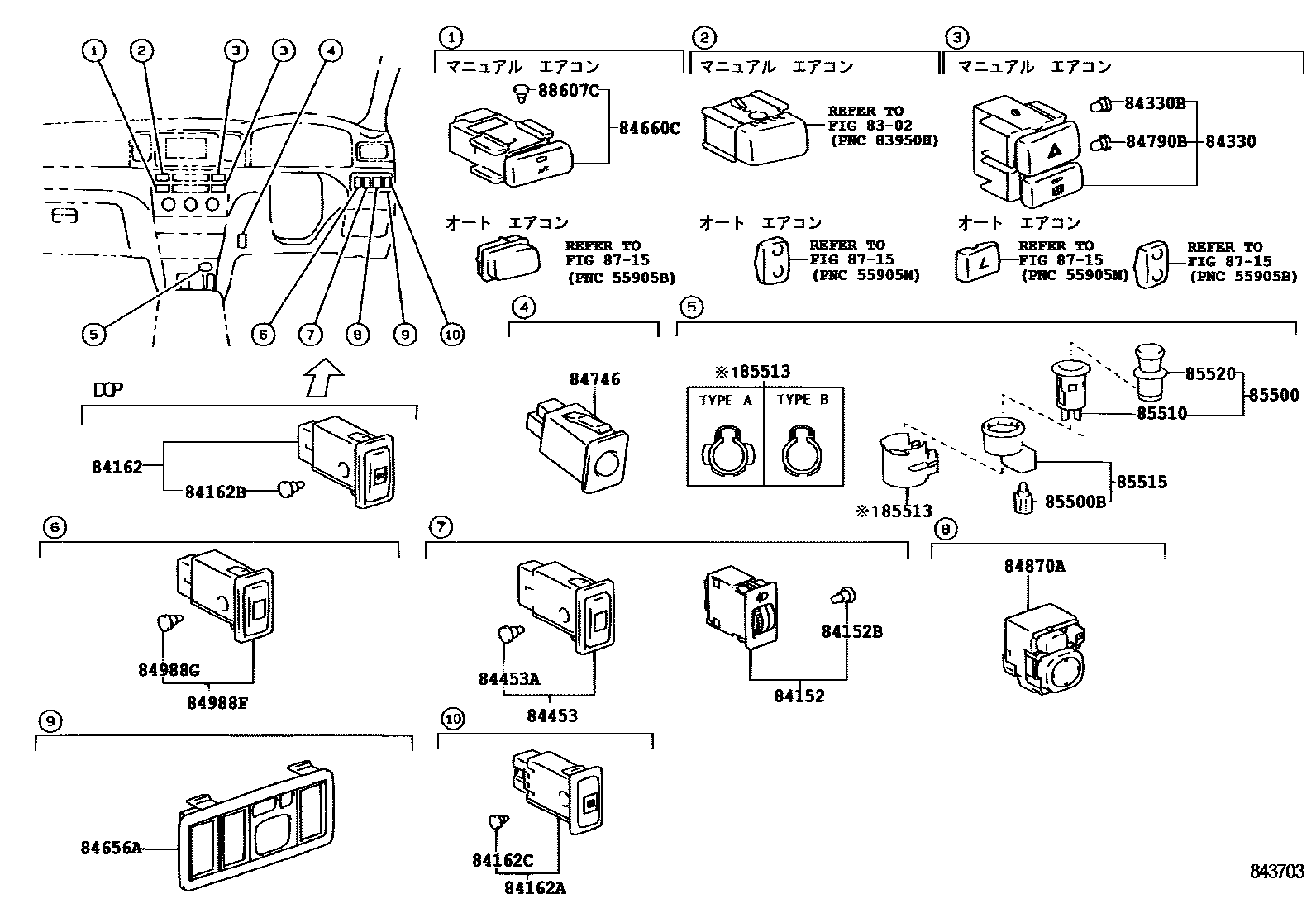

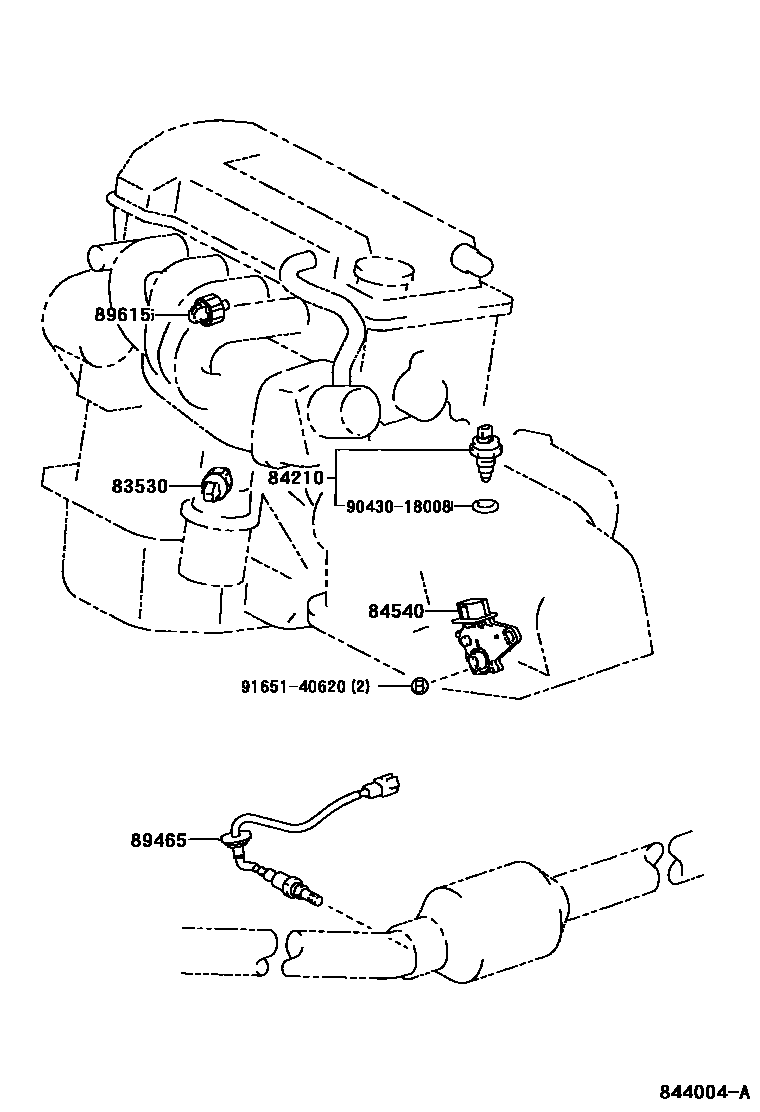

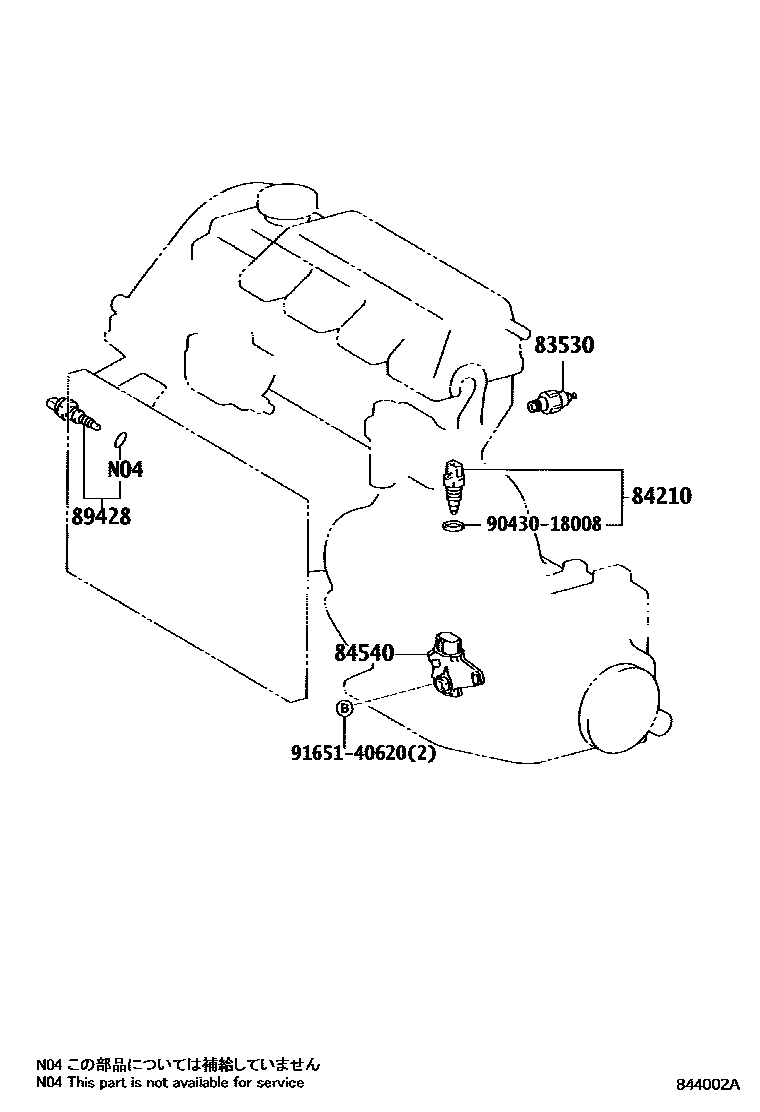

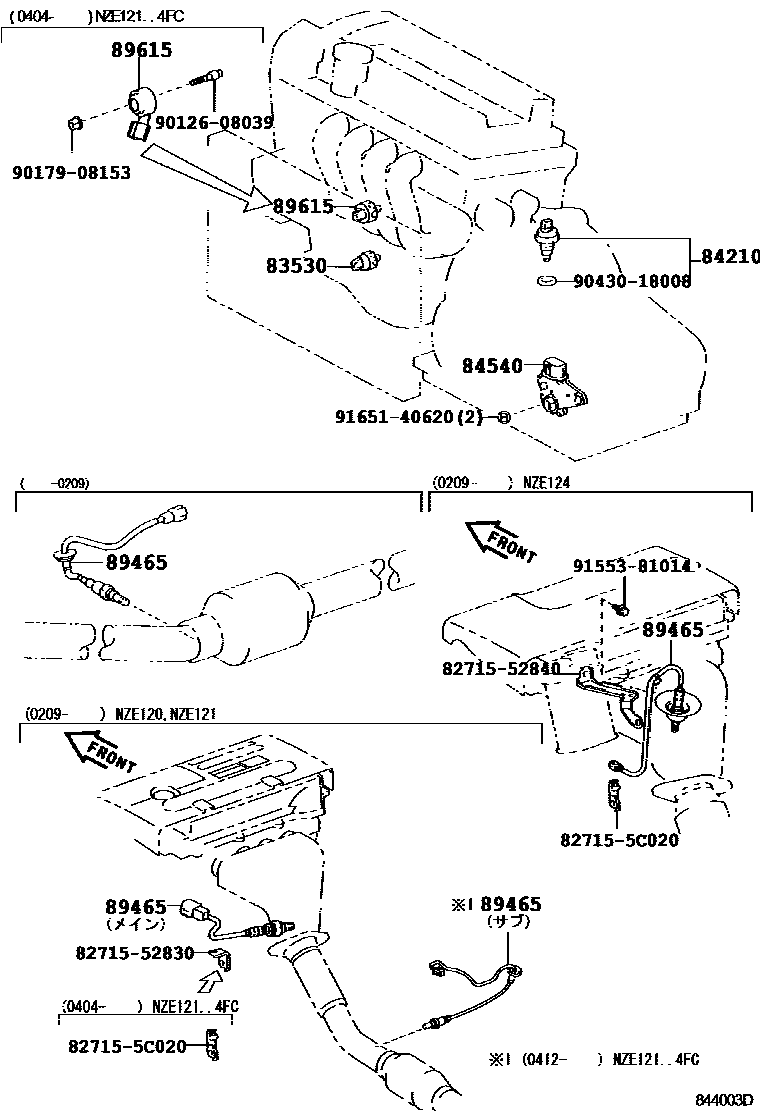

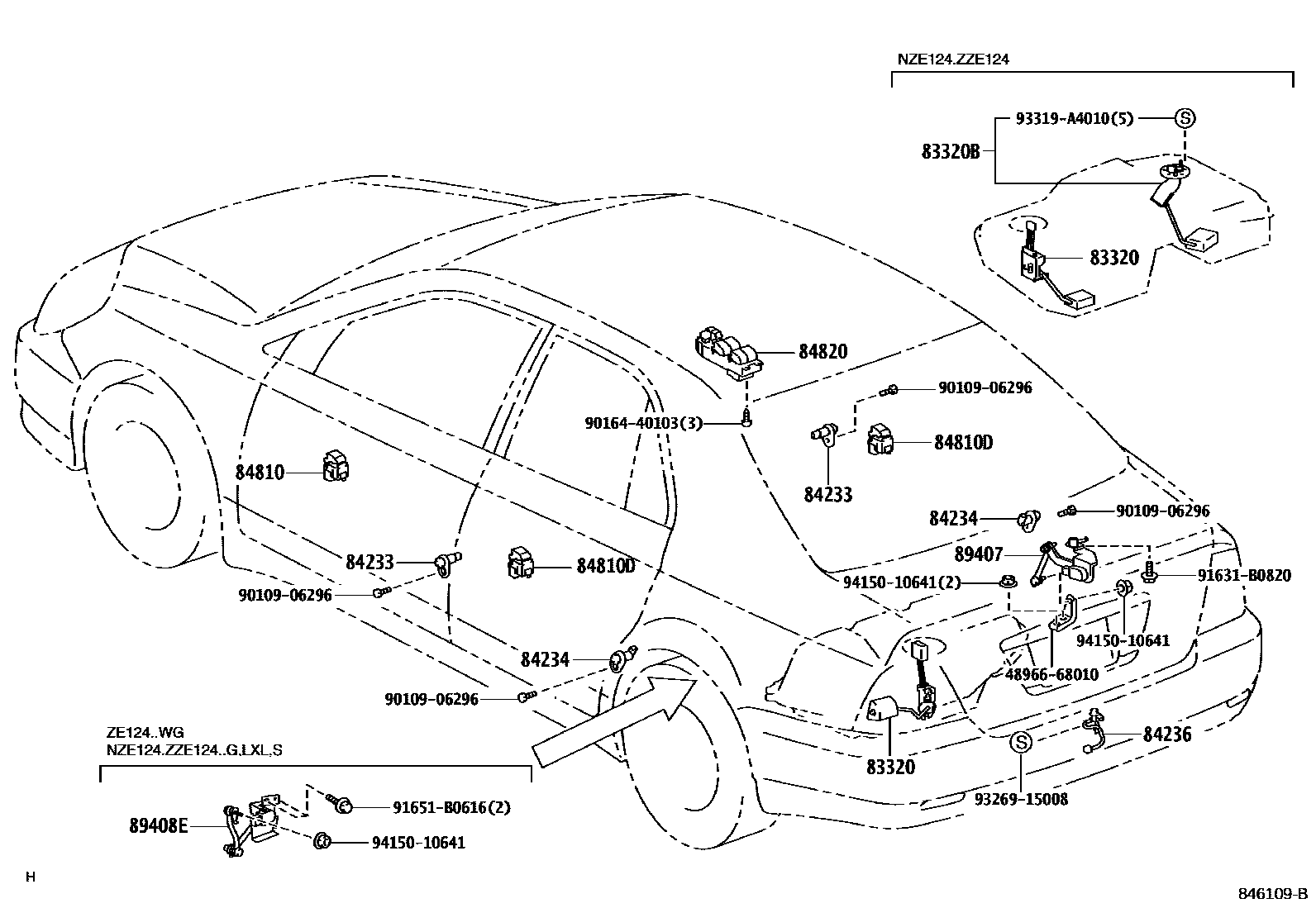

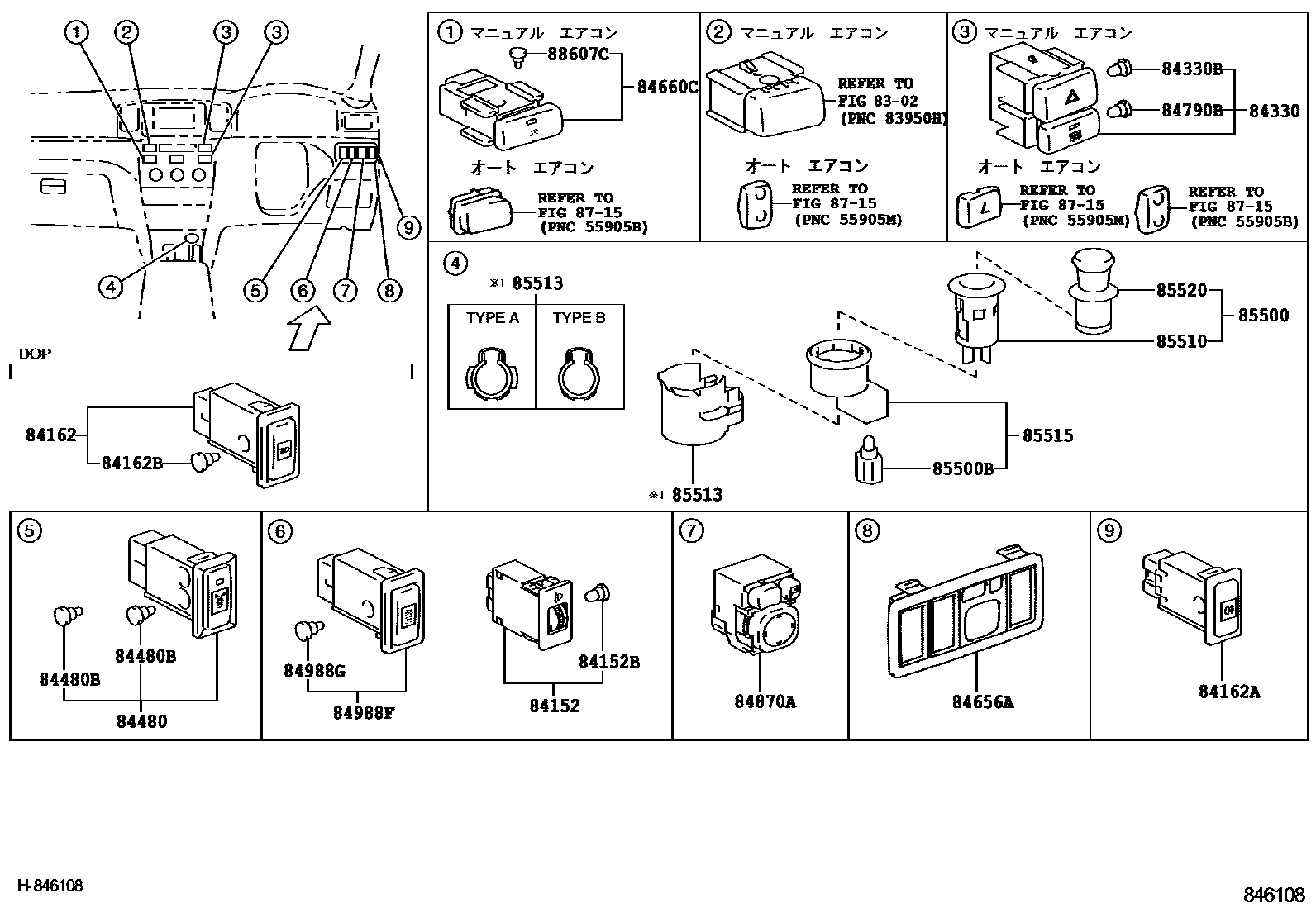

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 14 images and 102 PNC and OE references.
PNC and OE references

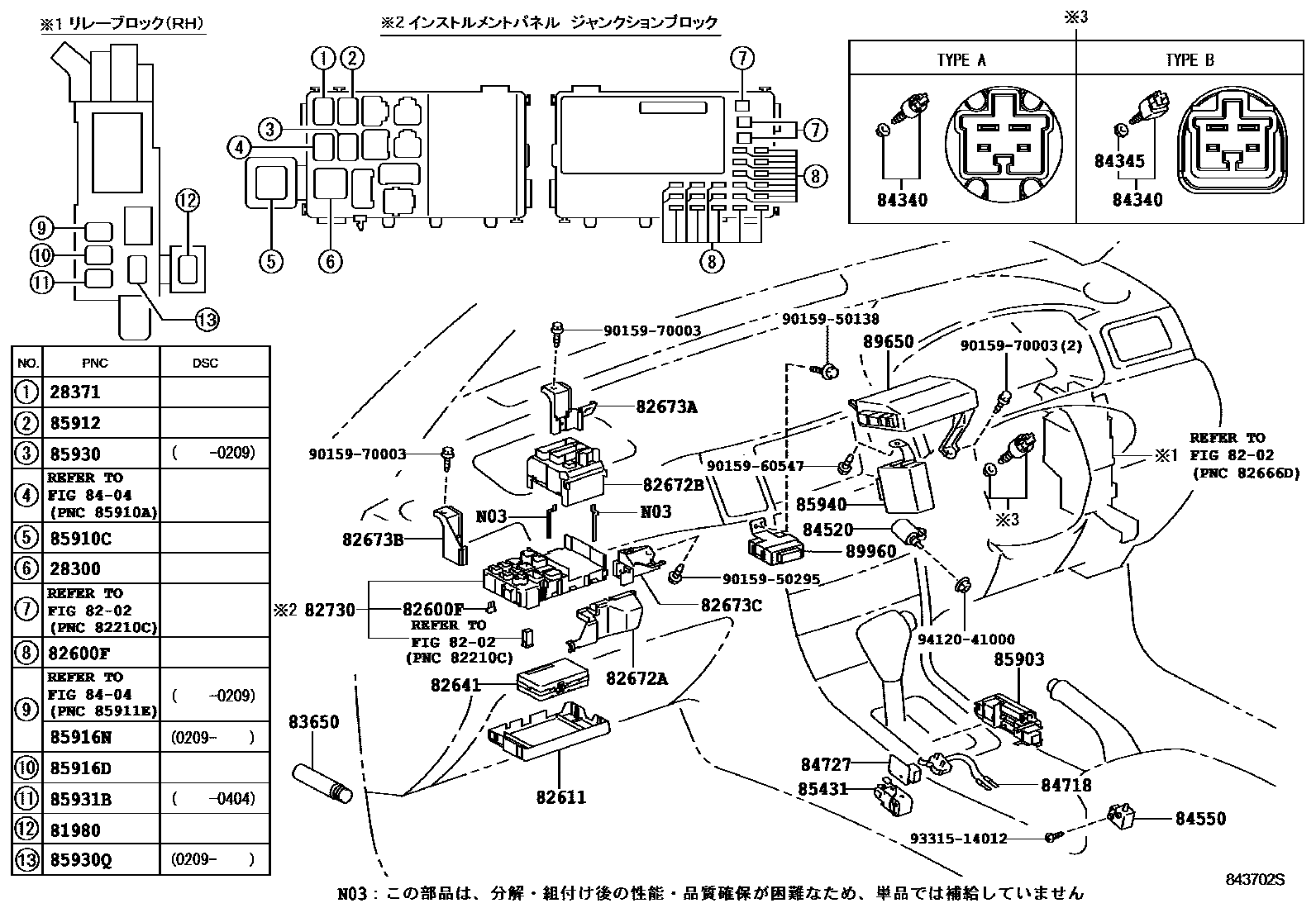

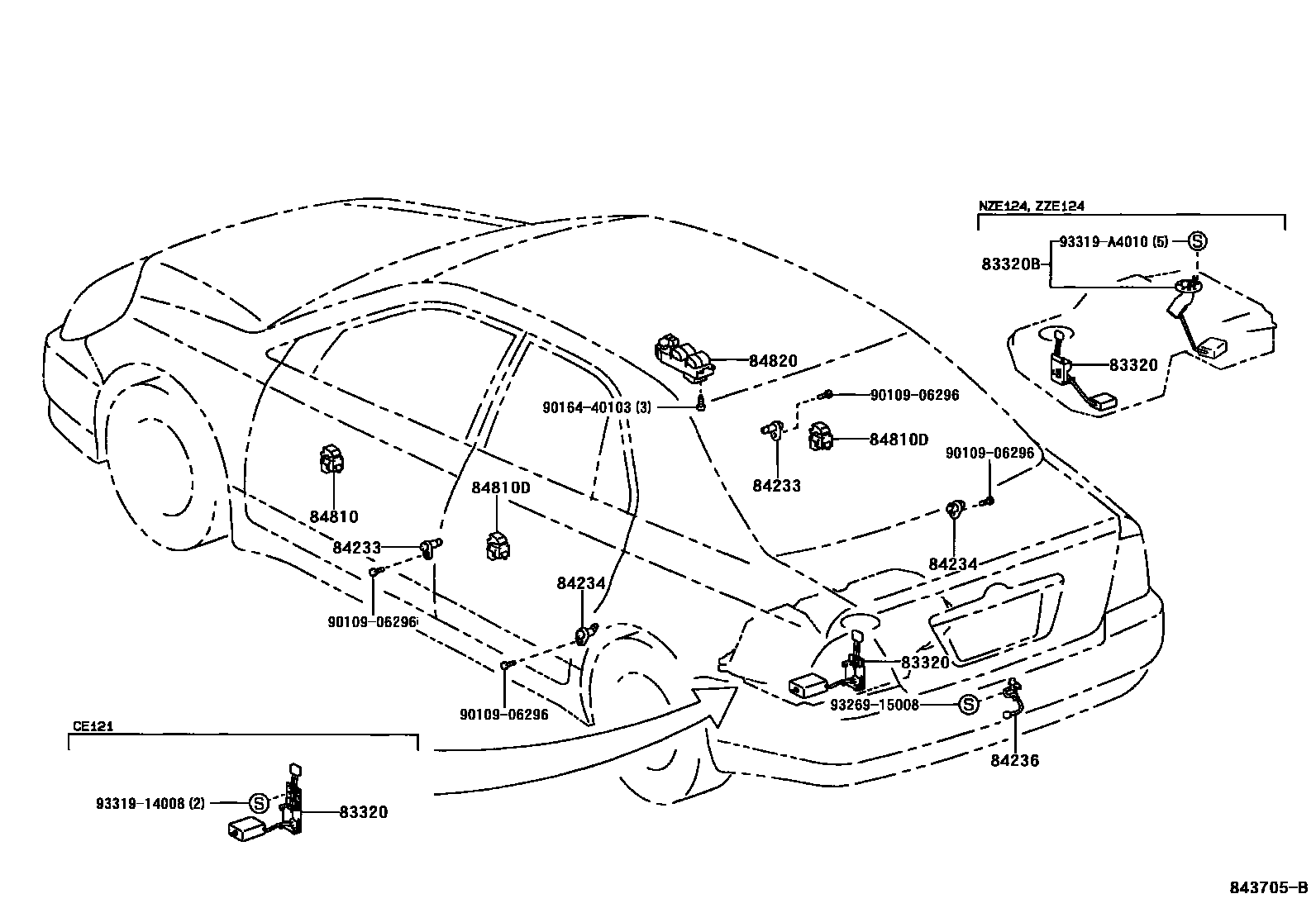

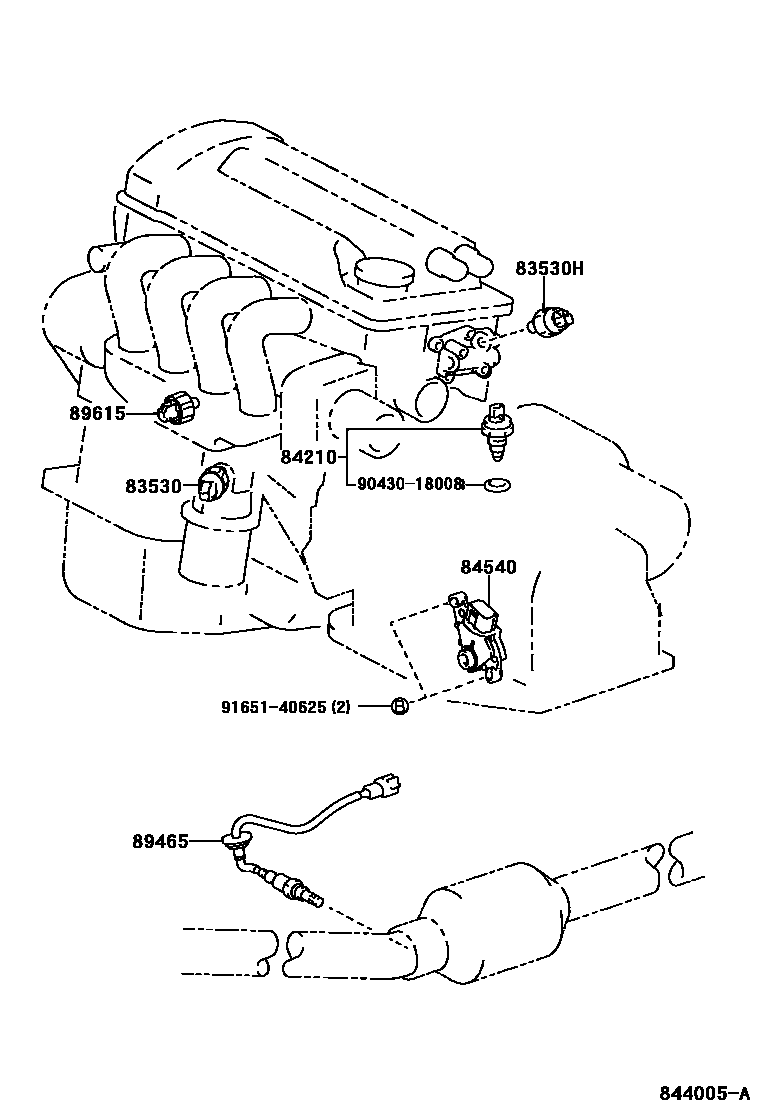

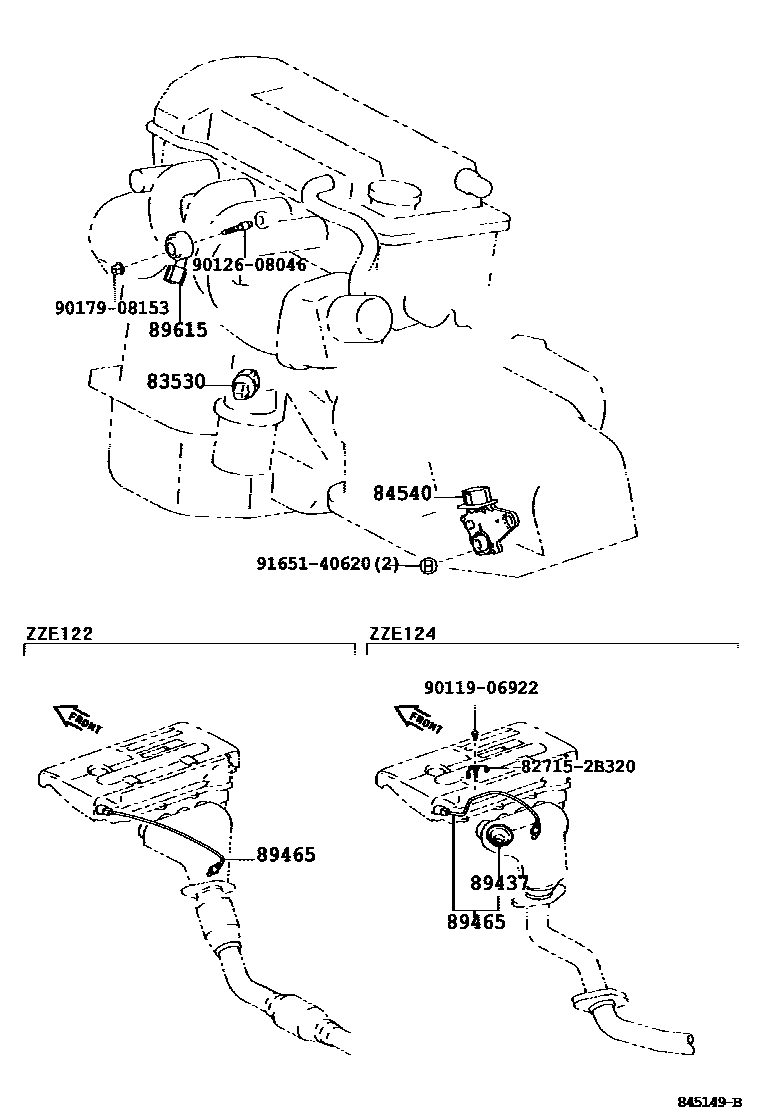

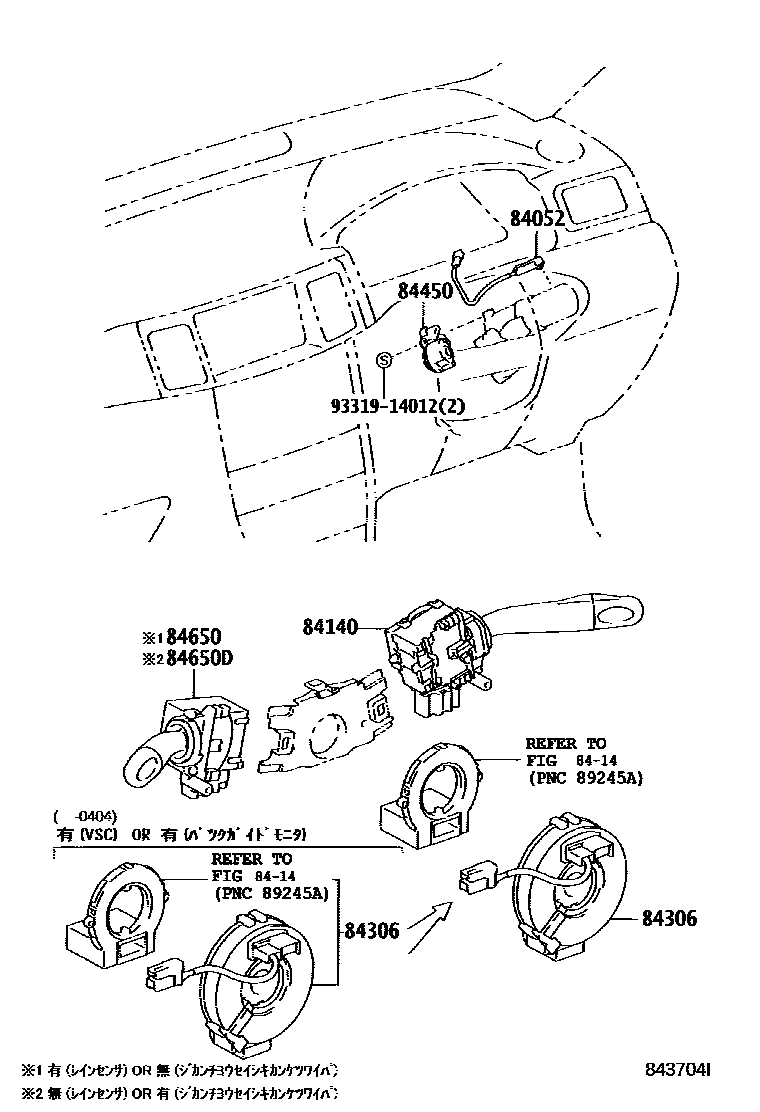

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 81980 | Turn signal flasher relay assembly | 81980-02020 · 81980-50030 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 |
| 82611 | fuse box cover | 82611-12120 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-12190 · 82641-12200 · 82641-12230 · 82641-12240 · 82641-12250 |
| 82661 | No. 1 relay box cover | 82662-12040 |
| 82662A | No. 1 relay box upper cover | 82662-12010 · 82662-12030 · 82662-12050 · 82662-12060 · 82662-12240 · 82662-12250 |
| 82662B | No. 2 relay box upper cover | 82662-12020 · 82662-13041 |
| 82663 | Relay box lower cover | 82663-12010 · 82663-12020 |
| 82663A | No. 2 relay box lower cover | 82663-12030 · 82663-12040 |
| 82672A | Junction box cover | 82672-12400 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-12010 |
| 82673B | Junction box bracket | 82673-12040 |
| 82673C | Junction box bracket | 82673-12070 |
| 82730 | Instrument panel junction box assembly | 82730-12140 |
| 82741 | Engine room relay box | 82741-12020 · 82741-12030 |
| 82742 | Engine room No. 2 relay box | 82741-12040 · 82741-12050 |
| 83320 | Fuel gauge sensor assembly | 83320-12640 · 83320-12650 · 83320-12670 · 83320-12700 · 83320-12710 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-80388 · 83320-80414 |
| 83390 | Vacuum warning switch assembly | 83390-20180 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 83530H | Oil pressure switch assembly | 83530-20030 |
| 83650 | fuse | 90986-01005 |
| 84052 | Unlock warning switch assembly | 84052-60010 |
| 84140 | Headlight dimmer switch assembly | 84140-12510 · 84140-12530 · 84140-32240 · 84140-32250 · 84140-42020 · 84140-52050 |
| 84152 | Headlight beam height adjustment switch | 84152-12060 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08100 |
| 84162 | front fog light switch | 84160-95D00 |
| 84162A | Rear fog light switch | 84165-12050 · 84165-12060 |
| 84162B | fog light switch bulb | 84999-10320 |
| 84162C | Bulb (for rear fog light switch) | 90010-09012 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-12130 |
| 84306 | Spiral cable sub-assembly | 84306-32030 · 84306-52020 · 84306-52041 · 84306-52050 · 84307-12010 · 84307-12020 |
| 84330 | Hazard warning signal switch assembly | 84332-12440 · 84332-12460 · 84332-12500 |
| 84330B | Hazard warning signal switch light bulb | 84999-10310 |
| 84340 | brake light switch assembly | 84340-20060 · 84340-32050 · 84340-32070 · 84340-47010 · 84340-47020 · 84340-69025 · 84340-69035 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84453 | Idle speed boost switch | 84453-26030 |
| 84453A | Idle speed boost switch bulb | 84999-10320 |
| 84480 | Main switch assembly | 84480-12010 |
| 84480B | Main switch assembly light bulb | 84999-10320 · 90010-01108 |
| 84520 | Clutch start switch assembly | 84520-24010 |
| 84540 | Neutral start switch assembly | 84540-32110 · 84540-46010 · 84540-48010 · 84540-52010 · 84540-52050 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-13030 · 84652-1A800 · 84652-33420 |
| 84650D | Toyota part | 84652-1A810 · 84652-26470 · 84652-2G410 · 84652-2G450 · 84652-42090 · 84652-42100 · 84652-52080 |
| 84660C | Cooler switch | 84660-12200 · 84660-12230 |
| 84718 | Transmission shift master switch | 84718-12010 |
| 84727 | Shift lock control switch | 84727-12080 |
| 84746 | tire pressure warning switch | 84746-12010 |
| 84790B | Bulb (for rear window defogger switch) | 90010-01060 |
| 84810 | Electric window lift switch assembly | 84030-12030 · 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84030-12030 · 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84040-12070 · 84040-12071 · 84820-12460 |
| 84870A | Exterior rearview mirror switch assembly | 84872-52030 · 84872-52040 |

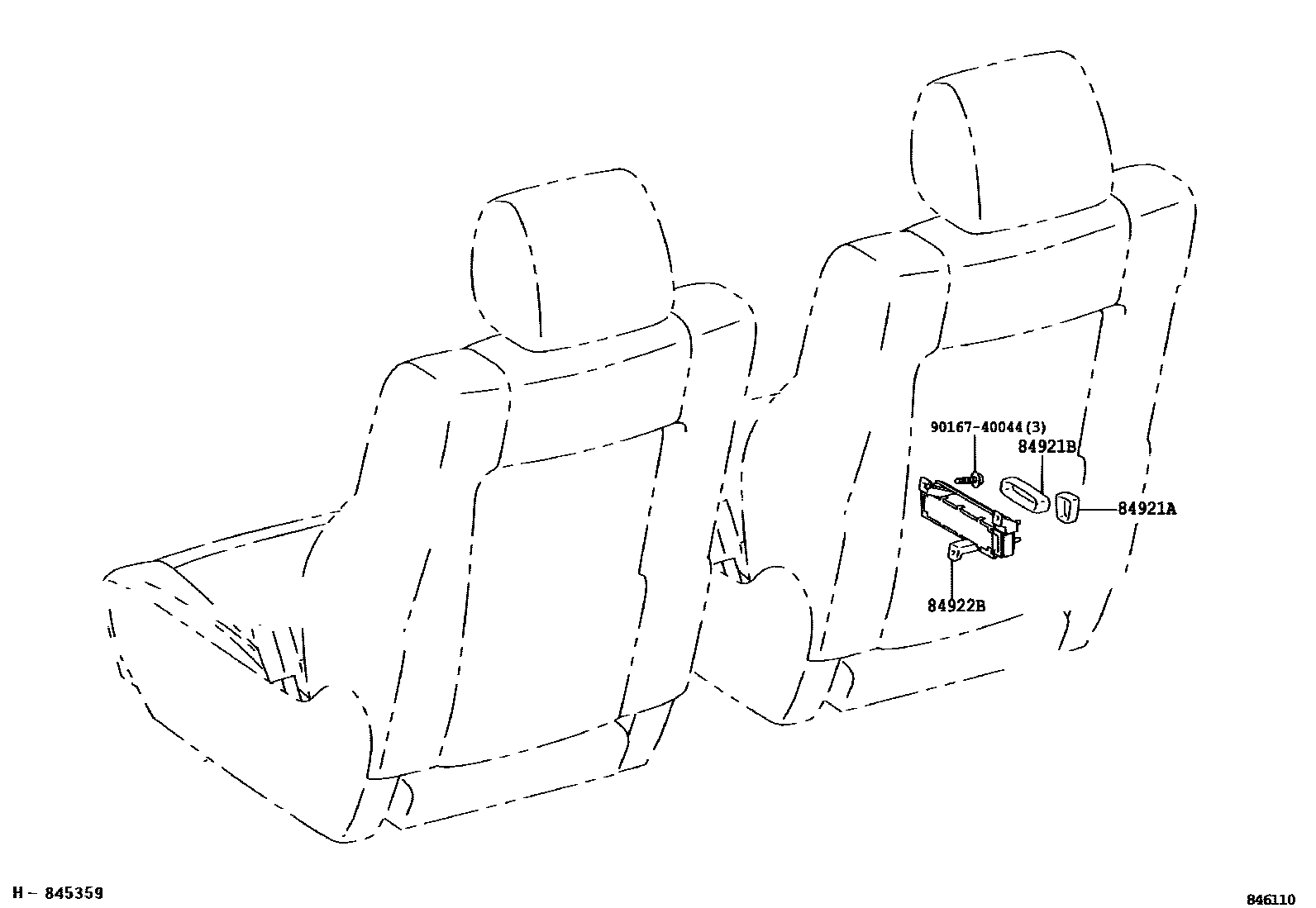

| 84922B | Front right electric seat switch | 84922-58010 |
| 84988F | traction control switch | 84988-26010 |
| 84988G | Traction control switch light bulb | 84999-10320 |
| 85431 | Shift lock solenoid valve | 85431-12060 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 90010-01065 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-12020 · 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-12110 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85903 | Shift lock control ECU sub-assembly | 85903-12020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85912 | defogger relay | 90080-87008 · 90080-87010 · 90987-02012 · 90987-02020 |
| 85916D | fog light relay | 90987-02012 · 90987-02015 · 90987-02020 |
| 85916N | Tail light relay | 90987-02020 |
| 85916P | headlight relay | 90987-02025 |
| 85916U | No. 2 headlight relay | 90987-04010 |
| 85927 | cooling fan relay | 90080-87008 · 90080-87010 · 90080-87020 · 90080-87021 · 90987-02012 · 90987-02020 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 · 90987-02020 |
| 85928B | Cooling fan resistor | 85928-12010 |
| 85930 | Electric window relay assembly | 90987-02020 |
| 85930Q | Toyota part | 90987-02020 |
| 85931B | Fuel heater relay | 90987-02020 |
| 85934 | Electromagnetic clutch relay | 90987-02020 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-12140 |
| 86530 | Speaker relay assembly | 90987-02020 |
| 88607C | Indicator light sub-assembly | 90010-03044 |
| 89407 | Right rear height control sensor sub-assembly | 89407-12010 · 89407-12020 |
| 89408E | Left rear height control sensor sub-assembly | 89407-12020 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89437 | sensor cover | 89437-12080 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89448A | Power steering oil pressure sensor | 89448-51010 |
| 89465 | oxygen sensor | 89465-12590 · 89465-12600 · 89465-12610 · 89465-12690 · 89465-12710 · 89465-12780 · 89465-13030 · 89465-20810 · 89465-52210 · 89465-52240 |
| 89615 | knock control sensor | 89615-12090 · 89615-12120 · 89615-20090 · 89615-52030 · 89615-52040 |
| 89650 | Power steering ECU assembly | 89650-12050 · 89650-12051 · 89650-12120 · 89650-12161 · 89650-12171 |
| 89654 | power steering relay | 90987-02016 · 90987-02025 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12010 · 89960-12011 · 89960-12020 · 89960-12021 · 89960-12050 · 89960-12051 |
