Toyota COROLLA 后牌照灯 — Figure 8113

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 3 PNC and OE references.

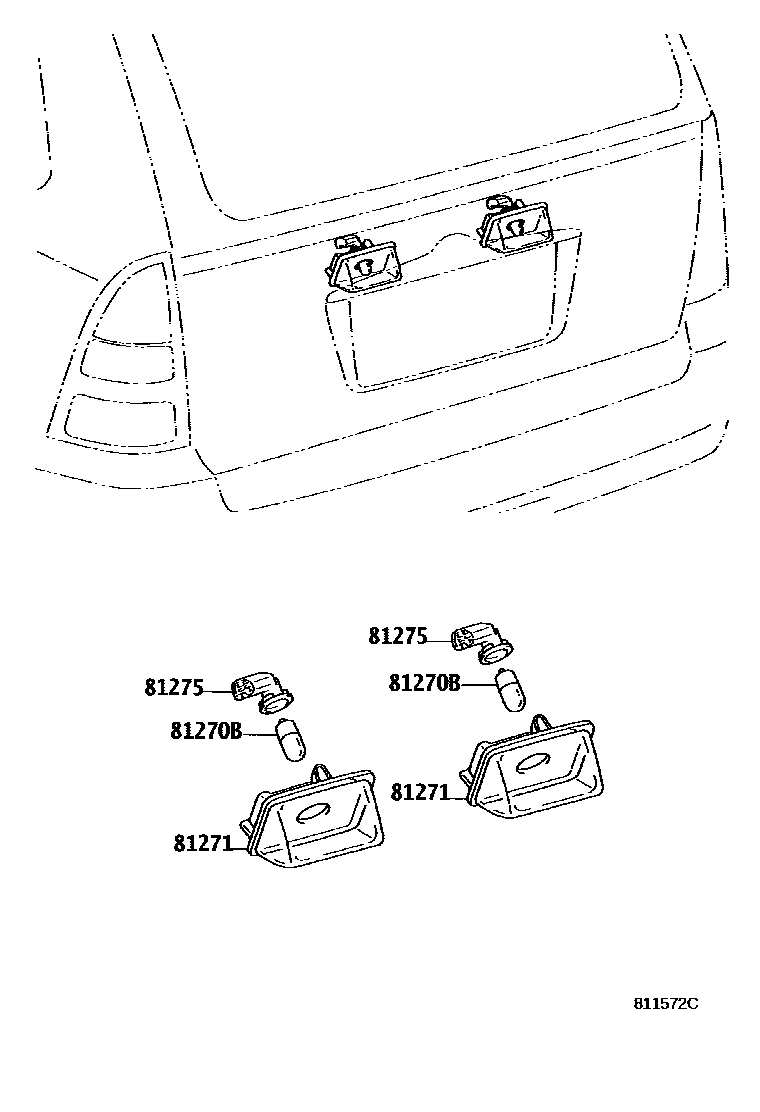

Toyota COROLLA 后牌照灯 EPC diagram — 811572C
后牌照灯 — 811572C (200008 – 200404)

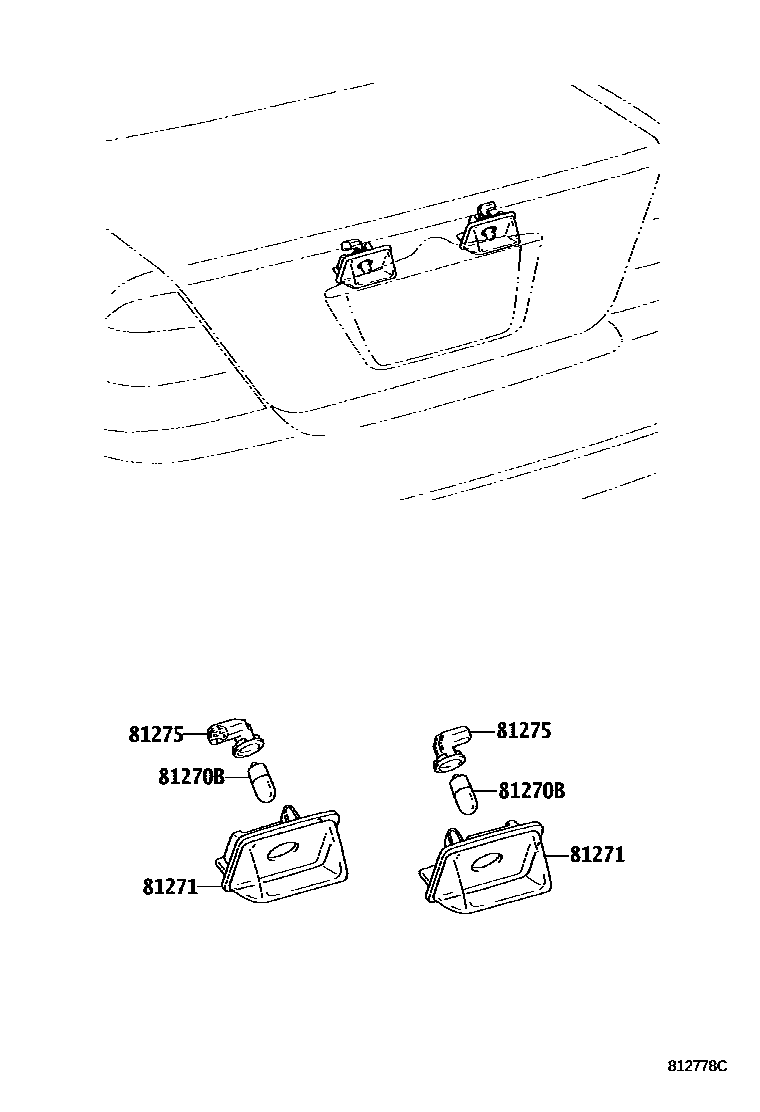

Toyota COROLLA 后牌照灯 EPC diagram — 812778C
后牌照灯 — 812778C (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
81270BBulb (for license plate light)99132-12050
81271license plate lamp shade81271-12501 · 81691-12131
81275License plate lamp holder and wiring harness81275-12501
