Toyota COROLLA 倒车灯 — Figure 8112

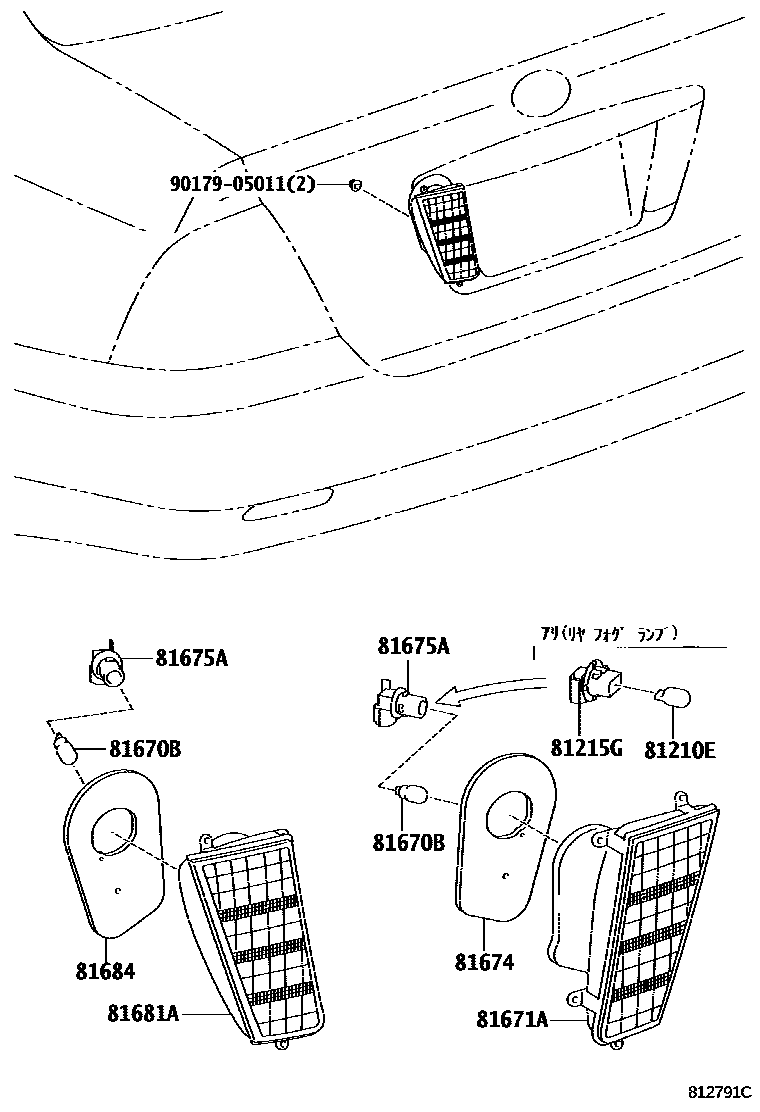

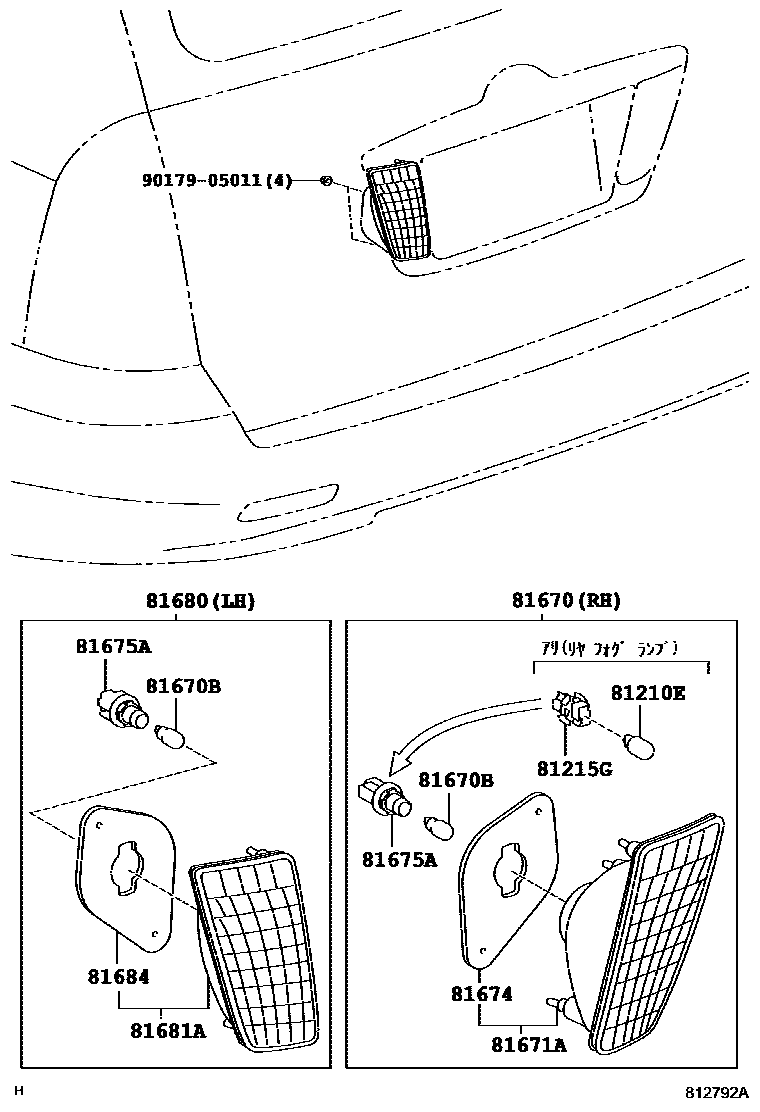

Toyota COROLLA EPC diagram 8112, 倒车灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210E | Rear fog light bulb | 90981-13043 |
| 81215G | Rear fog light lamp holder | 90069-81018 · 90075-60003 · 90075-60074 |
| 81670 | Right reversing light assembly | 81580-13020 · 81580-13030 |
| 81670B | Bulb (for reversing lights) | 90981-11059 |
| 81671A | Reversing light shade and body | 81581-12080 · 81581-12090 · 81581-13020 · 81581-13030 |
| 81674 | Right reversing light body gasket | 81584-12080 · 81584-13020 · 81584-13030 |
| 81675A | Lamp holder plug (for reversing lights) | 90075-60063 · 90075-60073 |
| 81680 | Left reversing light assembly | 81590-13020 |
| 81681A | Left reversing light shade and body | 81591-12070 · 81591-13020 |
| 81684 | Left reversing light body gasket | 81594-12070 · 81594-13020 |
