Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 3 images and 7 PNC and OE references.

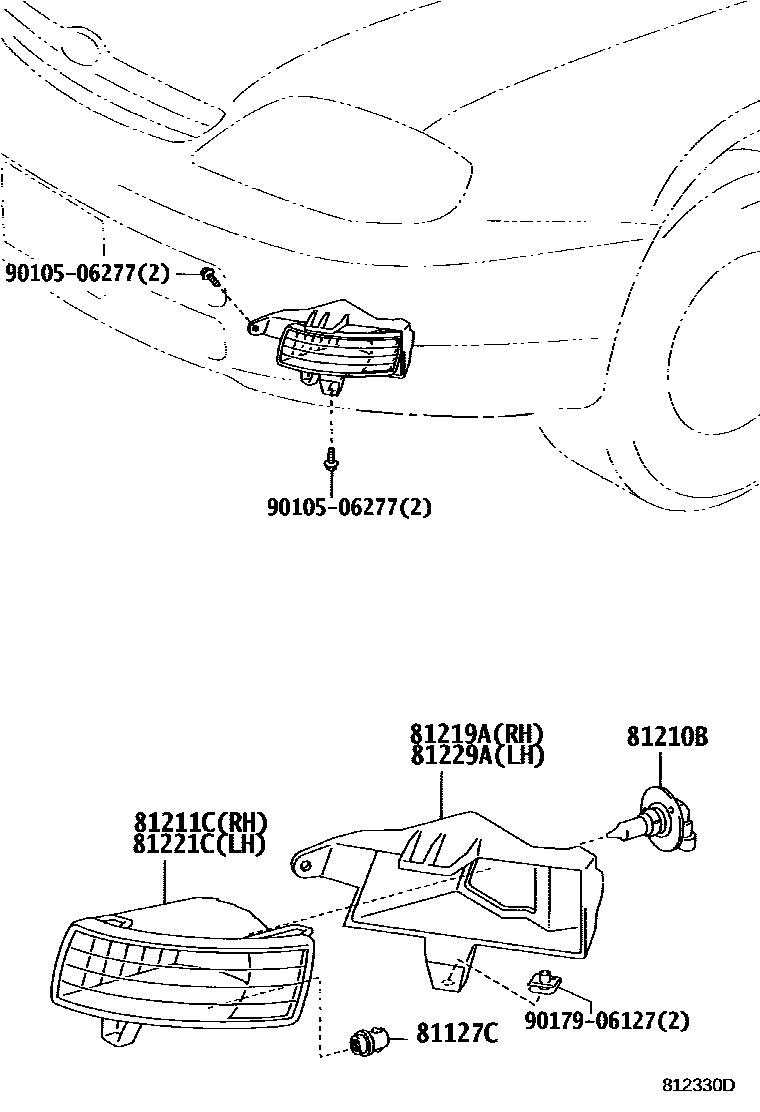

Toyota COROLLA Fog Lamp EPC diagram — 812330D
Fog Lamp — 812330D (200209 – 200404)

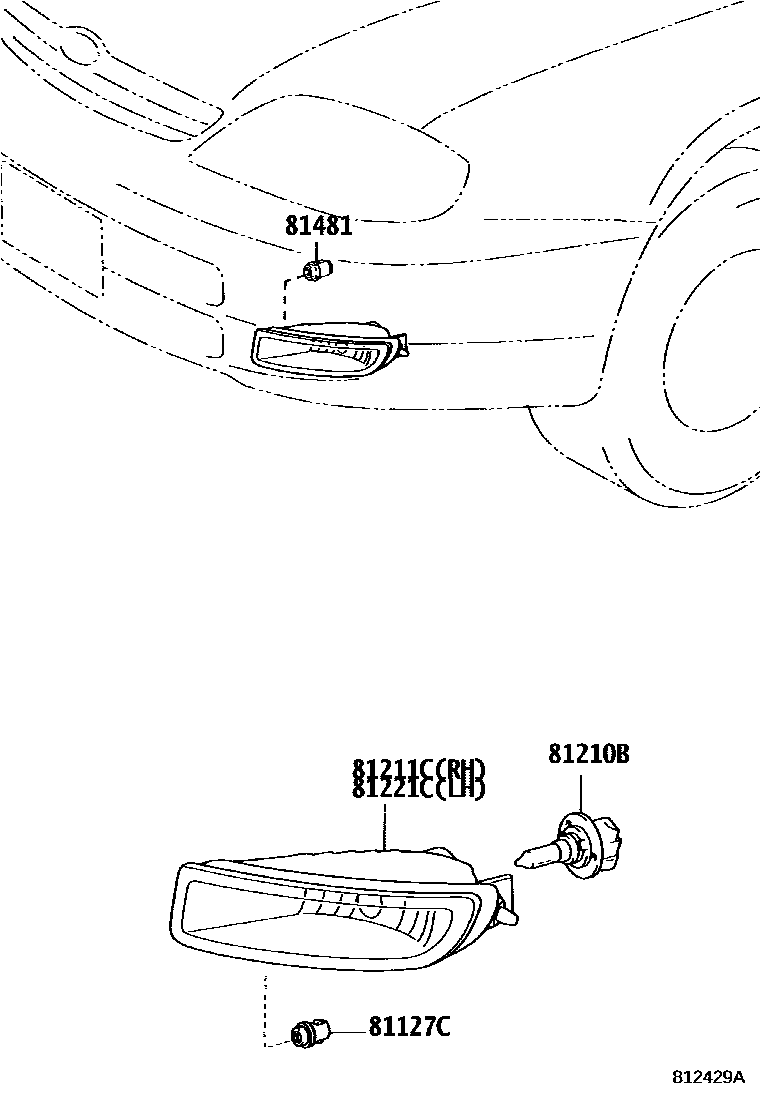

Toyota COROLLA Fog Lamp EPC diagram — 812429A
Fog Lamp — 812429A (200008 – 200404)

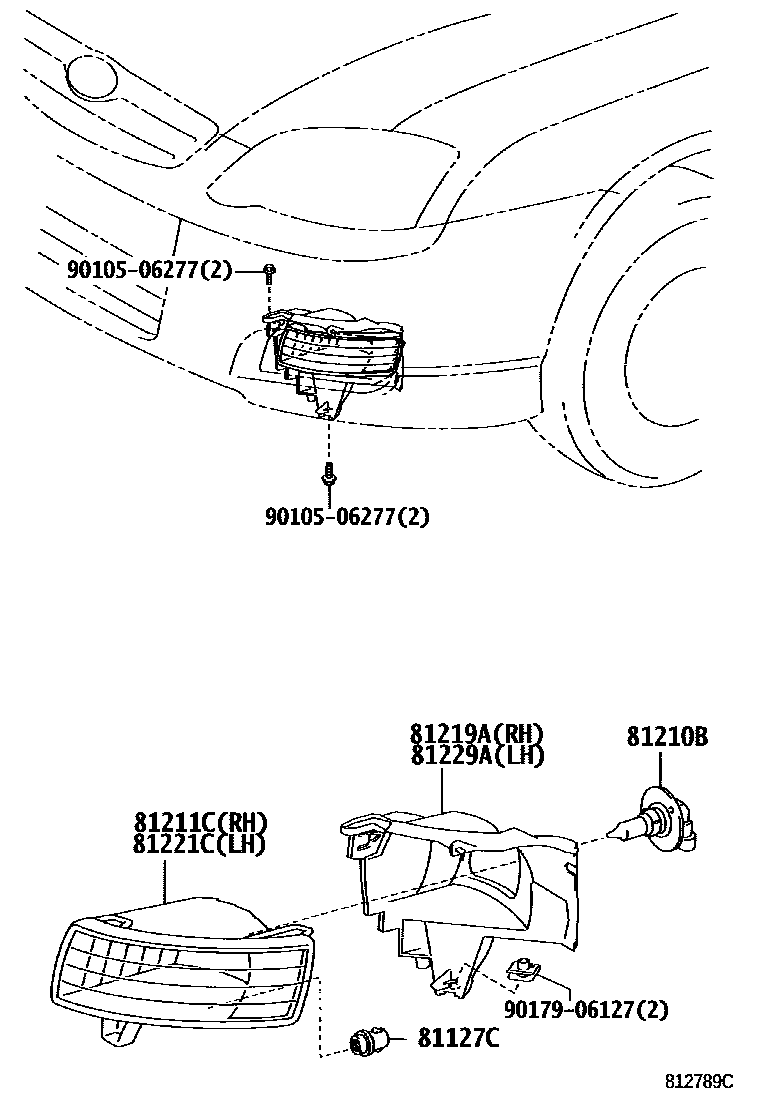

Toyota COROLLA Fog Lamp EPC diagram — 812789C
Fog Lamp — 812789C (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
81127CFog light support90075-10811
81210Bfog light bulb90981-13047
81211CRight fog light assembly81211-12150 · 81211-12180
81219ARight fog light bracket81219-12180 · 81219-12220
81221CLeft fog light assembly81221-12160 · 81221-12180
81229ALeft fog light bracket81229-12140 · 81229-12180
81481Fog light bracket81481-10030
