Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 10 PNC and OE references.

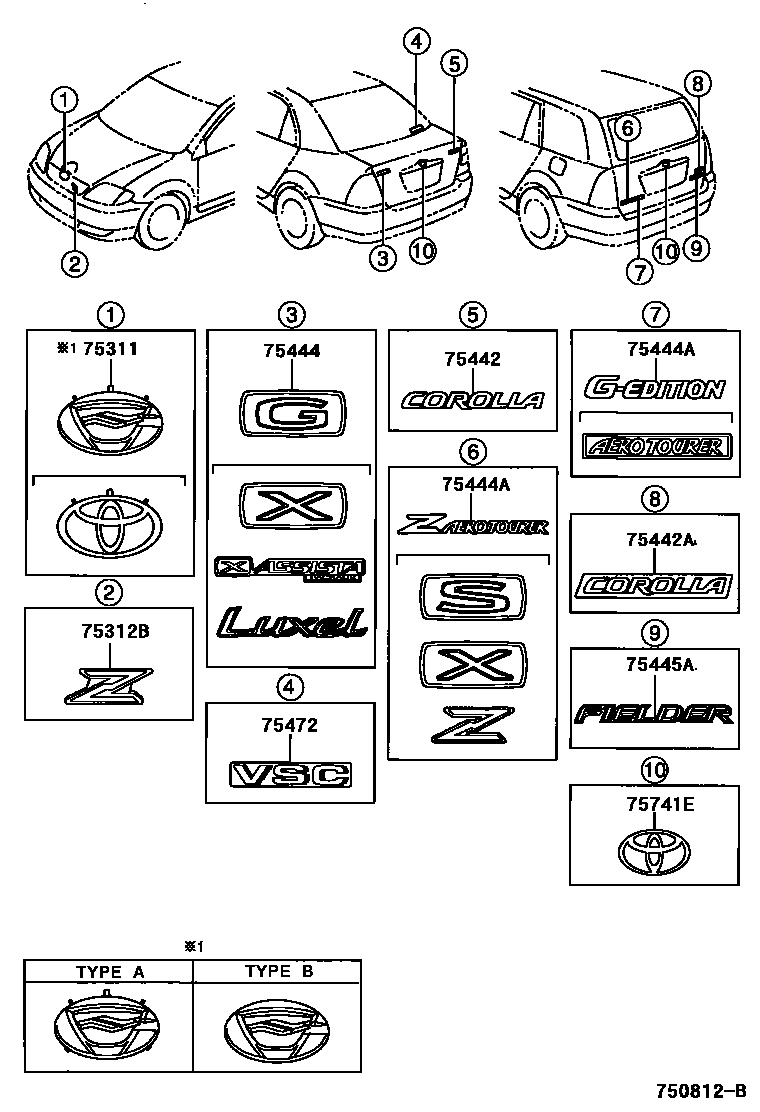

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750812B
丰田徽标和铭牌(车外和车内) — 750812B (200008 – 200404)

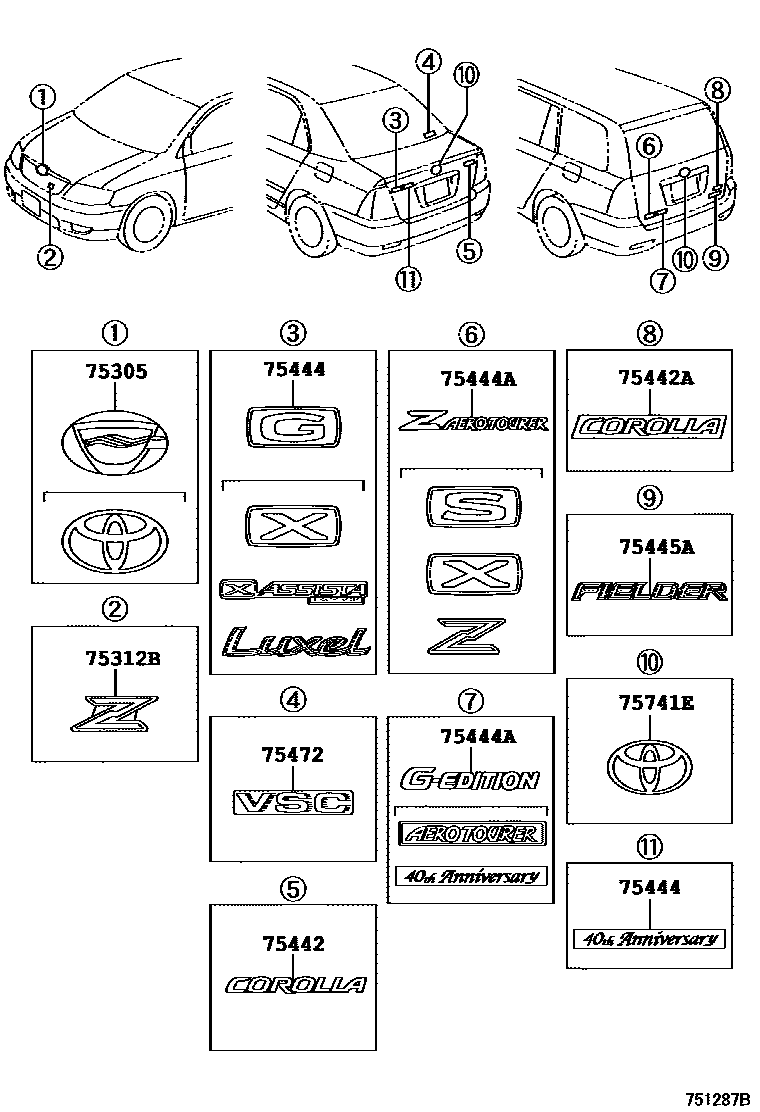

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751287B
丰田徽标和铭牌(车外和车内) — 751287B (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
75305engine cover plate75331-12120 · 75331-12130
75311Radiator grille (or front panel) plate75311-1E070 · 75311-1E080 · 75311-1E090
75312BRadiator grille number 2 plate75312-13020 · 75312-13030 · 75312-13040
75442Trunk door number plate No. 275442-1A450 · 75442-1A490
75442ANo. 2 nameplate on back door75442-13260
75444Trunk door No. 4 nameplate75444-12A30 · 75444-1A710 · 75444-1A720 · 75444-1A730 · 75474-12010
75444ANo. 4 nameplate on back door75443-13360 · 75444-13290 · 75444-13300 · 75444-13310 · 75444-13410 · 75444-1A710 · 75474-12010
75445ANo. 5 nameplate on back door75445-13030 · 75445-13040
75472Rear window nameplate75485-12390
75741Elogo90975-02011 · 90975-02039 · 90975-02041
