Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

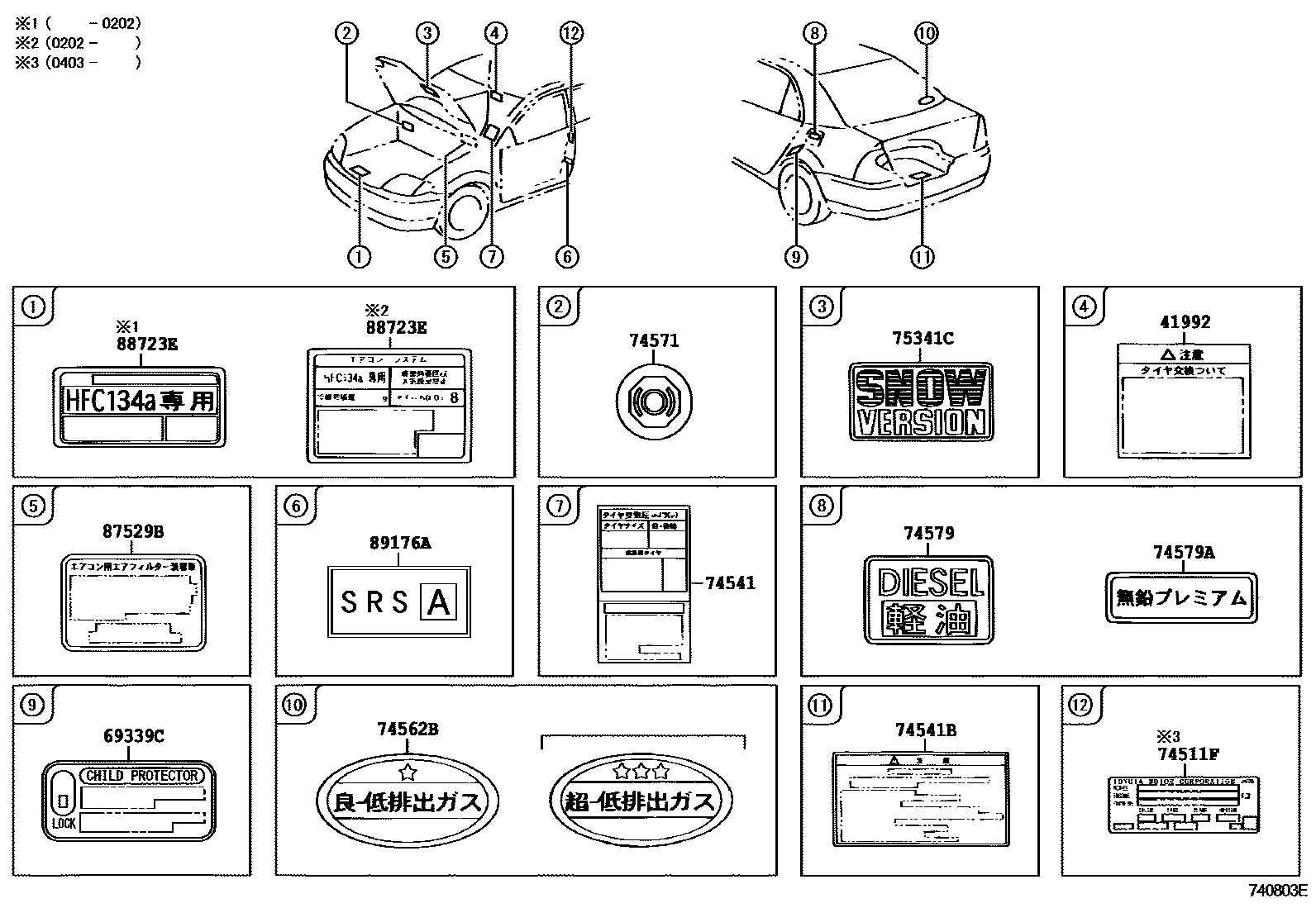

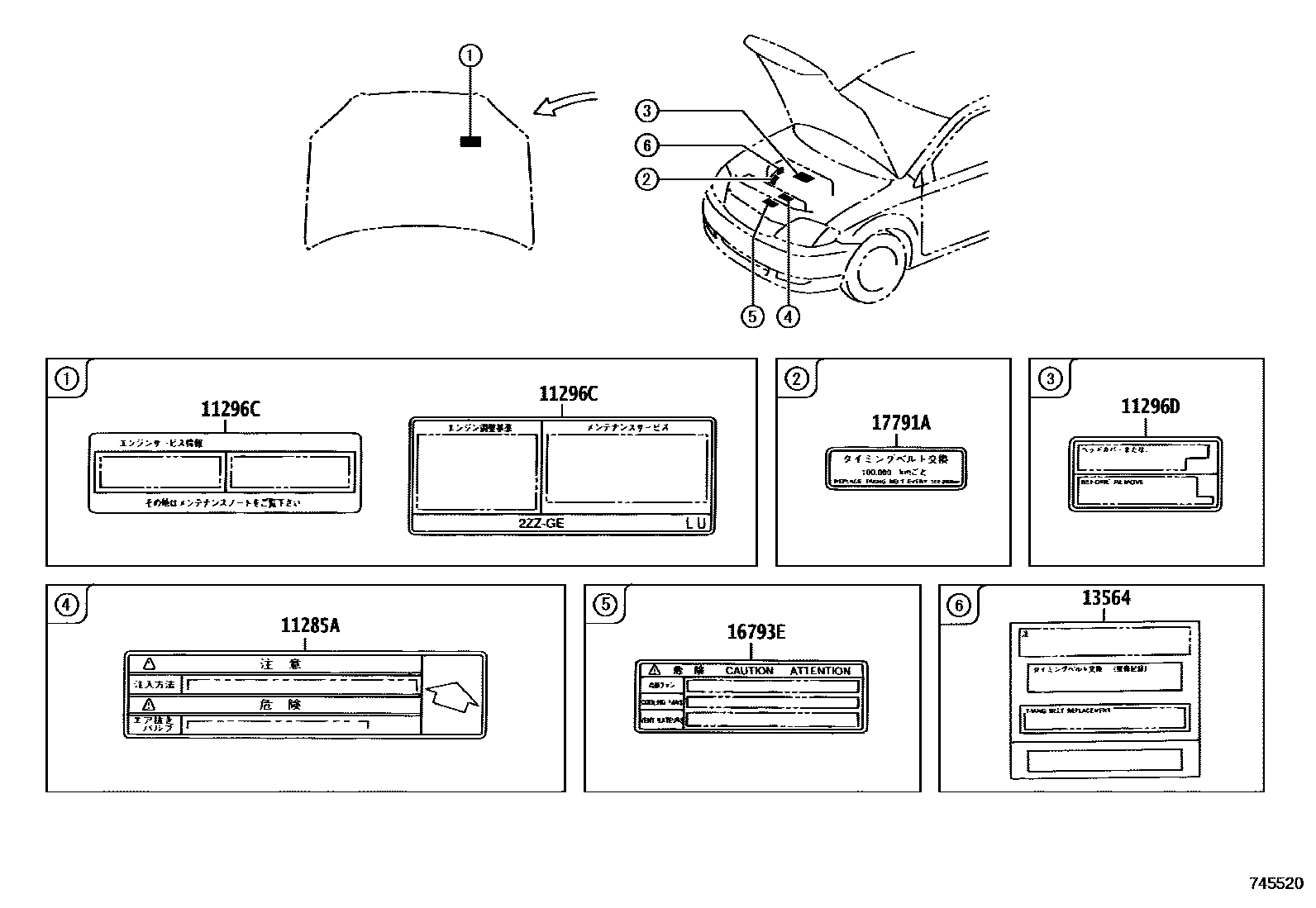

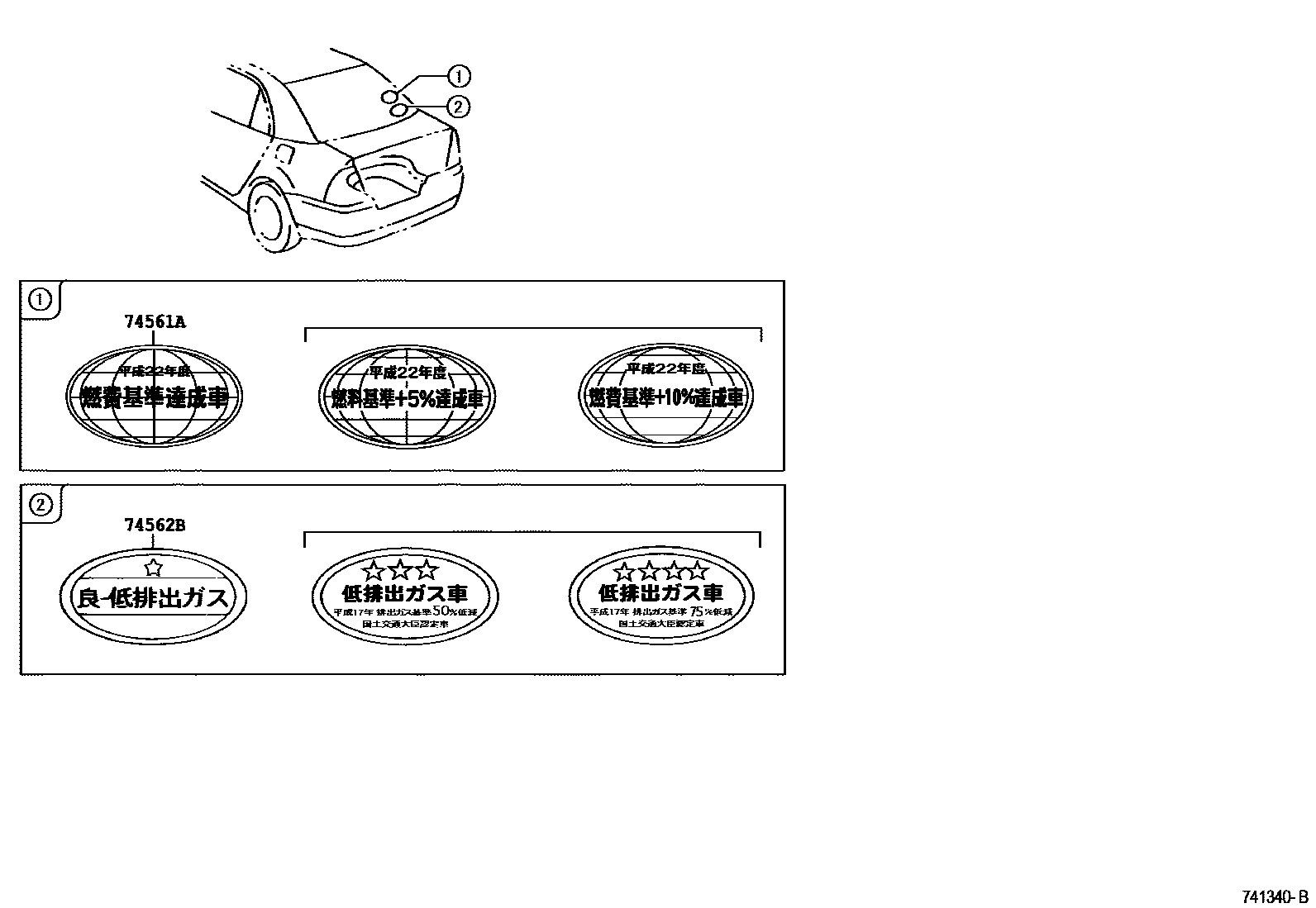

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-22050 |
| 11296C | Engine maintenance information label | 11296-21030 · 11296-21031 · 11296-22020 · 11296-22021 · 11296-22040 · 11296-22041 · 11296-22070 · 11296-22071 · 11296-64070 · 11296-64071 |
| 11296D | Engine maintenance information label | 11296-64010 |
| 13564 | Toyota part | 13564-10010 |
| 16793E | Toyota part | 16793-46010 |
| 17791A | Toyota part | 17791-55010 |
| 41992 | Differential attention label | 41992-33010 |
| 69339C | Child Restraint Information Label | 69339-12010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74541 | tire pressure warning plate | 42661-12A50 · 42661-12A60 · 42661-12A70 · 42661-12A80 · 42661-13210 · 42661-1E120 · 42661-1E130 · 42661-1E140 · 42661-1E150 · 42661-1E340 · 42661-1E360 |
| 74541B | Small spare tire warning plate | 42668-28060 |
| 74561A | fuel consumption information label | 74561-52010 · 74561-52020 · 74561-52030 |
| 74562B | Emission information label | 74562-12610 · 74562-40040 · 74562-40050 · 74562-47010 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 74579 | Unleaded fuel warning nameplate | 74559-14030 |
| 74579A | Unleaded Fuel Information Label | 74579-24010 |
| 75341C | engine cover plate | 75341-20060 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723E | Cooler maintenance warning label | 88723-22060 · 88723-42050 · 88733-12010 · 88733-17010 |
| 89176A | Air bag deployment information label | 89176-32010 |
