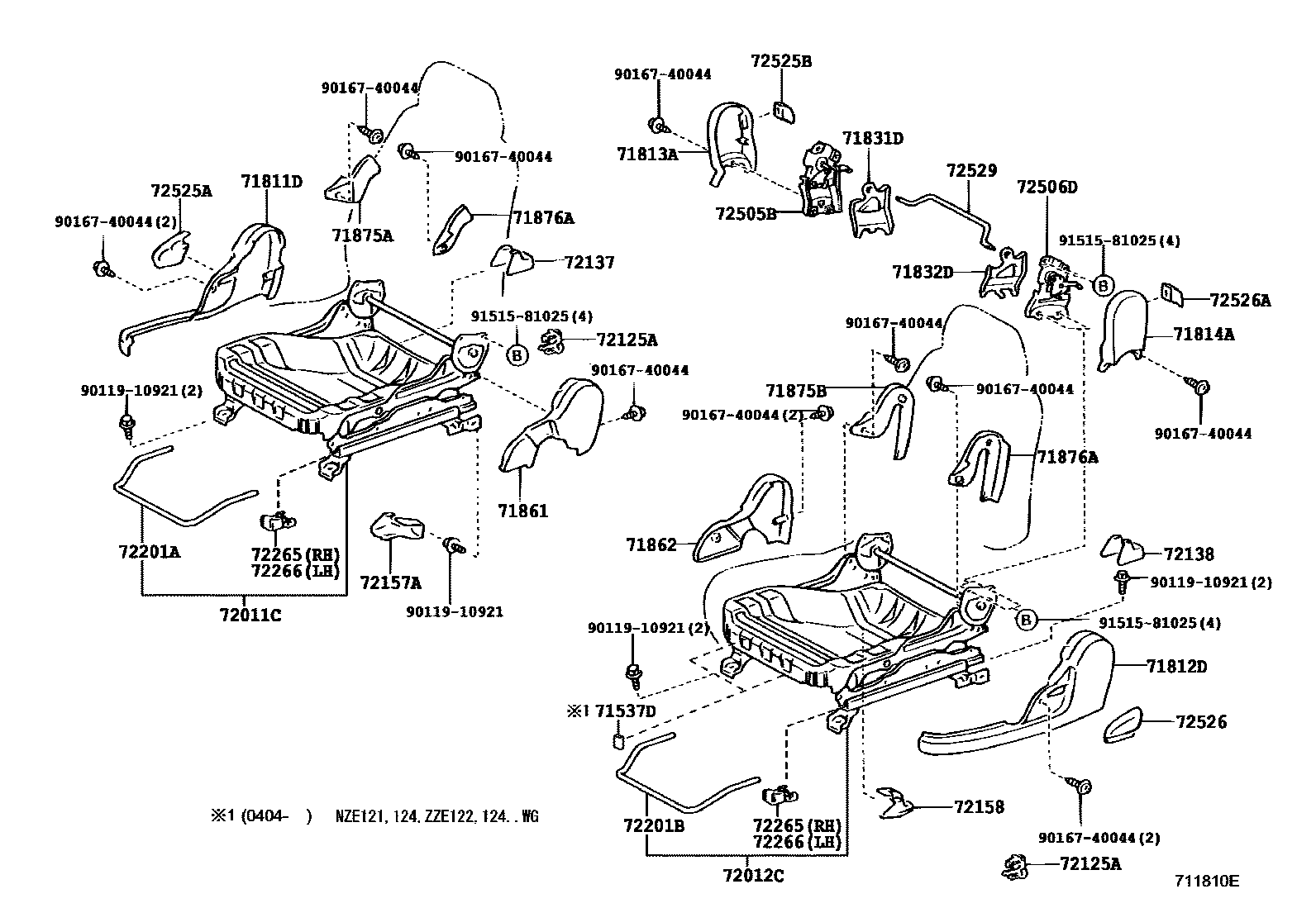

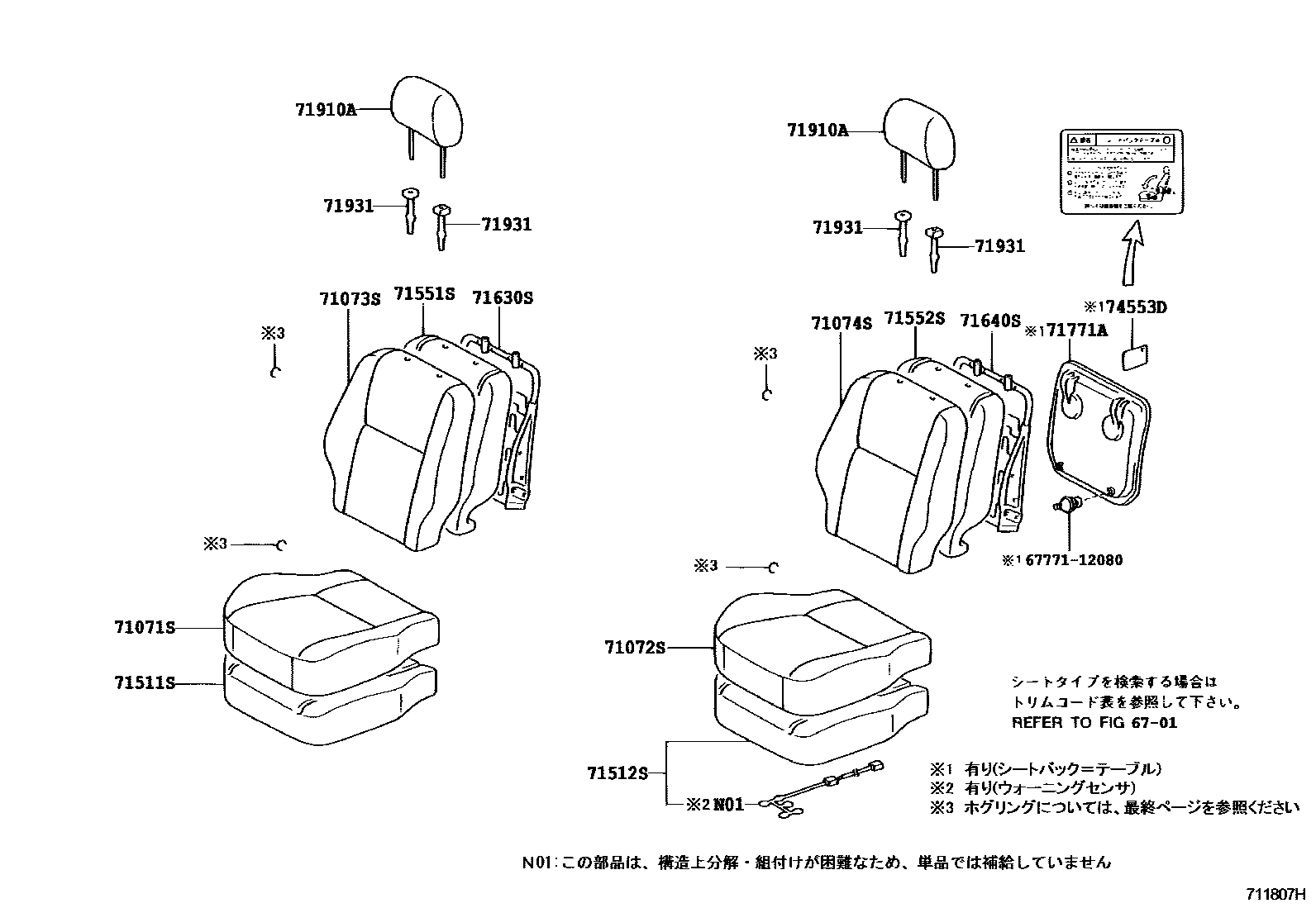

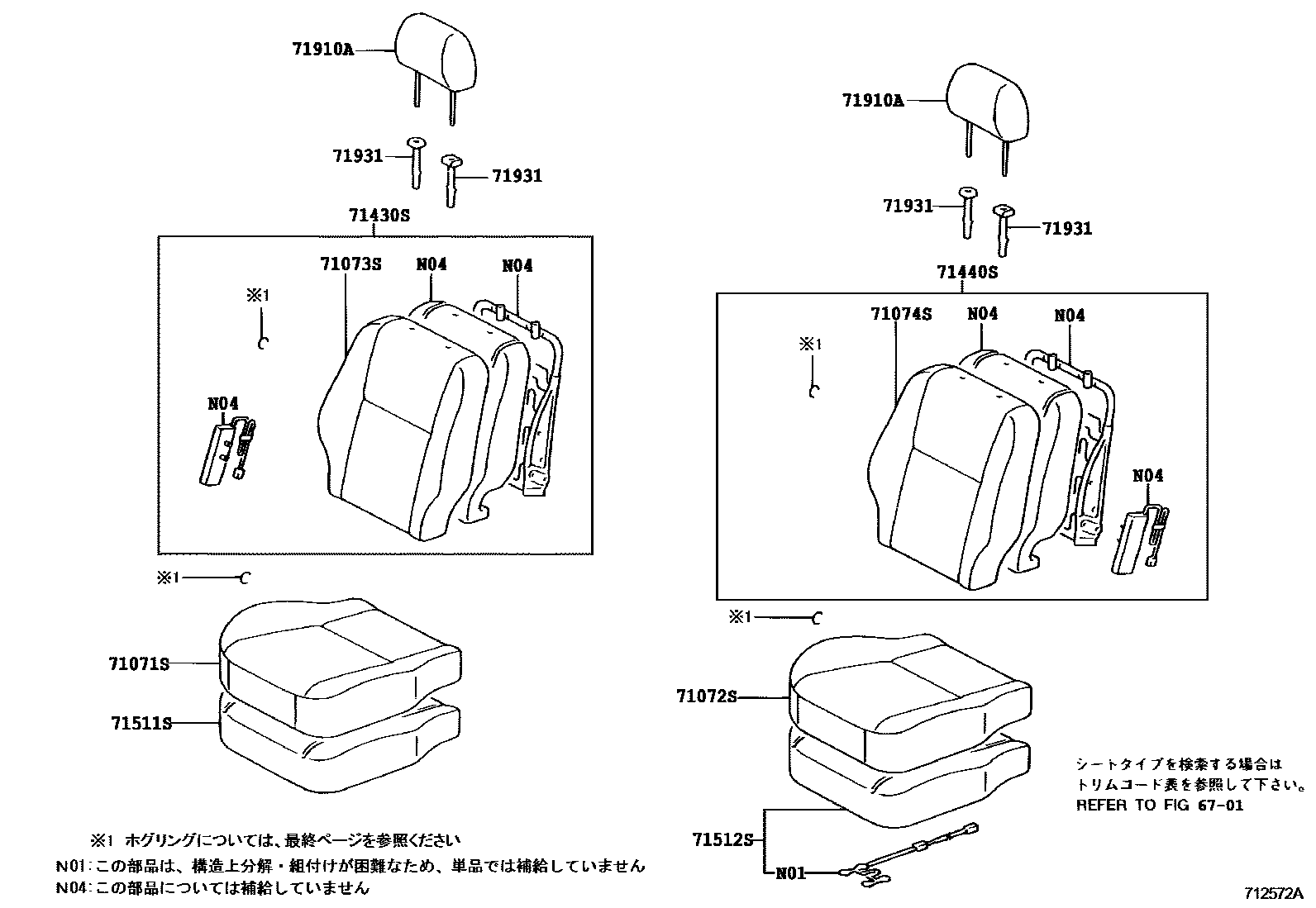

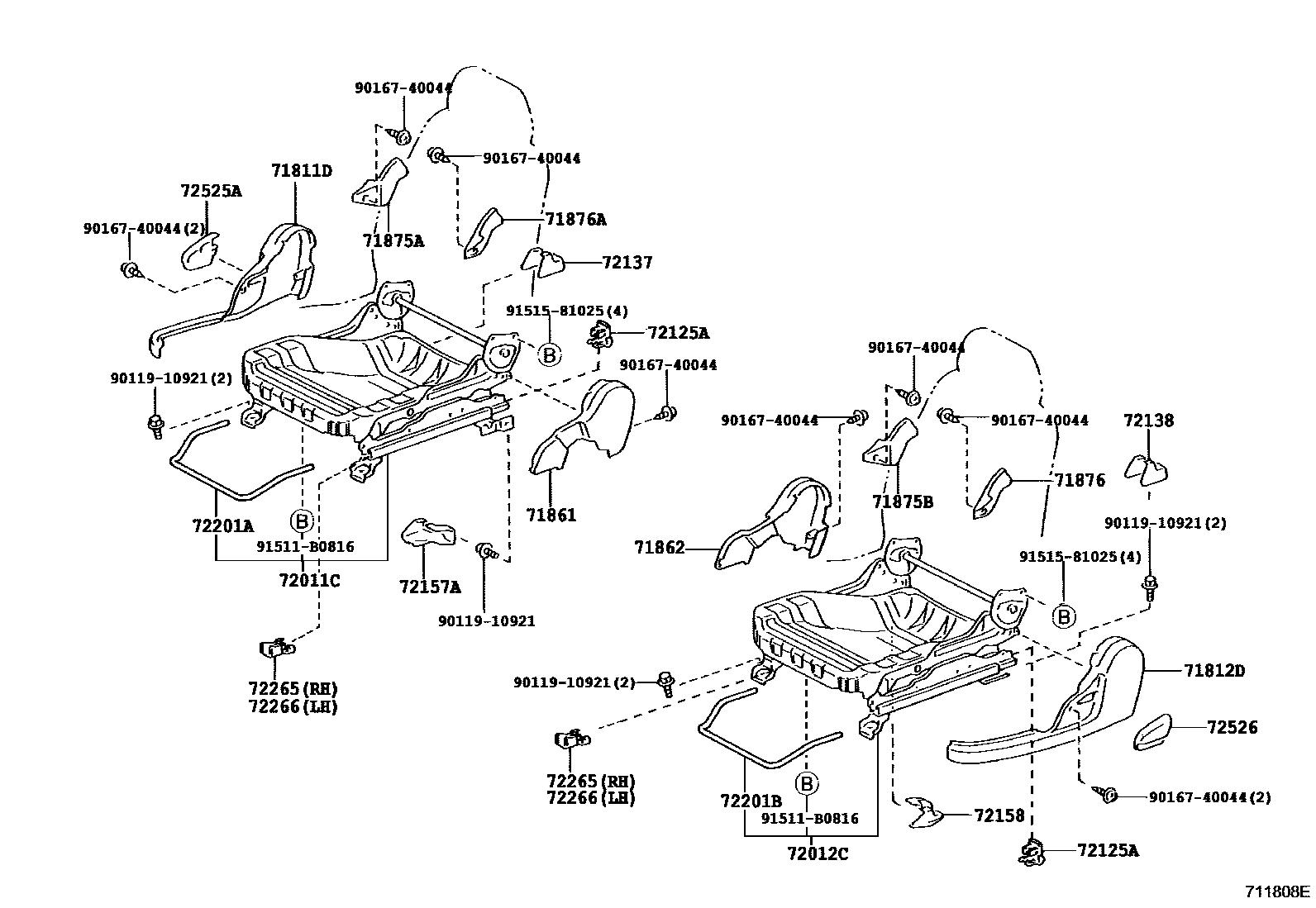

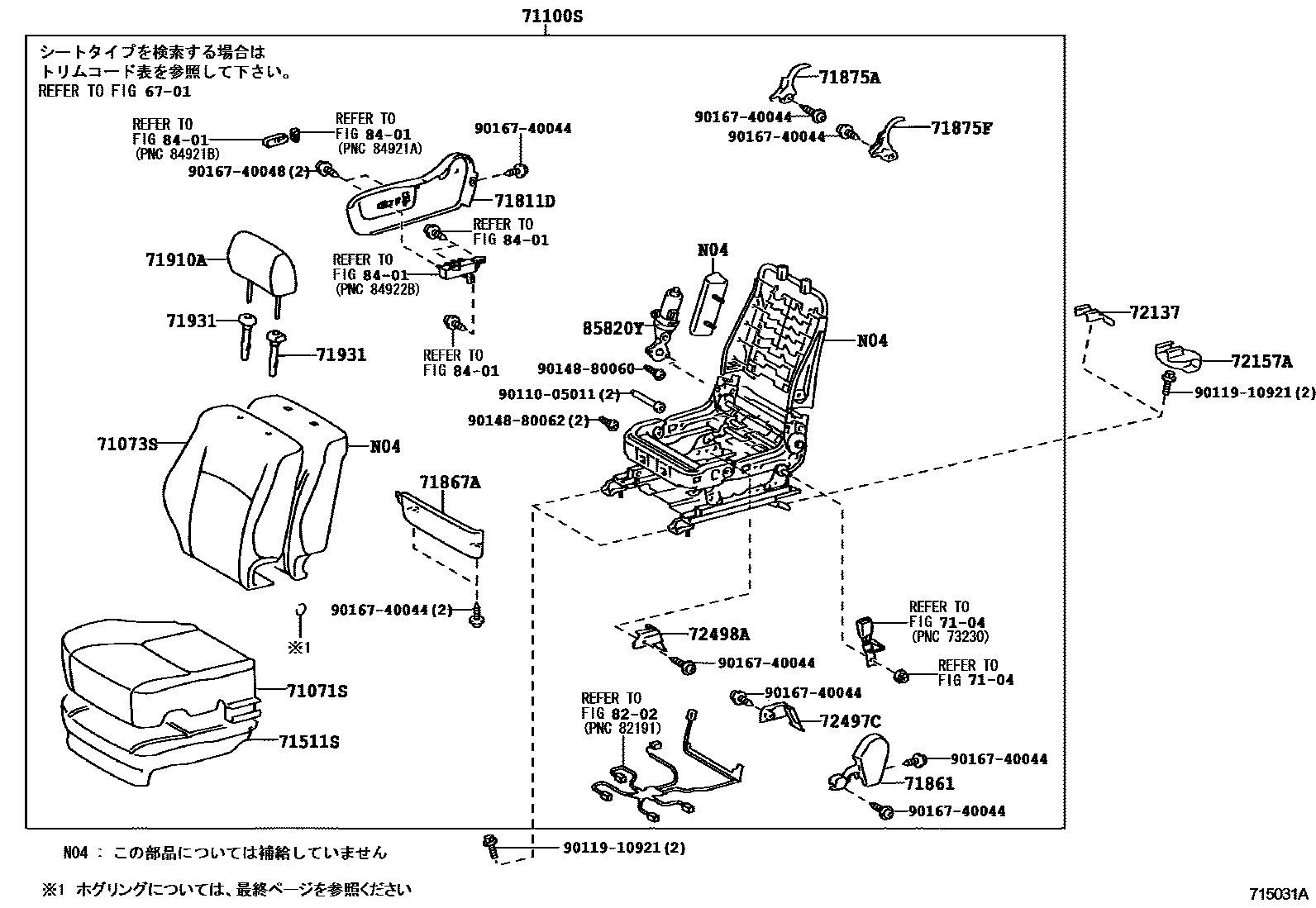

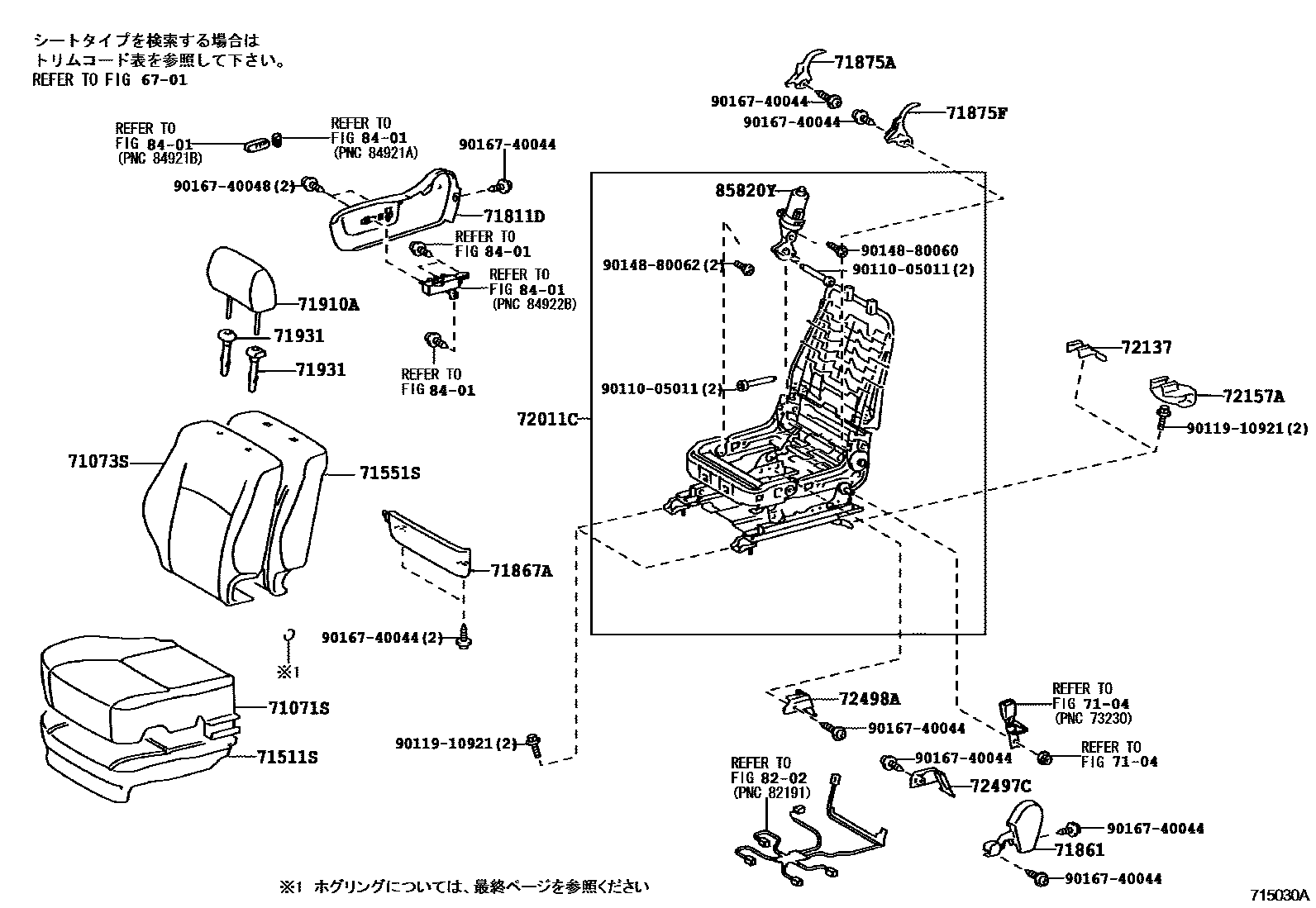

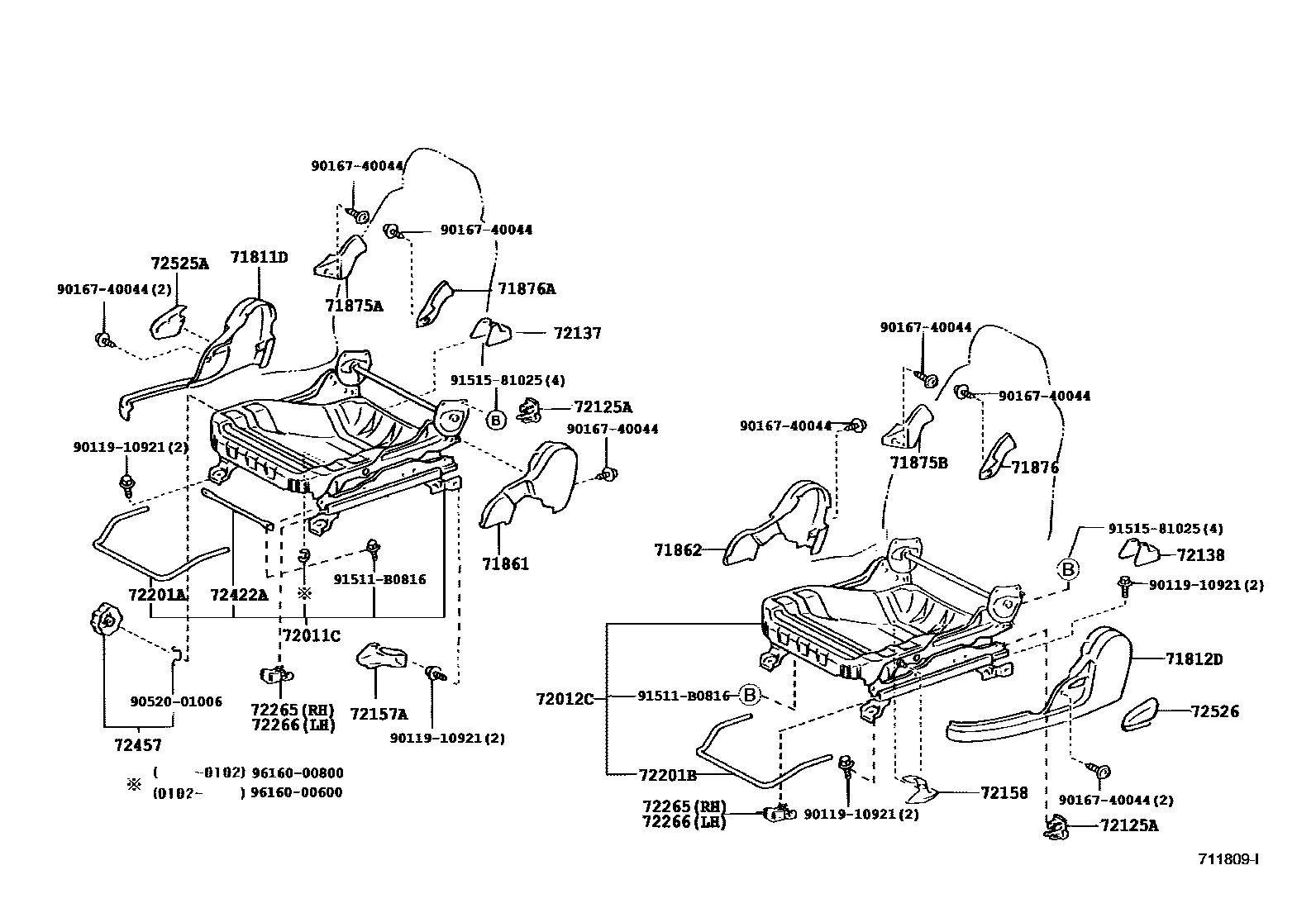

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12A10 · 71511-63010 · 71511-63020 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-13041 · 71052-13042 · 71502-12020 · 71502-63011 · 71502-63021 · 71502-63022 · 71511-63010 · 71511-63020 |
| 71537D | Front left seat cushion edge protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12850 · 71551-13160 · 71551-63010 · 71551-63012 · 71551-63030 · 71551-63031 |
| 71552S | Front left seat back cushion (for split seats) | 71551-13070 · 71551-13160 · 71551-63010 · 71551-63012 · 71551-63030 · 71551-63031 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-47010 · 71630-63030 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-13040 · 71630-47010 · 71630-63030 |
| 72011C | Front right seat adjuster sub-assembly | 71110-12020 · 72010-12720 · 72010-12730 |
| 72012C | Front left seat adjuster sub-assembly | 72020-12670 · 72020-13060 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72137 | Right seat outer slide rail cover | 72137-12090 · 72137-12091 · 72137-52010 |
| 72138 | Left seat outer slide rail cover | 72137-52010 |
| 72157A | Right seat inner slide rail bracket cover | 72157-12090 · 72157-12091 · 72157-12100 |
| 72158 | Left seat inner slide rail bracket cover | 72158-12100 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-12060 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-12060 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
| 72422A | Front seat adjuster lever | 72422-52010 |
| 72497C | Height adjuster bracket outer cover | 72497-58010 |
| 72498A | Left height adjuster bracket cover | 72498-58010 |
| 72505B | Front right seat back lock sub-assembly | 72505-13010 |
| 72506D | Front left seat back lock sub-assembly | 72506-13020 |
| 72529 | Front seat back lock handle lever | 72529-13010 |
| 74553D | Front seat warning label | 74553-13030 |
| 85820Y | Electric seat motor assembly | 85801-58030 |
