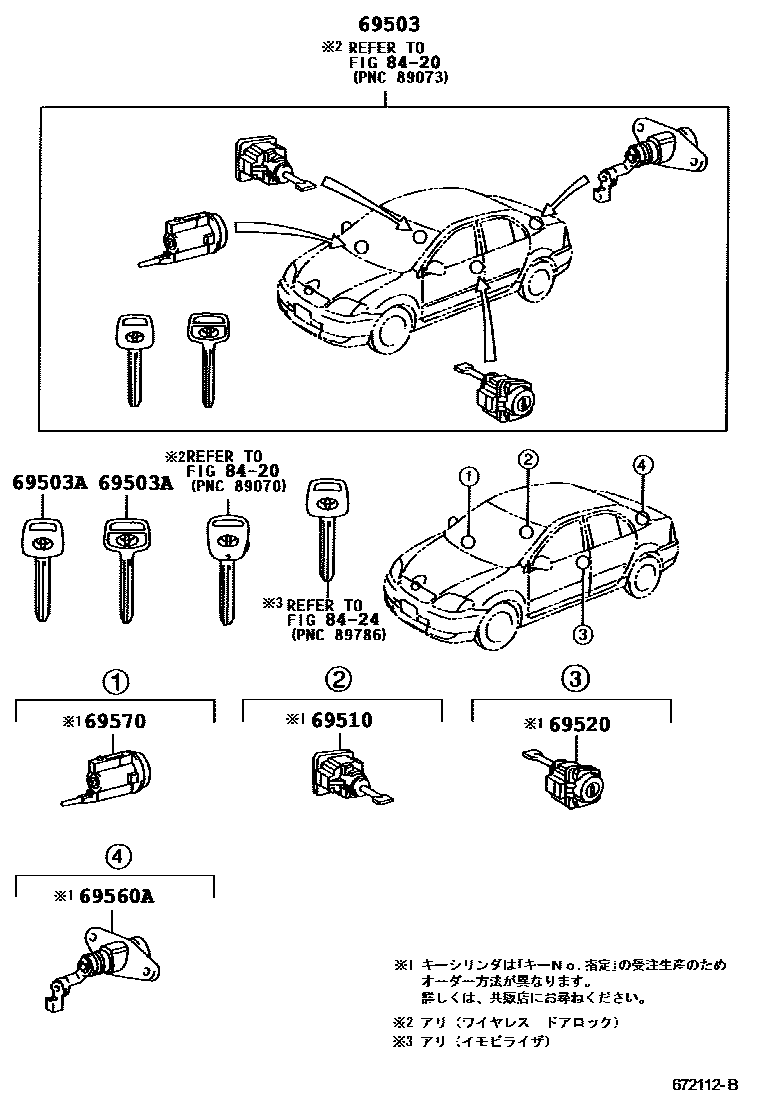

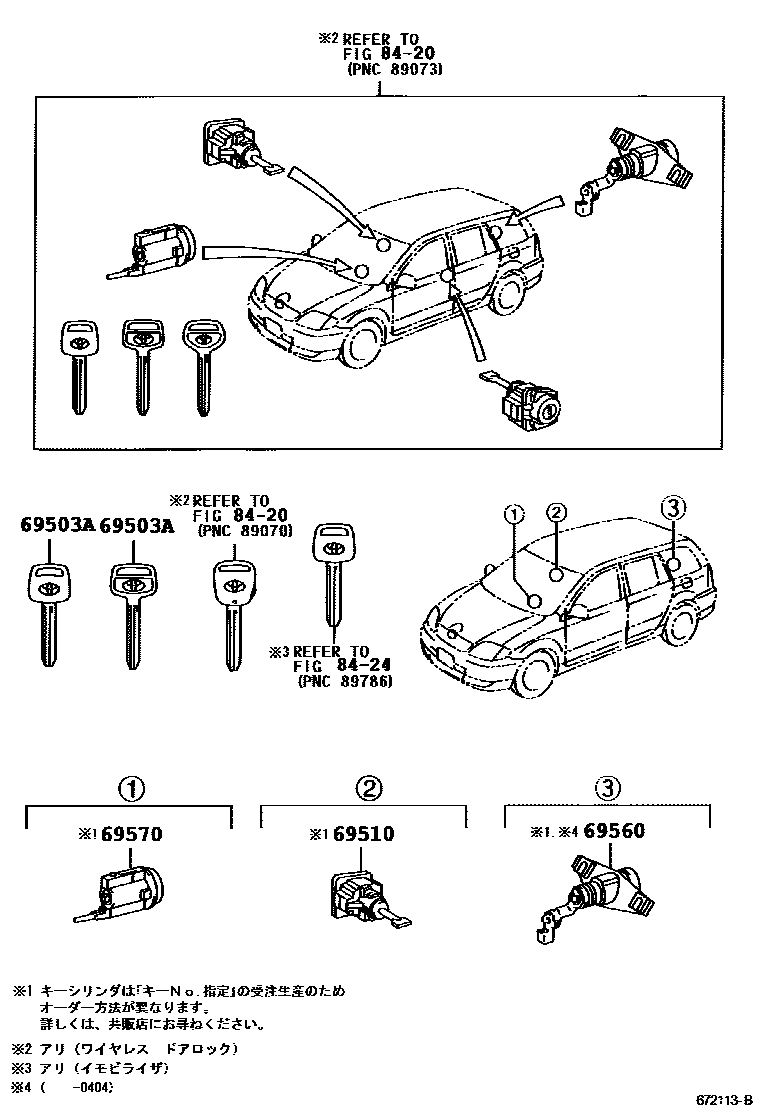

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12B00 · 69005-1E150 · 69005-1E151 |
| 69503A | external tooth key | 90999-00186 · 90999-00188 · 90999-00199 |
| 69510 | Right front door lock cylinder assembly | 69510-12310 |
| 69520 | Left front door lock cylinder assembly | 69520-12300 |
| 69560 | Rear door lock cylinder assembly | 69560-13130 |
| 69560A | Trunk door lock core assembly | 69560-12630 · 69560-12720 |
| 69570 | Ignition switch lock cylinder assembly | 69570-12180 · 69570-12190 |
