Toyota COROLLA 侧梁 — Figure 6101

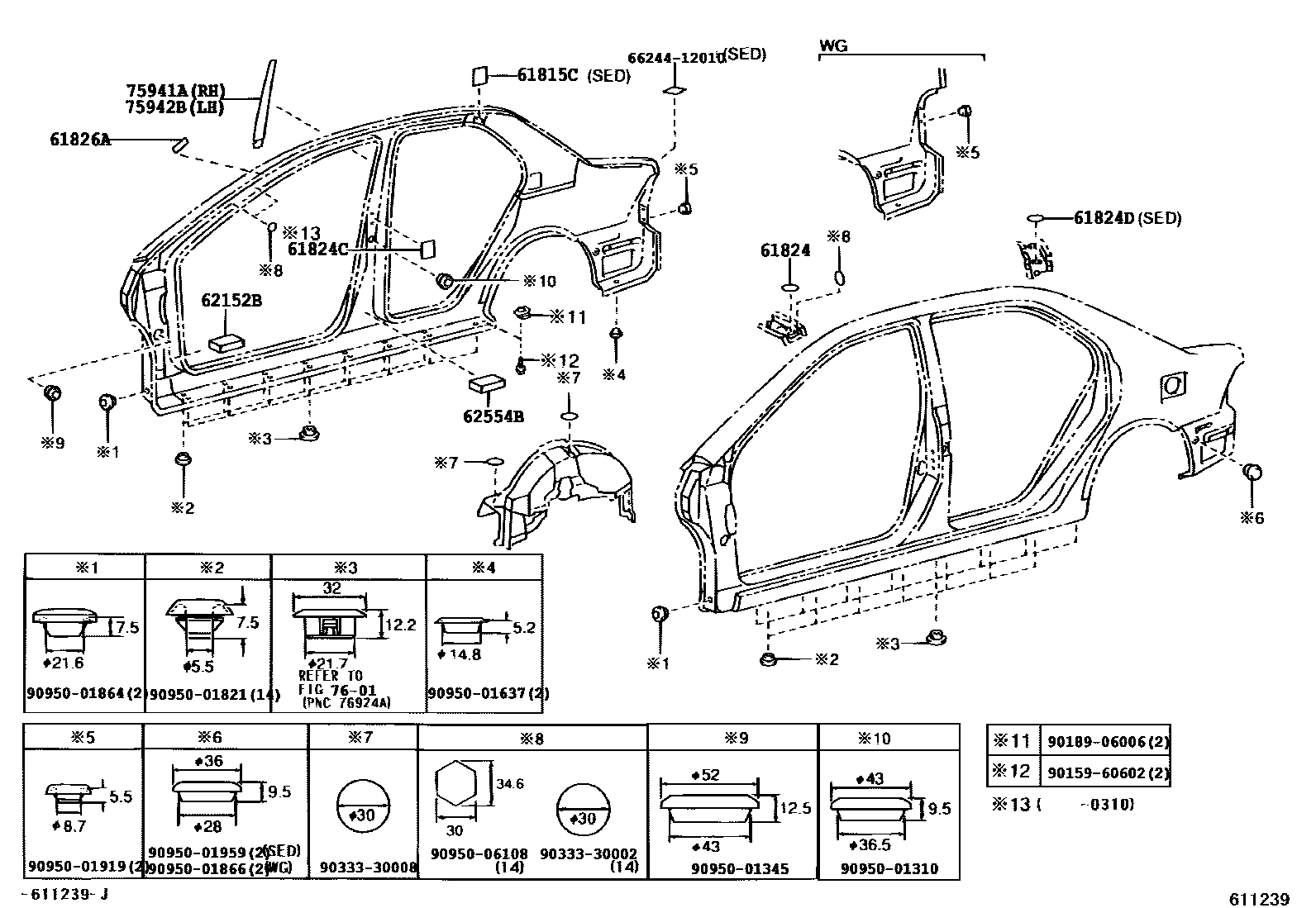

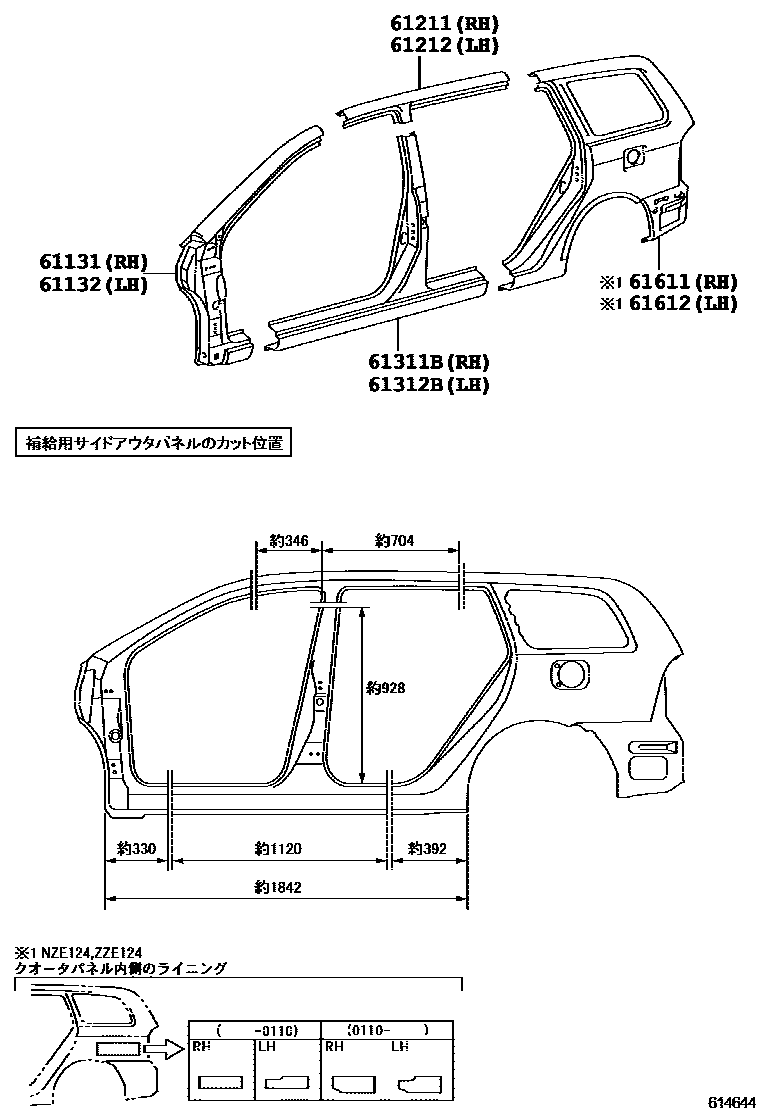

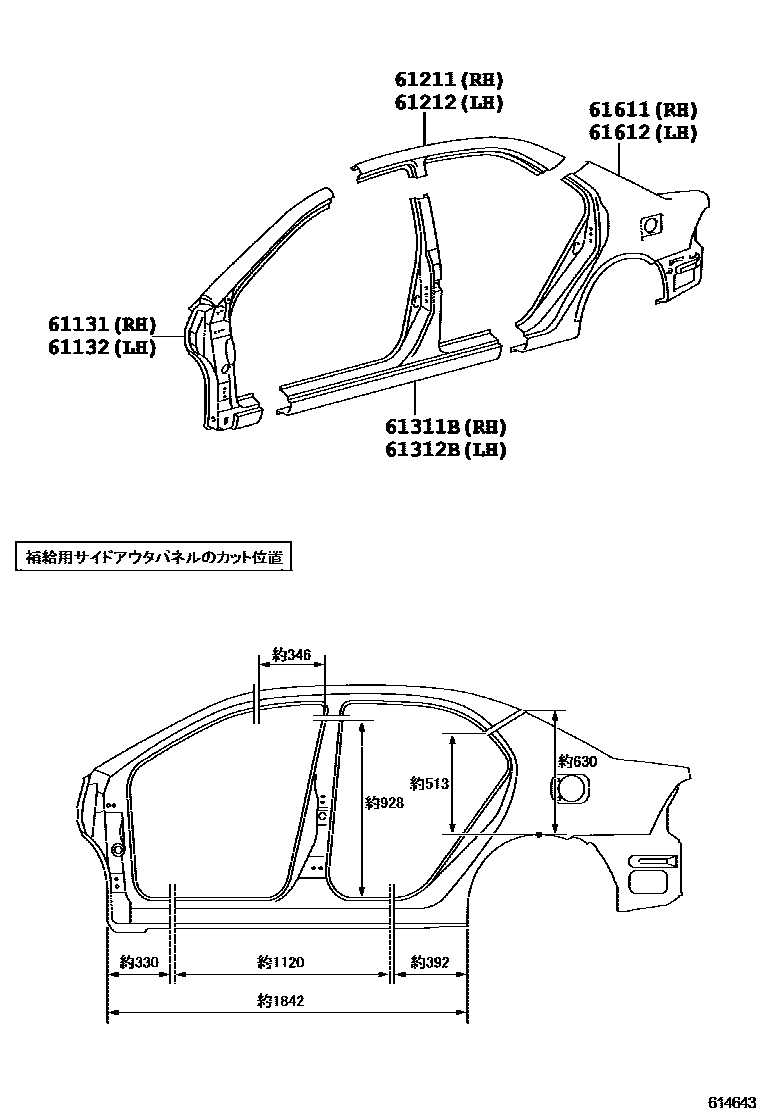

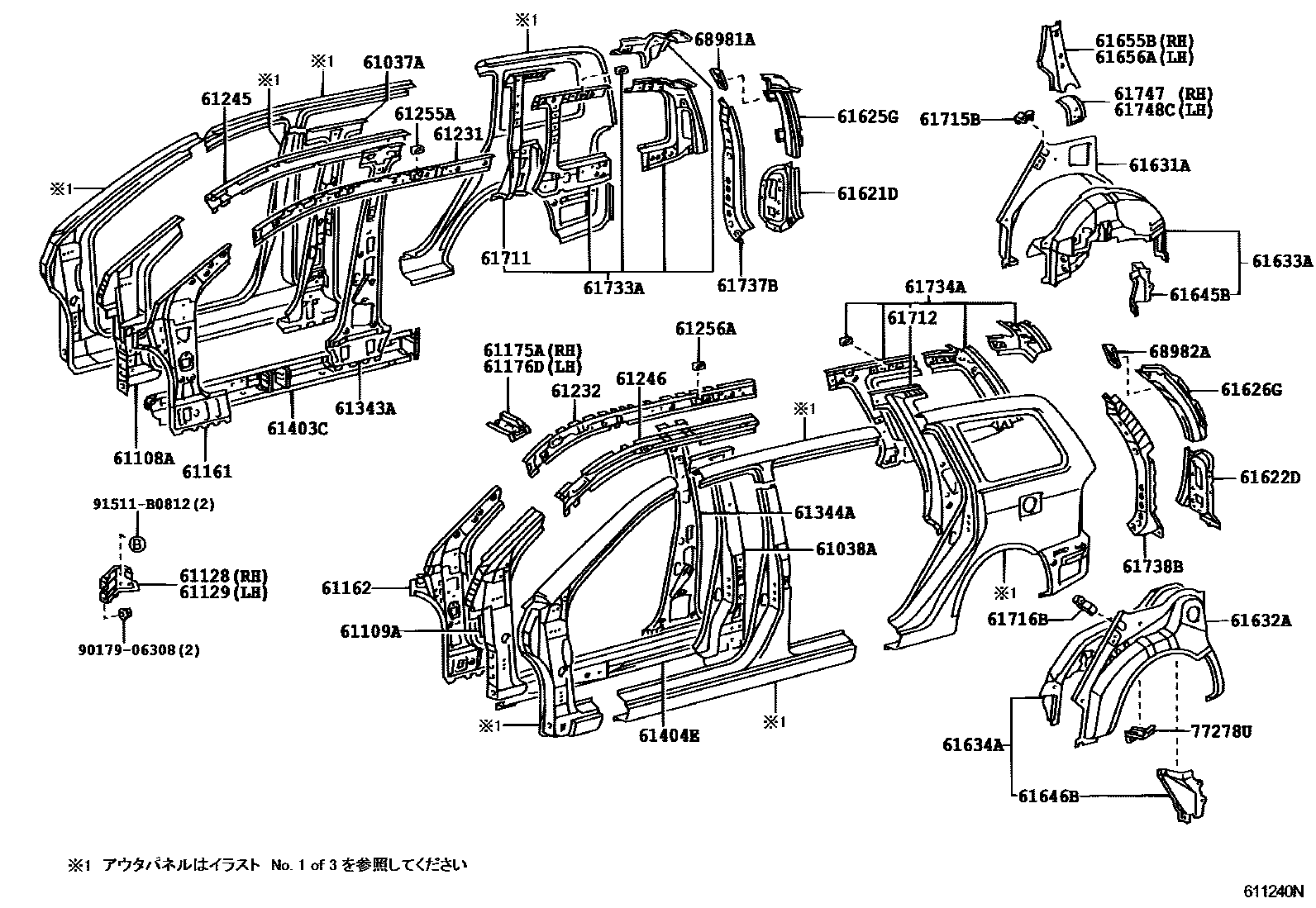

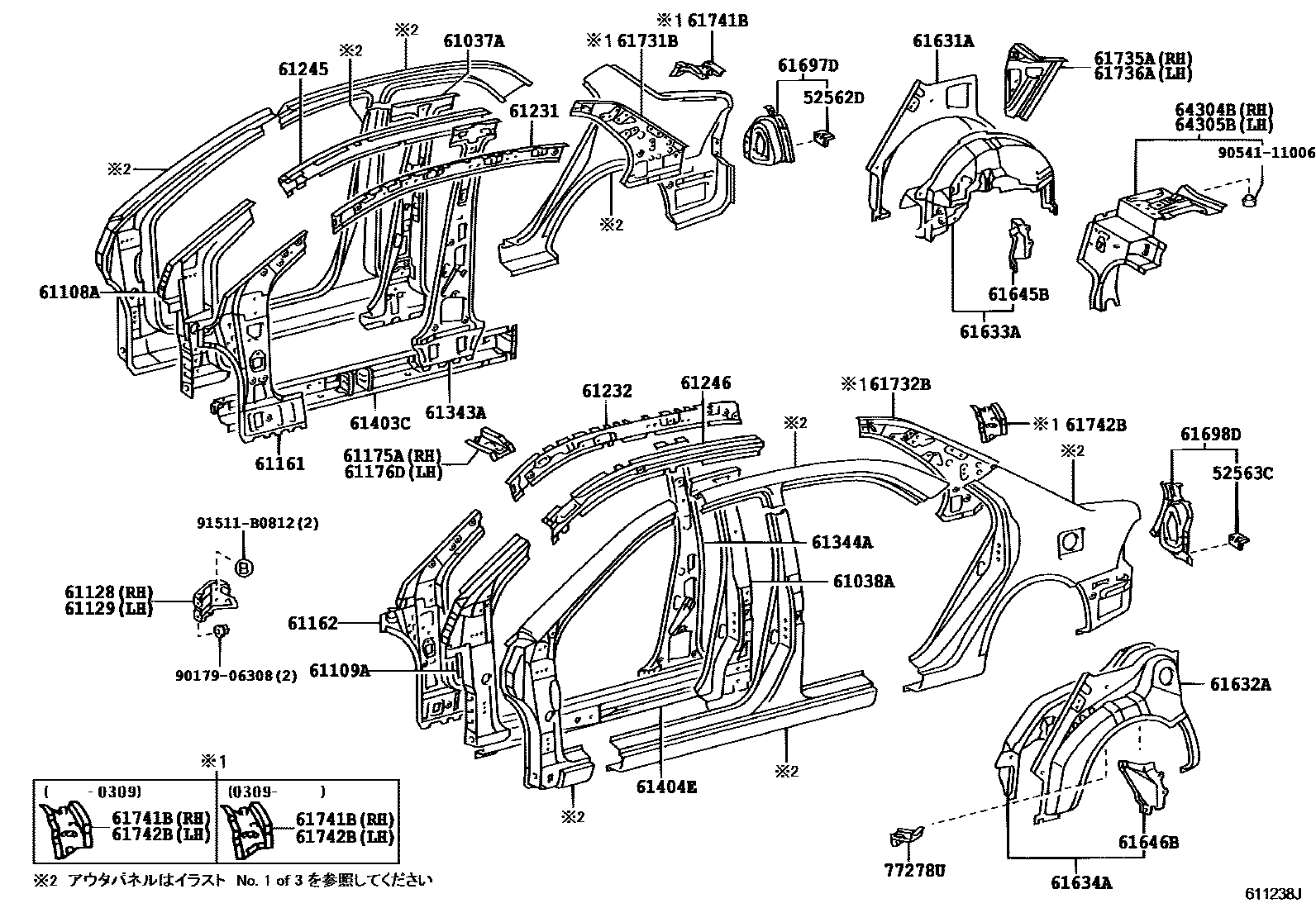

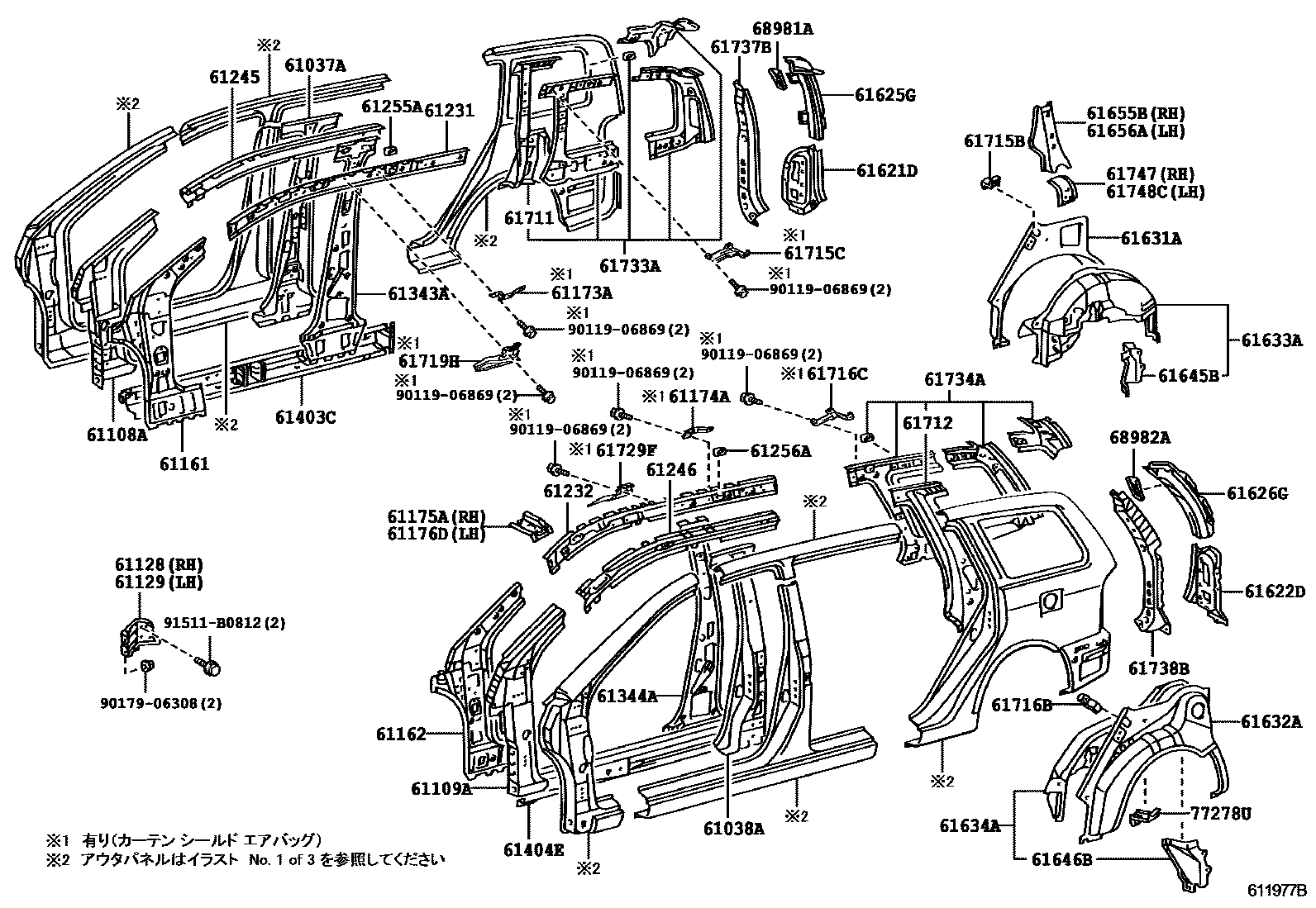

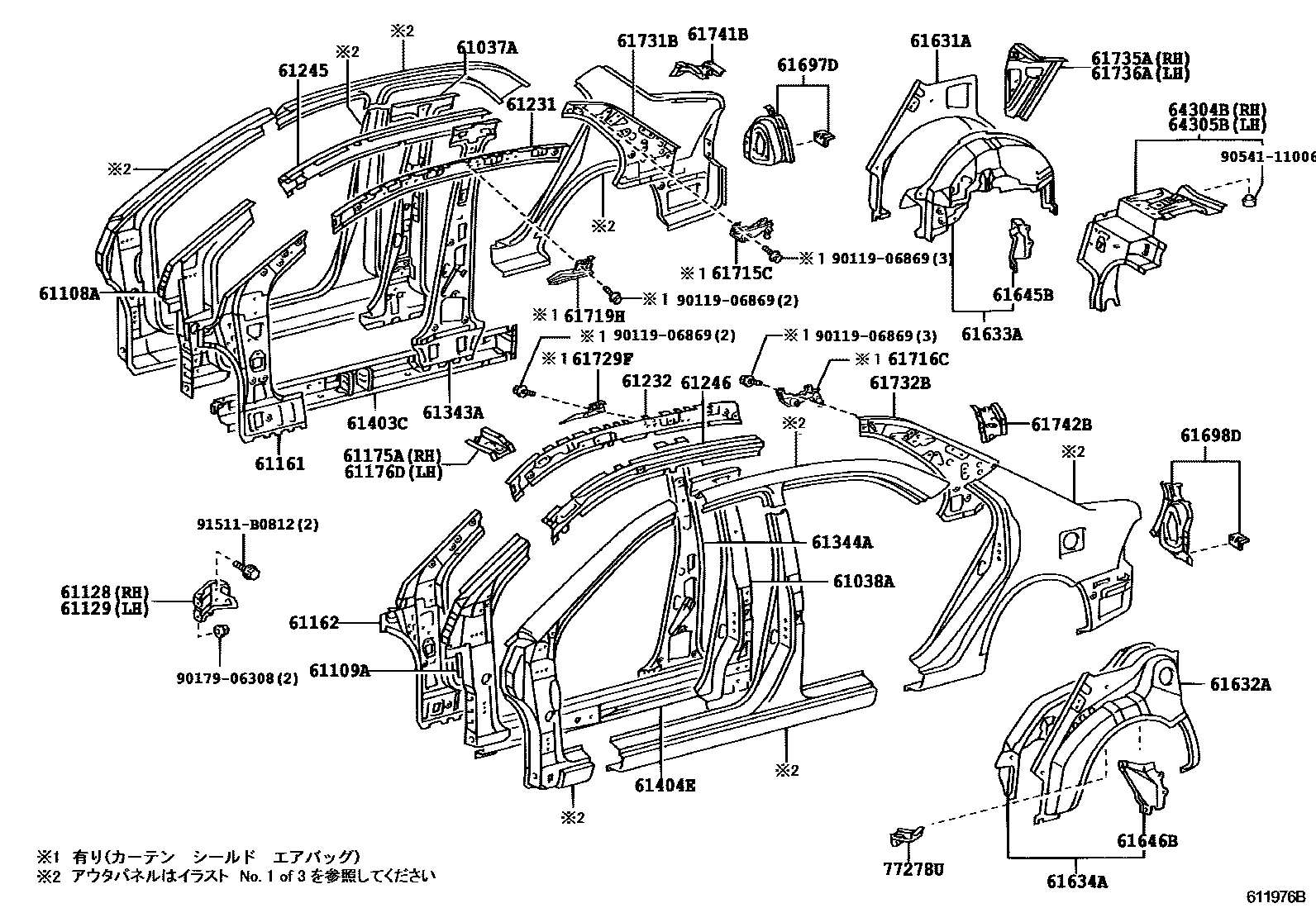

Toyota COROLLA EPC diagram 6101, 侧梁, with 7 images and 80 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562D | Rear bumper upper right side fixing bracket | 52562-12070 |
| 52563C | Rear bumper upper left side fixing bracket | 52562-12070 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12903 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12903 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12230 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12220 |
| 61128 | Right front wall side panel reinforcement | 61103-12190 · 61103-12200 |
| 61129 | Left front wall side panel reinforcement | 61104-12220 · 61104-12230 |
| 61131 | Right body outer front upper pillar | 61131-12590 · 61131-12600 · 61131-13040 · 61131-13090 |
| 61132 | Left body outer front upper pillar | 61132-12610 · 61132-13040 |
| 61161 | Right upper body inner front pillar | 61023-12320 · 61023-12350 |
| 61162 | Left side inner front upper pillar | 61024-12320 · 61024-12350 |
| 61173A | Reinforcement member on the right inner front pillar of the body | 61173-02030 |
| 61174A | Reinforcement member on the left inner front pillar of the body | 61174-02030 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12140 · 61175-12200 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12150 · 61176-12201 |
| 61211 | Roof right outer longitudinal beam | 61211-12410 · 61211-12411 · 61211-13070 |
| 61212 | Roof left outer longitudinal beam | 61212-12410 · 61212-12411 · 61212-13070 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-02071 · 61231-13200 · 61231-1A100 · 61231-1A140 |
| 61232 | Roof left inner longitudinal beam | 61232-02071 · 61232-12870 · 61232-13180 · 61232-1A020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12060 · 61245-13030 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12060 · 61246-13030 |
| 61255A | Roof right outer longitudinal beam panel | 61255-13020 |
| 61256A | Roof left outer longitudinal beam panel | 61255-13020 |
| 61311B | Right body outer center pillar | 61311-12330 · 61311-13020 |
| 61312B | Left body outer center pillar | 61312-12370 · 61312-13020 |
| 61343A | Right body inner center pillar | 61343-12240 |
| 61344A | Left body inner center pillar | 61344-12240 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12010 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12011 |
| 61611 | Right side hoarding | 61601-13530 · 61601-13531 · 61601-13540 · 61601-13541 · 61601-13630 · 61601-13631 · 61601-13640 · 61601-13641 · 61601-1H130 · 61601-1H131 |
| 61612 | left side panel | 61602-13590 · 61602-13591 · 61602-13600 · 61602-13601 · 61602-13670 · 61602-13671 · 61602-13680 · 61602-13681 · 61602-1E860 · 61602-1E861 |
| 61621D | Back door right opening slot | 61621-13050 |
| 61622D | Rear door left opening slot | 61622-13050 |
| 61625G | Right rear side panel extension | 61625-13060 |
| 61626G | Left rear side panel extension | 61626-13060 |
| 61631A | Right wheel cover outer panel | 61631-12410 |
| 61632A | Left side wheel cover outer panel | 61632-12430 |
| 61633A | Right wheel housing lining panel | 61607-12924 · 61607-12926 · 61607-12928 · 61607-12929 · 61607-12942 · 61607-12944 · 61607-12945 · 61607-12946 |
| 61634A | Left side wheel housing lining panel | 61608-12921 · 61608-12922 · 61608-12924 · 61608-12926 · 61608-12927 · 61608-12934 · 61608-12935 · 61608-12943 · 61608-12945 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61655B | Right side wheel cover inner corner panel | 61655-13020 |
| 61656A | Left side wheel housing inner corner panel | 61656-13020 · 61656-13021 |
| 61697D | Right side enclosure end cover | 61697-12900 · 61697-12905 |
| 61698D | Left side enclosure end cover | 61698-12900 · 61698-12905 |
| 61711 | Roof right side outer panel | 61711-13120 · 61711-13121 |
| 61712 | Roof left outer panel | 61712-13120 · 61712-13121 |
| 61715B | Right front roof inner extension | 61715-13050 |
| 61715C | Roof right bracket | 61715-12090 · 61715-13060 |
| 61716B | Left front roof inner extension | 61715-13050 |
| 61716C | Roof left bracket | 61716-12100 · 61716-13040 |
| 61719H | Roof right side longitudinal beam bracket sub-assembly | 61707-12040 |
| 61729F | Roof left side longitudinal beam bracket sub-assembly | 61708-12030 |
| 61731B | Roof right inner panel | 61731-12680 · 61731-12760 · 61731-12770 |
| 61732B | Roof left inner panel | 61732-12640 · 61732-12710 · 61732-12720 |
| 61733A | Right front roof inner panel | 61733-13900 · 61733-13903 |
| 61734A | Left front roof inner panel | 61734-13900 · 61734-13903 |
| 61735A | Right rear roof inner panel | 61735-12380 |
| 61736A | Left rear roof inner panel | 61736-12370 |
| 61737B | Right inner lower panel of the roof | 61737-13060 |
| 61738B | Roof left inner lower panel | 61738-13050 |
| 61741B | Rear window opening right reinforcement | 61741-12120 · 61741-12121 |
| 61742B | Rear window opening left reinforcement | 61742-12090 · 61742-12091 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13050 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13080 |
| 61815C | Inner roof cover | 61815-28010 · 61815-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-12050 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-50020 · 61824-52040 |
| 61824D | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61826A | Noise Control Panel No. 3 | 61826-12020 · 61826-52020 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 · 62152-12060 |
| 62554B | No. 4 column pad | 62554-12170 · 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12030 · 64304-12040 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12030 · 64305-12040 |
| 68981A | Back door right side support rod fixing | 68981-13030 |
| 68982A | Back door left support rod fixing | 68982-13030 |
| 75941A | Right center pillar trim | 75941-12010 · 75941-12011 |
| 75942B | Left center pillar trim | 75942-12010 · 75942-12011 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
