Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 5 PNC and OE references.

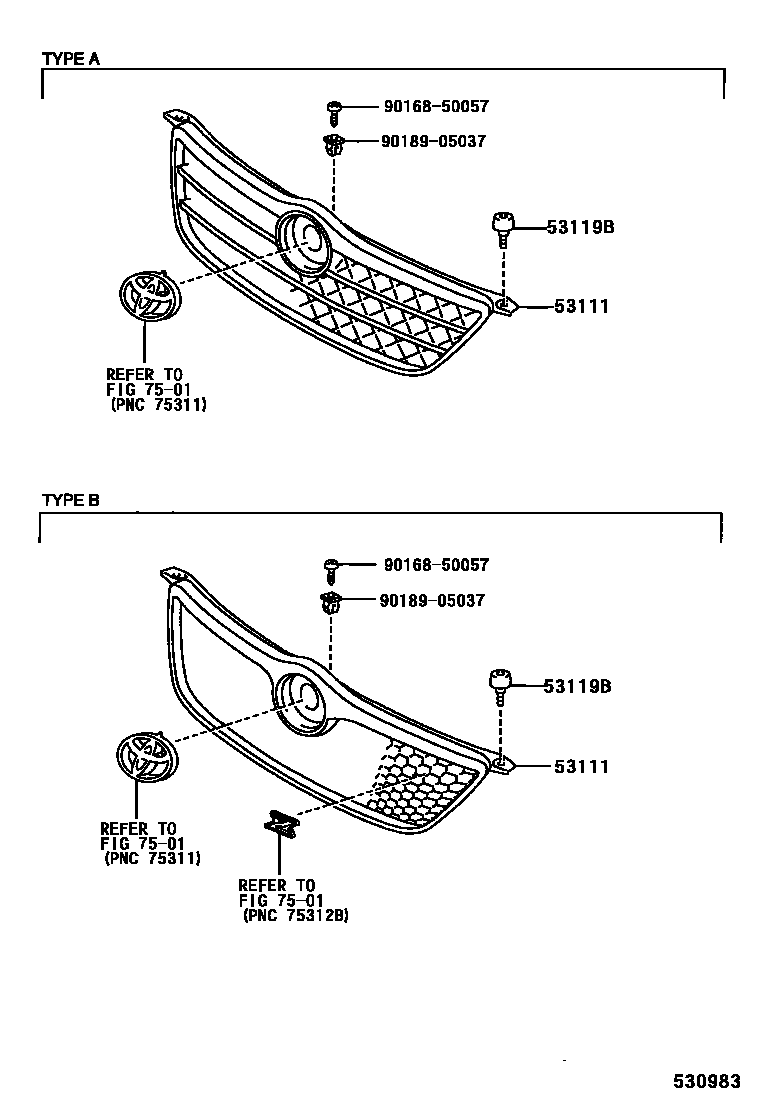

Toyota COROLLA radiator grille EPC diagram — 530983
radiator grille — 530983 (200008 – 200209)

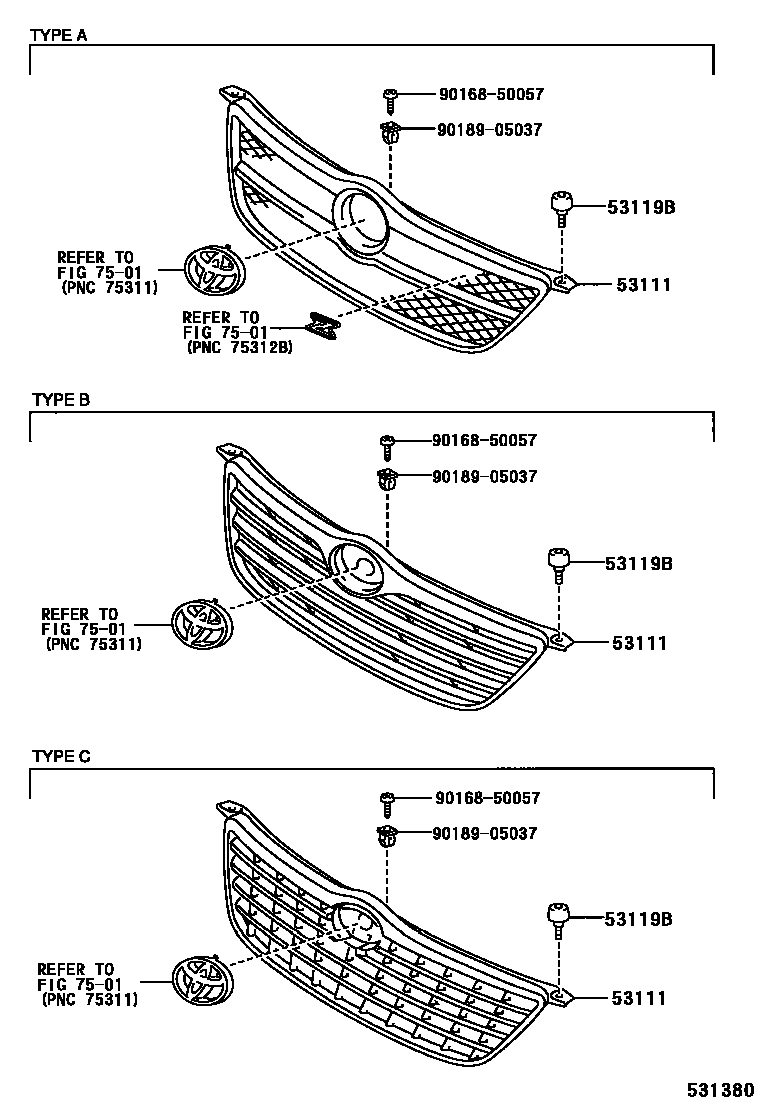

Toyota COROLLA radiator grille EPC diagram — 531380
radiator grille — 531380 (200209 – 200404)

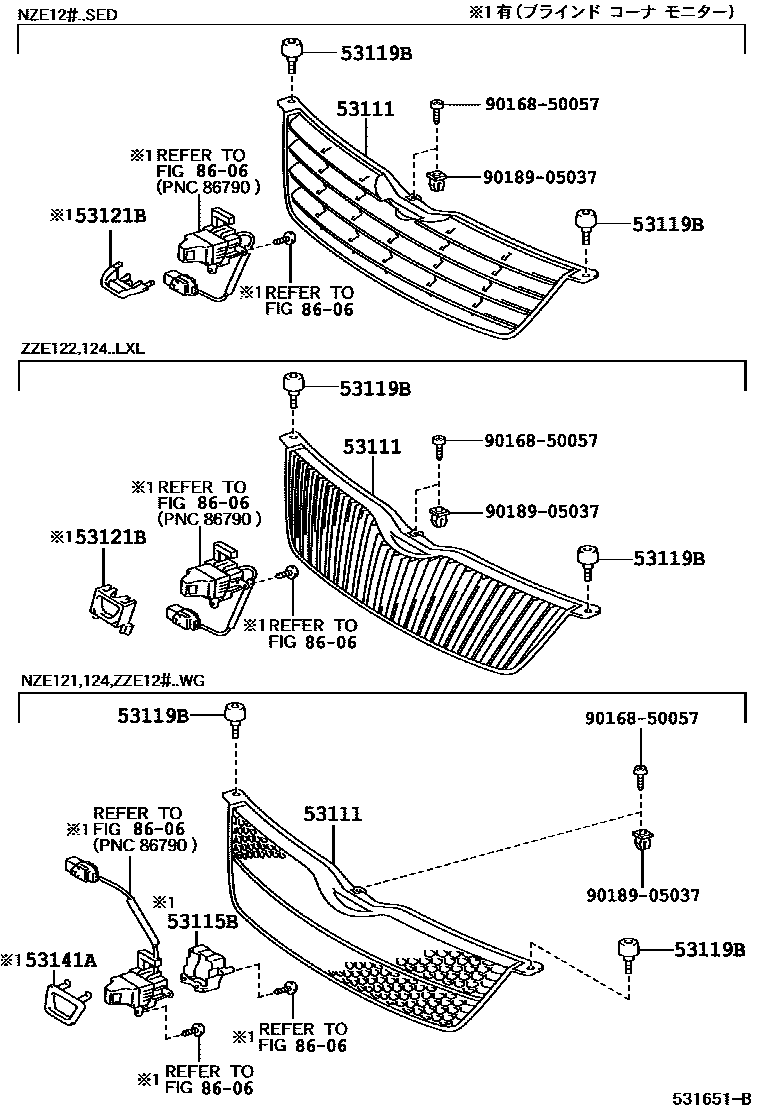

Toyota COROLLA radiator grille EPC diagram — 531651B
radiator grille — 531651B (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-12A20 · 53111-12A30 · 53111-12A40 · 53111-12A50 · 53111-12A60 · 53111-13200 · 53111-13260 · 53111-13300 · 53111-13340 · 53111-1A390 · 53111-1A450 · 53111-1A500 · 53111-1A510
53115BRadiator grille bracket53115-13010
53119BRadiator grille protector53119-12150
53121BProtective strips on radiator grille53121-12160 · 53121-12170
53141ARadiator grille lower right decorative part53141-13040
