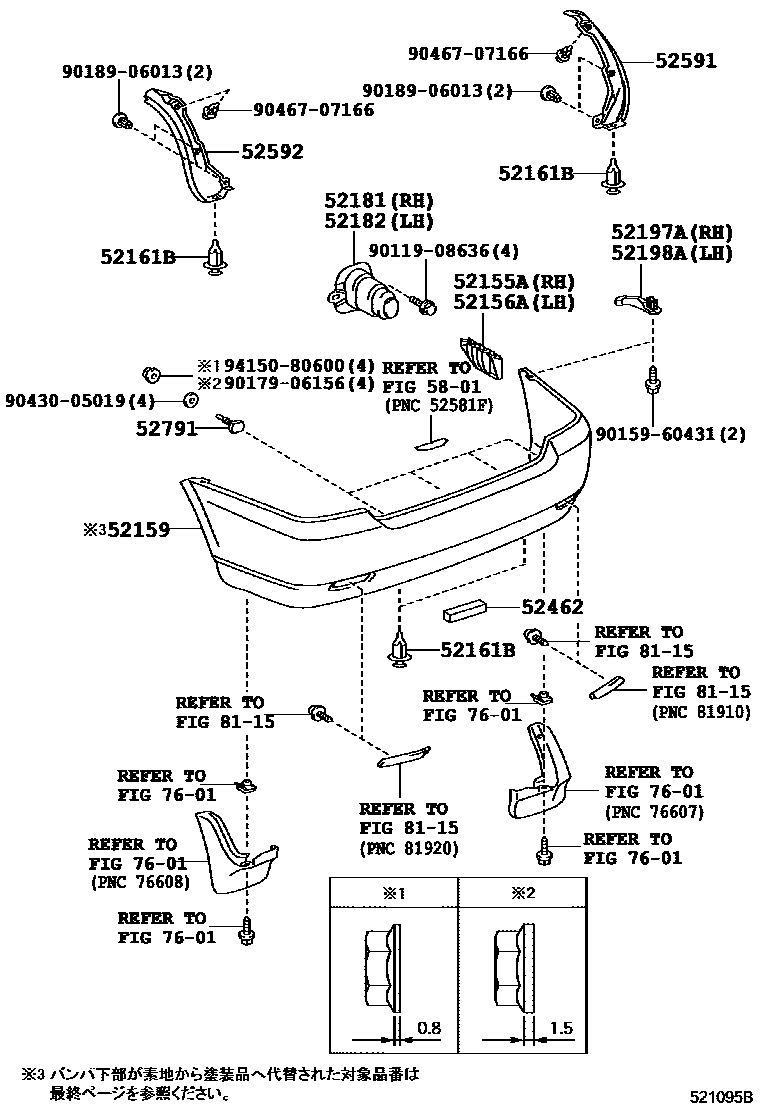

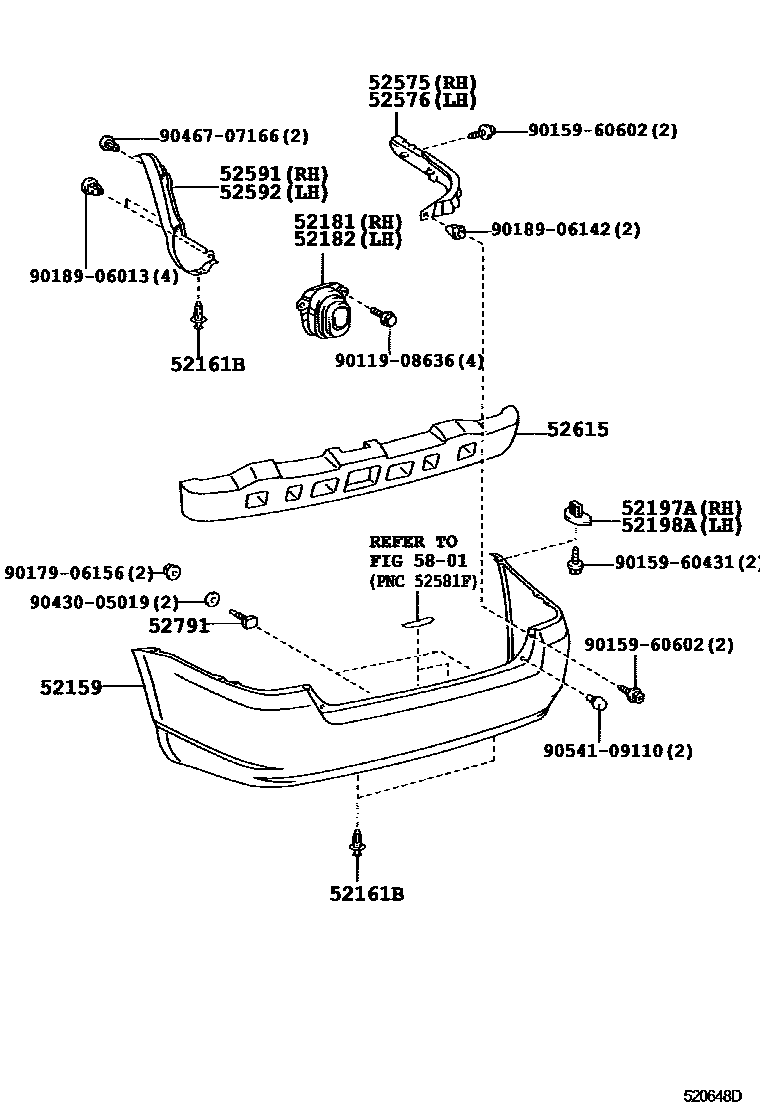

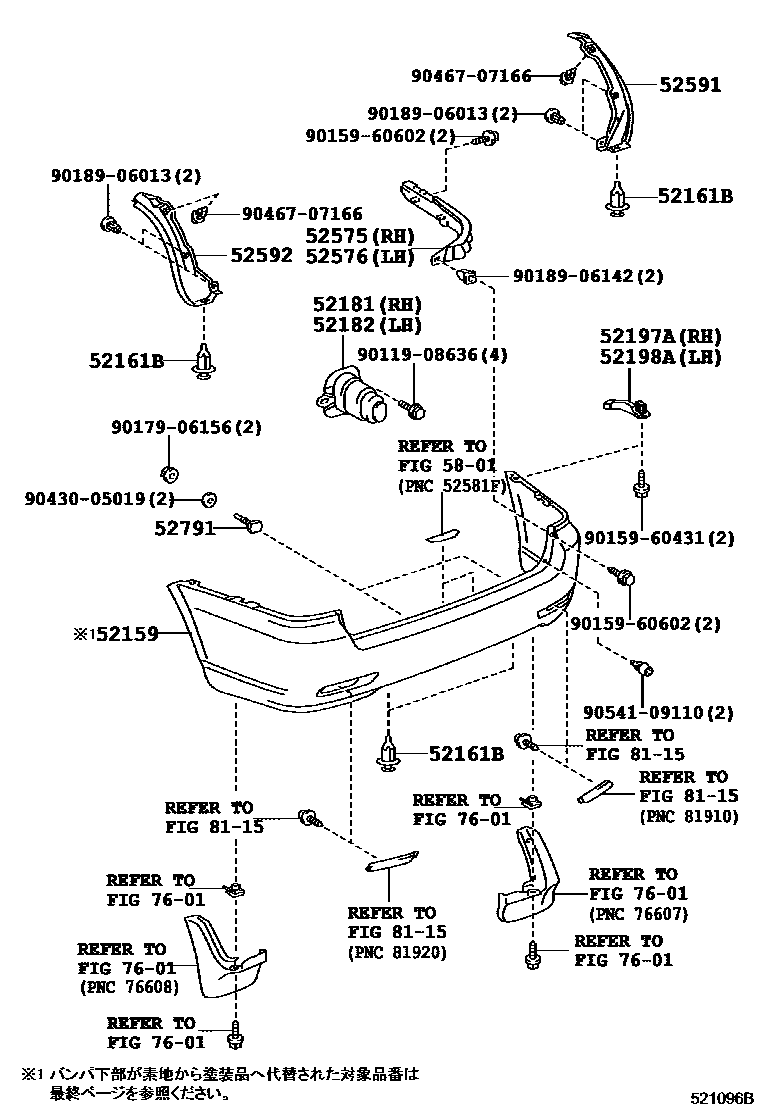

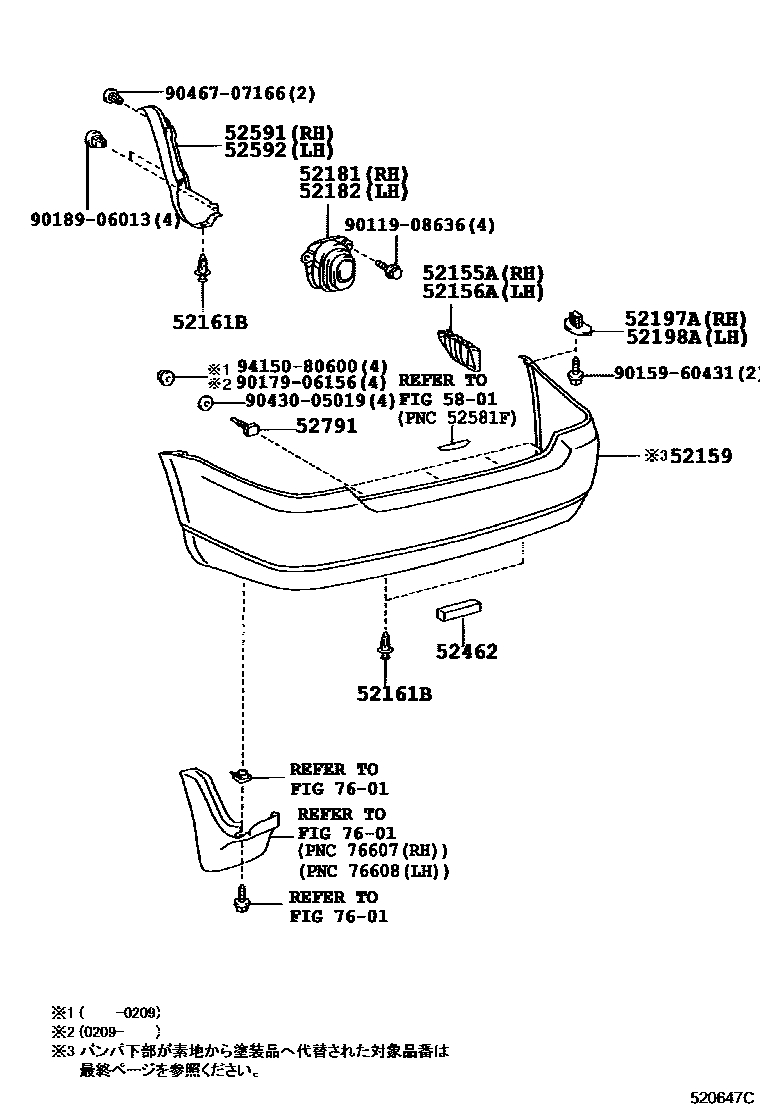

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-12290 |
| 52156A | Rear bumper left bracket | 52156-12270 |
| 52161B | Rear bumper insert | 52161-16010 · 90467-09093 |
| 52181 | Rear bumper right arm | 52181-12440 · 52181-12490 |
| 52182 | Rear bumper left arm | 52181-12440 · 52181-12490 |
| 52197A | Rear bumper right seal support | 52197-12080 |
| 52198A | Rear bumper left seal support | 52198-12080 |
| 52462 | Rear bumper right side lining | 52462-12070 |
| 52575 | Rear bumper right side fixing bracket | 52575-13020 |
| 52576 | Rear bumper left side fixing bracket | 52576-13020 |
| 52591 | Rear bumper right seal | 52591-12150 |
| 52592 | Rear bumper left seal | 52592-12070 |
| 52615 | Rear bumper energy absorber | 52615-13040 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
