Toyota COROLLA 制动配管和卡箍 — Figure 4708

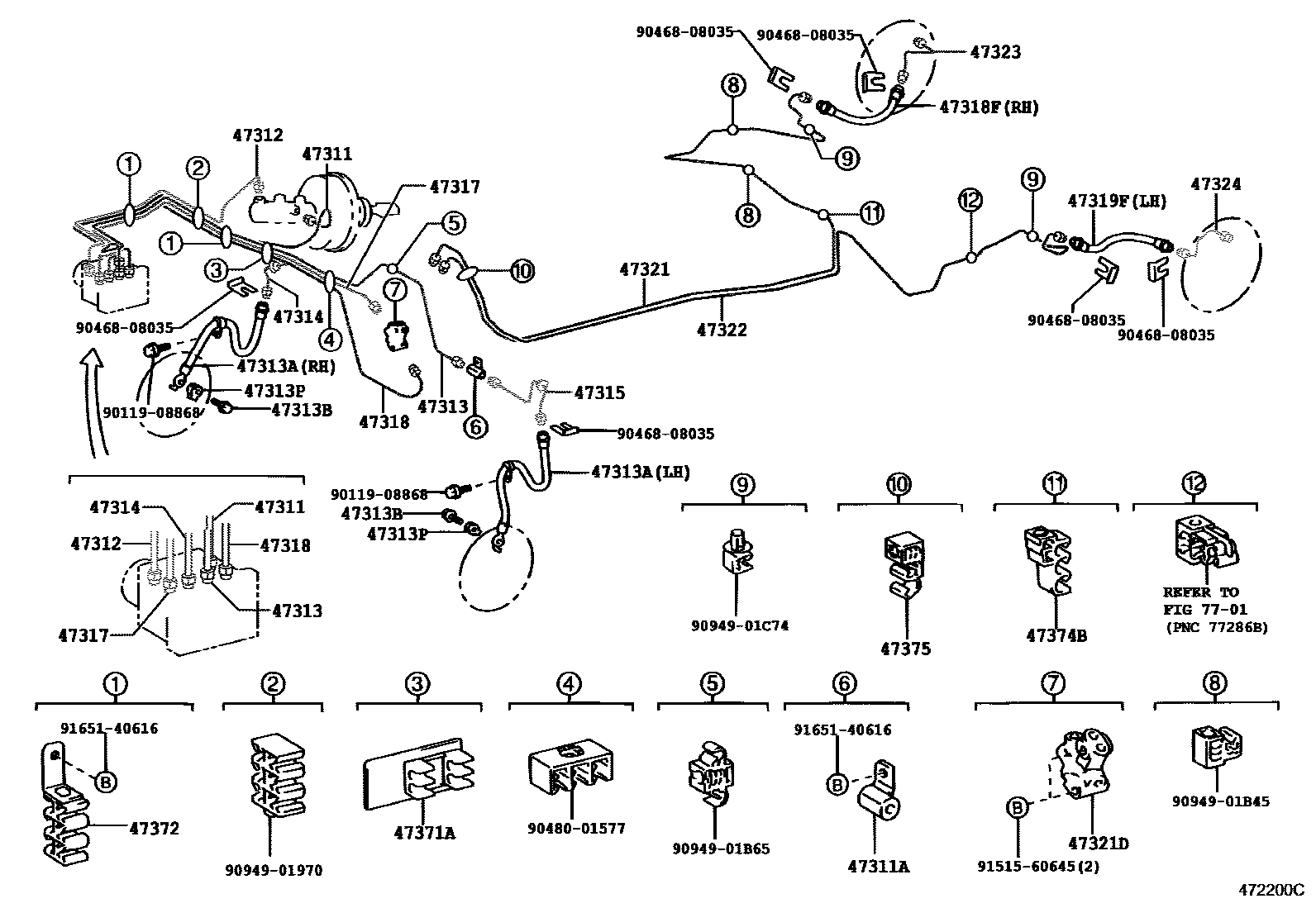

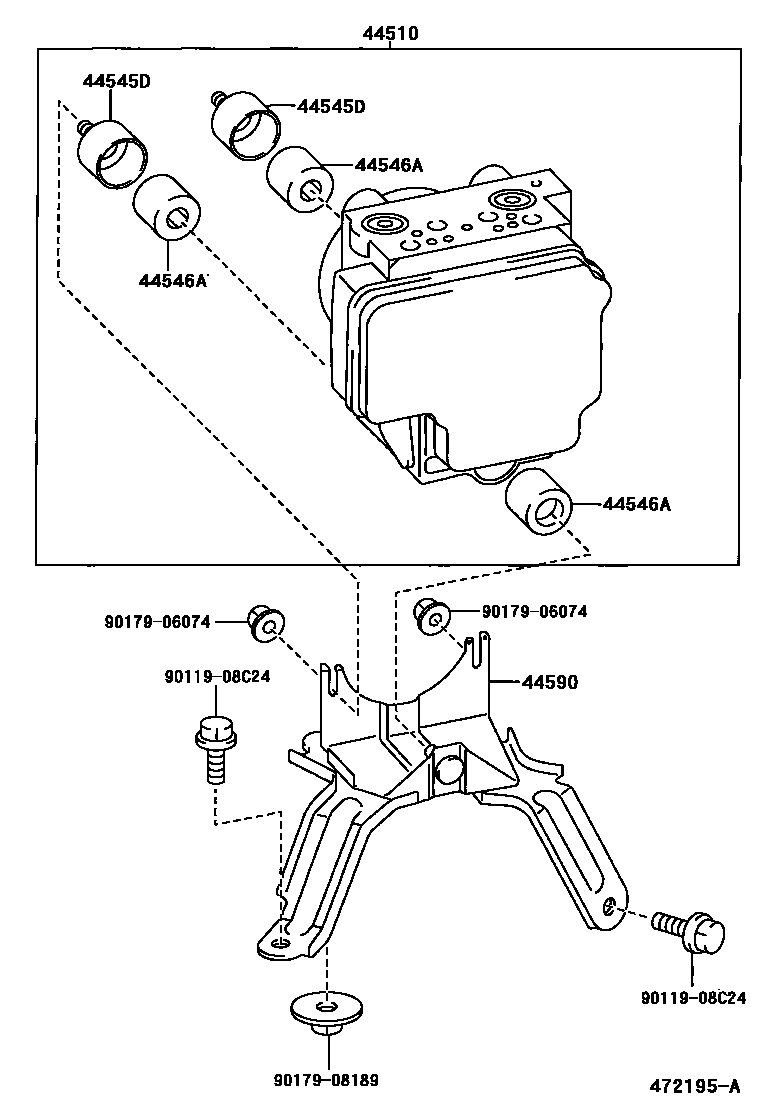

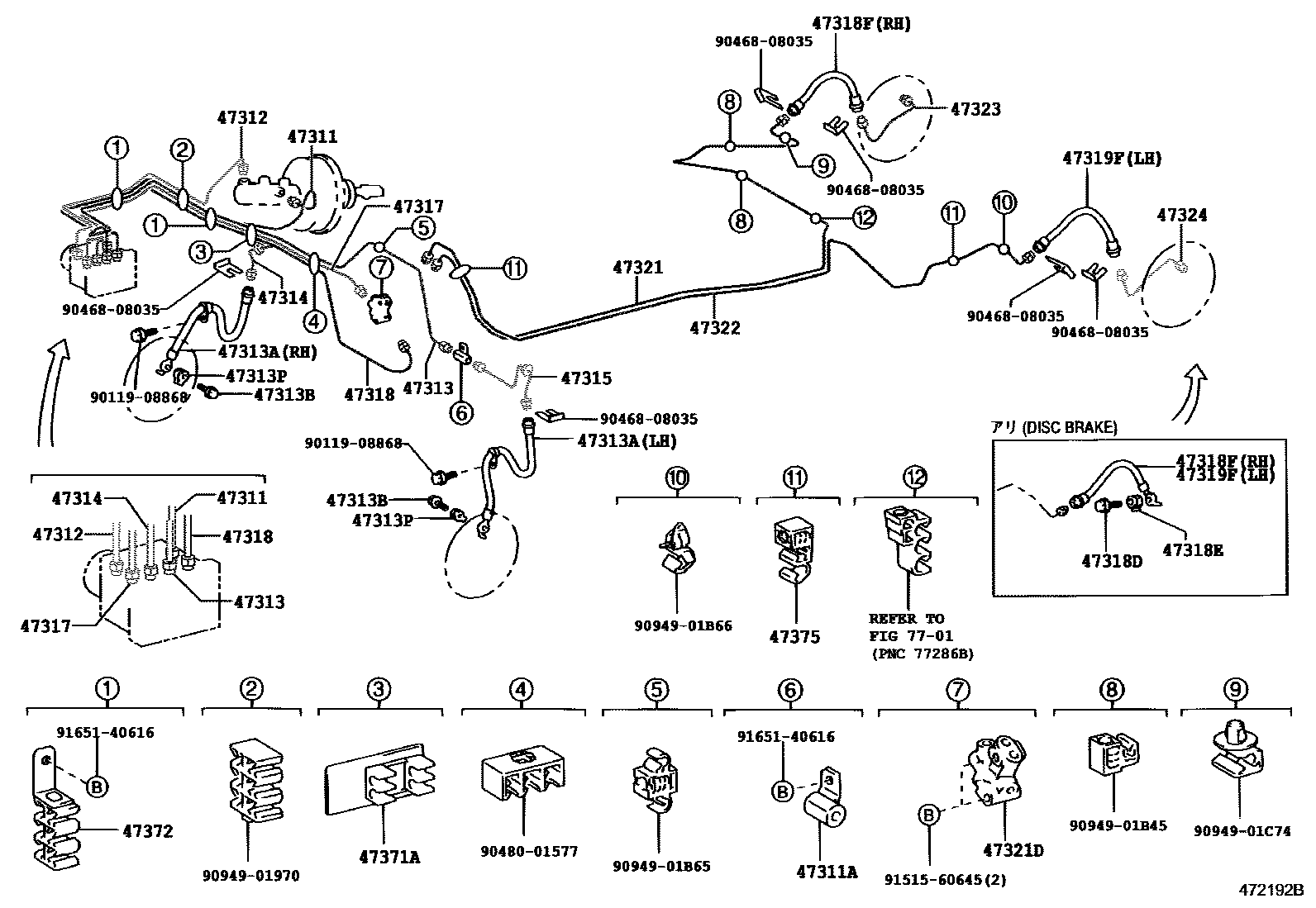

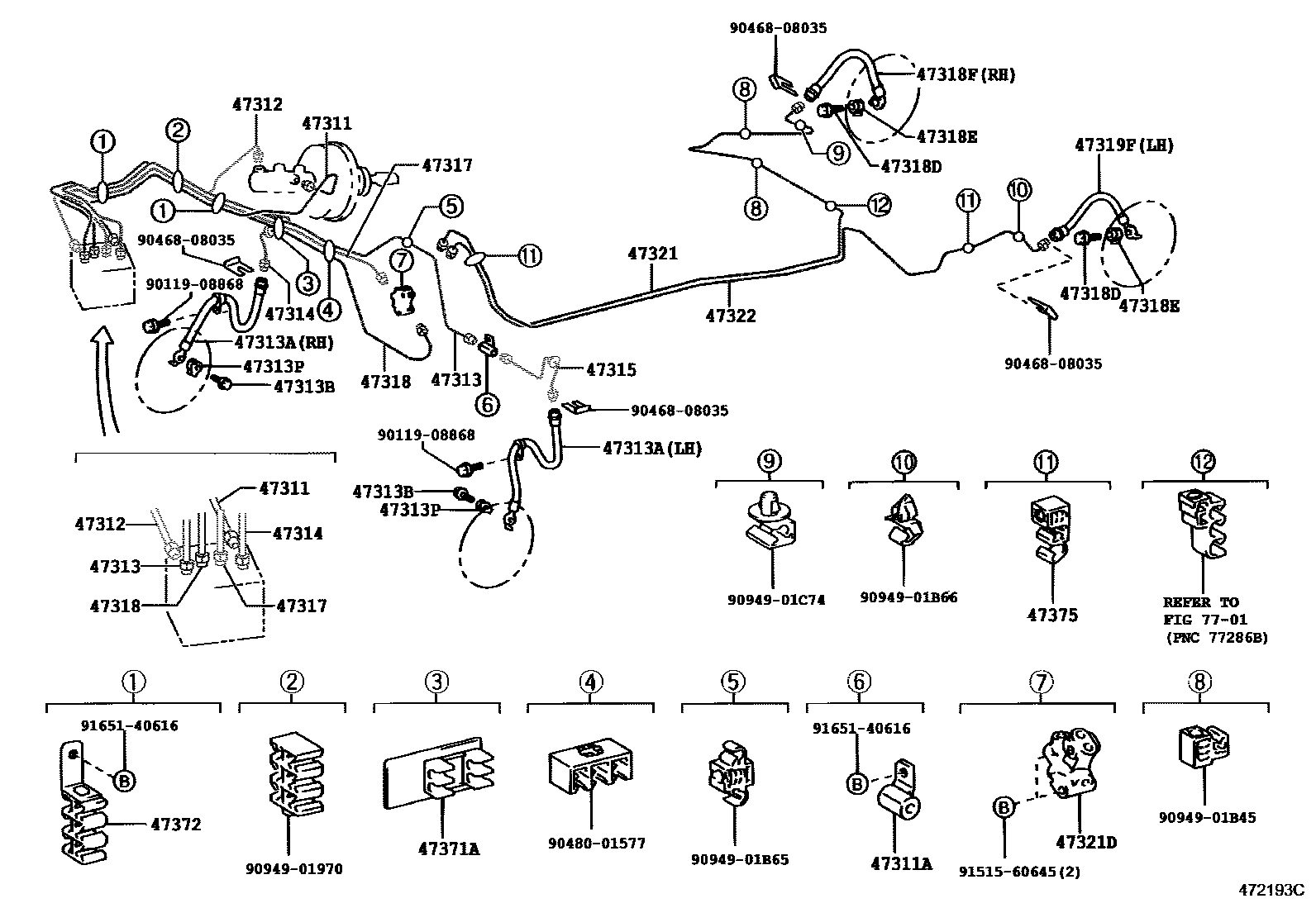

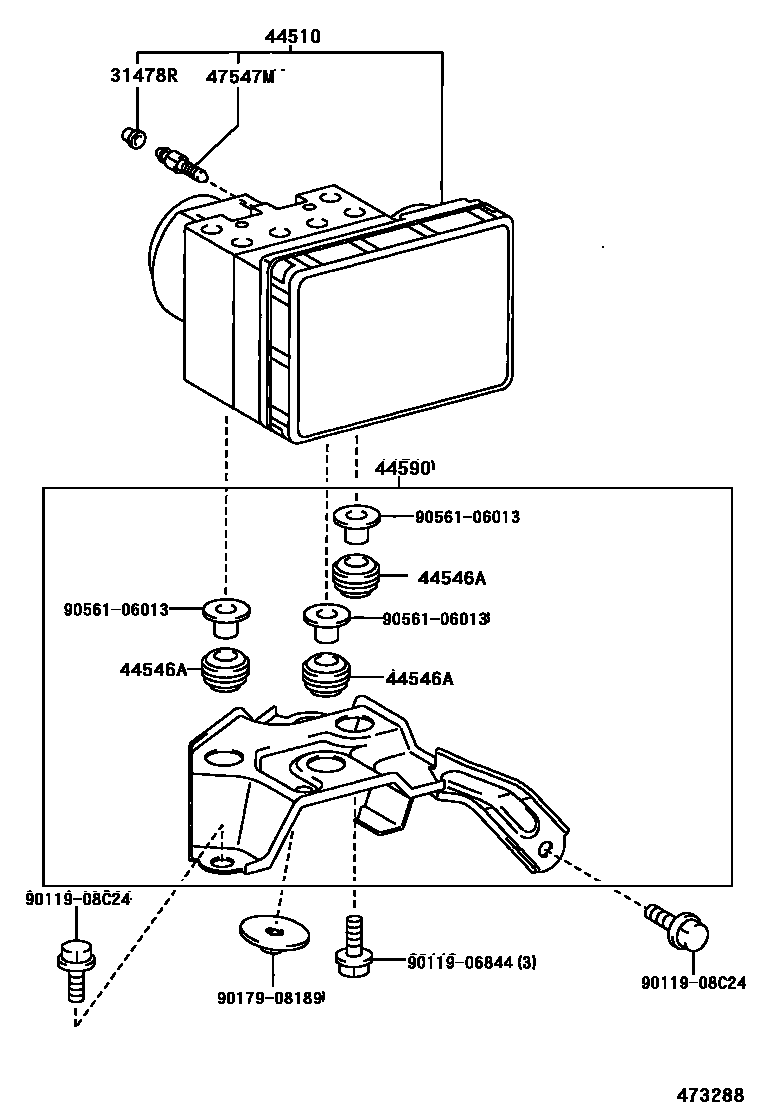

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478R | Bleed plug cap (for brake actuator) | 31478-30010 |
| 44510 | brake actuator assembly | 44050-12110 · 44050-12121 · 44050-12122 · 44050-12123 · 44050-12131 · 44050-12132 · 44050-12133 · 44050-12171 · 44050-12172 · 44050-12173 · 44050-13020 |
| 44545D | Brake actuator bolt mount | 44545-12010 |
| 44546A | Brake actuator bolt cushion | 44546-12010 · 44546-12100 |
| 44590 | Brake actuator bracket assembly | 44590-12060 · 44590-12070 |
| 47311 | No. 1 front brake pipe | 47311-12680 · 47311-12690 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10167 |
| 47312 | No. 2 front brake pipe | 47312-12410 · 47312-12420 |
| 47313 | No. 3 front brake pipe | 47313-12480 · 47313-12490 |
| 47313A | No. 1 front flexible hose | 90947-02C47 · 90947-02C48 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12420 · 47314-12430 |
| 47315 | No. 5 front brake pipe | 47315-12490 |
| 47317 | No. 7 front brake pipe | 47317-12190 · 47317-12210 |
| 47318 | No. 8 front brake pipe | 47318-12330 · 47318-12350 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10045 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02C25 · 90947-02C49 · 90947-02C50 |
| 47319F | Left rear flexible hose | 90947-02C25 · 90947-02C49 · 90947-02C50 |
| 47321 | No. 1 rear brake pipe | 47321-12280 · 47321-12300 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90904-12088 |
| 47322 | No. 2 rear brake pipe | 47322-12400 · 47322-12430 |
| 47323 | No. 3 rear brake pipe | 47323-20210 · 47323-63010 |
| 47324 | No. 4 rear brake pipe | 47324-20210 · 47324-63010 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47374B | No. 4 brake pipe clamp | 77286-12060 |
| 47375 | No. 5 brake pipe clamp | 77299-32030 |
| 47547M | Bleed plug (for brake actuator) | 47547-22020 |
