Toyota COROLLA 制动助力器和真空管 — Figure 4703

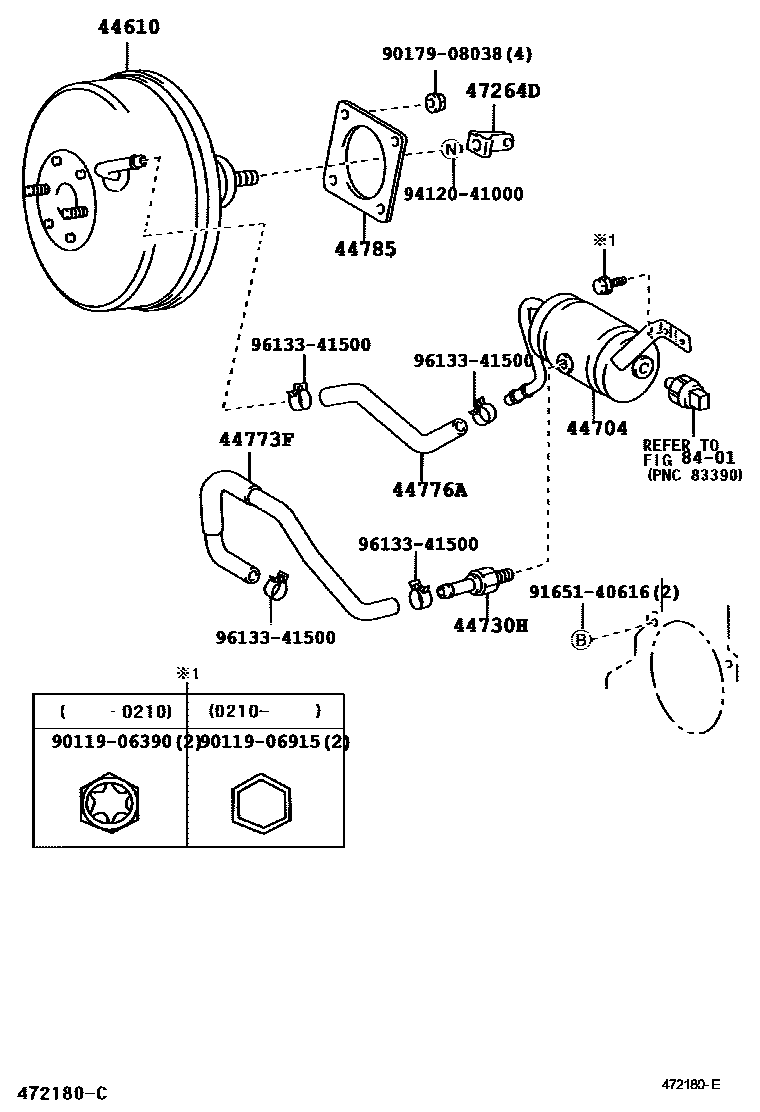

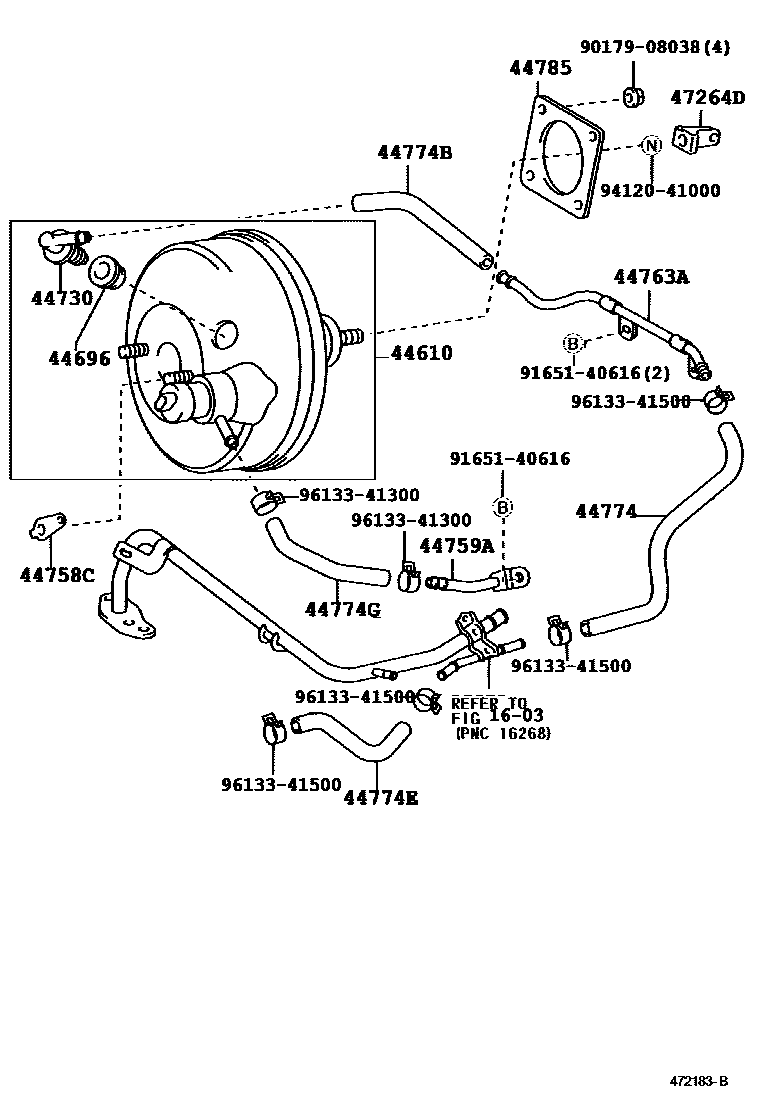

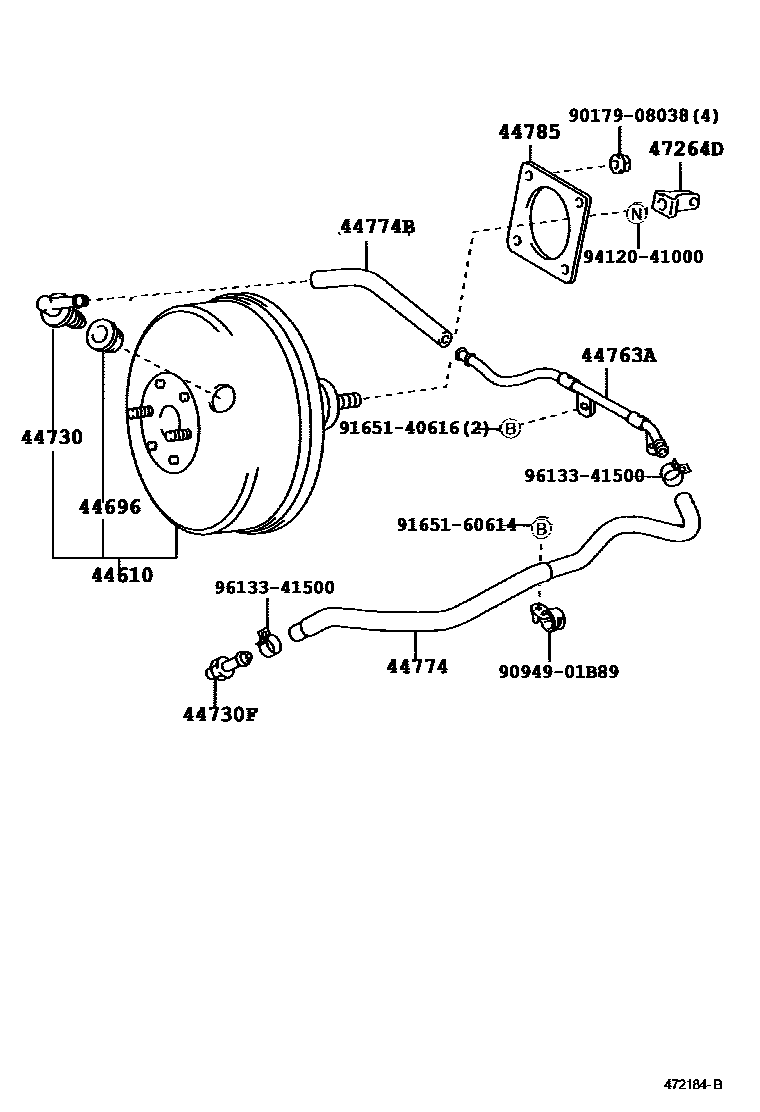

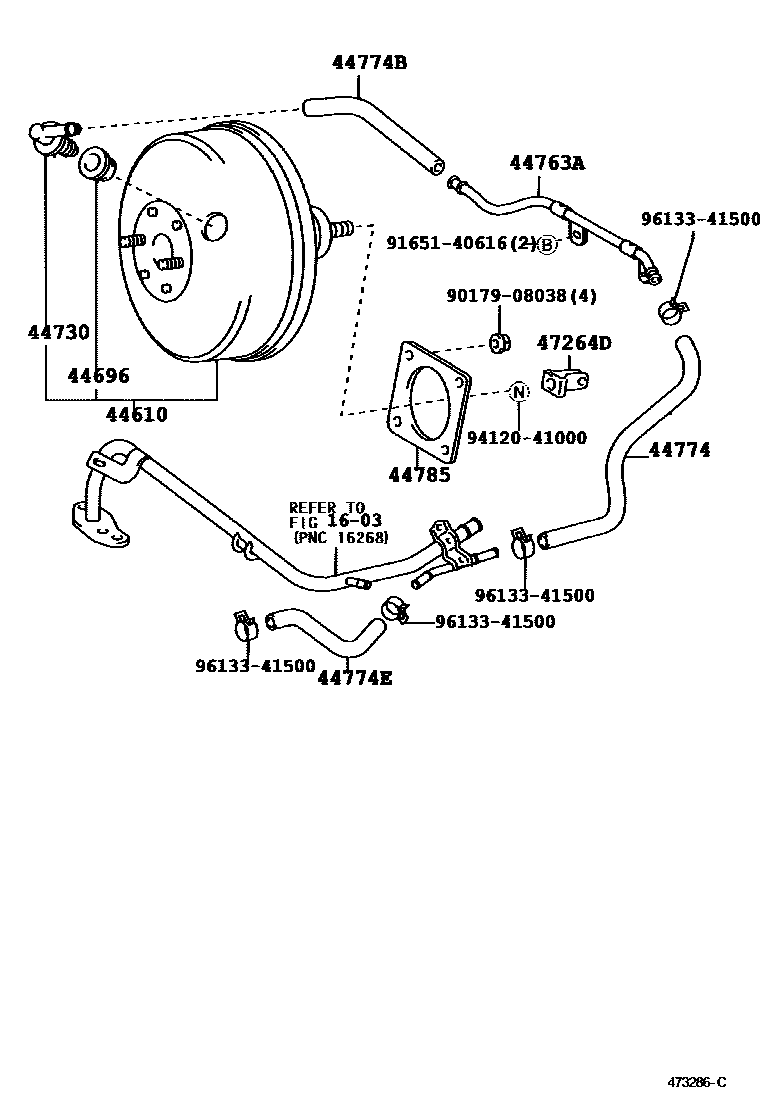

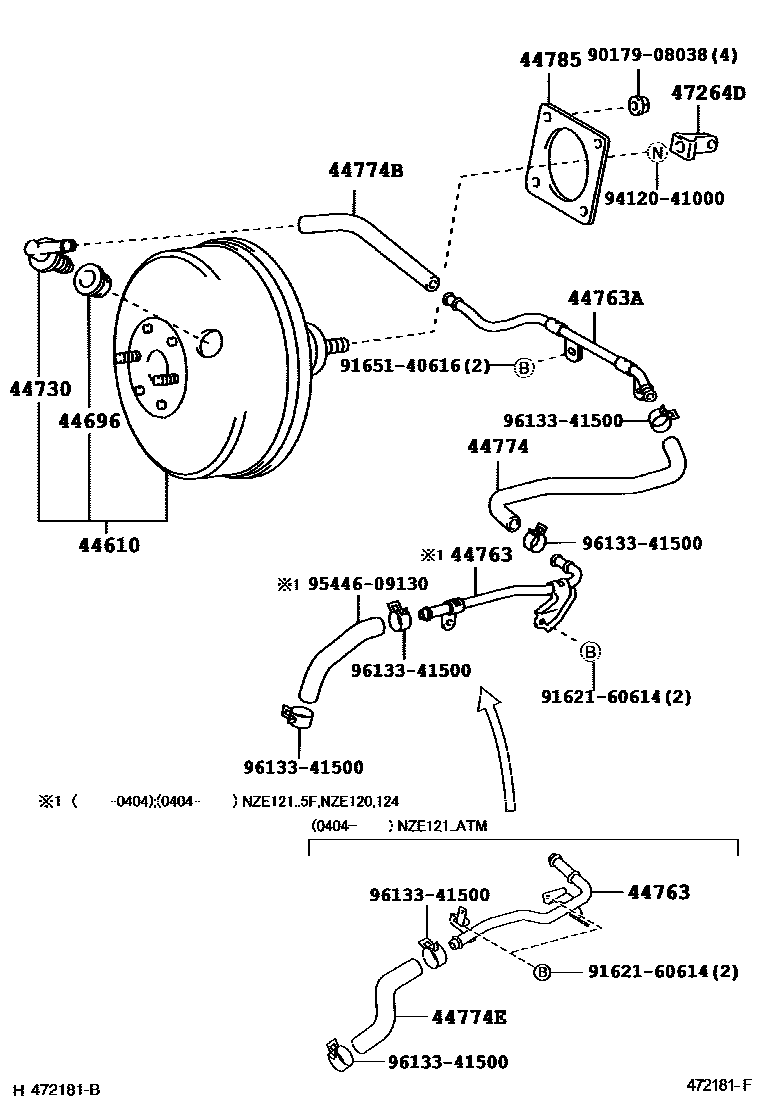

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-1E470 · 44610-1E490 · 44610-1E500 · 44610-1E510 |
| 44696 | One-way valve seal | 90480-24439 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-12110 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-14050 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-60050 |
| 44758C | Solenoid valve cover bracket | 44758-12360 |
| 44759A | Brake booster air hose connector | 44759-12060 |
| 44763 | booster vacuum tube | 44763-52010 · 44763-52030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12340 |
| 44773F | Hoses (connector to check valve) | 44773-12720 · 44773-12721 |
| 44774 | Hoses (joints to connector tubes) | 44774-12410 · 44774-12420 · 44774-12430 |
| 44774B | Hoses (joints to connector tubes) | 95446-09180 |
| 44774E | Hoses (joints to connector tubes) | 44774-20310 · 44774-52070 |
| 44774G | Hoses (connector to solenoid valve) | 44774-12460 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-12150 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-63010 |
